509 Fluid Video Head with 100mm half bal Manfrotto

Podrobný popis

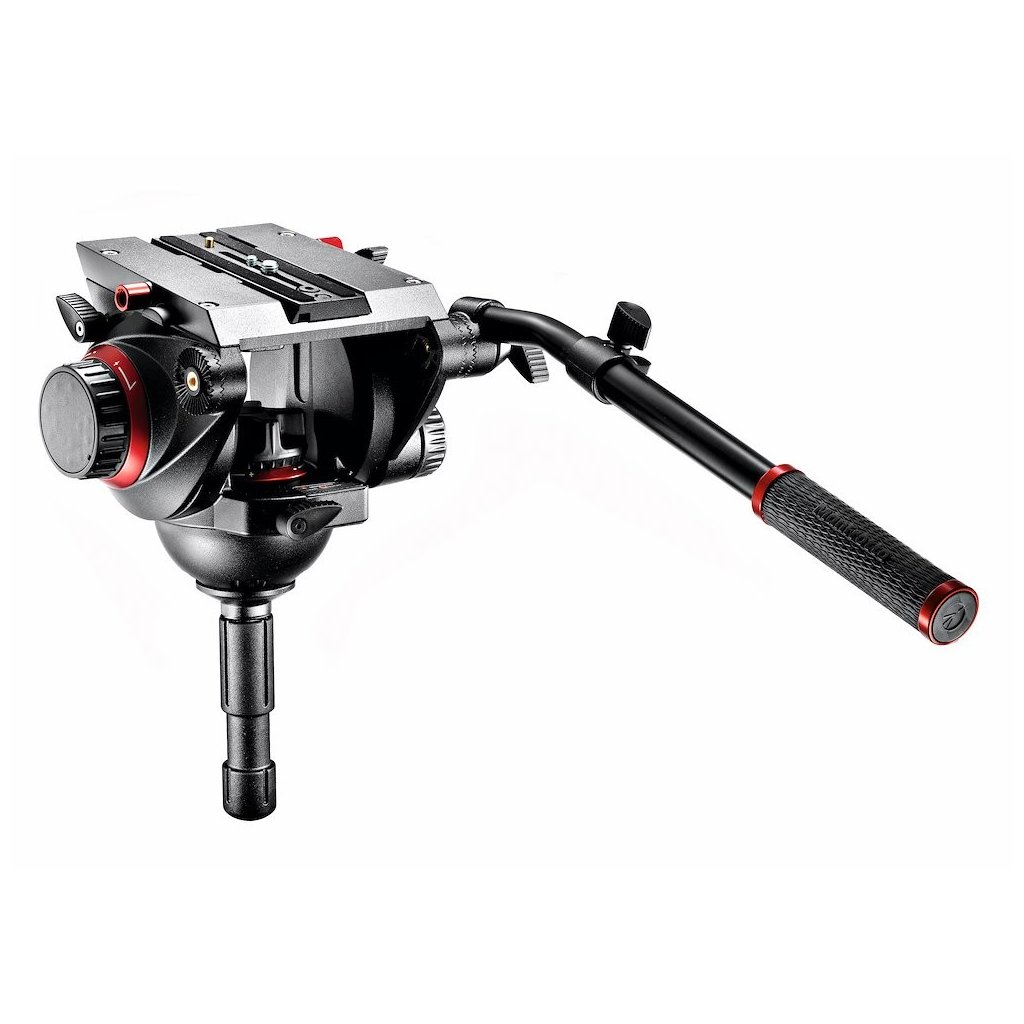

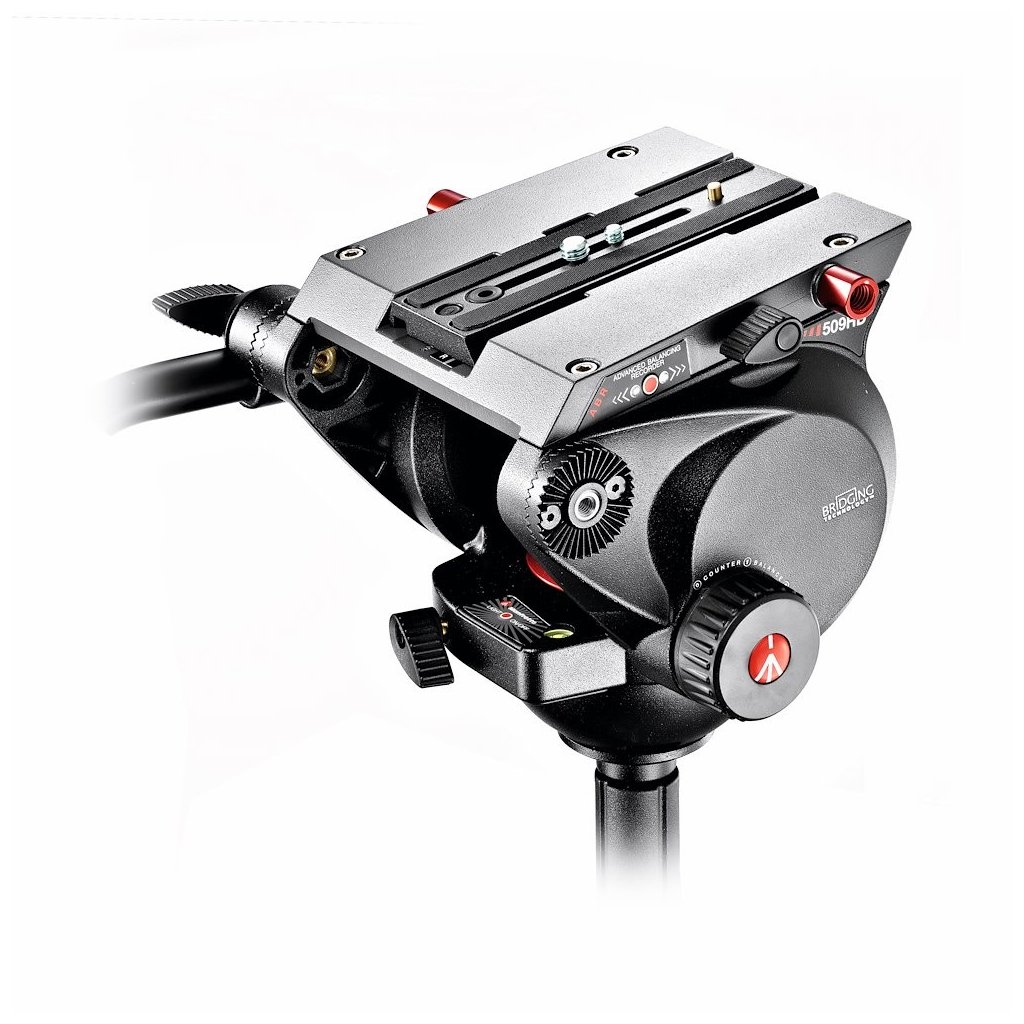

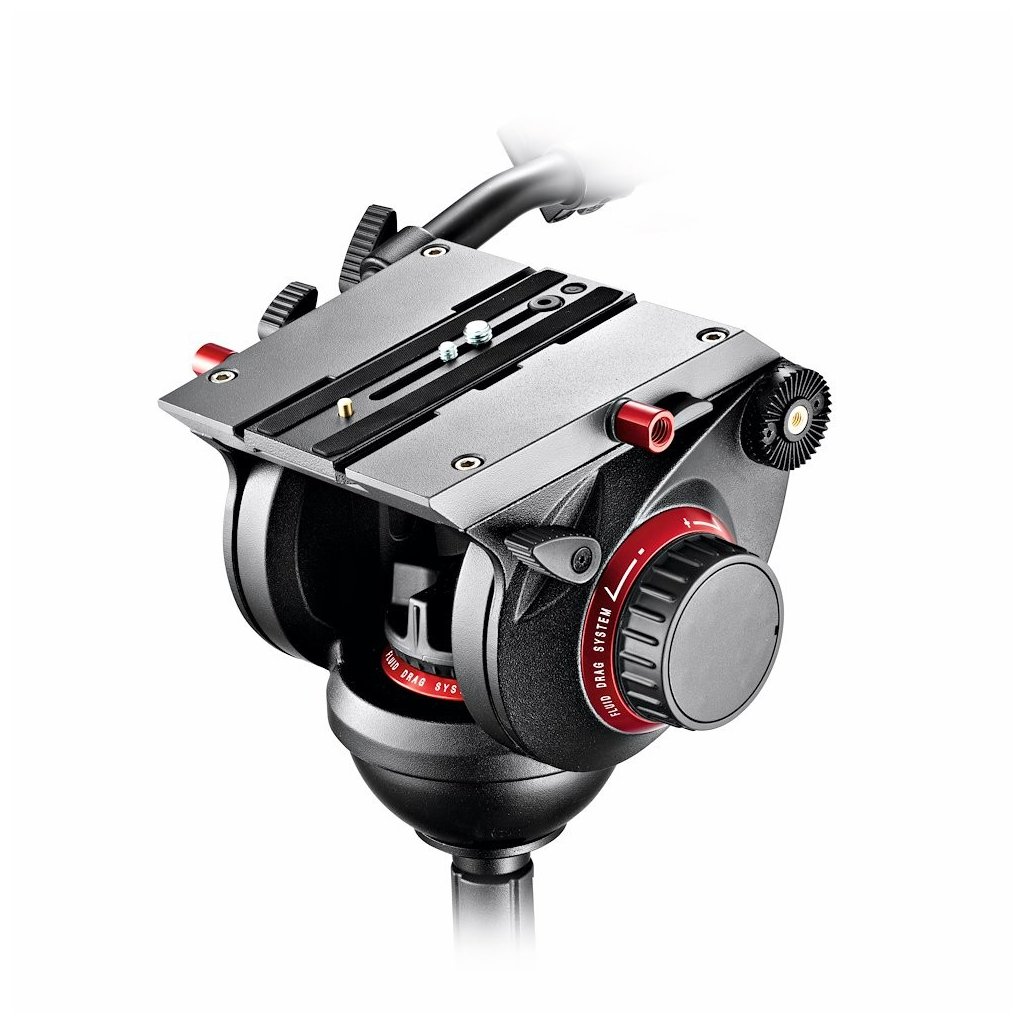

The Manfrotto 509HD Fluid Video Head with 100mm half ball is a professional video head designed for heavy camera rigs, delivering smooth, controlled pan and tilt movements with high payload capacity and precise balancing.

The Manfrotto 509HD Fluid Video Head represents a perfect balance between advanced engineering and practical performance for professional videographers. Built from durable aluminum, this robust head is engineered to support demanding broadcast, cinema, and professional video setups with maximum stability and control.

Equipped with a variable fluid drag system on both pan and tilt, the 509HD ensures exceptionally smooth movements, allowing operators to fine-tune resistance from zero to maximum depending on shooting conditions. The 4-step counterbalance system provides reliable support for camera rigs up to 12.8 kg at 55 mm C.O.G. or 8.5 kg at 125 mm C.O.G., while the maximum safety payload reaches 13.5 kg, fully compliant with UNI/PdR 105:2021 safety standards.

Fast setup and accurate balancing are made easy thanks to the long sliding quick-release plate (509PLONG) and Manfrotto’s ABR (Advanced Balancing Recorder), which records the correct balancing position to save time when remounting equipment. Levelling is quick and precise using the integrated Ø100 mm half ball and backlit bubble spirit level, ideal for low-light environments.

For expanded rig configurations, the Easy Link 3/8" threaded connections allow external accessories such as monitors, microphones, or arms to be attached directly to the head. Designed to perform reliably across a wide temperature range, the 509HD is a dependable choice for studio and field production alike.

Key Features

• Variable fluid drag system on pan and tilt for smooth, controlled movement
• 4-step counterbalance system for precise camera balancing
• Integrated Ø100 mm levelling half ball
• Long sliding quick-release plate for fast setup
• ABR (Advanced Balancing Recorder) for repeatable balance accuracy
• Easy Link 3/8" threads for accessory mounting
• Backlit bubble spirit level for quick levelling
• UNI/PdR 105:2021 certified for maximum safety

• Manfrotto 509HD Fluid Video Head
• Pan bar
• 509PLONG sliding quick-release plate

• Weight: 3.9 kg
• Material: Aluminum
• Safety Payload (UNI/PdR 105:2021): 13.5 kg
• Counterbalance Capacity: 8.5 kg
• Center of Gravity Reference: 125 mm
• Maximum Payload:13.5 kg at 55 mm C.O.G.,9 kg at 125 mm C.O.G.
• Pan Drag: Continuously adjustable
• Tilt Drag: Continuously adjustable
• Panoramic Rotation: 360°
• Front Tilt: -60° / +90°
• Levelling System: 100 mm half ball
• Plate Type: 509PLONG
• Quick Release: Yes
• Easy Link: Yes
• Top Attachment: 1/4″ and 3/8″ screws
• Pan Bar Included: Yes
• Working Height: 18 cm
• Operating Temperature: -20 °C to +60 °C
• Color: Black
