819/C Monitor Lilliput

Podrobný popis

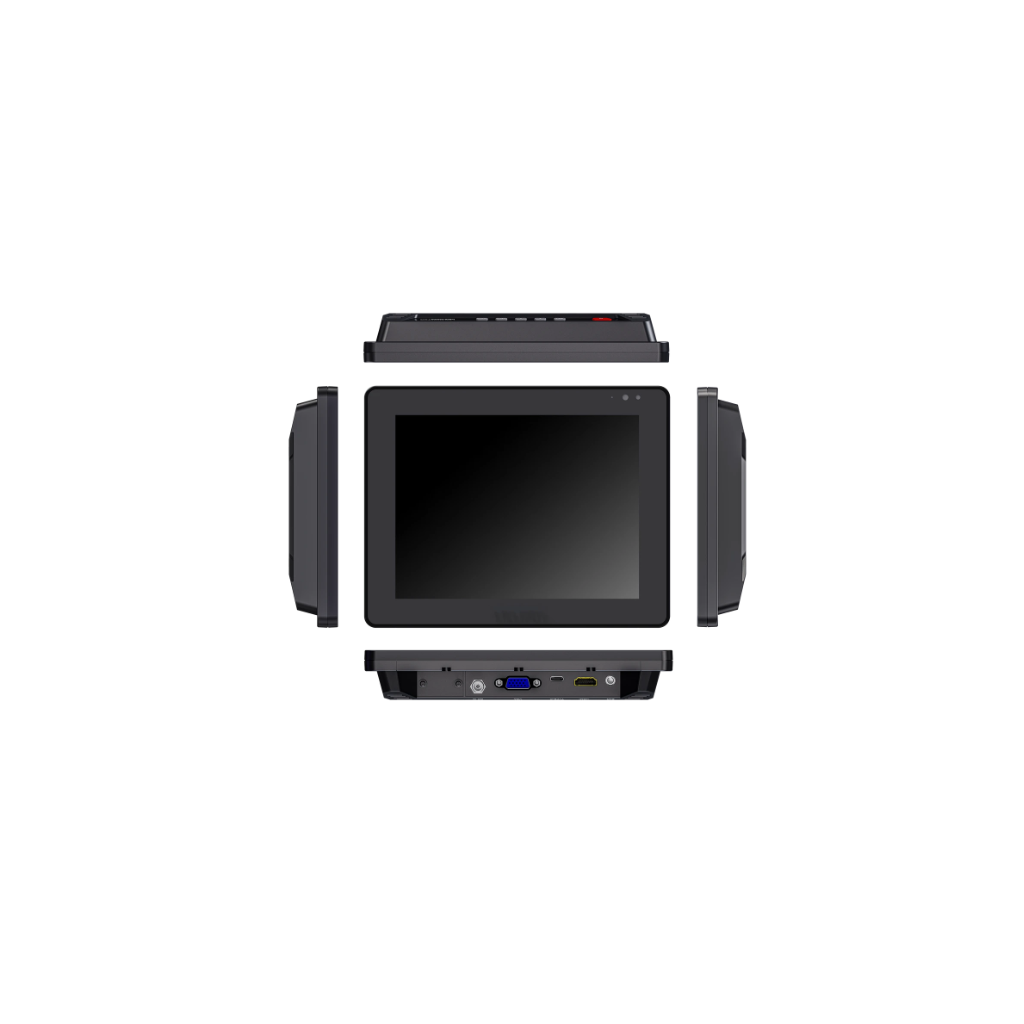

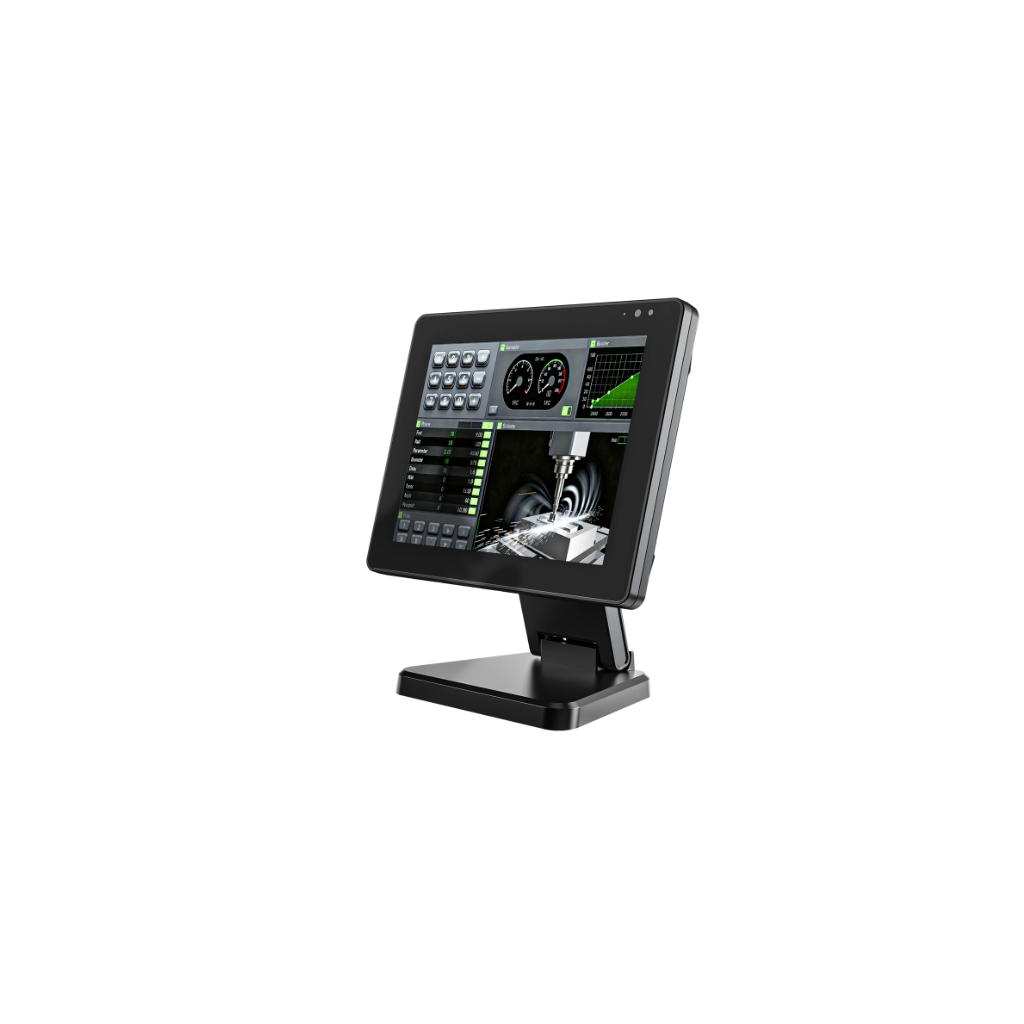

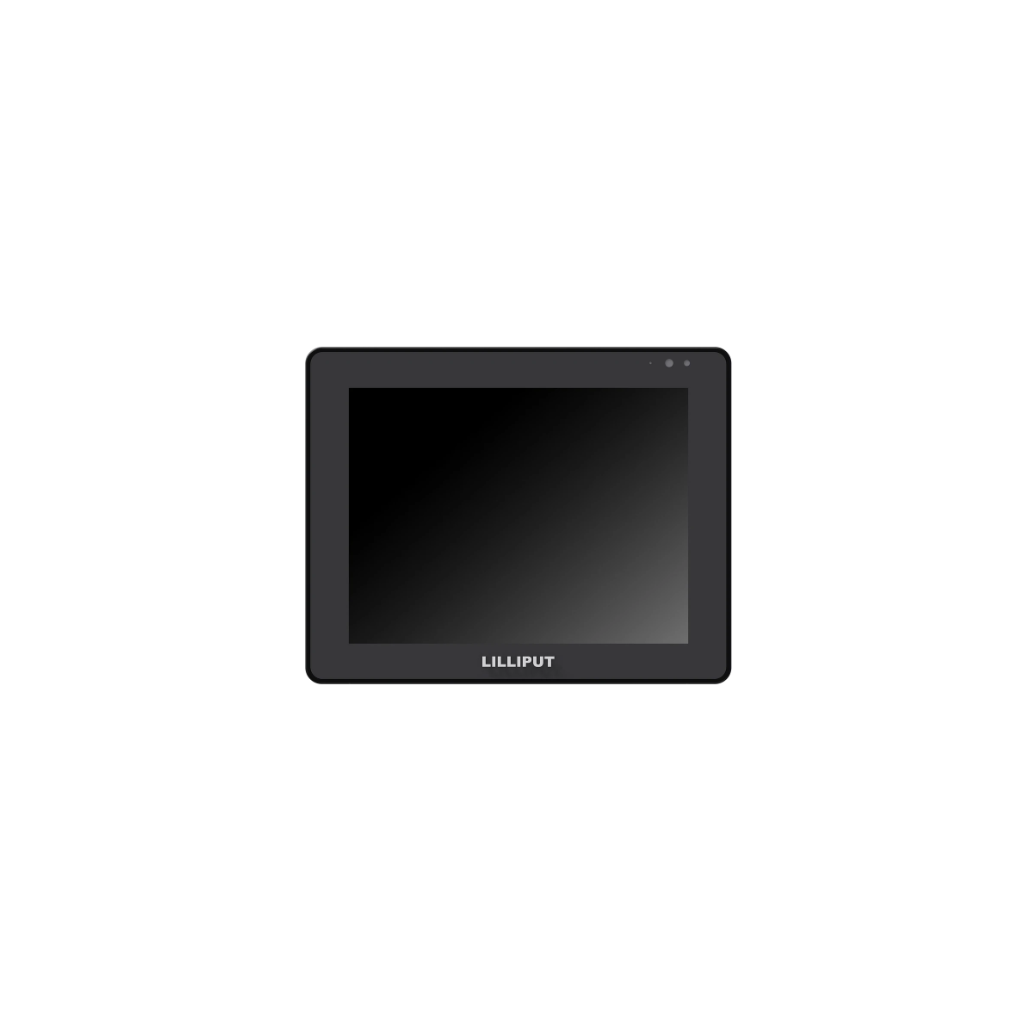

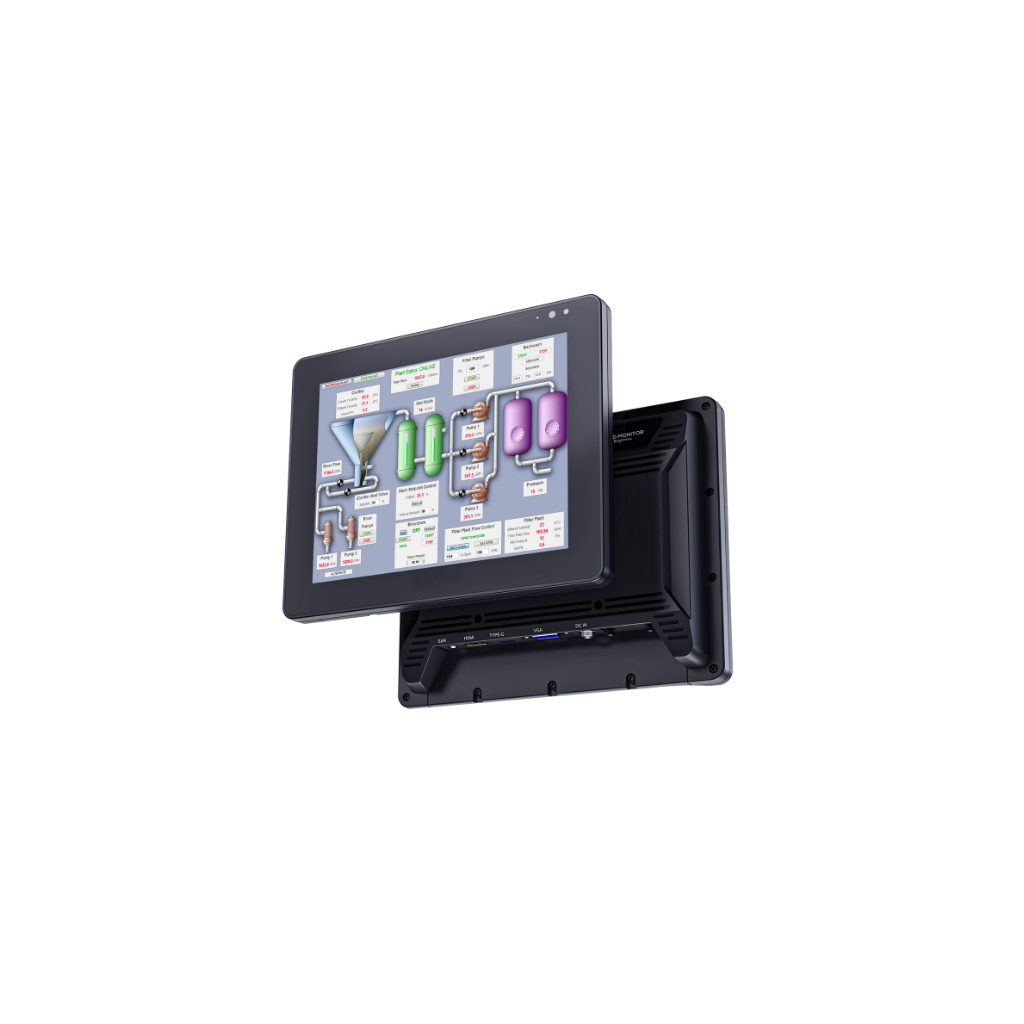

The Lilliput 819/C 8-inch Non-Touchscreen Monitor is a compact and durable industrial display featuring a 1000-nit high-brightness screen, 4:3 aspect ratio, and IP65-rated front panel. With HDMI and VGA inputs, it is ideal for embedded systems, control panels, and outdoor applications.

The Lilliput 819/C 8-inch Non-Touchscreen Monitor is engineered for industrial and professional environments that require reliability, clarity, and compatibility. Its 8-inch LCD panel offers a resolution of 1024×768 in a 4:3 aspect ratio, making it well-suited for legacy systems and specialized applications. With a brightness of 1000 nits and wide 170° viewing angles, the display ensures excellent visibility even in bright or outdoor conditions.

Unlike touchscreen variants, the 819/C is a non-touch model, making it ideal for setups where touch input is not required or external control systems are used. The IP65-rated front panel provides protection against dust and water, enhancing durability in demanding environments such as industrial automation, kiosks, and field installations. Optional anti-glare and anti-fingerprint coatings further improve usability.

The monitor supports HDMI and VGA inputs, ensuring compatibility with both modern and legacy devices. It can handle signals up to 4K via HDMI (scaled to native resolution) and up to 1080p via VGA. Built-in audio support, including a speaker and 3.5mm headphone jack, adds convenience for monitoring applications.

With a wide DC 9–36V input range, low power consumption, and robust operating temperature tolerance, the 819/C is designed for stable performance across a wide variety of use cases.

Key Features

• 8" LCD display with 1024×768 resolution (non-touch)
• High brightness 1000 nits for excellent visibility
• IP65-rated front panel (dust and water resistant)
• HDMI and VGA inputs for broad compatibility
• 4:3 aspect ratio ideal for industrial and legacy systems
• Wide 170° viewing angles
• Optional anti-glare and anti-fingerprint coating
• Built-in speaker and headphone output
• Wide voltage input (DC 9–36V)
• Rugged plastic housing for industrial environments

• Lilliput 819/C 8-inch Monitor

Display

• Panel: 8" LCD (LED backlight)
• Resolution: 1024 × 768
• Aspect Ratio: 4:3
• Brightness: 1000 nits
• Contrast Ratio: 800:1
• Viewing Angle: 170° (H/V)
• Panel Lifetime: 50,000 hours
• Optional Coating: Anti-glare, anti-fingerprint

Input

• 1 × HDMI
• 1 × VGA
• USB Type-C (video signal support where applicable)

Supported Formats

• HDMI / USB-C: Up to 4K (2160p) supported (scaled)
• VGA: Up to 1080p

Audio

• Built-in speaker (1)
• 3.5mm headphone jack (2ch, 48kHz, 24-bit)
• HDMI audio support

Power

• Input Voltage: DC 9–36V
• Power Consumption: ≤11W (at 12V)

Environmental

• Operating Temperature: -25°C to +75°C
• Storage Temperature: -35°C to +85°C
