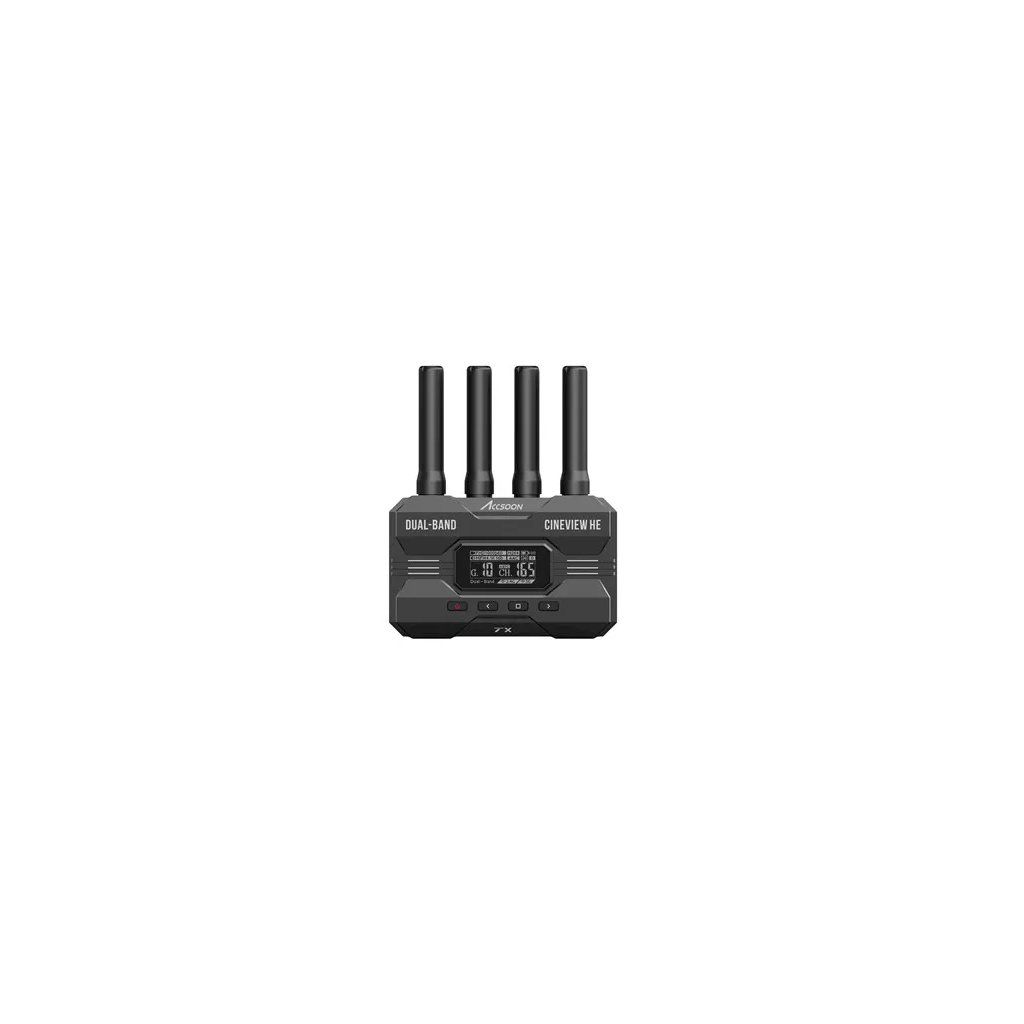

Accsoon Cineview HE TX -WIT04-HE-TX Accsoon

Monitor away from the camera

Mount this TX on the camera rig and connect the camera’s HDMI output. A separately purchased compatible RX feeds a remote HDMI monitor; a phone or tablet can receive directly in Accsoon SEE. The exact HE manufacturer photograph illustrates the complete camera/monitor workflow, rather than the contents of this transmitter-only package.

Two bands for one picture

CineView HE transmits the picture simultaneously over 2.4 and 5 GHz. The receiver compares both data streams and combines them into the output picture, helping reduce the impact of interference. Diagram: 1 and 2 show losses on each band, 3 their combination in RX and 4 the recovered picture. Performance still depends on the surrounding radio environment.

Range up to 350 metres

The manufacturer specifies a range up to 350 m with line of sight, no obstructions and no interference. Wireless transmission latency is below 60 ms and excludes camera latency. This combination supports on-set monitoring; reception distance on a phone can differ from that of a hardware receiver.

HDMI at the camera, HDMI and UVC at RX

This TX provides full-size HDMI input and local HDMI loop-out for an on-camera monitor. The wired loop-out does not add wireless transmission latency. The right-hand RX in the diagram is purchased separately: its HDMI and USB-C UVC outputs are not ports on this transmitter. HE carries Full HD up to 60p and PCM audio; it does not accept 4K or SDI.

Up to four receiving devices

One TX supports a maximum of four wireless receiving devices in total. Combine separately purchased compatible hardware RX units with phones or tablets running Accsoon SEE for iOS and Android: for example 1 RX + 3 mobile devices, or 4 RX. A phone receives directly from TX; a wired monitor after RX consumes no extra wireless slot. This package contains only one transmitter.

Video to a computer without a capture card

1 · UVC: a separately purchased HE receiver connects to a computer using a USB-C data cable, allowing software such as OBS to use the picture without an extra capture card. This TX has no UVC data output. 2 · RTMP: Accsoon SEE on a phone or tablet uses that mobile device’s Internet connection. TX does not stream directly to the Internet; platform support depends on the app and the destination’s current terms.

Accsoon SEE monitoring tools

Mobile reception adds exposure, colour, framing and focus tools, recording and live streaming in Accsoon SEE. The numbered legend follows the manufacturer’s icons. The interface screenshot illustrates the app; CineView HE transmission remains Full HD.

1. Monochrome preview
2. Histogram
3. LUT
4. Mirror
5. Zebra
6. False colour
7. Overlay
8. Waveform
9. Vectorscope
10. Audio
11. Markers
12. Focus
13. RGB
14. Screenshots
15. Grids
16. Display correction

Power to suit your rig

Power this transmitter from an NP-F550/750/970 battery, 7.4–16.8 V DC or a 5 V USB-C source rated at least 2 A. The DC connector is 5.5 × 2.1 mm, centre positive. TX’s USB-C is a power input; the UVC data port shown on RX belongs to a separately purchased receiver. Batteries, supplies and power cables are not included. USB-C does not charge an NP-F battery.
