Accsoon CineView Master 4K Accsoon

Podrobný popis

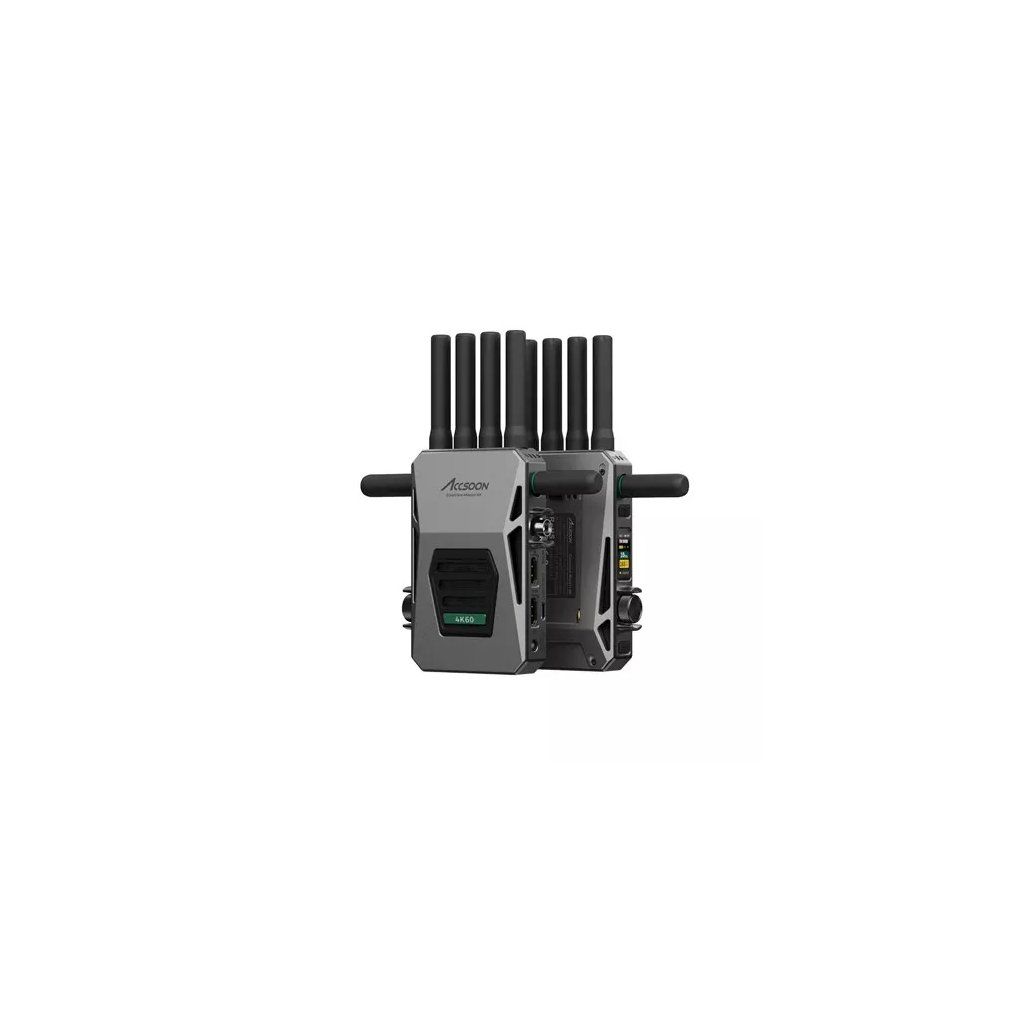

Accsoon CineView Master 4K 1TX + 1RX. A one-transmitter, one-receiver kit for wireless UHD monitoring via HDMI and Full HD via SDI. The system uses RTMS 4.0 and simultaneous 2.4/5/6 GHz transmission for a director, focus puller or remote monitoring station. It supports UHD 3840 × 2160 up to 60p, H.264/H.265, four wireless viewing devices per TX plus one wired iPhone/iPad, and latency below 25 ms at 1080p60 or below 35 ms at 4K60 in low-bitrate mode excluding the camera. Each unit has six antennas, a 1.05″ colour LCD, an aluminium housing and NP-F or 7.4–16.8 V DC power. The manufacturer’s 2.5 km measurement applies to 1080p60 low-bitrate mode under FCC conditions with clear line of sight and no interference; actual permitted operation and range depend on location. Batteries, power supplies and monitors are purchased separately.

ACCSOON CINEVIEW MASTER 4K · 1TX + 1RX

4K video for your crew

A one-transmitter, one-receiver kit for wireless UHD monitoring via HDMI and Full HD via SDI.

UHD 4K602.4 / 5 / 6 GHzHDMI + SDI

A remote view for your crew

The manufacturer photograph shows Master 4K on set. UHD up to 60p helps the director or focus puller assess detail without running a video cable across the set. Cameras, monitors and batteries shown are separate equipment.

Three bands, coordinated streams

RTMS 4.0 coordinates transmission across 2.4, 5 and 6 GHz with DFS. The 8K-capable processor manages simultaneous streams; actual video remains UHD 4K60. Attach the six antennas correctly: four long 2.4/5 GHz antennas and two short 6 GHz antennas per unit.

One camera, several viewing paths

The diagram shows TX input, wireless RX, TX HDMI loop output and USB-C video to iOS. One TX feeds four wireless viewing devices in total, mixing compatible receivers and mobiles, plus one wired iPhone/iPad. Each RX uses one wireless slot. RX HDMI outputs UHD up to 60p; SDI remains Full HD up to 60p. Mobile recording and Internet streaming run in Accsoon SEE. Match TX/RX group numbers. Extra devices shown are purchased separately.

Match the port to the signal

Above: TX with 3G-SDI input up to 1080p60, HDMI input/loop-out up to UHD 4K60, USB-C video to iPhone/iPad and DC input. Below: RX with 3G-SDI output up to 1080p60, HDMI output up to UHD 4K60 and DC input. RX has no USB video output. SDI input supports A/B; RX output uses A. HDMI loop-out follows the HDMI input format.

Keep the 4K detail

The 4K stream serves wireless and wired iOS monitoring. This photograph shows Master 4K RX feeding a monitor via HDMI.

A separate wired stream

TX provides a dedicated high-bitrate 1080p USB-C stream to iPhone/iPad. Its bitrate is adjusted separately from wireless video in Accsoon SEE.

A mobile view over Wi-Fi

The 1080p wireless stream serves mobile monitoring via Accsoon_XXXX Wi-Fi. Each wireless mobile uses one of TX’s four wireless viewing slots.

NP-F or external DC power

Use NP-F550/750/970 or 7.4–16.8 V DC, 5.5 × 2.1 mm centre positive, from a source rated at least 2 A. Hot swapping requires the alternate supply to stay connected. Typical consumption: TX 6.5 W excluding mobile charging; RX 5 W. The illustrated optional V-Lock adapter fits Master 4K TX, not RX; it is purchased separately.

Set cooling for the location

The aluminium unit has an active fan with Standard, Quiet and Off modes. Standard adjusts speed with temperature; Quiet limits its maximum speed. The 1.05″ colour LCD and rotary control show and adjust connection, format, channel and group settings. The anti-rotation 1/4″ mount secures the unit to a suitable rig. Body dimensions are 130 × 95 × 32 mm excluding antennas.

Judge the intended look

This official Accsoon SEE split-screen example compares the LUT preview with the original picture. The app supports 3D .cube LUTs and monitoring aids such as waveform, false colour and focus peaking. A viewing LUT helps assess Log footage; app options can also apply it to mobile recording or streaming. Check the selected mode before recording.

Prepare a mobile recording

The illustrated SEE control panel distinguishes LUT, rotation and wired USB bitrate. Rotate the mobile recording/stream by 90°, 180° or 270° as required for delivery. App recording is a monitoring copy; retain the camera’s master files. Features depend on device and app version.

Stream from Accsoon SEE

The app provides RTMP/SRT streaming through the mobile device’s own Internet connection. Configure the service URL and stream key and provide cellular Internet while receiving video over Wi-Fi. Frame.io cloud workflows require a suitable account and Internet connection. The graphic uses technical labels as an explanatory illustration, rather than promising a localized app interface.

Prepare the system

TX’s MFi-certified USB-C output sends video and 5 V/3 A power to one supported iPhone/iPad; it is not a USB-C power input or generic PC capture output. For Lightning use Accsoon’s dedicated cable. Compatible mobile examples include iPhone 12 or later, iPad Pro 12.9″ generation 3 or later, iPad Pro 11″ generation 3 or later, iPad generation 9 or later, Air generation 4 or later and mini generation 6 or later. Wireless monitoring also supports Android and supported M1/M2/M3 Macs. Use current firmware and app. Wireless bitrate affects RX and wireless app views; the independent wired setting affects USB video. CBR/VBR options allow the bitrate behaviour to be selected. TX weighs 322 g without antennas.

• Transmitter CineView Master 4K TX ×1
• Receiver CineView Master 4K RX ×1
• Cold shoe adapter ×2
• Long 2.4/5 GHz antenna ×8
• Short 6 GHz antenna ×4
• USB-C → USB-C cable ×1
• USB-C → Lightning cable ×1
• Allen key ×1
• User manual ×1

• Package: 1TX + 1RX
• Wireless video: UHD 3840 × 2160; ≤60p; H.264/H.265
• Bands / protocol: 2.4 + 5 + 6 GHz; DFS; RTMS 4.0
• Processor: 8K-capable A/V processor; 4K60 video path
• Range measurement: 2.5 km; 1080p60 low bitrate; FCC; clear LOS without interference
• Latency: <25 ms 1080p60 / <35 ms 4K60; low bitrate; camera excluded
• Viewing devices per TX: 4 wireless + 1 wired iPhone/iPad
• Audio: Embedded HDMI/SDI; 48 kHz; 16/20/24 bit
• Battery: NP-F550/750/970
• DC: 7.4–16.8 V; ≥2 A; 5.5 × 2.1 mm; centre positive
• LCD: 1.05″; full colour
• Body dimensions: 130 × 95 × 32 mm; antennas excluded
• Housing: Grey aluminium
• Mount: 1/4″; anti-rotation
• Antennas per unit: 6 detachable: 4 long + 2 short
• Cooling: Active fan: Standard / Quiet / Off
• Operating temperature: −10–40 °C
• TX inputs: HDMI / 3G-SDI
• TX HDMI IN: UHD / 1080p: 23.98/24/25/29.97/30/50/59.94/60p; 1080i50/59.94/60; 720p50/59.94/60
• TX SDI IN: 1080p: 23.98/24/25/29.97/30/50/59.94/60; A/B; 1080i50/59.94/60
• TX HDMI loop-out: Identical to HDMI input
• TX USB-C: Video to iPhone/iPad; MFi; 5 V / 3 A power output
• TX typical consumption: 6.5 W; mobile charging excluded
• TX weight: 322 g; antennas excluded
• RX outputs: HDMI / 3G-SDI
• RX HDMI OUT: UHD / 1080p: 23.98/24/25/29.97/30/50/59.94/60p; 720p50/60
• RX SDI OUT: 1080p: 23.98/24/25/29.97/30/50/59.94/60; A; 720p50/60
• RX typical consumption: 5 W
• RX weight: 320 g; antennas excluded
