Accsoon Cineview Quad 1T4R combo Accsoon

Kód: AACC-WIT04-QS-1T4RX

Značka: Accsoon

Accsoon Cineview Quad 1T4R combo Accsoon

€1 445,25 €1 175 bez DPH

Vypredané

Položka bola vypredaná…

Detailné informácie

Popis
Diskusia

Podrobný popis

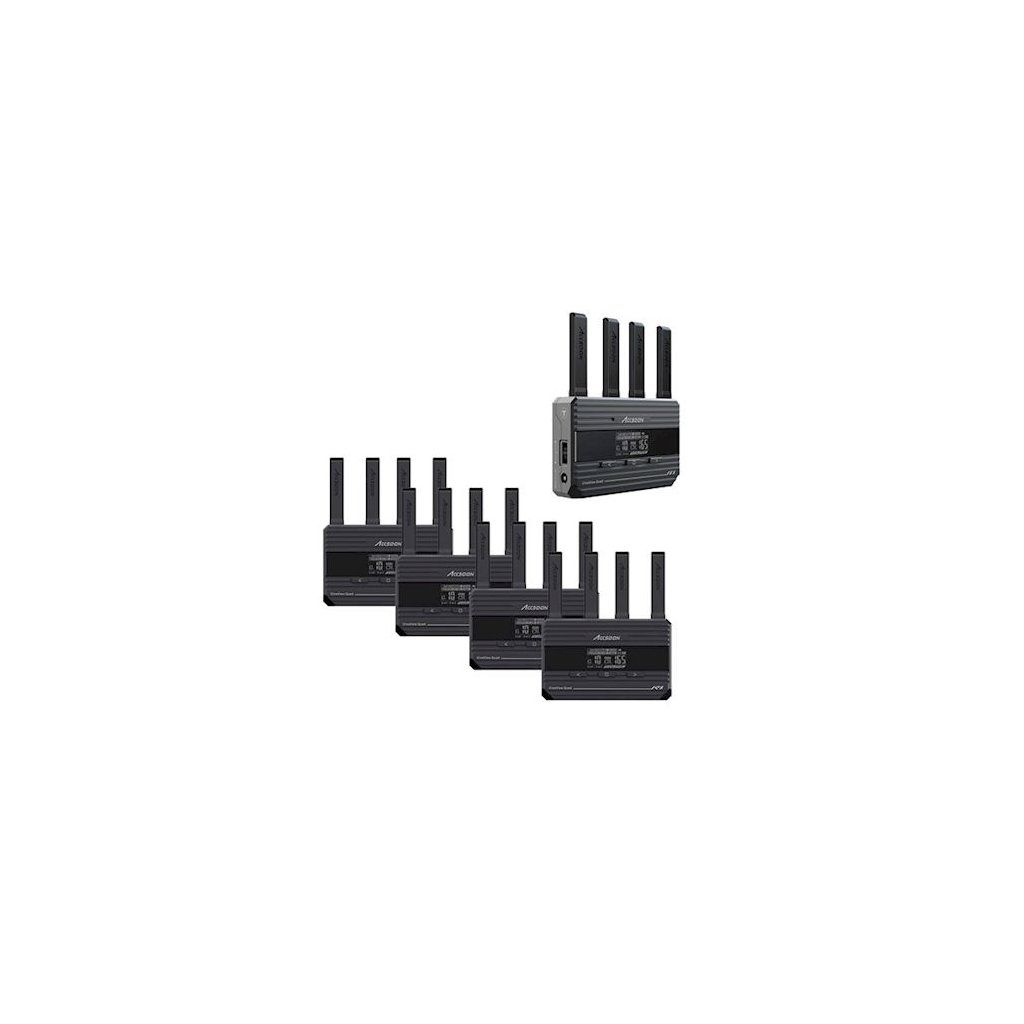

Accsoon CineView Quad 1TX + 4RX is a wireless monitoring kit for camera crews, directors and remote monitoring. This package contains one transmitter and 4 receivers for remote Full HD monitoring via SDI and HDMI. The system carries Full HD up to 60p over simultaneous 2.4 and 5 GHz bands, with latency below 60 ms excluding the camera and rated range up to 150 m in unobstructed, interference-free line of sight. One transmitter supports up to four wireless receivers or mobile devices in total. The fanless aluminium units have four integrated folding antennas, a 1.3″ OLED display, NP-F battery support and 7.4–16.8 V DC power. Batteries, monitors and cables are purchased separately.

ACCSOON CINEVIEW QUAD · 1TX + 4RX

Wireless video for your crew

This package contains one transmitter and 4 receivers for remote Full HD monitoring via SDI and HDMI.

Full HD 60p150 m<60 ms

A remote view for your crew

The manufacturer photograph shows CineView Quad RX connected at a monitoring position. The matching TX sends Full HD up to 60p simultaneously over 2.4 and 5 GHz; RX uses both streams for a more resilient link. Rated range is up to 150 m in clear line of sight without obstacles or interference, with system latency below 60 ms excluding camera delay. Camera, monitor and cables are separate equipment. This package contains one transmitter and 4 receivers for remote Full HD monitoring via SDI and HDMI.

SDI and HDMI for the camera

The detail shows the transmitter’s SDI IN and HDMI IN connectors. TX accepts Full HD up to 60p, with SDI level A/B support. RX supplies HDMI and SDI level A outputs for a remote monitor. Wireless video remains Full HD; this generation has no HDMI loop output or USB-C UVC output. PCM audio supports 44.1/48 kHz and 16/24 bit.

NP-F or external DC power

The manufacturer detail shows the receiver with an NP-F battery attached. Each unit accepts NP-F550/750/970 or 7.4–16.8 V DC through a 5.5 × 2.1 mm centre-positive socket. Typical consumption is 4.5 W for TX and 5 W for RX. The four antennas are integrated and fold down for transport. Batteries, supplies and power cables are purchased separately.

Compact, fanless aluminium

The manufacturer construction graphic combines RX front and TX component views. The aluminium housing has no fan, and a 1/4″ mounting thread supports a camera rig or monitor mount. Each unit measures 105 × 66 × 31 mm without antennas and weighs 225 g including antennas. Keep ventilation surfaces clear and use the units within −10 to 40 °C.

Adjust the mobile preview

The official app example illustrates display adjustments: colour range, brightness and sharpening. CineView Quad supports direct iOS/Android monitoring in Accsoon Go as described in its manual; the current support page also links Accsoon SEE. A phone or tablet receives directly from TX and uses one of its four wireless receiving slots. App features depend on the supported app version and mobile device.

A viewing look for Log footage

The manufacturer’s split-screen example compares a LUT preview with the original Log image. The mobile app supports 3D LUT viewing, focus peaking, histogram and false colour tools for checking a shot on set. Applying a preview look helps the crew judge the intended image; it does not change the camera’s original recording. The phone and camera in the example are not included.

Stream from the mobile app

The illustrated dialog asks you to enable cellular Internet and enter the livestream destination and stream code. The mobile device needs its own Internet connection while receiving the TX video over Wi-Fi. Streaming is performed by the supported app, not by a USB output on Quad RX. Prepare the service account and connection separately; quality depends on the mobile network.

Match framing between takes

The official overlay example superimposes a reference image over the live picture. This helps compare composition and subject position between takes. Accsoon Go also offers video recording and playback for quick review; these mobile files are monitoring copies rather than the camera’s master recording. A mobile receiver counts toward the total four-device wireless limit.

Keep the transmitter on the rig

The manufacturer photograph shows the exact Quad TX above the camera, with its four antennas raised. Connect the camera’s supported HDMI or SDI output to TX and position the antennas with a clear path to receiving devices. One TX can feed up to four hardware RX units or mobile devices in total. Camera, mounting hardware, battery and video cable shown are separate equipment. The four included RX units occupy all four receiving slots; adding a phone requires replacing one RX connection.

Set up the link

The 1.3″ OLED displays video format, group, channel, battery and connection status. Match group numbers on TX/RX and restart after changing the group. TX AUTO (A) selects a channel at power-on. The HQ, NOM and SPD modes prioritise quality, balance and speed respectively. CineView 2 SDI compatibility is documented by the newer manufacturer compatibility chart; use matching firmware and a shared video format.
