Advanced Ring Grip for RS 2/RS 3 Tilta

Kód: ATGA-ARGX

Značka: Tilta

€879,64 €733,03 bez DPH

Vypredané

Detailné informácie

Popis
Diskusia

Podrobný popis

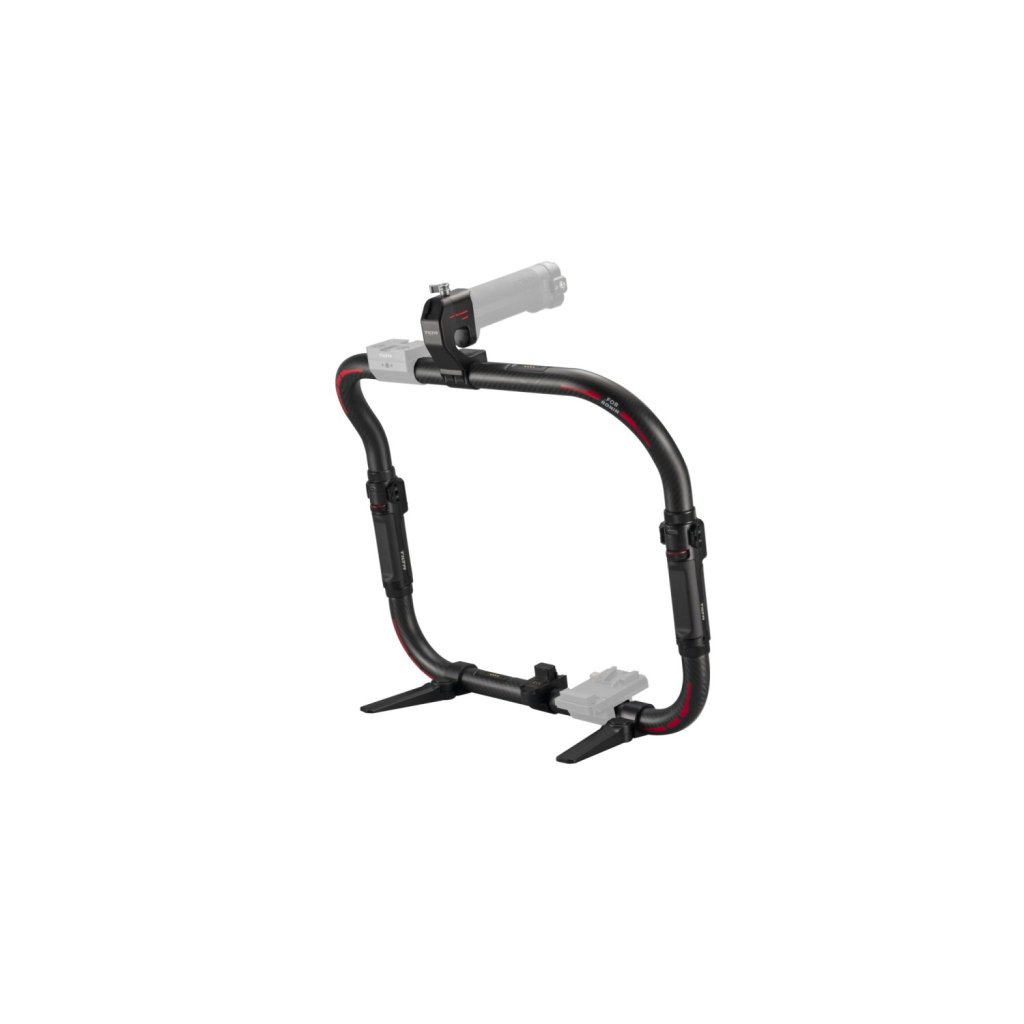

The Advanced Ring Grip for RS2 and RS3 Pro allows you more flexibility when powering your gimbal, mounting accessories, controlling wireless follow focus motors and operating the gimbal body.

The design of the Ring Grip allows for further stability via multiple points of contact when operating the RS 2 and the included kickstands allow you to set the gimbal down after long takes to ensure the operator does not become fatigued.

The Ring Grip allows you to turn the RS2 or RS3 Pro’s Battery Handle into a Top Handle so you can quickly transition to low angle shots while providing additional power to your gimbal.

The system allows you to power the RS2 or RS3 Pro with either a Gold Mount Battery, V-Mount Battery, or the gimbal’s Battery Handle. The Advanced Ring Grip allows you to mount the Battery Handle to the top of the ring which doubles as a power source and top handle.

This can be used in combination with a Gold or V-Mount Battery Plate, which gives you more flexibility for powering accessories and longer battery life on set.

The included Remote Control Handle attaches to the right side of the Advanced Ring Grip to give you easy access to your gimbal’s settings as well as the record and photo functions of your camera.

The Thumbstick allows you to control the Pan and Tilt of your gimbal for maximum precision while operating and the Focus Wheel allows you to wirelessly control either a DJI or Nucleus Series Lens Control Motor.

The included Dual Channel Wireless Lens Control Handle attaches to the left side of the Advanced Ring Grip and allows you to control two channels of the Nucleus Series Lens Control Motors.

Easily adjust the Focus, Iris, or Zoom on your lens with the two Focus Wheels on the Handle — one on the back of the handle for your thumb to rotate and one on the front for your index finger.

Includes limited control of the RS2 and RS3 Pro’s Menu Settings via the Menu Key and features a trigger for quick switching between gimbal modes.

Each handle requires a single 18650 battery to operate wirelessly.

They can be powered by the Top Handle or Battery Plate when connected to the Ring Grip.

NOTE: Please take extreme caution when mounting 18650 batteries as placing them in the wrong orientation can damage the handles.

RS3/RS3 Pro: The M Key is NOT able to mimic the function of the gimbal. The M Key on this unit can ONLY change the Mode setting.

Custom Design For DJI Ronin

Carbon fiber multi-functional ring grip. Supports dual-handed remote control of the gimbal and the camera.

Lens Control With Zero Delay

Left handle supports Nucleus series lens control motors. Easily control focus and zoom to get smoother images.

Flexible Operation

Right handle controls gimbal and mode settings, as well as the record and photo functions of the camera.

Constant Power Supply Equals More Productivity

A top handle bracket allows you to use the DJI RS 2 battery grip to provide power to your gimbal.

Reserved Space For Accessories

Reserved space for ARRI standard locating pins and cold shoes. Supports on-board monitor, microphone, and phone.

External Power Supply

Provides options for gimbal battery and external V-mount/gold mount battery. Allows for continuous shooting and more productivity.

Hardware Features

D-Tap & USB-A Port

The D-tap port’s 14.8V 3A output and USB-A port’s 1.5 3A output allow you to power such accessories as an on-board monitor, wireless video transmitter, phone, etc.

Right Hand Controls

Gimbal joystick, M-Key, Camera Control Key (auto focus / recording / photo control), Dual-NATO connectors

Left Hand Controls

Menu Key for switching interface, accessing settings, gimbal control, and sleep/awake modes. Front focus wheel set up the connection to Nucleus-series lens control motors. Trigger for switching gimbal modes.
