ATEM Mini Pro ISO Blackmagic Design

Kód: ASWATEMMINIBPRISOX
€582 / ks €485 bez DPH
Centrálny sklad (3 ks)

Detailné informácie

Podrobný popis

New low cost live production switcher specifically designed to allow live streaming to YouTube and business presentations via Skype. ATEM Mini will be available in November 2019.

The new ATEM Mini makes it easy to create professional multi camera productions for live streaming to YouTube or innovative business presentations using Skype. Simply connect ATEM Mini and customers can switch live between 4 high quality video camera inputs in dramatically better quality images. Customers can even connect to a computer to present PowerPoint slides or add a gaming console. The built in DVE allows exciting picture in picture effects, perfect for live commentary. There's loads of video effects too. To live stream, ATEM Mini has a USB output that works like a webcam, so customers can connect to any video software. There's also HDMI video out for projectors. Microphone inputs allow high quality desktop and lapel mics for interviews and presentations.

ATEM Mini features a compact control panel based design with all video, audio and control connections on the rear panel. The front panel includes easy to use buttons for selecting sources, adjusting audio inputs, as well as selecting video effects and transitions. The rear panel includes HDMI inputs for connecting cameras or computers, plus additional microphone inputs. The ATEM Mini program is output via an HDMI video out as well as a USB for webcam output. The front panel buttons are large and easy to use by feel, so its even possible to use the switcher while presenting. Customers also get audio mixer buttons for live audio mixing.

ATEM Mini is very easy to use, as customers simply press any of the input buttons labelled 1 to 4 on the front panel to change or cut between video sources. Customers can choose between cut transitions or effects transitions by selecting the cut or auto buttons on the panel. Unlike cut, the auto button tells ATEM Mini to use a selected video effect when switching between inputs. Customers can select from exciting transitions such as a commonly used dissolve, or more dramatic effects such as dip to color, DVE squeeze and DVE push. The DVE is perfect for picture in picture effects and customers can instantly set up different picture positions from the buttons on the control panel. There is even a still store for titles and graphics accessible via external software control.

With 4 independent HDMI inputs, customers can connect up to 4 high quality consumer video cameras. All connected sources will re-sync to the switcher if they operate at different video standards, which means all inputs just work and customers can handle unknown equipment if customers are visiting new venues or locations. Imagine using the low light capability of professional cameras for theater production and music videos.

To ensure the maximum compatibility possible, ATEM Mini features a USB connection that operates as a simple webcam source. That means customers can plug in and instantly get working with any video software. The software is tricked into thinking the ATEM Mini is a common webcam, but it's really a live production switcher. That guarantees full compatibility with all software in full resolution 1080HD quality. Choose any software customers like, such as Open Broadcaster for live streaming, or Skype for point to point presentations. ATEM Mini works with software and platforms such as Open Broadcaster, XSplit Broadcaster, YouTube Live, Facebook Live, Skype, Twitch TV, Periscope, Livestream, Wirecast and more.

The HDMI program output is perfect for connecting ATEM Mini into an external recorder or monitor. ATEM Mini supports recorders such as the HyperDeck Studio Mini and Blackmagic Video Assist. Customers get a high quality output with switcher program video, plus live audio from the internal audio mixer. The HDMI output can even be connected to video projectors in large venues. If customers connect the ATEM Software Panel customers can even change the HDMI output direct from any of the video inputs. There's also a low latency setting allowing output of connected gaming consoles on the HDMI output. If customers enable broadcast style mix effects switching, the HDMI output can be used to preview sources before a transition.

With two independent 3.5mm stereo audio inputs, customers can connect desktop and lapel microphones. With 2 extra stereo audio inputs, customers can ensure a host and guest both have lapel microphones when doing interviews. All audio inputs to ATEM Mini include buttons on the panel for adjusting audio level and enabling inputs into the audio mixer.

The ATEM Software Control app unlocks the hidden power of the ATEM Mini as customers get total control over the switcher features, plus the software is included free for Mac and Windows. ATEM Software Control features a visual switcher user interface with parameter palettes for making quick adjustments. Although customers can normally connect via USB, if customers connect using Ethernet it's possible for multiple users to connect to ATEM Mini using separate copies of ATEM Software Control on different computers. Customers can even save the switcher state as XML files. If customers need clip playback, customers can even control HyperDeck disk recorders via Ethernet.

The built in "media pool" allows loading of up to 20 separate broadcast quality RGBA graphics for titles, opening plates and logos. Customers can even use still frames for complex effects such as graphic wipes. ATEM Mini can even grab stills from the video output and add them to the internal media pool. Customers can easily manage the still store graphic using the included ATEM Software Control app, or customers can download directly from Photoshop software using the ATEM Photoshop plug-in. The Photoshop Plug-in is perfect for graphics that need to change often, such as scoreboards, as customers can update the text and download directly into the switcher, allowing graphics to get on-air fast.

For news or on-set presentation work, ATEM Mini is the perfect choice as it features an ATEM Advanced Chroma Key for high quality chroma or luminance keying, plus an additional downstream linear keyer. Customers can even use it for title overlays simply by using PowerPoint or other software with a green or blue background and the keyer will knock out the green and make the background transparent.

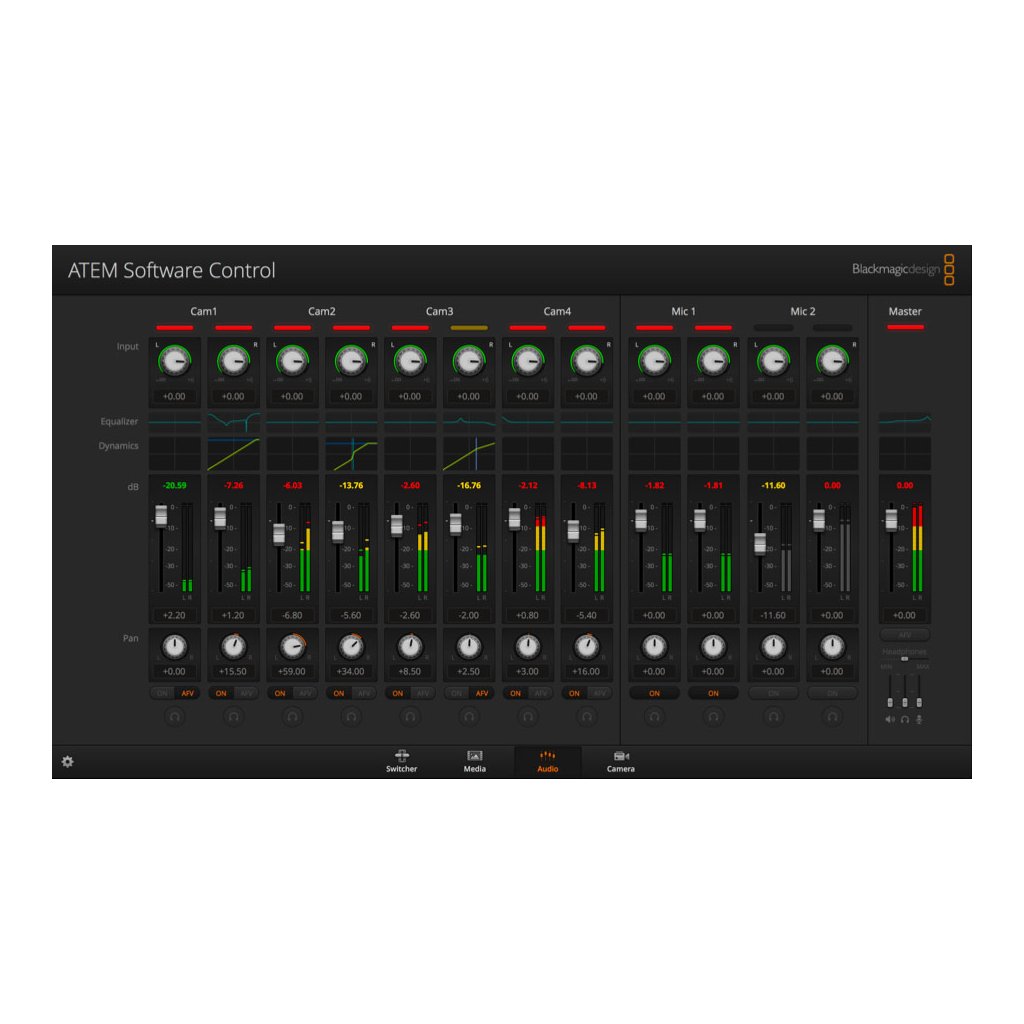

With a built in Fairlight audio mixer, the ATEM Mini makes it possible to do extremely complex live sound mixing. The internal mixer features a total of 12 channels so customers get the ability to mix audio from all sources. 8 mixer channels are de-embedded from the HDMI inputs, while an extra two stereo audio channels are input via the 3.5mm microphone connections on the rear panel. Each input channel features the highest quality 6 band parametric EQ and compressor, limiter, expander and noise gate as well as full panning.

The HDMI output is a true "aux" output so customers can clean switch each of the 4 HDMI inputs or the program feed to this output. Customers can even "direct" switch input 1 to the HDMI output for low latency for eSport. If customers select broadcast style mix effects switching, customers can also output a preview feed, allowing verification of the source before transitioning to it.


ATEM Mini Pro ISO
External 12V DC power supply with international socket adapters




Total Video Inputs
4

Total Outputs
2

Total Aux Outputs
1

Total Audio Inputs

2 x 3.5mm stereo mini jack.

Total Audio Outputs

None, embedded audio only.

Timecode Connection

None

HDMI Video Inputs

4 x HDMI type A, 10-bit HD switchable.
2 channel embedded audio.

Video Input Re-Sync

On all 4 HDMI inputs.

Frame Rate and Format Converters

On all 4 HDMI inputs.

HDMI Program Outputs

1

Ethernet

Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.

Computer Interface

1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

ATEM Mini Pro ISO

Standards

HD Video Input Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080i50, 1080i59.94, 1080i60

HD Video Output Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Video Streaming Standards

1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

Ultra HD Video Standards

None

Video Sampling

4:2:2 YUV

Color Precision

10-bit

Color Space

Rec 709

HDMI Input Resolutions from Computers

1280 x 720p 50Hz, 59.94Hz and 60Hz
1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
1920 x 1080i 50, 59.94Hz and 60Hz

Colorspace Conversion

Hardware based real time.

Product Specifics

Upstream Keyers

1

Downstream Keyers

1

Advanced Chroma Keyers

1

Linear/Luma Keyers

2

Transition Keyer

DVE only.

Total Number of Layers

5

Pattern Generators

1

Color Generators

2

DVE with Borders and Drop Shadow

1

Interface

Minimum monitor resolution of 1366 x 768.

Audio

Audio Mixer

6 input x 2 channel mixer.
Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.

Analog Input

Unbalanced stereo

Analog Input Delay

Up to 8 frames

Input Impedance

1.8k

Max Input Level

+6dBV

Mic Plug In Power

Available on both 3.5mm mini jack connections.

Streaming

Direct Streaming

ATEM Mini Pro ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.

Recording

Direct Recording Video and Audio

USB-C 3.1 Gen 1 expansion port can record directly to external media.

Video Recording

4 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.

1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.

Audio Recording

6 x 2 channel audio inputs recorded as seperate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x HDMI 2 channel embedded audio inputs.

Switching

Program switching recorded as a DaVinci Resolve project .drp file.

Media Format

Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.

Multi View Monitoring

Multi View Monitoring

1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status and Audio Meters.

Multi View Video Standard

HD

Media Player

Media Players

1

Channels

Fill and key for each Media Player.

Media Pool Still Image Capacity

20 with fill and key.

Media Pool Still Image Format

PNG, TGA, BMP, GIF, JPEG and TIFF.

Control

Control Panel

Built in control panel. Software control panel with camera control included. Supports optional hardware panel.

Control Panel Connection

Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.

Control Panel Compatibility

Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Pro ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.

Control Panel Included

ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64 bit only.

Software

Software Updates

Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.

Configuration

Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.

Operating Systems

Mac icon

Mac 10.14 Mojave,
Mac 10.15 Catalina or later.

Windows Icon

Windows 10, 64-bit.

Power Requirements

Power Supply

1 x External 12V power supply.

Power Usage

36W

Physical Specifications

ATEM Mini Pro ISO

Environmental Specifications

Operating Temperature

5° C to 40° C (41° - 104° F)

Storage Temperature

-10° to 60° C (14° to 140° F)

Relative Humidity

0% to 90% non-condensing

Warranty

12 Months Limited Manufacturer's Warranty.
