ATEM Monitoring Rack Panel 20 Blackmagic Design

Podrobný popis

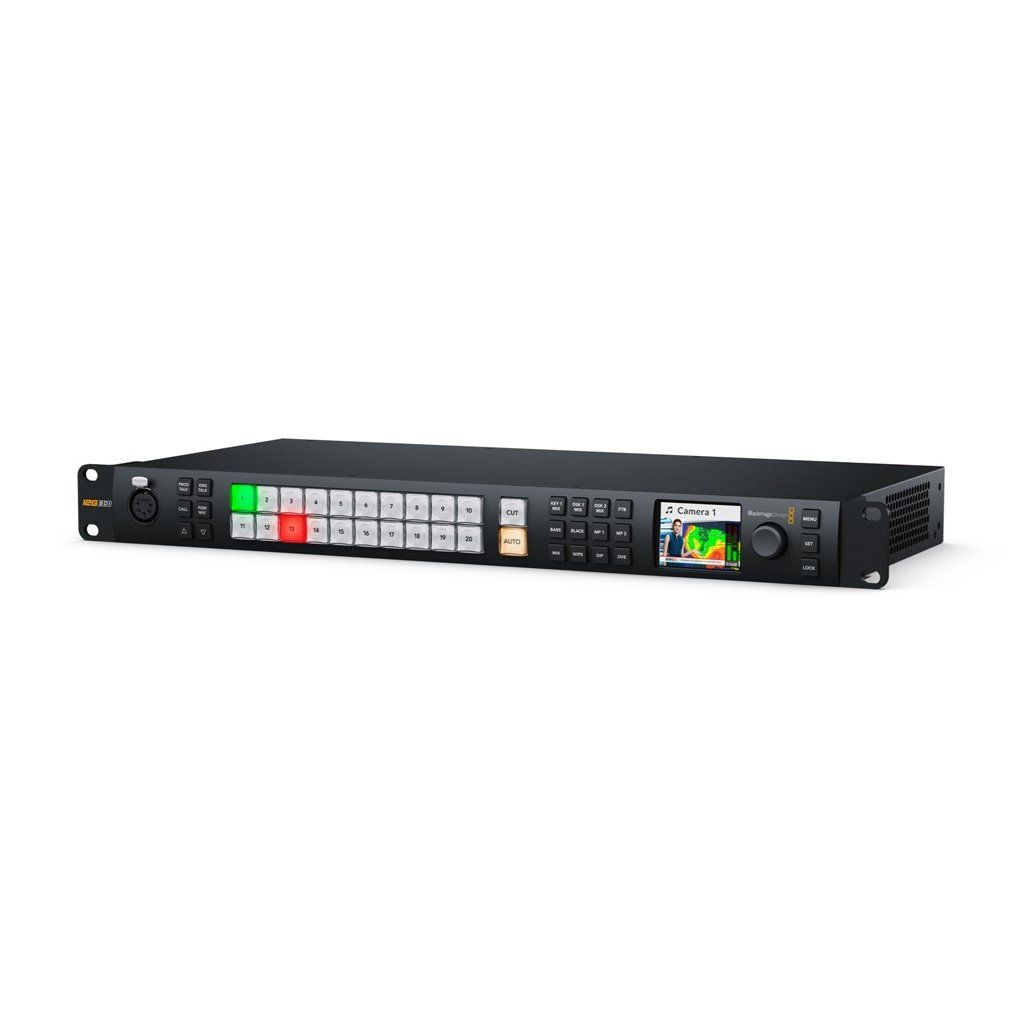

Rack-mount control panel for local operation of ATEM Constellation IP switchers with a built-in monitoring converter. It provides 20 input buttons, redundant 10G SMPTE‑2110, two 12G‑SDI outputs, HDMI, LCD monitoring and front-panel talkback in a 1RU design.

20 inputs, monitoring and IP conversion in one panel

ATEM Monitoring Rack Panel 20 gives ATEM Constellation IP switchers convenient local control and monitoring right in the rack. Professional buttons, LCD monitoring and talkback are immediately available on the front panel.

1RU panel for ATEM Constellation IP

A dedicated Gigabit network handles switcher and NMOS control. Two 10G RJ‑45 ports transport redundant SMPTE‑2110 using ST 2022‑7, integrating the panel into resilient IP infrastructure without losing local control.

Convert to 12G‑SDI and HDMI

One incoming IP video stream is converted to two 12G‑SDI outputs and one HDMI 2.0 output. The built-in LCD displays video and signal status, while dual internal power supplies support continuous broadcast operation.

20 inputs1RU2× 10G IP2× 12G‑SDI

• ATEM Monitoring Rack Panel 20 ×1
• Welcome wallet with QR code ×1

• Installation: 19″ rack, 1RU
• Input buttons: 20

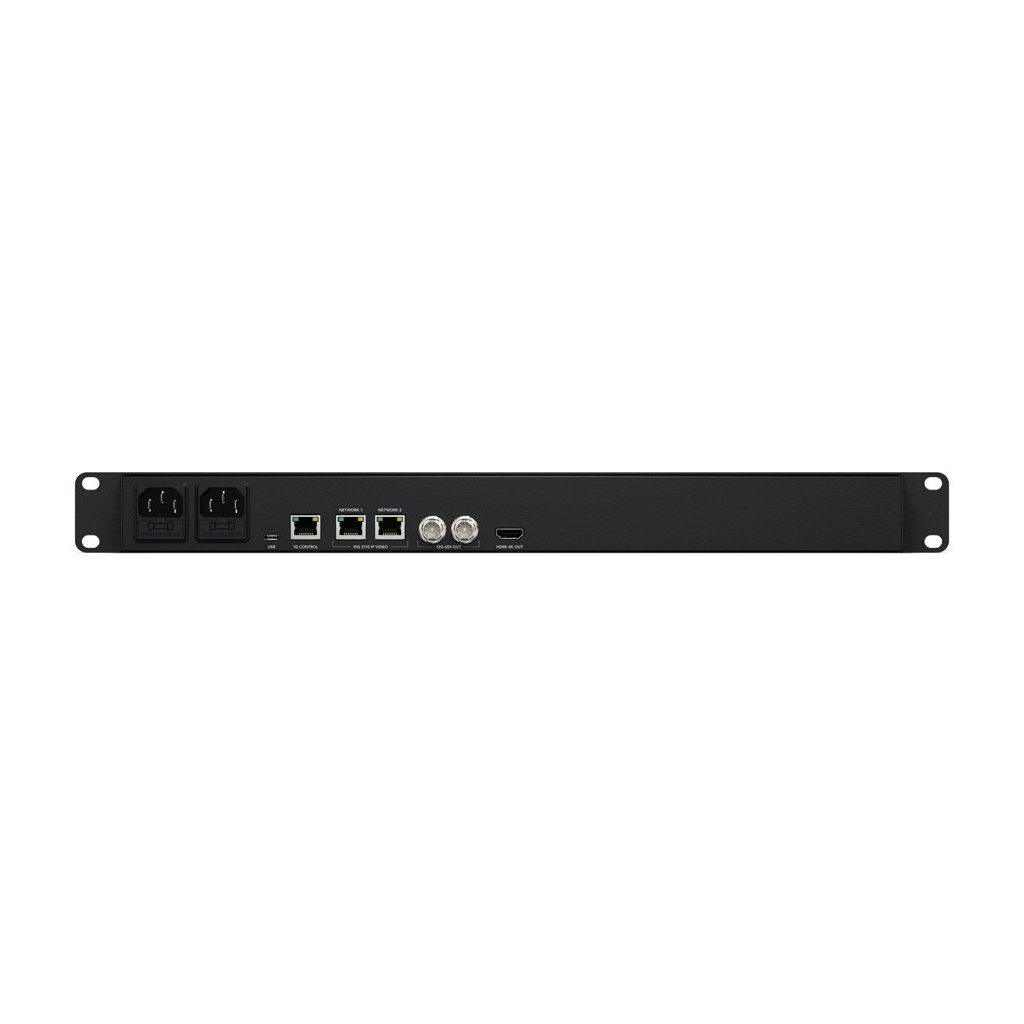

• 10G IP networks: 2× RJ‑45
• Redundancy: ST 2022‑7 over two 2110 networks
• Control network: 1× 1G RJ‑45
• Video inputs: 1× SMPTE‑2110
• Video outputs: 2× 12G‑SDI, 1× HDMI 2.0
• SDI rates: 1.5G / 3G / 6G / 12G
• Monitoring: LCD
• Talkback: front-panel 5-pin connector
• Power: 2× internal 100–240 V AC
• AC sockets: 2× IEC C14
• Operating temperature: 0 to 40 °C
• Warranty: 1 year
