Basic Cage Kit for Sony Alpha 7R V / Alpha 7 IV / Alpha 7S III 3668C SmallRig

Podrobný popis

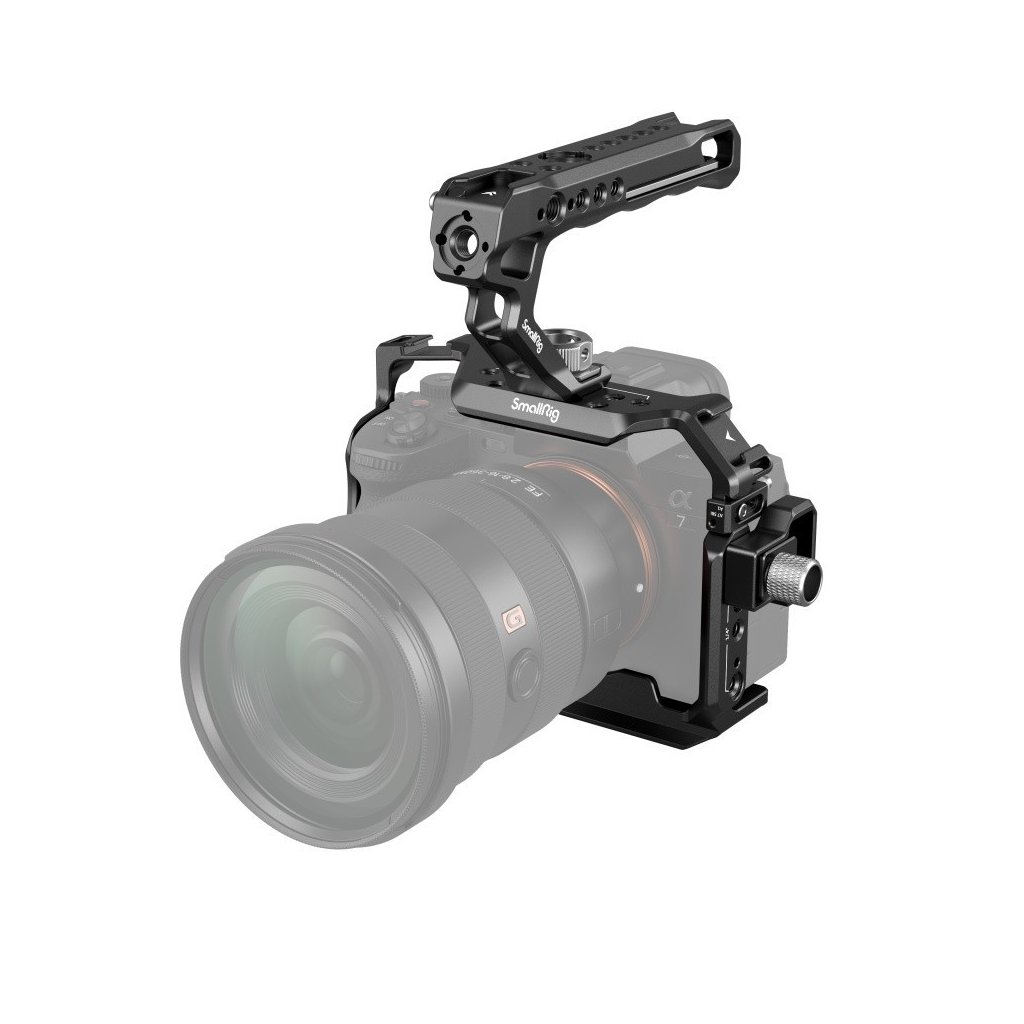

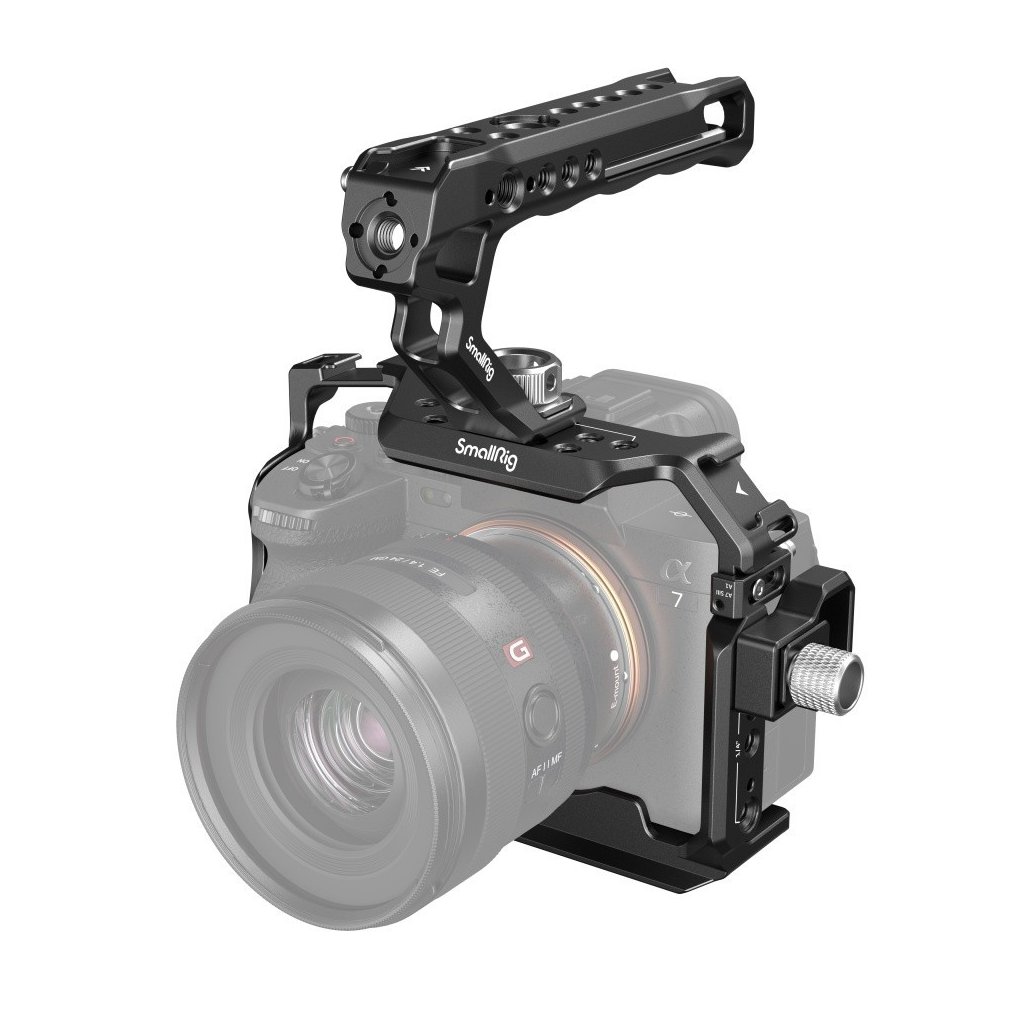

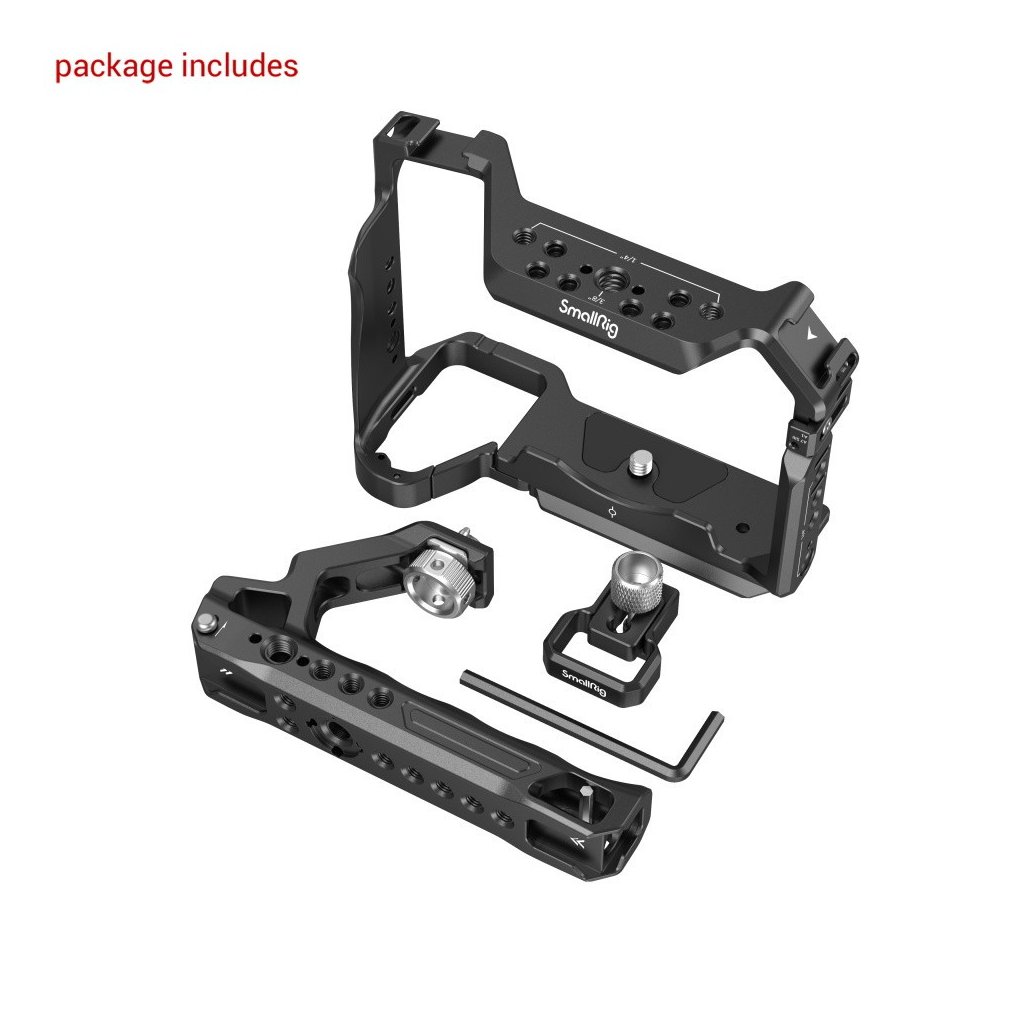

SmallRig Cage Kit for Sony Alpha 7R V / 7 IV / 7S III / 7 V 3668B is designed to facilitate low-angle shots and protect the camera while offering a wide range of accessory mounts. It includes a cage, an HDMI cable clamp, and a top handle. The top handle feels comfortable and enables easy carrying at the low-angle shot.

1. Portable handheld kit for easy low-angle shots.
2. Triple-point locking  for enhanced stability and anti-twist.
3. A hinged arm  at the battery door fits the camera curve and enhances the grip experience.

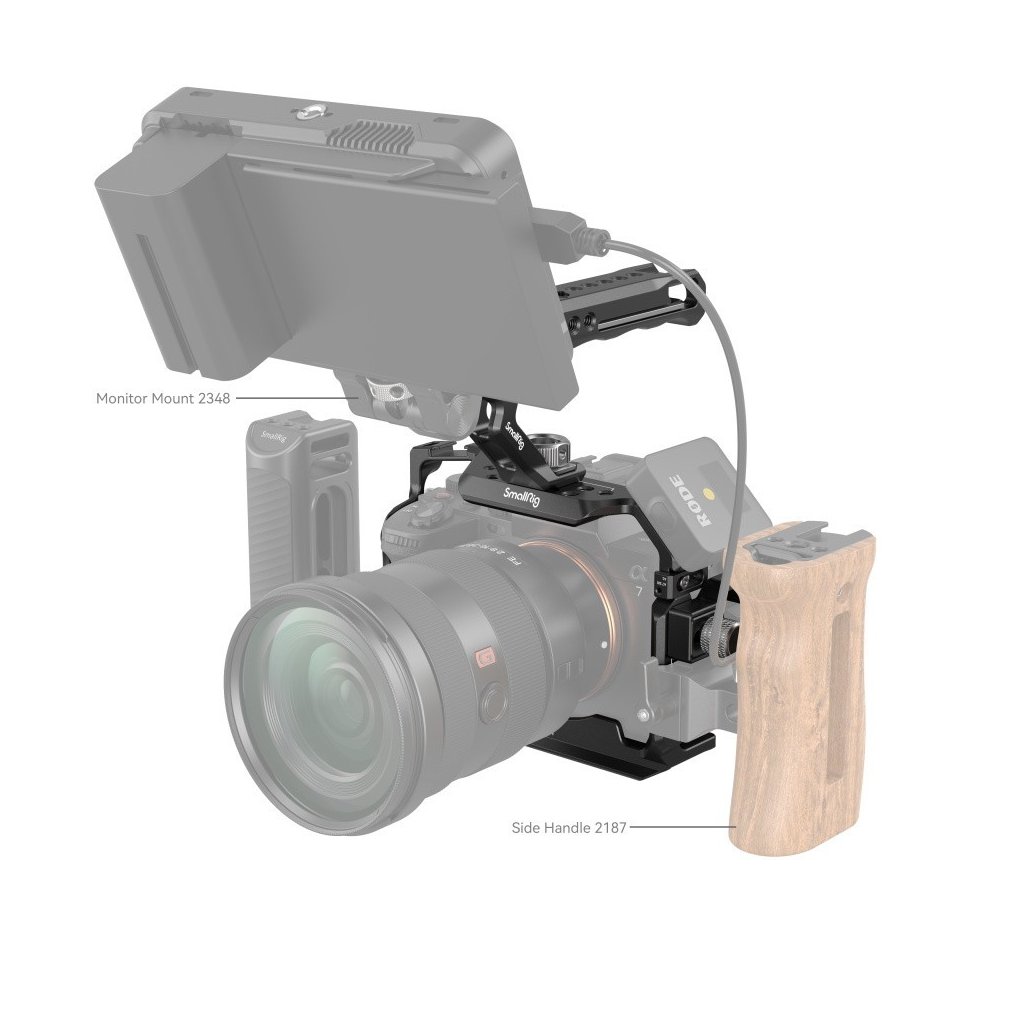

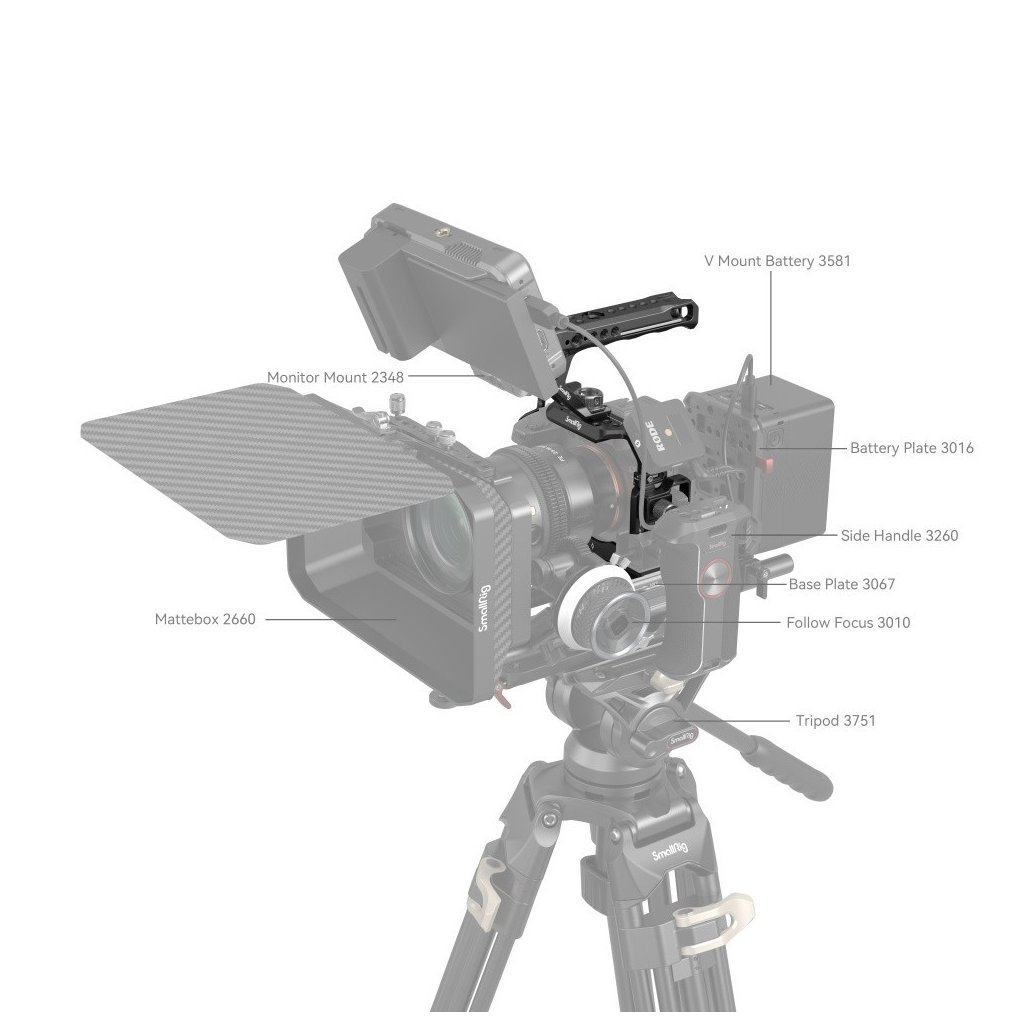

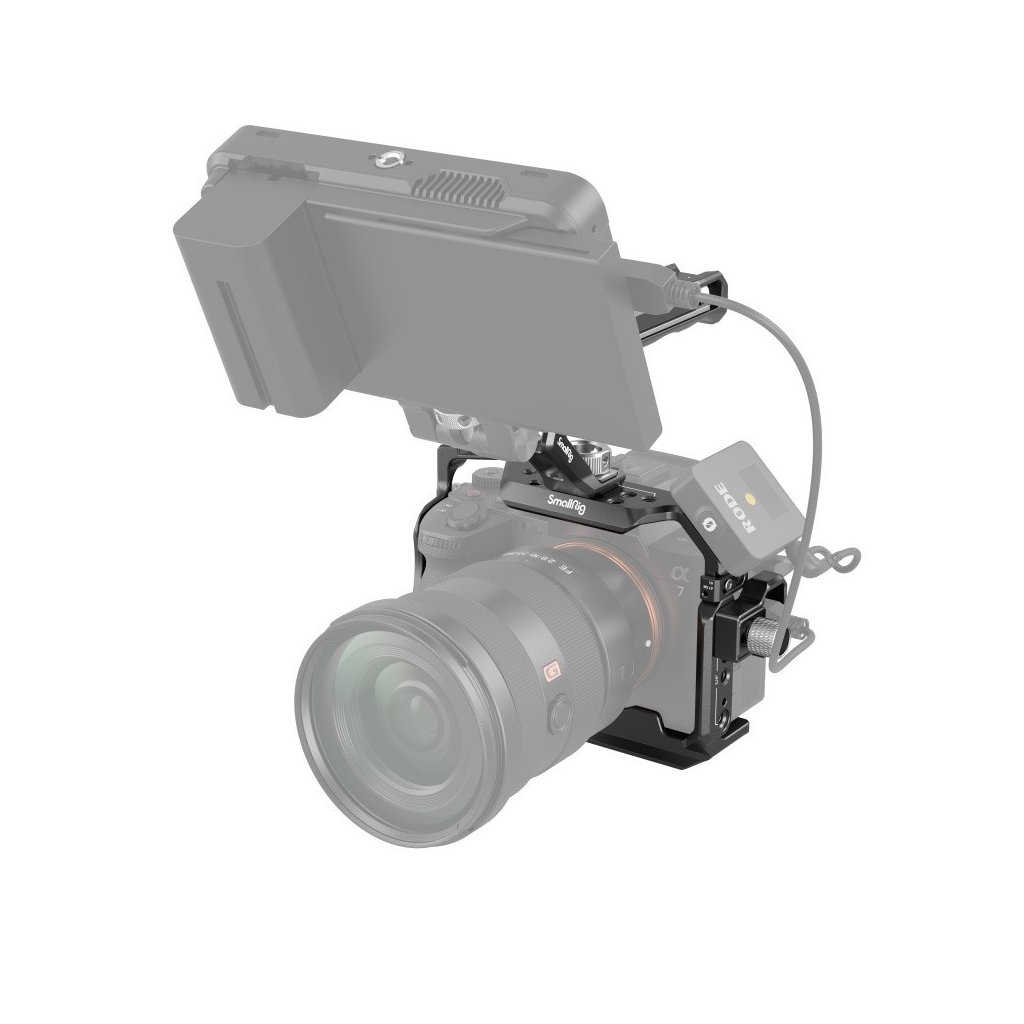

4. Multiple mounting points: 1/4"-20 threaded holes, ARRI 3/8" -16 locating holes, cold shoe mounts, NATO rails, QD socket  support handles, microphones, LED lights, monitors, etc.
5. HDMI cable clamp protects interfaces and ensures stable signal transmission.

SmallRig Cage Kit for Sony Alpha 7R V / 7 IV / 7S III / 7 V 3668B is designed to facilitate low-angle shots and protect the camera while offering a wide range of accessory mounts. It includes a cage, an HDMI cable clamp, and a top handle. The top handle feels comfortable and enables easy carrying at the low-angle shot. 1/4"-20 threaded holes, ARRI 3/8" -16 locating holes, cold shoes and NATO rails and QD socket support monitor mount 2294, microphones, LED lights, monitor mount 2903B, NATO accessories. The HDMI cable clamp, mounted onto the left side of the cage via one 1/4"-20 screw and two locating pins, prevents deflection and fixes cables with a thumbscrew to protect interfaces and ensure stable signal transmission. In addition, holes on both sides of the cage allow for attaching hand straps. The cage comes with a built-in magnetic flat-head screwdriver & hex spanner for easy disassembly and assembly.

Note：

1. After fixing the 1/4"-20 screw at the bottom of the cage, remove the anti-deflection pin from the staging hole in the battery compartment position and fix it to the corresponding position.

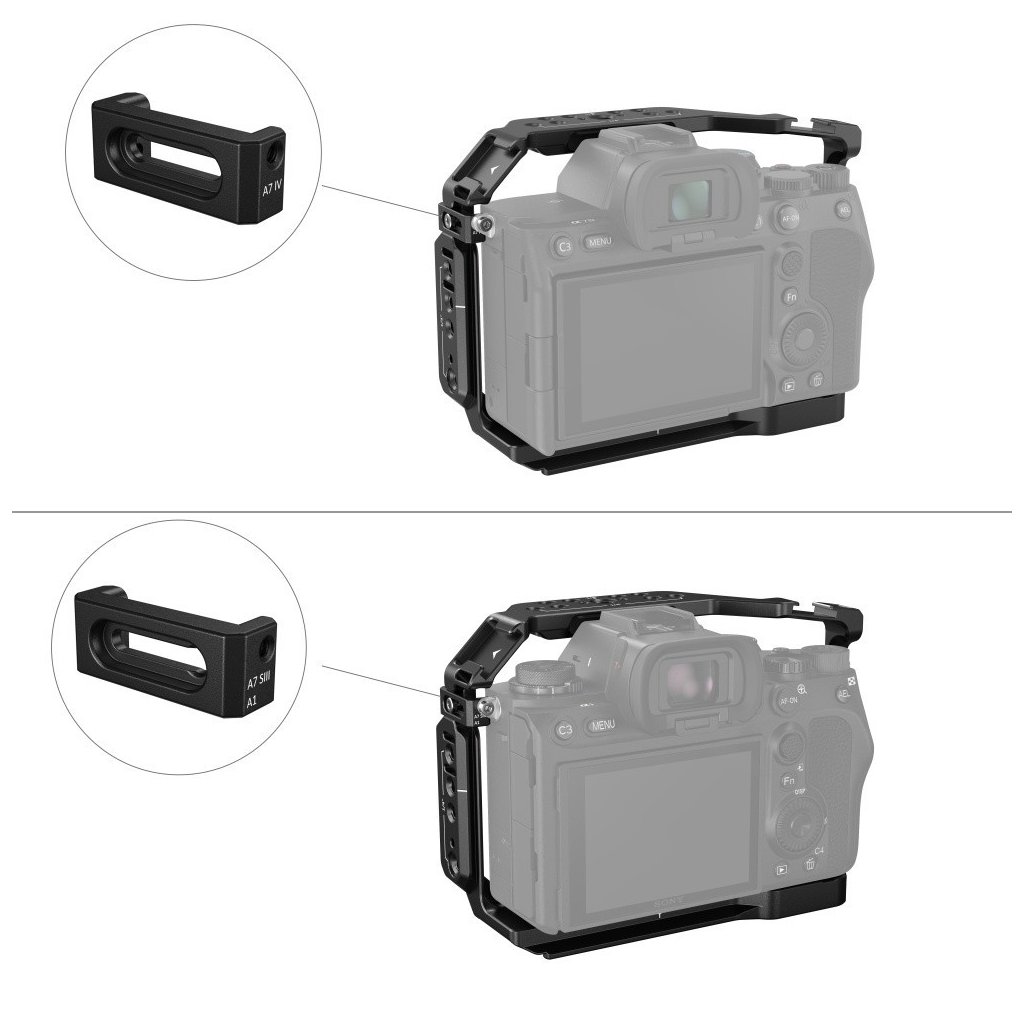

2. To use the side lock adapter of the cage, please remove the split ring on the left side of the camera first.
3. HDMI Cable Clamp interferes with the synchro terminal interface when used on the Alpha 7R V camera.
