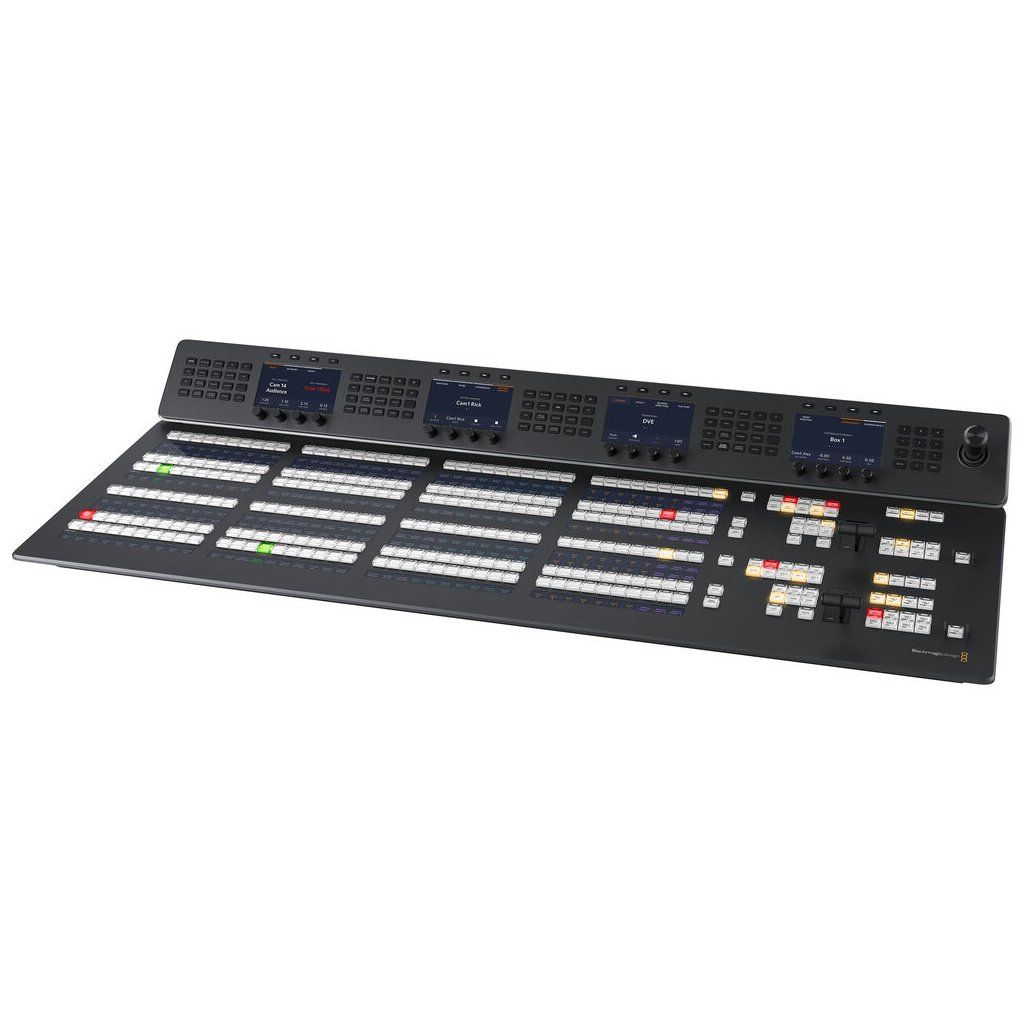

Blackmagic Design ATEM 2 M/E Advanced Panel 40 Blackmagic Design

Podrobný popis

The ATEM 2 M/E Advanced Panel 40 is a professional hardware control panel for compatible ATEM production systems. It features 2 M/E rows, 40 direct-access input buttons, 4 system LCDs, a precision T-bar, a three-axis joystick, and quick access to transitions, keyers, and macros.

PHYSICAL CONTROL FOR LIVE PRODUCTION

The ATEM 2 M/E Advanced Panel 40 transforms control of compatible ATEM production systems from software to real broadcast buttons, a precise T-bar, and a three-axis joystick.

The model offers 2 physical M/E rows, 40 direct input buttons, and clear system displays for fast operation without time-consuming menu navigation.

2 M/EROWS,40 INPUTS, 4× SYSTEMLCDS, 2× T-BARS

All Sources at Your Fingertips

Direct and offset crosspoints provide access to up to 80 sources. Color backlighting and dynamic LCD labels help the operator quickly distinguish between cameras, players, graphics, and keying sources.

Transitions, DVE, and Keying Without Menus

The ergonomic T-bar lever provides precise control over transition duration. A three-axis joystick is used to position and resize DVEs, while dedicated buttons provide access to keyers, macros, transition preview, and transport functions.

The Panel Scales with the Production

Each physical row can control up to 4 M/Es of a larger production console. Built-in Gigabit Ethernet ports allow you to connect additional panels or computers; USB-C is used for firmware updates.

Program/Preview bus, custom labels, and color-coded button states streamline routine tasks and complex live productions.

The ATEM Workflow

The control console unlocks the full power of a compatible ATEM production switcher, including direct editing on the Program bus, preparing the next shot on the Preview bus, selecting transitions, and working with upstream and downstream keyers. Effect parameters are displayed on the system LCDs, so the operator doesn’t have to leave the main workspace during a live broadcast.

Macros allow you to record a sequence of commands and recall it with a single button press. Custom source names, configurable button colors, and a dedicated selection bus keep large-scale productions organized even during fast-paced operations.

• ATEM 2 M/E Advanced Panel 40
• Welcome card with a QR code for downloading the software

• M/E Channels: 2
• Direct crosspoints: 40
• Offset crosspoints: 80
• Crosspoint buttons: tri-color LED
• System LCDs: 4
• Menu controls: 4 × 20 buttons
• Dedicated macros: 2 × 40
• Transport buttons: 8
• Destination bus: 2
• Source Select bus: 2
• T-bar levers: 2
• 3-axis joystick: 1
• Ethernet: 4 × 10/100/1000 BASE-T
• Updates: 1 × USB-C
• Power: 2 × internal 100–240 V AC
• Power consumption: 160 W
• Operating temperature: 0 to 40 °C
• Warranty: 1-year limited manufacturer’s warranty
