Blackmagic Design ATEM Studio Converter 2 Blackmagic Design
Kód: ASWRCONVRCK2XPodrobný popis
ATEM Studio Converter 2 brings four bi-directional optical camera paths together in a single 1 RU unit. It carries video, program return, talkback and tally between the control room and ATEM Camera Converters up to 45 km away, and its front panel has a speaker, an XLR microphone input and aviation headset connections.
Four fiber cameras in 1 RU
The control room counterpart to ATEM Camera Converters: four optical channels, a program input with tally, front panel talkback and redundant power.
More cameras? Add a converter
The SDI program input has a loop output, so further ATEM Studio Converters can be cascaded, and the AES/EBU talkback loops link the communication of all units when you have more than four cameras.
Outputs for the switcher
Video from the four optical inputs comes out on four SDI outputs that plug straight into the ATEM switcher.
Camera audio on XLR
Each channel has a pair of balanced XLR outputs, so the cameras' embedded audio goes straight to the audio mixer.
Return and talkback
The SDI program input from the switcher is sent over fiber to all four cameras together with control room voice communication and tally.
Redundant power
The built-in 100–240 V AC power supply is backed by a 12–31 V DC input, so losing one power path does not interrupt the broadcast.
Talkback from the front panel

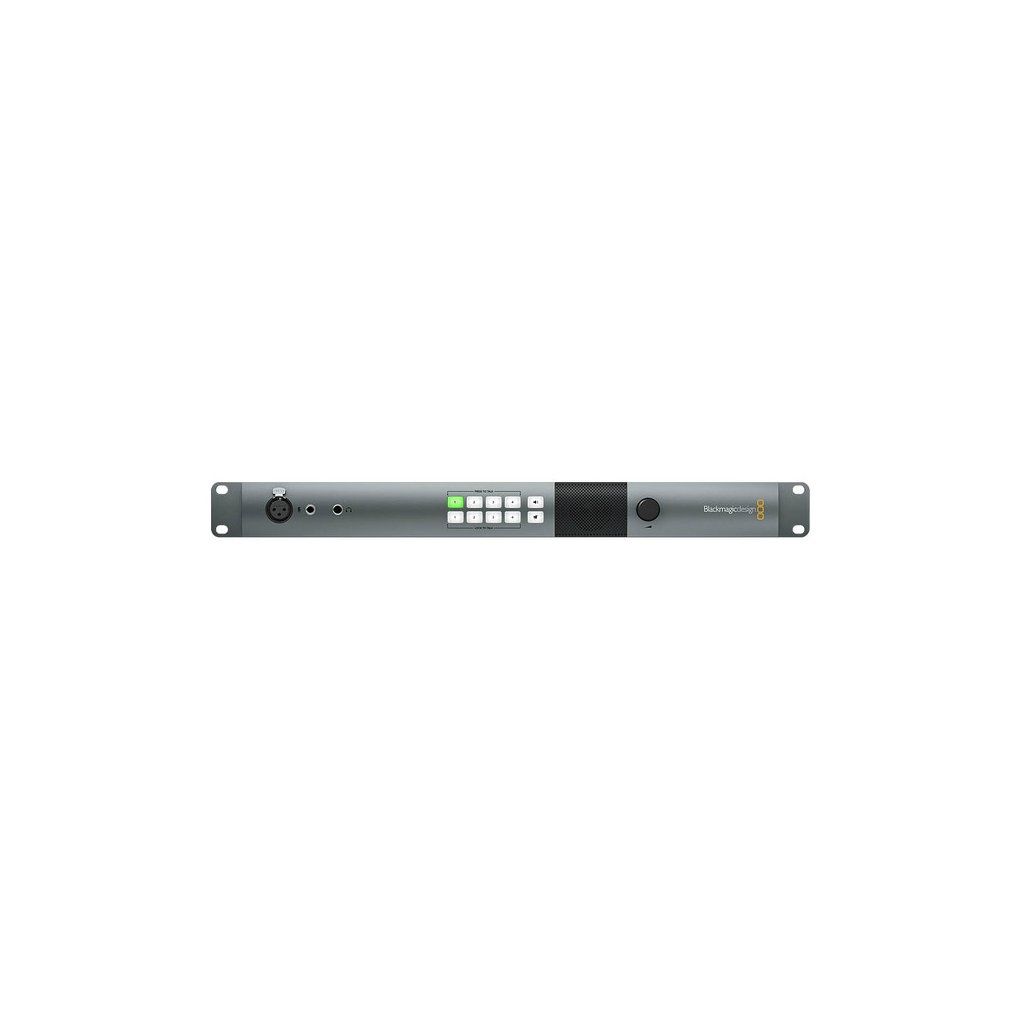

The metal front panel has a speaker, a balanced XLR microphone input that also takes gooseneck microphones, and aviation headset connections. The control room hears communication even without headphones, with the mute button and rotary knob for volume close at hand.
Talk to one camera or to all
The Press to Talk buttons open talk to the selected camera only while pressed, and the Lock to Talk buttons keep it open. Communication to the cameras can also be muted completely.
A system with ATEM Camera Converter
The converter pairs with an ATEM Camera Converter at each camera: every camera has its own bi-directional path over one optical cable with program return, talkback and tally.
Connections
The front panel has the talkback controls; the rear has four optical channels with SDI and XLR outputs, the SDI program input and loop output, AES/EBU talkback loops, the RCA output, USB and two power inputs.
More information
About the ATEM Studio Converter 2
The second version brought an elegant metal front panel with features for connecting and managing communication, and a built-in power supply that replaced the external adapter. It uses connectors common in live broadcast, such as XLR and BNC, and an additional 12 V DC input provides redundant power.
The built-in speaker and front microphone input make communication easier even with many cameras – headphones were a must on the previous version. Talk to the cameras can be muted completely or opened only for the operator the control room wants to speak to.
Aviation headsets tend to be cheaper and more robust than products made for the television market, block ambient noise very well and are available from many manufacturers.
The SDI outputs are ready for 6G-SDI for Ultra HD; Ultra HD support on the optical path comes with replacing the optical SFP modules.
- ATEM Studio Converter 2
- Welcome wallet with QR code for software download
- SDI video input: 1× 10-bit SD/HD switchable program input from switcher, including tally information
- SDI video outputs: 4× 10-bit SD/HD switchable camera outputs; 1× 10-bit SD/HD switchable program loop through output
- Talkback audio: Aviation headsets with 0.25″ (6.35 mm) TRS headset connector and 0.206″ (5.23 mm) TRS microphone connector; front mounted balanced XLR microphone connector
- Analog audio: 1× stereo RCA monitoring output
- AES/EBU audio input: 1× combined headphone input, 1× combined microphone input for connecting to other ATEM Studio Converters
- AES/EBU audio output: 1× combined headphone output, 1× combined microphone output for connecting to other ATEM Studio Converters
- Balanced XLR audio output: 4× camera stereo analog audio outputs
- Optical fiber video input: 4× single mode SD/HD switchable camera inputs with LC connector
- Optical fiber video output: 4× single mode SD/HD switchable camera outputs with LC connector
- Optical fiber audio (input and output): 1× single mode with LC connector; channels 1 & 2 camera audio, channels 15 & 16 intercom audio
- Optical fiber range: up to 45 km
- Computer interface: 1× mini-B type USB 2.0 connector for firmware updates
- SD format support: 525i29.97 NTSC, 625i50 PAL
- HD format support: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- 2K format support: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
- Ultra HD format support: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
- 4K format support: 2160p24
- SDI compliance: SMPTE 259M, SMPTE 292M, 296M, 372M, 424M Level B, 425M
- Audio sampling: 48 kHz television standard sample rate, 24-bit A/D conversion
- Video sampling: 4:2:2
- Color precision: 10-bit
- Color space: Rec. 601, Rec. 709
- Multiple rate support: SDI switches between SD, HD and UHD
- Software: Converter Utility for firmware update
- Operating systems: Mac 10.11 El Capitan, Mac 10.12 Sierra or later; Windows 8.1 and 10
- Power: 100–240 V AC input (built-in power supply) with redundant 12–31 V DC input
- Physical installation: 19″ rack, 1 RU
- Dimensions (W × D × H): 19 × 6.22 × 1.73 in (483 × 158 × 44 mm)
- Weight: 3.99 lb (1.81 kg)
- Operating temperature: 0 to 40 °C (32 to 104 °F)
- Storage temperature: −20 to 45 °C (−4 to 113 °F)
- Relative humidity: 0–90 % non-condensing
- Warranty: 1 year limited manufacturer's warranty
