ATEM Studio Converter 2 brings four bi-directional optical camera links into a single 1RU unit. It carries video, program return, talkback and tally between the control room and ATEM Camera Converters over distances up to 28 miles.

ATEM Studio Converter 2

ATEM Studio Converter 2 brings four bi-directional optical camera links into a single 1RU unit. It carries video, program return, talkback and tally between the control room and ATEM Camera Converters over distances up to 28 miles.

4× optical LCTalkback + tally

Four optical camera links in a single 1RU chassis

Each of the four channels receives camera video and sends program return, talkback and tally back to the camera converter. Single-mode fibre reaches far beyond practical copper SDI distances.

Central communication and easy expansion

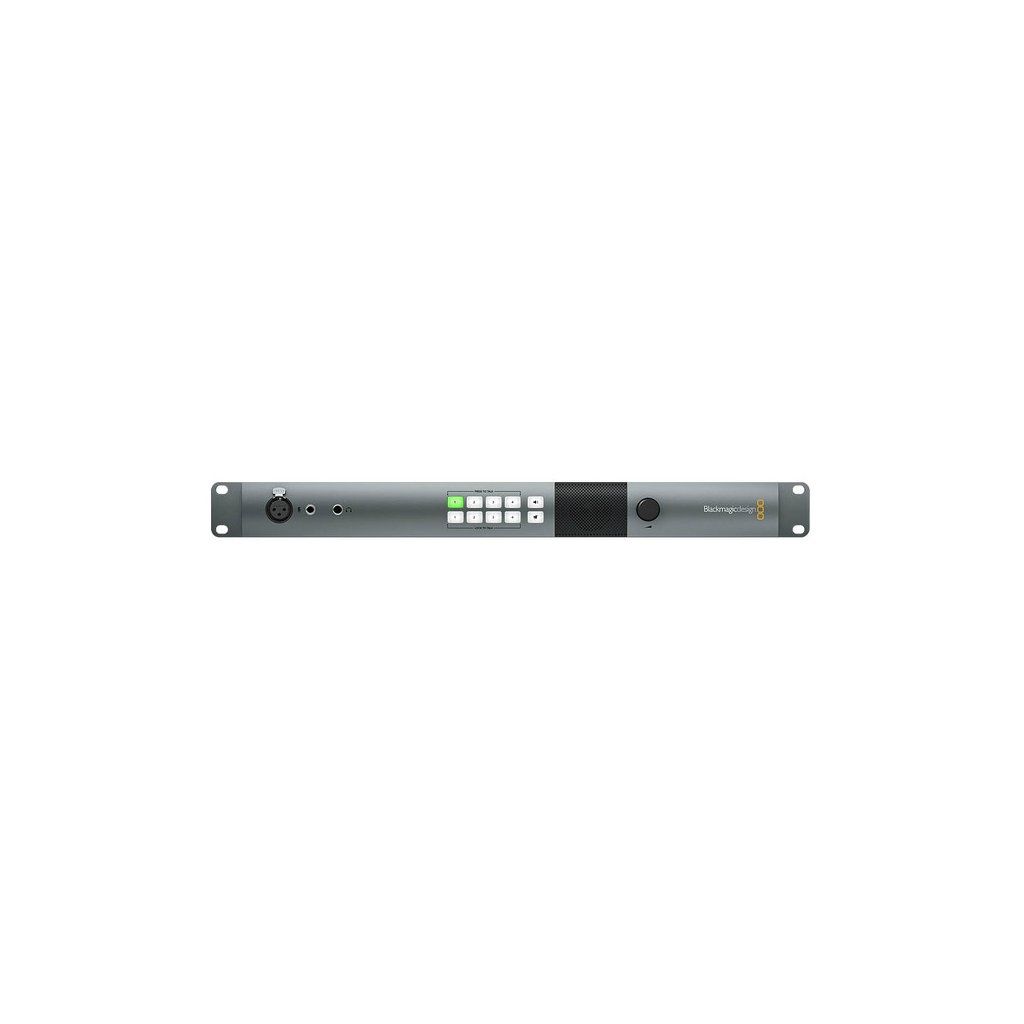

The front panel provides per-camera controls, speaker, microphone and aviation-headset connections. The program SDI input carries tally, while the loop output lets another unit be cascaded for more than four cameras.

Central optical links for four cameras

• 4 integrated SDI to fiber optic converters. The length of the optical cabling can be up to 40 km.
• Converters for back conversion to SDI signal including embedded audio output on a pair of XLR connectors.
• Global SDI input for transmitting output from the switcher to camera stations.
• Microphone and headphone connectors compatible with common airborne headsets.
• Integrated communication features include a pass-through AES/EBU interface for connecting other ATEM Studio Converter devices.
• Elegant and robust design in a 1U chassis.
• The front panel includes a microphone port, speaker, headset jacks and buttons for controlling communication functions.
• Fully compatible with ATEM Camera Converter products or other types of converters.
• 6G-SDI support will allow future Ultra HD signal support by replacing optical SFP modules.

• ATEM Studio Converter
• Welcome wallet with QR code for software download

• Camera channels: 4× bi-directional optical LC
• SDI input: 1× SD/HD program with tally
• SDI outputs: 4× camera + 1× program loop
• Formats: SD/HD up to 1080p60, 2K DCI up to 25p
• Talkback: Microphone, speaker and aviation headset
• Audio: 48 kHz / 24-bit
• Video sampling: 10-bit 4:2:2
• Expansion: Cascade via program loop
• Power: 100–240V AC + redundant 12–31V DC
• Construction: 1RU rack
