Blackmagic Design Fairlight Live Audio Panel 40 Blackmagic Design
Kód: ADVFL/AAFLP40XPodrobný popis

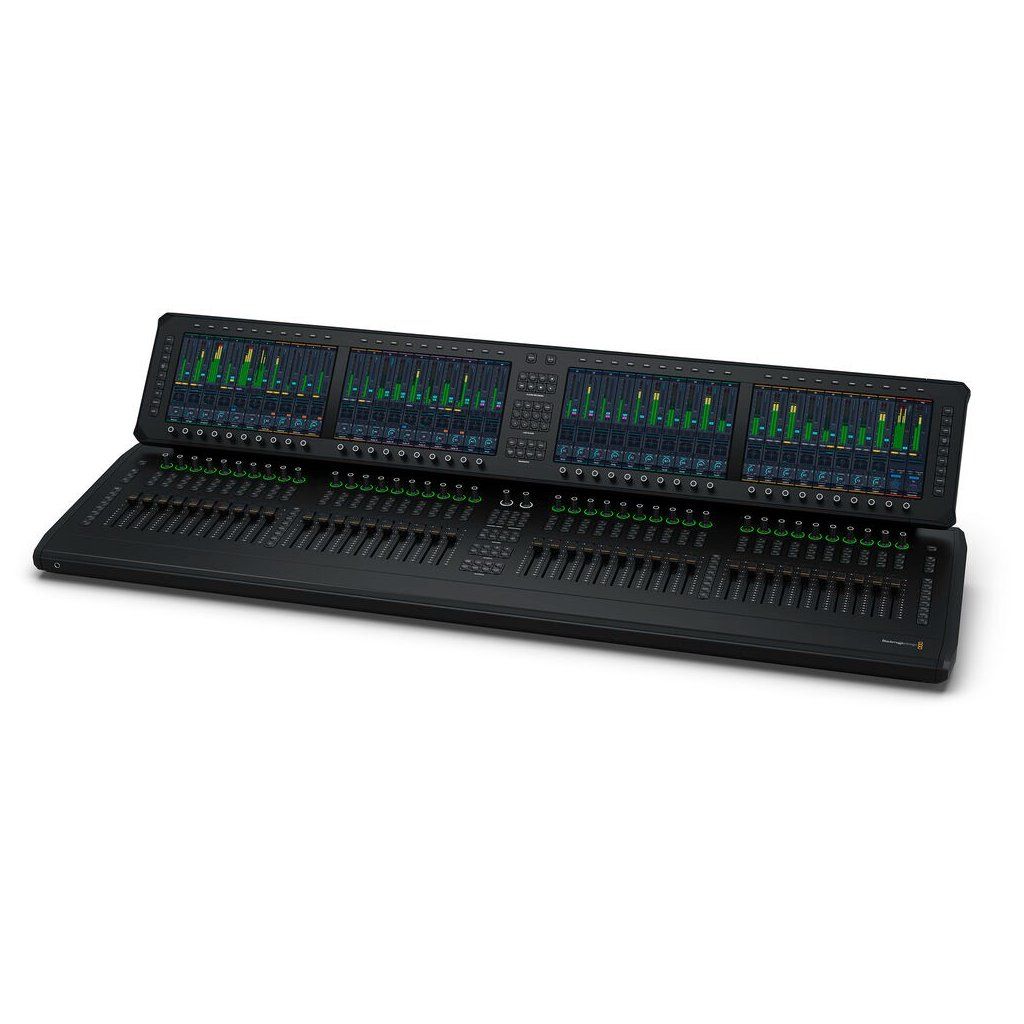

The Blackmagic Fairlight Live Audio Panel 40 is a desktop control surface with 40 motorized faders and four large touchscreen displays for professional live audio mixing in Fairlight Live. Direct control of layers, busses, matrix, aux, VCA, sub-masters and talkback, a pair of 10G ports for SMPTE 2110 and a built-in talkback microphone speed up work for large live broadcasts and big control rooms.
40 faders for live mixing in Fairlight Live
Hands-on channel control, a touchscreen overview of levels, EQ, dynamics and plug-ins and a SMPTE 2110 network in one desktop panel.
Protection for the live broadcast
On Air mode locks the panel and protects the main audio output from accidental changes. The On Line button follows timecode from an external source.
Talkback and communication
The built-in talkback microphone, an XLR microphone input, a headset connection, four talkback groups, direct to channel and an ALL mode speed up communication with crew and guests without disturbing the live program.
Layers, spill and fader flip
Layer buttons 1 to 6 switch banks of channels, spill shows the channels contributing to the selected bus and fader flip moves aux send levels onto the faders.
Channel strips and touchscreens
Every channel has a motorized fader, Select, Solo and Mute buttons and a rotary knob with an LED ring. Each group of ten faders has one 11.6 inch touchscreen showing levels, EQ, dynamics and plug-in interfaces.
Upper deck: functions and processing
The upper deck function buttons open a six-band EQ, compressor, gate/expander, limiter, plug-ins (four slots per channel, ChainFX for up to 24 plug-ins per channel), 3D pan and bus assignment. The display and knobs adapt automatically to the selected function.
Cue, snapshots and recording
The Cue Player keypad triggers jingles, stingers and MIDI cues for external devices, snapshots store and recall the state of the mix, and the Player/Recorder keypad records performances and rehearsals and plays back virtual sound checks.
Connector overview
The diagram shows the two AC power inputs, the Line Out outputs, the HDMI output, the two 10G ports for 2110 IP video and audio, the control port, USB, talkback, the XLR mic input and the headphone output on the rear.
- Blackmagic Fairlight Live Audio Panel 40
- Welcome wallet with QR code for software download
- Type: desktop control surface for Fairlight Live
- Faders: 40 motorized faders
- Channel rotary knobs: 40 multi function knobs with ring LED indicators
- Contextual controls: 40 rotary knobs and 40 buttons for parameters shown on the screens
- Touchscreens: 4× 11.6 inch LCD, 1920 × 1080
- 2110 network: 2× 10G RJ45 Ethernet, SMPTE 2110 video and audio including analog audio of the panel
- Control network: 1× 1G RJ45 for computer connection, configuration and updates
- USB-C port: 1× USB Type‑C for computer connection, configuration and updates
- HDMI output: 1× HDMI Type A, HD or Ultra HD up to 2160p60
- Analog inputs: 1× 3-pin XLR (microphone), 1× 5-pin XLR (talkback headset)
- Analog outputs: 2× 3-pin XLR (line level), 1× 5-pin XLR (headset), 2× 6.35mm headphone jack
- Talkback: built-in microphone, 4 groups, direct to channel or ALL
- Software: Fairlight Live, Blackmagic OS
- Supported systems: macOS 15 Sequoia, macOS 26 Tahoe or later, Windows 11
- Power: 2× internal 100–240 V AC, 50/60 Hz power supplies, 2× IEC C14 inputs
- Dimensions (W × D × H): 52.68 × 18.82 × 10.75″ (1338 × 478 × 273 mm)
- Operating temperature: 0 to 40 °C
- Storage temperature: −20 to 60 °C
- Relative humidity: 0 to 90 % non-condensing
- Warranty: 1 year limited manufacturer’s warranty
Dodatočné parametre
| Kategória: | Vysielacie a routovacie zariadenia |
|---|---|
| Záruka: | 2 roky |
| EAN: | 9338716010640 |
