Blackmagic StudioBridge 10G PWR bridges eight separate 10G Ethernet SMPTE-2110 connections into a modern 100G system with SMPTE 2022-7 redundancy. That means up to eight Ultra HD cameras or converters can join an IP video system – and each 10G port also powers them with up to 90 W of PoE++. The 2U rack unit has dual power supplies and front panel control.

Eight 10G Devices in a Redundant 100G System

A bridge between affordable single link 10G devices and a 100G backbone: eight channels are combined into a redundant pair of QSFP28 links.

8× 10G RJ45 PoE++2× 100G QSFP28SMPTE 2022-7HD and Ultra HD2U rack mount

90 W on every port

Each of the eight 10G ports supplies up to 90 W of PoE++, so cameras and converters at the other end of the cable need no power supply of their own.

Separate NMOS control

1G RJ45 port for NMOS, configuration and updates; USB-C for setup.

Dual power supplies

Two internal 100–240 V power supplies and two IEC C14 inputs.

Blackmagic IP10 codec

Optional for 2160p59.94 and 2160p60 as 2110 IP video.

Monitoring on the front panel

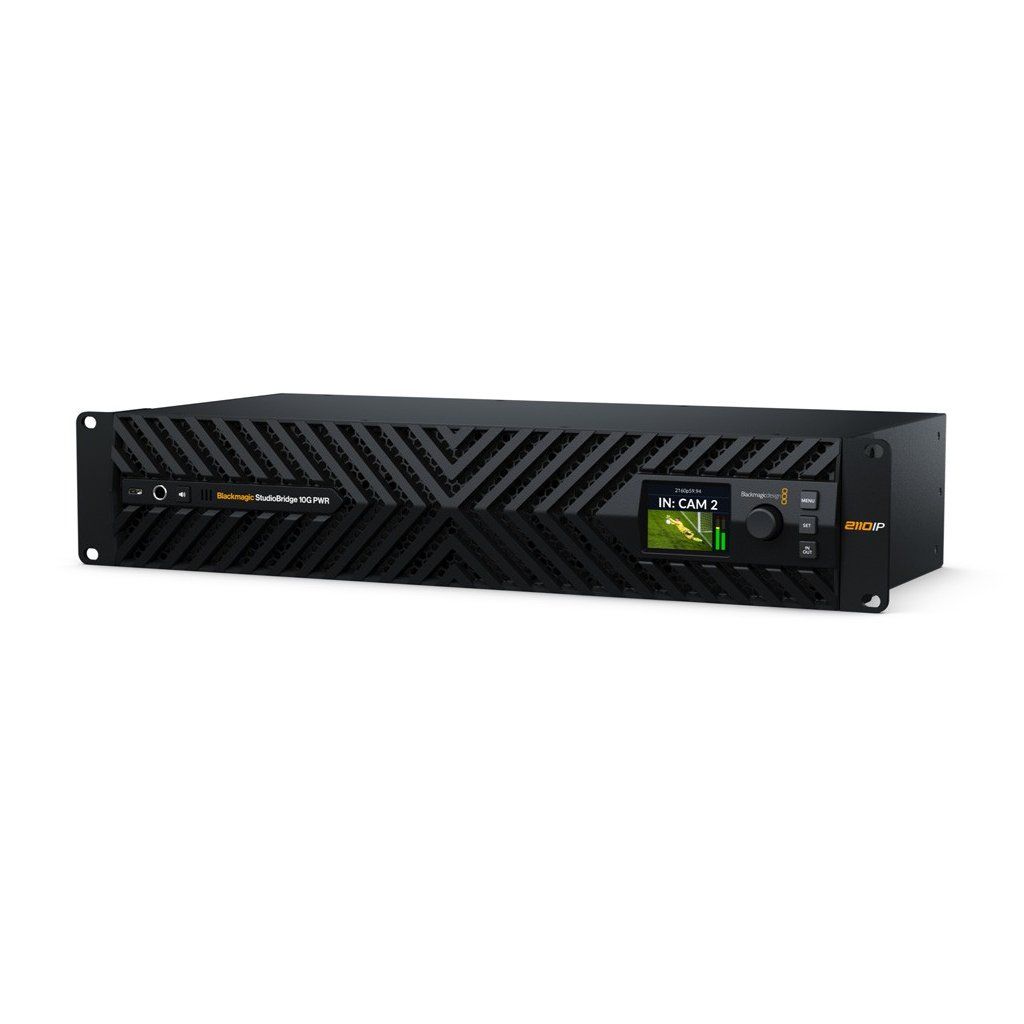

The built-in 2.2″ LCD display, three buttons and spin knob give access to video, audio, standard and timecode right on the front panel; the spin knob scrolls through all inputs. A speaker and headphone output are used for audio checks.

A bridge between the network edge and the 100G backbone

The unit combines eight Ultra HD or HD sources. Two 100G QSFP28 links support ST 2022-7: identical IP streams run over two separate networks and the system seamlessly uses the packet that arrives first.

10-bit video and 16 audio channels

Every 2110 IP video stream carries 16 channels of embedded audio; video is 10-bit 4:2:2 in the Rec. 709 or Rec. 2020 color space. The unit detects HD and Ultra HD automatically.

Connections

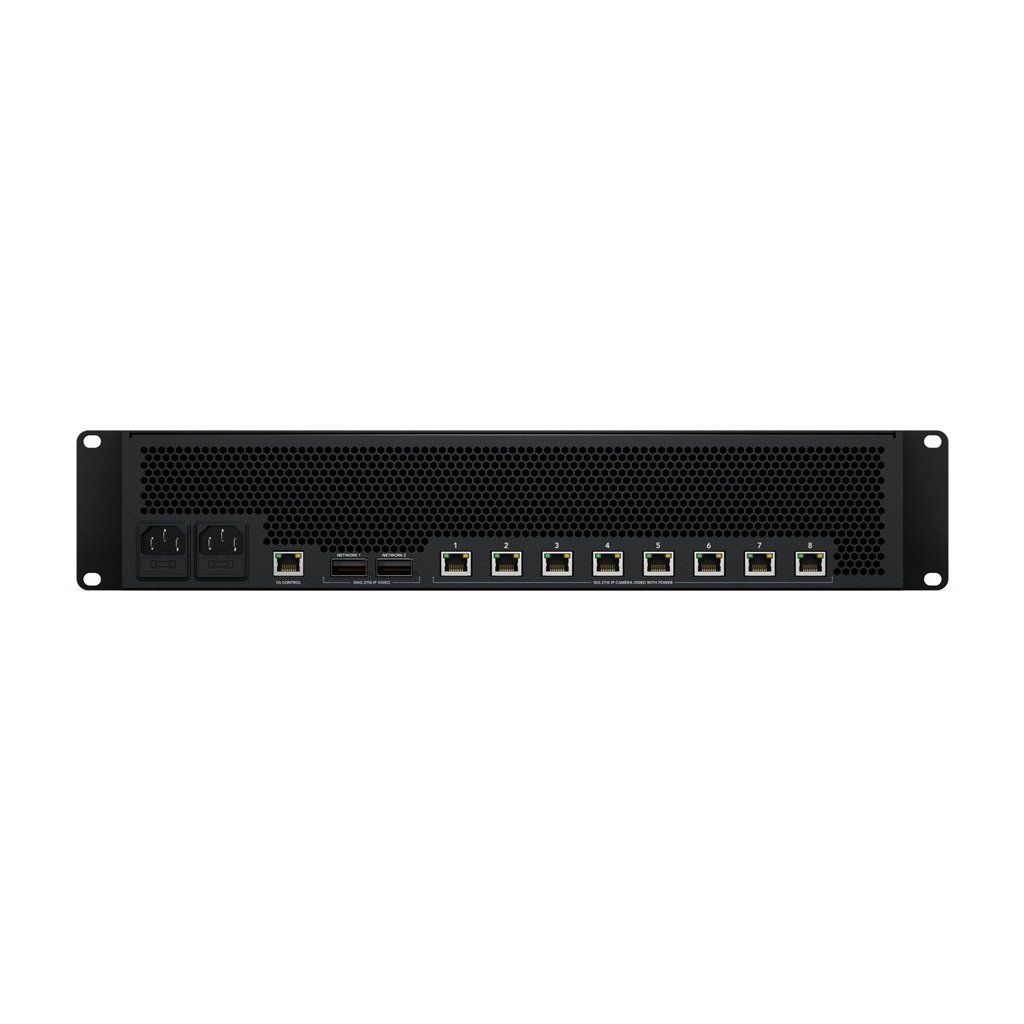

The rear panel has dual AC power inputs, a 1G control port, two 100G QSFP28 ports for 2110 IP video and eight 10G RJ45 ports with PoE++ for cameras and converters.

More information

• Blackmagic StudioBridge 10G PWR
• Welcome card with QR code for software download

• 100G 2110 IP network: 2× 100G QSFP28; SMPTE 2022-7 redundancy over two 2110 networks
• 10G 2110 IP network: 8× 10G RJ45 with PoE++
• Channels: 8× Ultra HD or HD per 100G pair
• 1G control network: 1× 1G RJ45 for NMOS, configuration and updates
• Computer interface: 1× USB-C for configuration and updates
• Audio: 16 channels of embedded audio on every 2110 IP stream
• Audio monitoring: front panel speaker, 6.35 mm headphone output
• HD standards: 720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60; 1080PsF25, 1080PsF29.97, 1080PsF30
• Ultra HD standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
• IP compliance: SMPTE 2110-20, 2110-21, 2110-30 (Level C), 2110-40; IGMP v3; SMPTE 2022-7
• Synchronization: IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2
• NMOS: IS-04 v1.3.2, IS-05 v1.1.2, BCP-002-01, BCP-004-01
• Codec: Blackmagic IP10 optional for 2160p59.94 and 2160p60
• Color precision and space: 10-bit YUV 4:2:2; Rec. 709 and Rec. 2020
• Control: 2.2″ color LCD display, 3 buttons, spin knob
• Power: 2× internal 100–240 V AC power supply, 50/60 Hz; 2× IEC C14
• PoE++ output: 8× up to 90 W for compatible PoE devices
• Installation: 2U, 19″ rack mount
• Dimensions (W × D × H): 482.6 × 220 × 88.4 mm
• Weight: 6.22 kg
• Operating systems: macOS 15 Sequoia, macOS 26 Tahoe or later; Windows 11
• Operating temperature: 5 to 40 °C
• Storage temperature: -20 to 45 °C
• Relative humidity: 0–90%, non-condensing
• Warranty: 1 year limited manufacturer’s warranty
