Blackmagic UpDownCross 100G is a powerful eight-channel standards converter with native SMPTE-2110 via 100G Ethernet. It converts up to eight separate SD, HD or Ultra HD IP video streams simultaneously, protected by redundant 100G QSFP28 links according to SMPTE 2022-7. The 1U unit offers separate NMOS control, monitoring on the front LCD display and redundant AC power for reliable broadcast operation.

Eight Standards Conversions in One Rack Unit

It is designed for dense IP broadcast installations where capacity, redundancy and clear front panel control matter.

8 conversion channels2× 100G QSFP28SMPTE 2022-7SD, HD, Ultra HD1U rack mount

Quiet front-to-back cooling

The professional 1U design is cooled from front to back and is very quiet, so the converter is no problem even in a rack right in the control room.

Separate NMOS control

1G RJ45 port for NMOS, configuration and updates; USB-C for local setup.

Dual power supplies

Two internal 100–240 V power supplies and two IEC C14 inputs.

Blackmagic IP10 codec

Optional for 2160p59.94 and 2160p60 as 2110 IP video.

Monitoring right at the rack

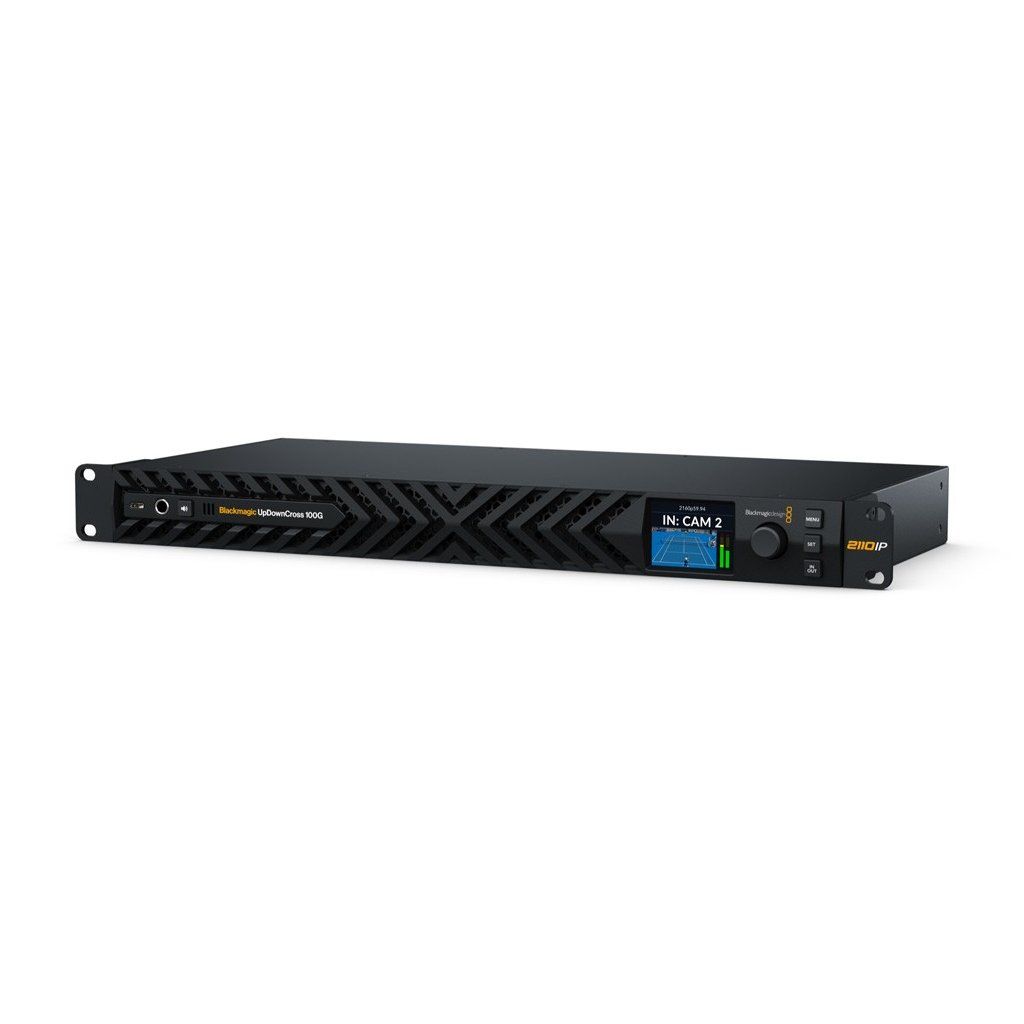

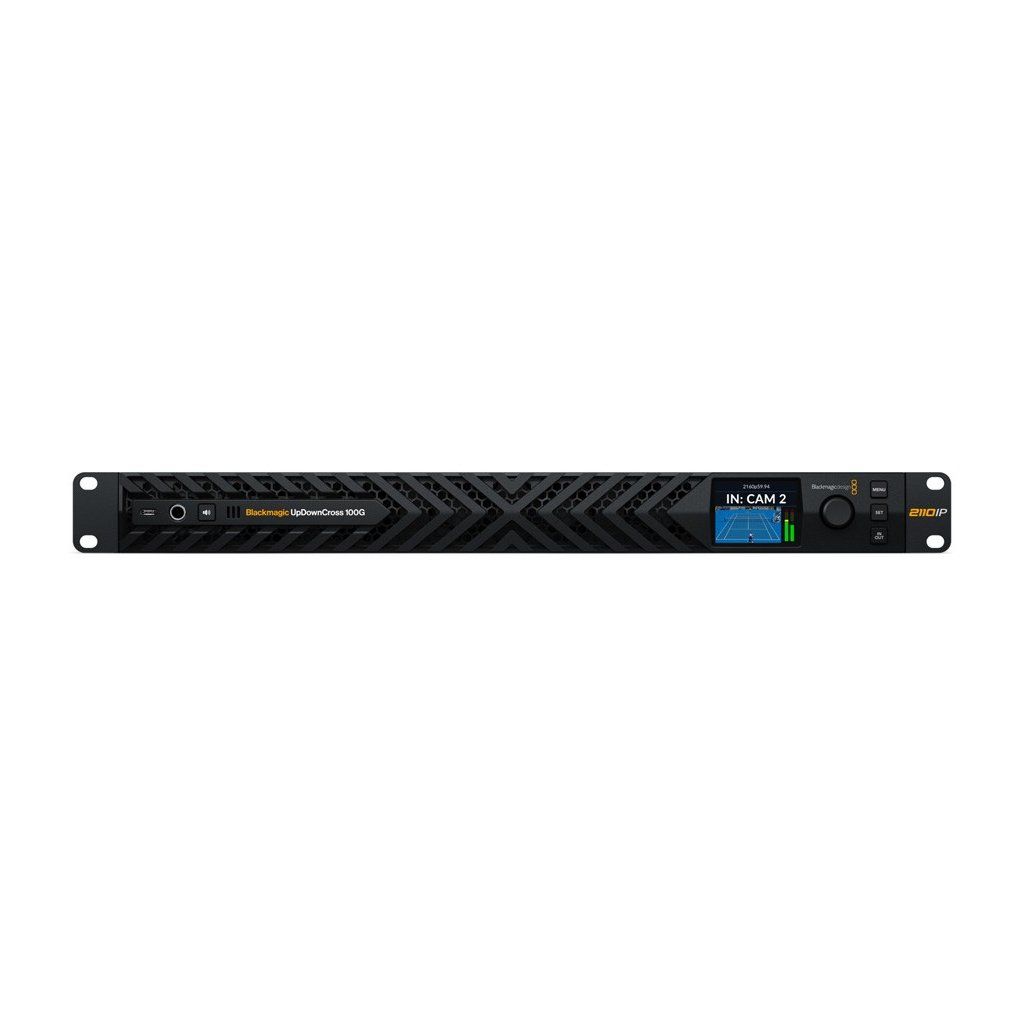

The built-in 2.2″ LCD display, spin knob and buttons are used to select sources and destinations and to check video, audio, timecode and settings. The front panel has a speaker and a 6.35 mm headphone output: a single press of the button turns the speaker on momentarily, a double press toggles it on or off and press and hold sets the volume with the spin knob.

A redundant network without compromise

Two 100G QSFP28 ports carry identical SMPTE-2110 streams over separate network paths according to SMPTE 2022-7. A separate 1G RJ45 port keeps NMOS control, configuration and updates apart from the media network; USB-C is used for local configuration. Each video stream carries 16 channels of embedded audio.

Any standard to any standard

Each of the eight channels converts SD, HD or Ultra HD video to another standard independently of the others – including 1080p47.95/48, 2160p47.95/48 and SD in both NTSC and PAL. Video is 10-bit 4:2:2 in the Rec. 709 or Rec. 2020 color space.

Connections

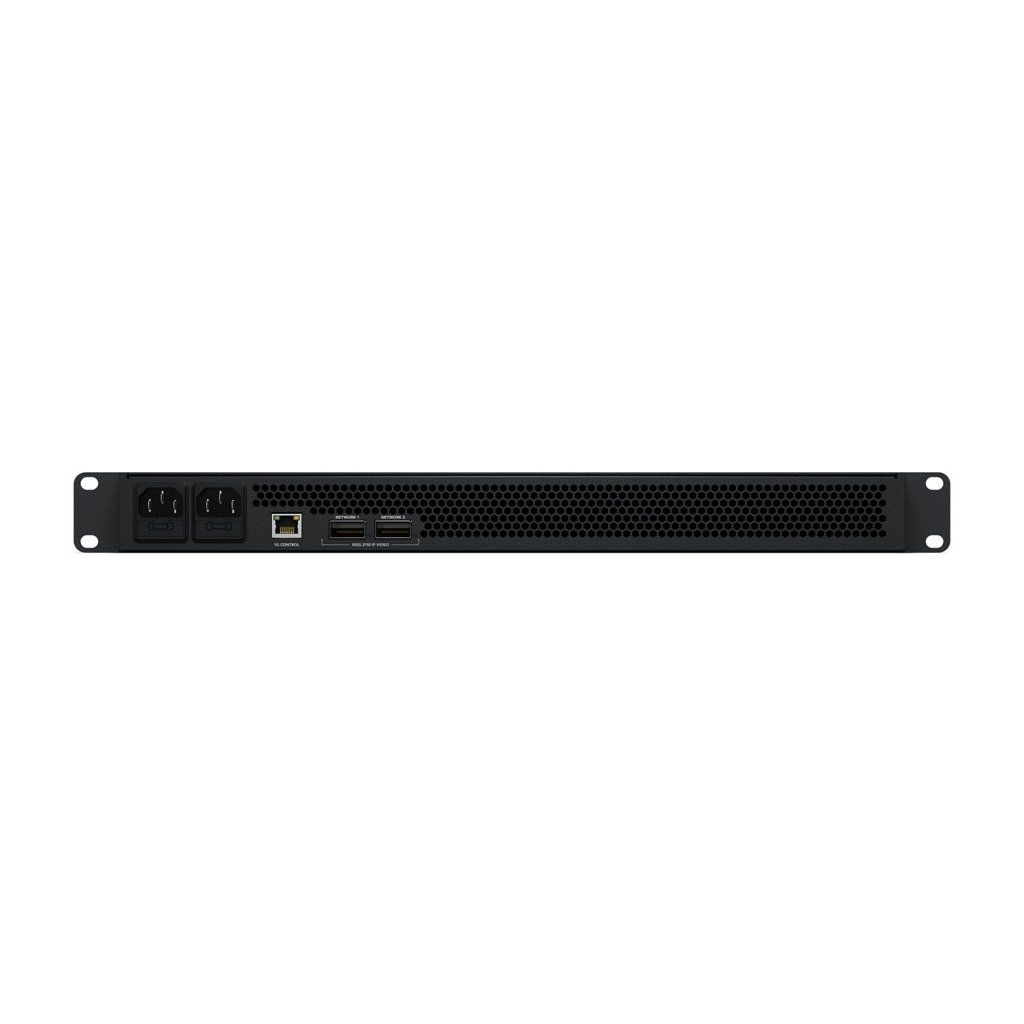

The rear panel has dual AC power inputs, a 1G control port and two 100G QSFP28 ports for 2110 IP video.

More information

• Blackmagic UpDownCross 100G
• Welcome card with QR code for software download

• 100G 2110 IP network: 2× 100G QSFP28; SMPTE 2022-7 redundancy over two 2110 networks
• Channels: up to 8 separate SD, HD or Ultra HD conversions simultaneously
• 1G control network: 1× 1G RJ45 for NMOS, configuration and updates
• Computer interface: 1× USB-C for configuration and updates
• Audio: 16 channels of embedded audio on every 2110 IP stream, 48 kHz, 24-bit
• Audio monitoring: front panel speaker, 6.35 mm headphone output
• SD standards: 525i59.94 NTSC, 625i50 PAL
• HD standards: 720p50, 720p59.94, 720p60; 1080i50, 1080i59.94, 1080i60; 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60; 1080PsF25, 1080PsF29.97, 1080PsF30
• Ultra HD standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60
• IP compliance: SMPTE 2110-20, 2110-21, 2110-30 (Level C), 2110-40; IGMP v3; SMPTE 2022-7
• Synchronization: IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2
• NMOS: IS-04 v1.3.2, IS-05 v1.1.2, BCP-002-01, BCP-004-01
• Codec: Blackmagic IP10 optional for 2160p59.94 and 2160p60
• Color precision and space: 10-bit YUV 4:2:2; Rec. 709 and Rec. 2020
• Control: 2.2″ color LCD display, 3 buttons, spin knob
• Power: 2× internal 100–240 V AC power supply, 50/60 Hz; 2× IEC C14
• Installation: 1U, 19″ rack mount
• Dimensions (W × D × H): 482.6 × 218 × 44.2 mm
• Weight: 3.01 kg
• Operating systems: macOS 15 Sequoia, macOS 26 Tahoe or later; Windows 11
• Operating temperature: 0 to 40 °C
• Storage temperature: -20 to 45 °C
• Relative humidity: 0–90%, non-condensing
• Warranty: 1 year limited manufacturer’s warranty
