Blackmagic URSA Cine Studio Viewfinder Blackmagic Design

Podrobný popis

The Blackmagic URSA Cine Studio Viewfinder is a bright 7-inch HDR touchscreen viewfinder for compatible URSA Cine cameras in live production. A single lockable USB-C cable provides video, power, metadata, and camera control; the touchscreen menu, hardware controls, and 2,000-nit display speed up workflow on set and in the studio.

URSA Cine for Live Production

Large HDR Preview and Full Camera Control

The URSA Cine Studio Viewfinder transforms a compatible URSA Cine into an ergonomic studio workstation. The bright 7″ touchscreen offers direct access to the image, menus, and essential tools for focus and exposure.

7″ / 1920 × 12002,000 nits HDR

Single Lockable USB-C Cable

The lockable USB-C connection transmits video, power, metadata, and camera control, and is also used for updates. The viewfinder thus creates a cleaner studio setup without separate video and control cables.

In addition to USB-C power, an optional lockable 5.5mm DC power supply in the range of 12 to 17 V can also be used.

Settings for the Director and Camera Operator

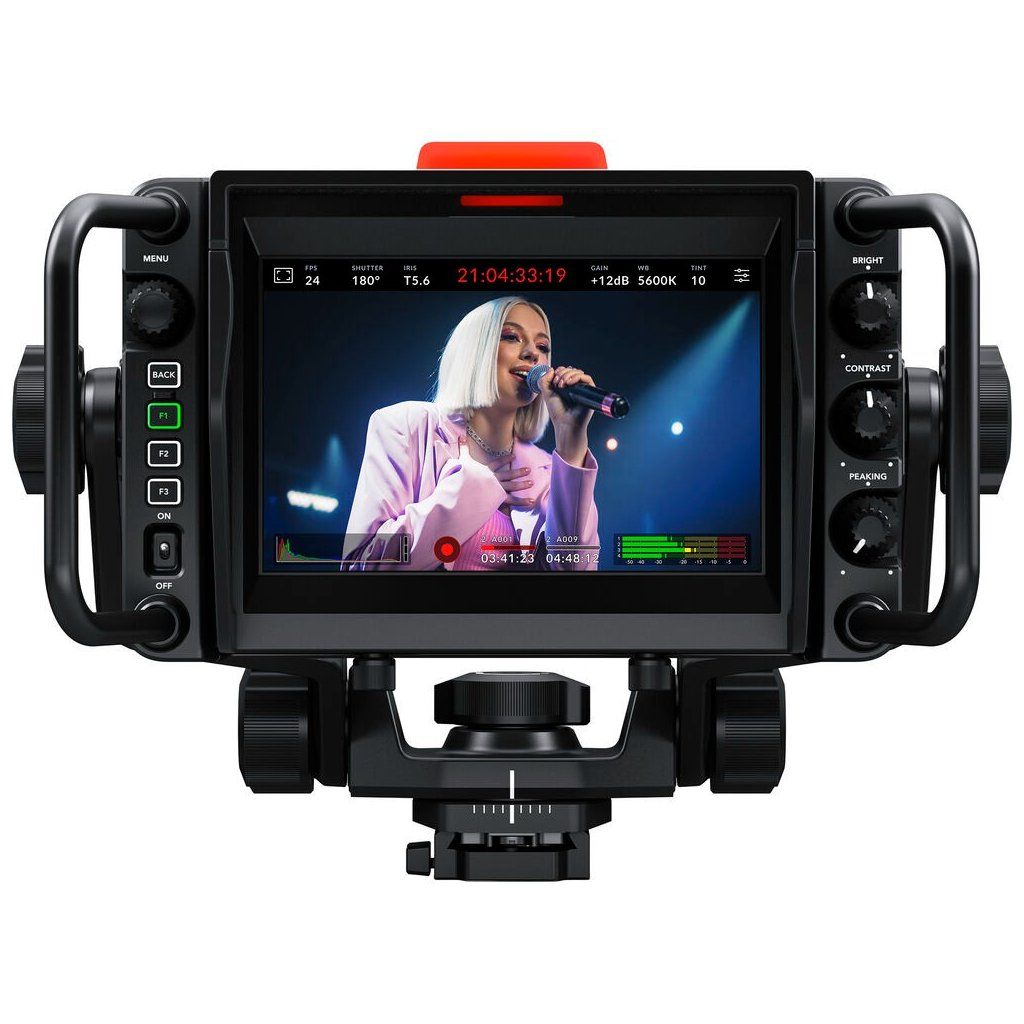

The touchscreen, rotary control, dedicated buttons, and three programmable function buttons provide quick access to brightness, contrast, focus peaking, and the camera menu. Framelines, a histogram, and other overlays can be displayed on the screen.

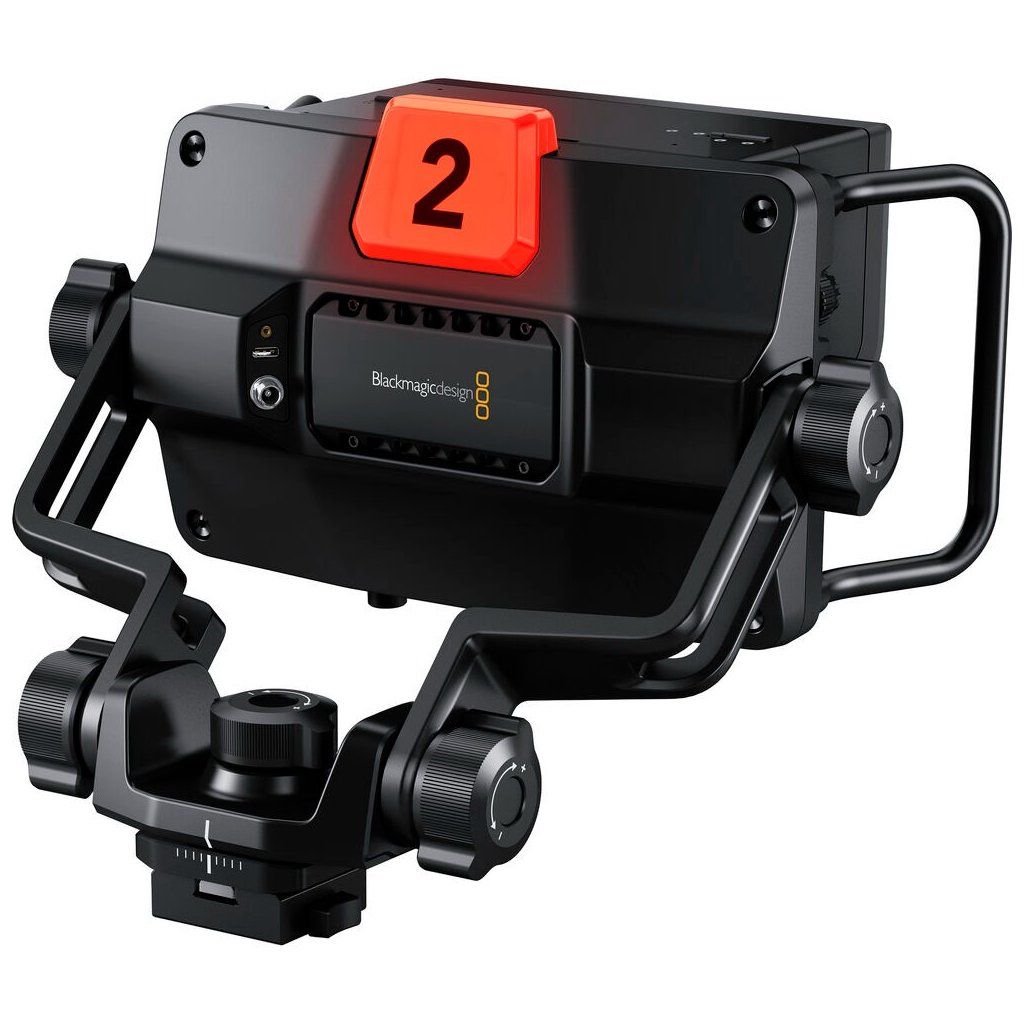

An articulated mount with adjustable resistance and integrated handles allows for smooth adjustment of the tilt, height, and distance of the screen from the camera.

Studio Control Without Compromise

The original technical specifications remain unchanged: a high-resolution TFT LCD with touchscreen control, a removable sunshade, and integrated handles assist during long live productions. The V-Lock mounting solution is designed for the URSA Cine system.

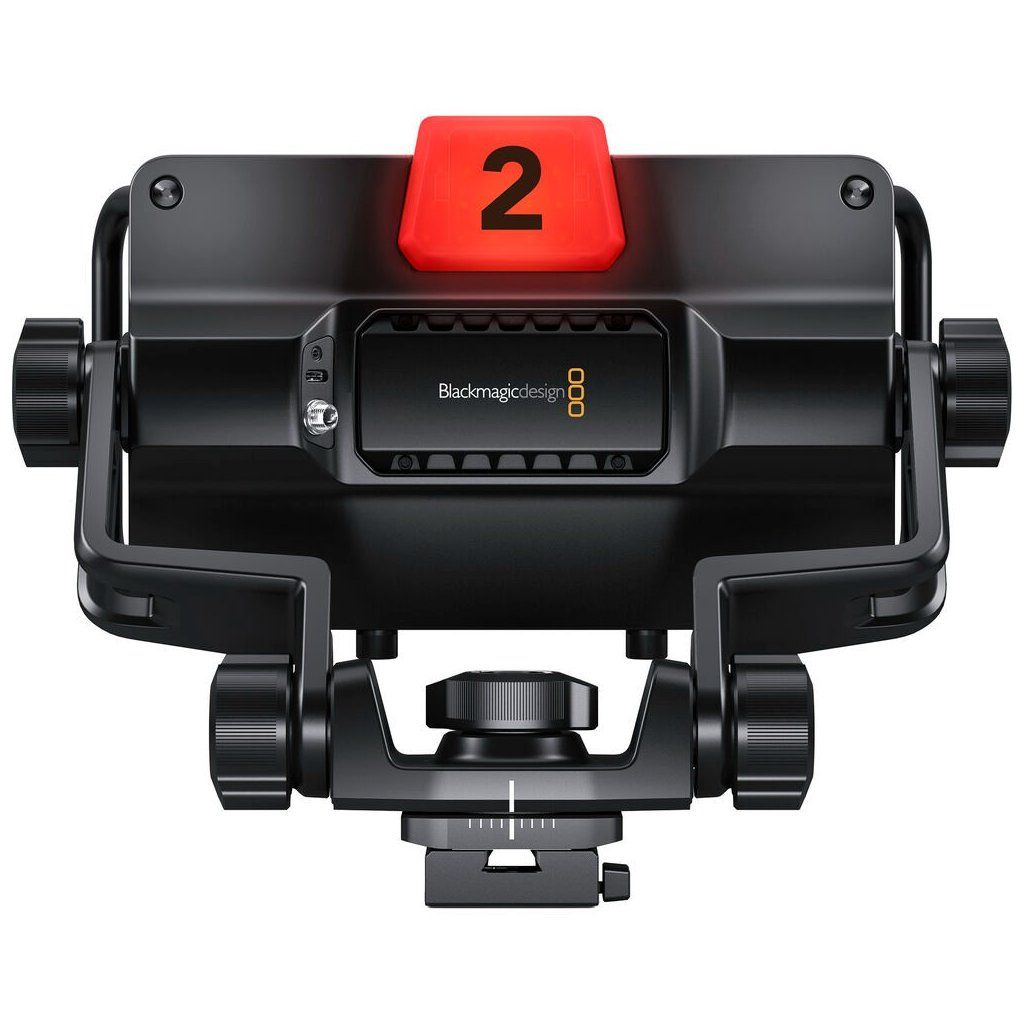

The viewfinder displays camera status information, framing guides, focus peaking, and tally. Controls include a touchscreen, a rotary dial, knobs, and three customizable buttons; the articulated arm allows for forward, backward, up, down, and tilt adjustments.

Compatibility: Blackmagic URSA Cine 12K LF, URSA Cine 12K LF 100G, URSA Cine 17K 65, and URSA Cine Immersive models.

• Blackmagic URSA Cine Studio Viewfinder
• Monitor Mounting Plate
• Starter Kit with QR Code for Software

• Display: 7″ capacitive touchscreen TFT LCD
• Resolution: 1920 × 1200
• Brightness: 2,000 nits
• Refresh rate: up to 60 fps
• Interface: Lockable USB-C for video, power, metadata, and control
• External power: lockable 5.5 mm DC, 12–17 V
• Operating temperature: 0 to 40 °C
• Warranty: 1-year limited manufacturer’s warranty
