Caster Duo RODE

Podrobný popis

Podcast and streaming compact studio mix, 2 analog inputs - microphone/line/tool, 2x headphone output, 1x headset input, audio monitor output, 2x USB-C, Wi-Fi, Ethenet, Bluetooth®, receiver for RØDE wireless, 4 physical and 3 virtual faders, 5.5" LCD display, APHEX® processors, RØDE FX effects

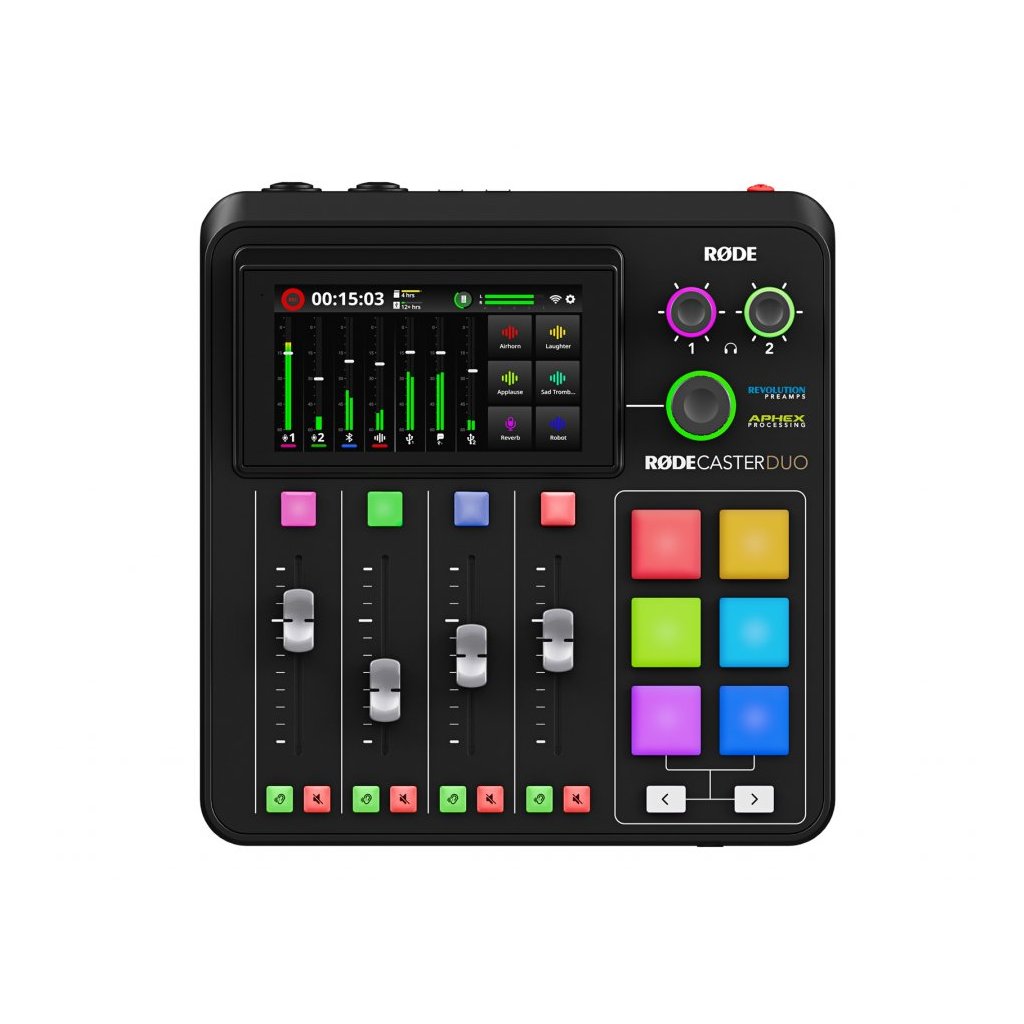

The RØDECaster Duo
is a compact and extremely powerful all-in-one working tool for podcasters, content creators, simple broadcasters and any online communication.

• two analog inputs for microphone, line and instrument
• Revolution Preamp™ on inputs
• receiver for RØDE wireless transmitters
• ^Bluetooth® for smart device integration
• 4 physical and 3 virtual faders
• 6 programmable Pads
• 2x USB-C, Wi-Fi, Ethernet and microSD™ slot
• stereo output, 2 headphone outputs and connection for headset with microphone
• ^aPHEX® internal processor and RØDE FX effects
• 5.5 touch LCD with haptic response

The extremely compact and fexible RØDECaster Duo streaming console for podcasting and broadcasting features two universal inputs equipped with XLR/TRS combo connectors. They have a low-noise, high-gain Revolution Preamp™ for microphone, line and instrument connections. With the integrated 2.4GHz receiver, you can connect any RØDE wireless microphone and Wireless GO Series transmitter to the RODECastrer Duo without a cable. You can connect another wireless set using the VXLR reducer to the analog inputs. The TRRS 3.5mm connector offers easy use of a headset with both headphones and microphone.

Internal ^APHEX® studio-grade DSP on each input delivers superior sound quality with perfectly preset presets and maximum flexibility. This makes achieving professional sound fast and easy at all times.

Advanced ^Bluetooth® connectivity, two USB-C interfaces, Wi-Fi and Ethernetconnectivity offer unparalleled integration with computers, smartphones and other devices. A fully customizable mix allows the RØDECaster Duo to be configured to suit any application. Six color-lit, programmable SMART Pads with bank switching can be used to trigger sounds, jingles, loops or entire songs, to activate audio FX effects on inputs. You can also use them to trigger full mix actions or MIDI commands for unparalleled creative flexibility and control.

The RØDECaster Duo is incredibly easy to use. This is aided by a large, high-resolution 5.5" LCD touchscreen with haptic vibration response, a rotary encoder for easy navigation, intuitive element placement with clear control logic, and professionally developed and customized presets.

What does the RØDECaster Duo offer?

• a fully integrated audio production studio for podcasters and content creators
• revolution Preamp™ preamps with ultra-low noise, high gain and high dynamics
• two analog inputs with high-quality XLR/TRS ^Neutrik® combo connectors for connecting microphones, instruments and line-level equipment
• seven independent signal sources individually assignable to physical and virtual faders
• four physical faders with high quality tension potentiometers and three virtual faders
• ^aPHEX® channel strip on each channel with presets to achieve a professional sound
• high-performance quad-core sound engine
• complete ^APHEX® studio sound processing and built-in RØDE FX effects
• six fully programmable RGB backlit SMART Pads with bank switching
• two USB-C interfaces for connecting two computers or mobile devices
• advanced ^Bluetooth® for quality integration of phone calls or posts from smart devices
• multi-track or stereo recording to microSD™ card, USB storage device, or computer
• two powerful headphone outputs on TRS 6.3 mm (large jack)
• multi-function TRRS 3.5 mm (small jack) jack for connecting a headset with microphone; can also be used as an additional headphone output with TRS 3.5 mm jack
• two symmetrical line outputs on TRS 6.3 mm (large jack) connectors for loud listening or connection to other devices
• 5.5" high-resolution LED touch screen with haptic feedback
• rotary controller with push function for easy navigation, control and value adjustment
• RØDECaster is designed and manufactured by RØDE in Sydney, Australia

equipment

• two analogue inputs - microphone, line, instrument
• Revolution Preamp™
• receiver for RØDE transmitters
• ^Bluetooth®
• 7 signal sources in total
• 4 physical and 3 virtual faders
• 6 SMART Pads
• 2x USB-C
• Wi-Fi and Ethernet
• microSD™ slot
• symmetrical stereo output on TRS 6.3 mm
• 2 headphone outputs on TRS 6.3 mm
• TRRS 3.5 mm for headset with microphone
• internal ^APHEX® processors
• RØDE FX effects
• 5.5" touchscreen color LCD

• RØDECaster DUO
• power adapter
• SC27 - USB-C to USB-C cable
• rØDE Central software

• frequency range:
• microphone inputs: 20 Hz - 20 kHz
• monitor output: 20 Hz - 20 kHz
• input impedance:
• microphone inputs: 4 kOhm
• instrument inputs: 1 MOhm
• input Gain Range: 0 - 76 dB
• inherent noise: -131.5 dBV
• maximum output level: +4 dBu
• headphone preamp power: 250 mW
• analog inputs:
• 2x combo XLR/TRS (mic/line/instrument)
• 1x TRRS 3.5 mm for headset with microphone
• USB 1
  • 2-in/14-out in multichannel mode
  • 2-in/2-out using mix-minus function
• USB 2
  • 2-in/2-out using mix-minus function
• sampling frequency: 48 kHz
• bit depth: 24-bit
• supported recording devices
  • microSDHC
  • microSDXC
  • USB-C flah drive
  • external drive (exFAT - min 100 MB/s)
• transfer speed
  • USB 3.0: 130 MB/s
  • SD card reader: 130 MB/s
• network connections
  • Wi-Fi 802.11g/n/ac 2.4 GHz and 5 GHz
  • Ethernet 100/100
• internal memory: 4 GB for SMART Pads
• minimum OS required
  • macOS 10.15 and higher
  • Windows 10 version 1803 and higher
  • Windows 11

• power: USB-C 9V/3A
• weight: 1.131 kg
• dimensions (L x W x H): 23.5 x 22.5 x 7.6 cm
