Catta Ace 18-35/70-135 T2.9-PL/EF Mount(Black) DZO Optics
Kód: ACATTA-ACEFF-18-35/70-135T29XPodrobný popis
The Catta Ace Full-Frame Zoom lenses with a maximum aperture of T2.9 are powerful cine zoom lens with an image circle of 43.5/ 46.5mm, making it perfect for current professional cinema-cameras. The lenses come mounted with a PL mount. An EF mount is included in the box.
The compact zoom lenses deliver cinematic image quality and natural skin tones. The parfocal design ensures consistent sharpness when zooming. Focus breathing and image shifting are significantly reduced.

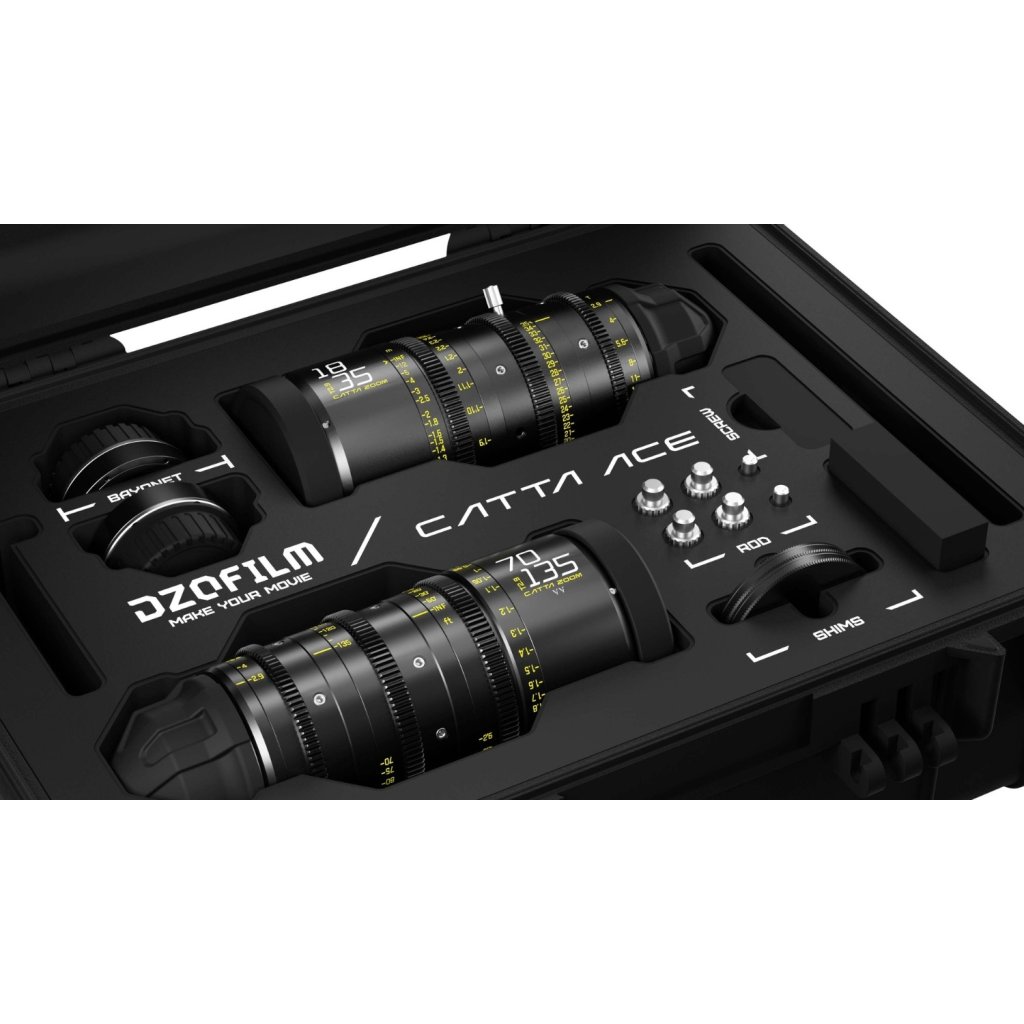

The DZOFILM Catta Ace Zoom Bundle comes in a sturdy carrying case.
| FOCAL LENGTH | 18-35 mm | 35-80 mm | 70-135 mm | ||||
| COLOUR | Black | ||||||
| MOUNT | PL / EF / LPL | ||||||
| T-STOP | T2.9-T22 | ||||||
| IMAGE CIRCLE | φ43.5mm | φ46.5mm(VV/FF) | |||||
| OPTICAL CONSTRUCTION | 20 Elements in 14 Groups | 20 Elements in 15 Groups | 17 Elements in 11 Groups | ||||
| FLANGE DISTANCE | 52mm(PL)/44mm(EF/LPL) | ||||||
| CLOSE FOCUS (FROM SENSOR PLANE) |
0.51m/1ft8in | 0.74m/2ft5in | 0.76m/2ft6in | ||||
| ZOOM RATIO | 1.9X | 2.3X | 1.9X | ||||
| IRIS CONTROL | Manual(rotation angle 77°) | Manual(rotation angle 75°) | Manual(rotation angle 80°) | ||||
| FOCUS CONTROL | Manual(rotation angle 270°) | ||||||
| ZOOM CONTROL | Manual(rotation angle 100°) | ||||||
| FRONT DIA. | φ80mm/3.15" | ||||||
| LENGTH | 179.5mm/7.07"(PL) 187.5mm/7.38"(EF/LPL) | ||||||
| IRIS BLADE | 16 | ||||||
| FILTER SIZE | M77 | ||||||
| GEAR PITCH | 0.8 Mod | ||||||
| MATERIAL | Aluminum Alloy | ||||||
| WEIGHT | ≈1850g | ≈1635g | ≈1710g | ||||
Dodatočné parametre
| Kategória: | Cine DZOFilm |
|---|---|
| Záruka: | 2 roky |
| EAN: | 0000000000000 |
