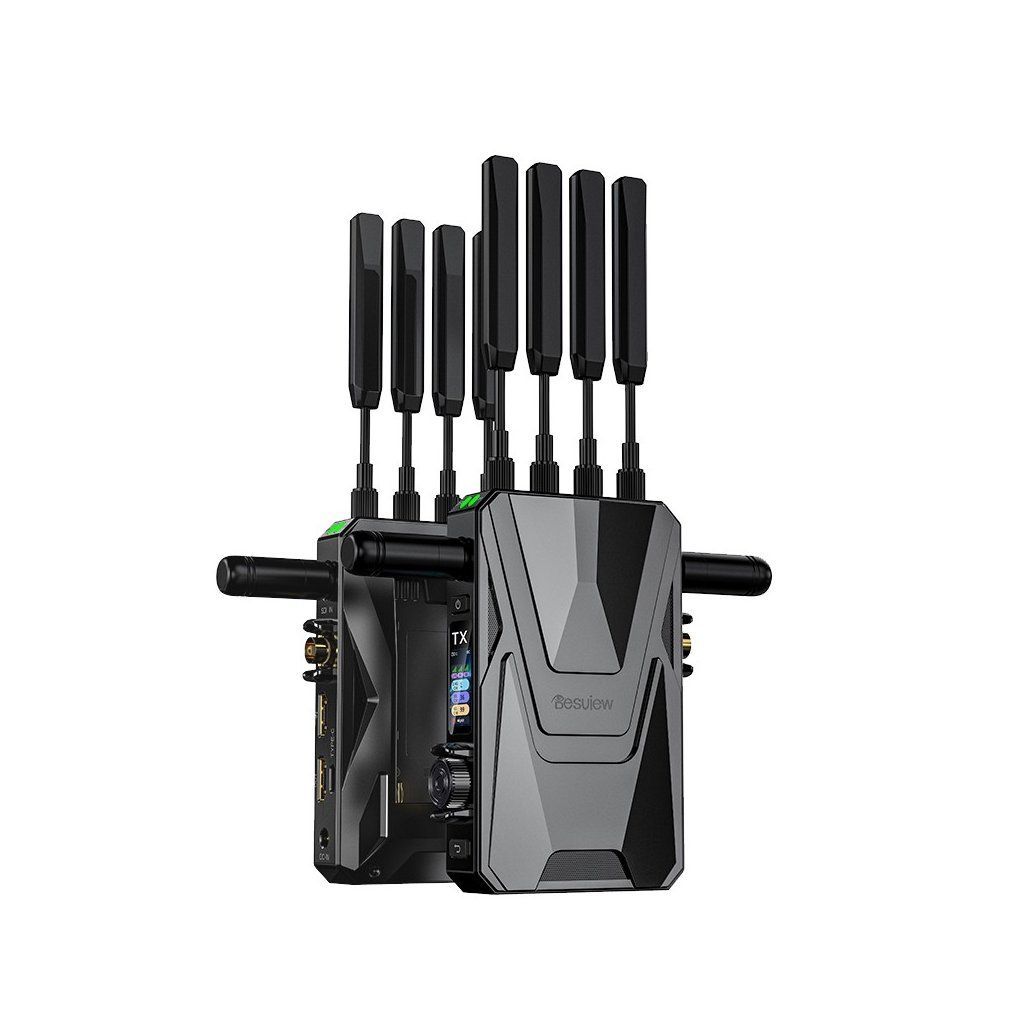

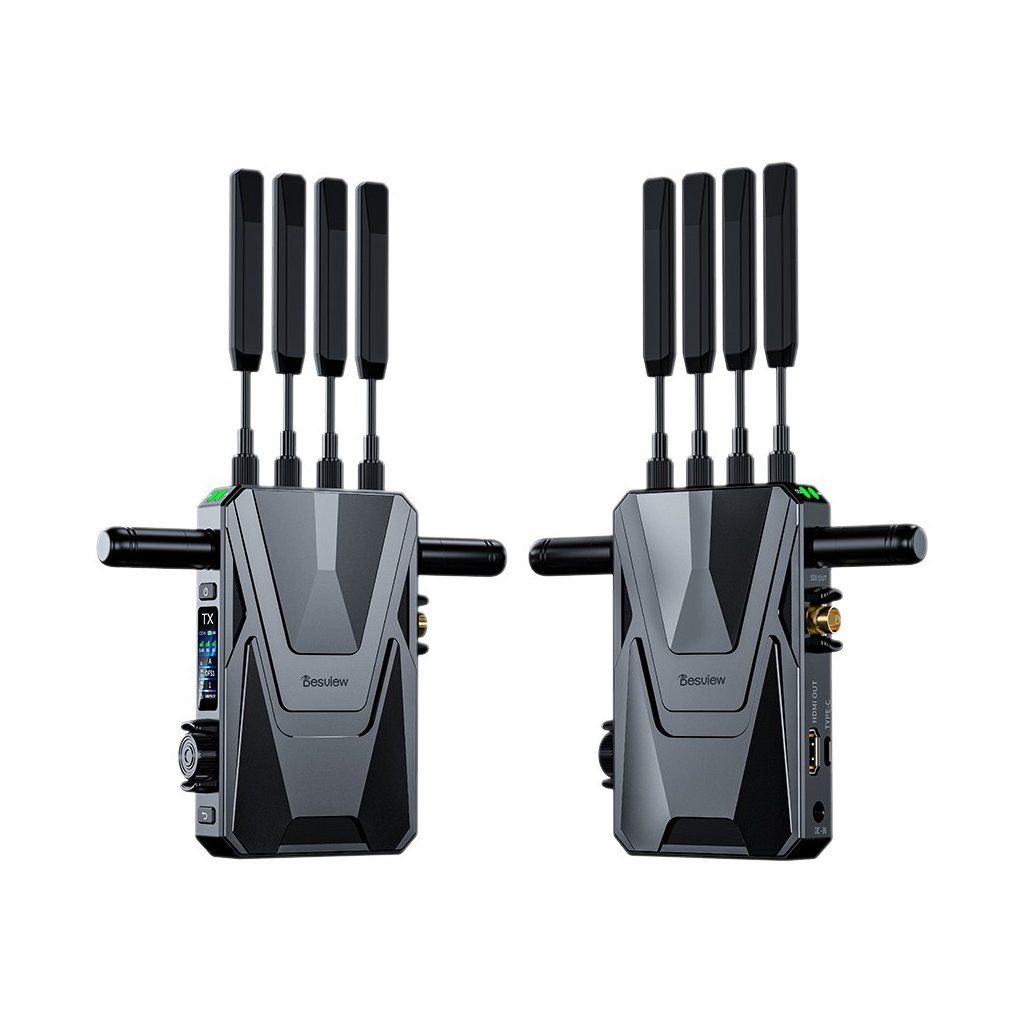

Desview Atlas X 4K TX/RX Desview
Kód: ADES-ATLASX4K-TX/RXXPodrobný popis
Desview Atlas X is a professional wireless video transmitter and receiver set for up to 4Kp60 HDR at 24 Mbps with an average latency of 35 ms. Simultaneous transmission across the 2.4, 5 and 6 GHz bands with DFS channels reaches up to 3 km in open terrain. The transmitter takes HDMI and SDI, the receiver outputs HDMI, SDI and USB-C with UVC for streaming. Powered by an NP-F battery or a DC adapter – for film crews, broadcast and live events.
Key features
- True Ultra-HD 4K, native 4Kp60 HDR and 24 Mbps high bitrate
- Automatic frequency hopping, anti-interference across the band
- Utilizes the latest generation H.265 video encoding and decoding
- Ultra-low latency of 35 ms
- Ultra-long transmission distance of kilometers – up to 3 km
- Supports UVC streaming, perfect for live-streaming
- Full HDMI & SDI support
- 1.05-inch full-color LCD display
- Dual power supply: NP-F battery and a DC adapter
- Aerospace aluminum material
Robust construction, easy to use, and reliable performance. Enhance your production with this top-of-the-line wireless solution.
Ultra-HD 4K and 24 Mbps High Bitrate
Atlas X video transmission supports Ultra-HD 4K and 24 Mbps high bitrate, meeting the 4K monitoring demand fully. For shooting crews like short films, TVCs and ads, who demand high image quality, Atlas X keeps monitoring and collaboration smooth. The diagram shows a typical setup: the camera feeds the transmitter's HDMI input, two receivers decode 4K60, the HDMI loop-out drives a director monitor and the Type-C output records video on a computer and streams to platforms.
The Latest Generation H.265 Video Encoding and Decoding, With Bandwidth Reduced to 50%
H.265 further improves low bitrate performance. Compared with H.264, it saves 40–50% bitrate while keeping higher image quality. The technology also boosts network adaptability, performs more stably under complex network conditions, and supports smooth transmission in low bandwidth environments.

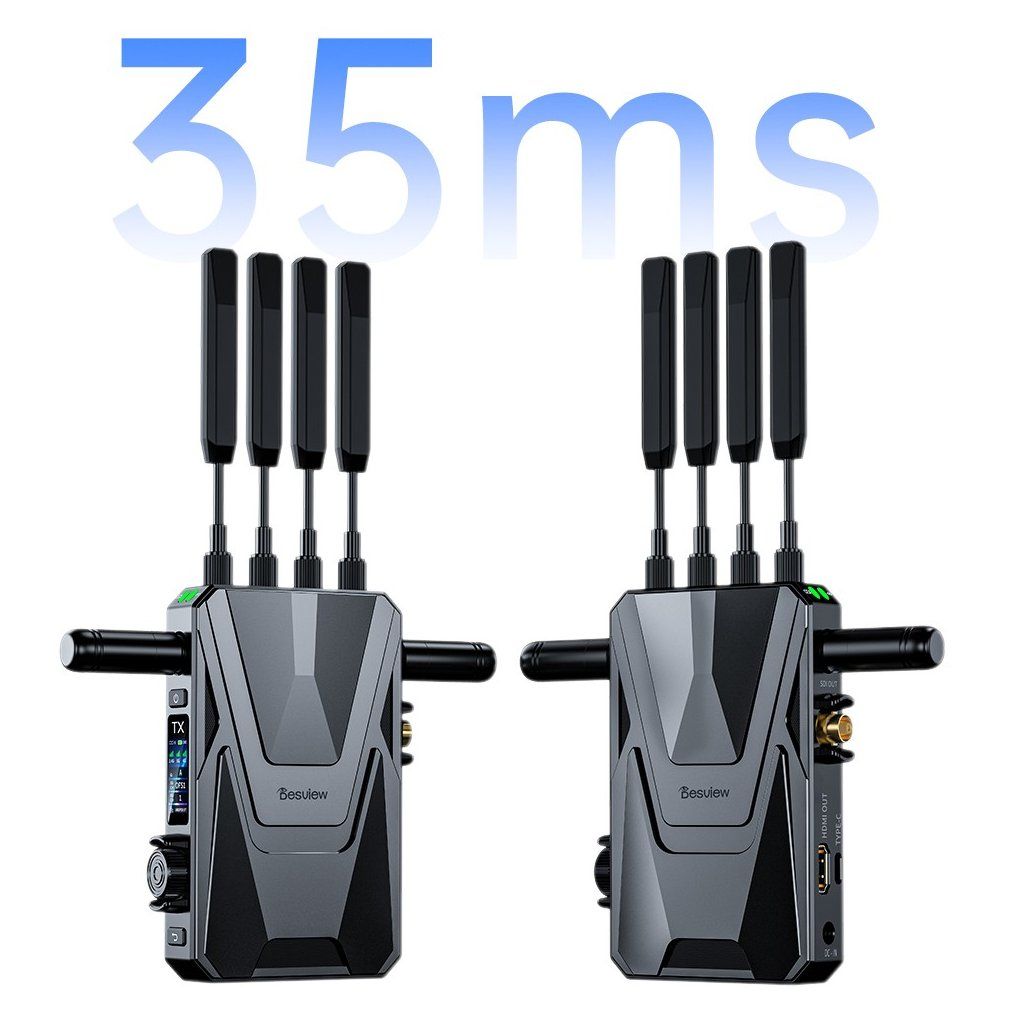

Ultra-Low Latency of 35 ms
Triple-band simultaneous transmission delivers an average one-to-one latency of 35 ms between transmitter and receiver in real tests. Real-time virtual production stays perfectly in synchronization, no motion blur and no audio-video misalignment.
Multi-Band Simultaneous Transmission and Anti-Interference Across the Band
Atlas X uses Desview's self-developed multi-band simultaneous transmission technology (2.4 GHz + 5 GHz + 6 GHz + DFS channels), intelligently routing data across 23 channels, for achieving multi-band data-streaming simultaneous transmission. DFS channels deliver extra regulation-compliant, interference-free channels for the extreme stability demanded on professional sets. Besides, Atlas X switches channels without blackouts for even smoother transmission. The comparison in the image: three super-fast bands versus one channel of a typical product mean 50% stronger anti-interference and 25% faster transmission.
Stable Long-Distance Coverage, Range Up to Kilometers
Thanks to triple-band transmission, Atlas X reaches a transmission distance of up to 3 km in open, obstacle-free environments. It handles large-scale mobile shootings with strong wall-penetration power, meeting on-set monitoring demands in any complex environments.
Support UVC Streaming, Perfect for Live-Streaming
Both transmitter and receiver support UVC protocol, so you can set up your live-streaming camera wherever you want – fast, flexible, hassle-free, with no drivers needed for OBS and TikTok Live Studio.
Full HDMI & SDI Support – Create Anywhere and Anytime

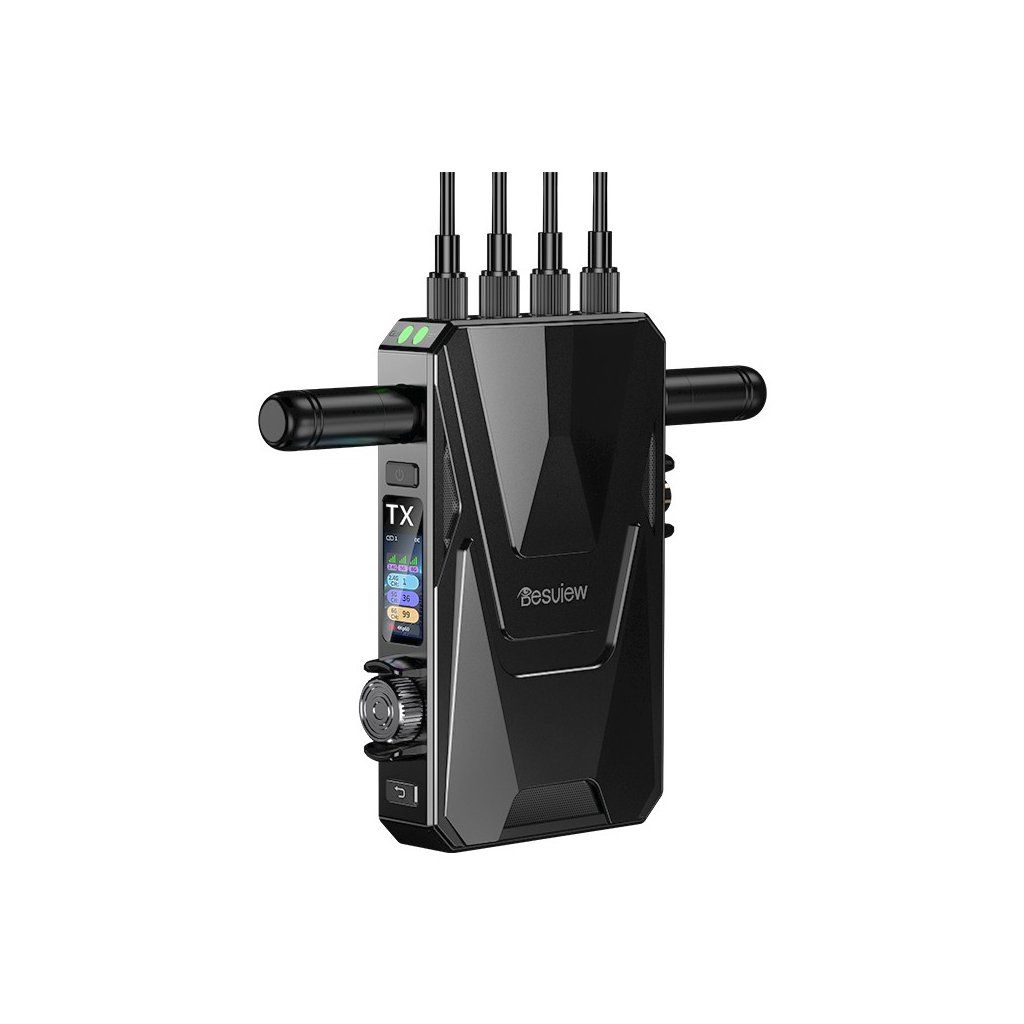

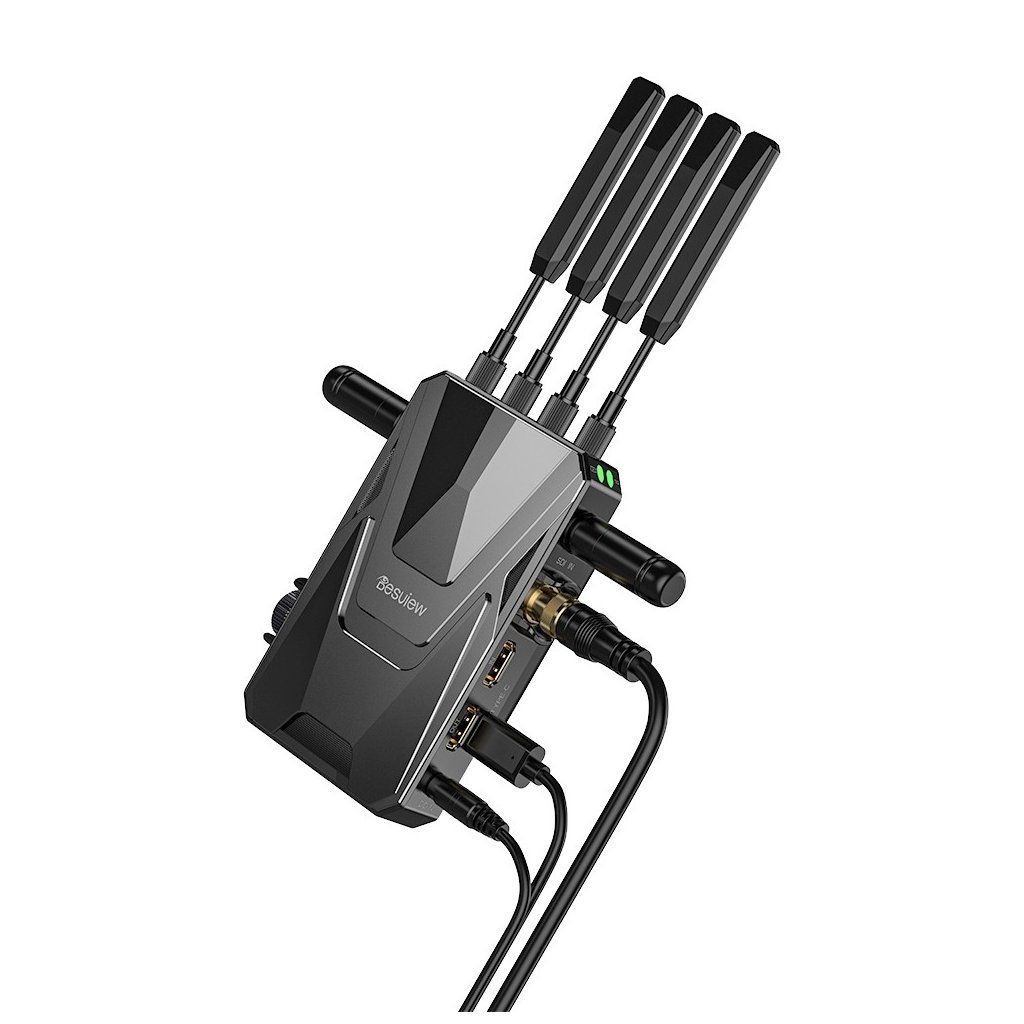

Transmitter supports simultaneous HDMI input and SDI input, and HDMI loop-out for real-time monitoring. Receiver supports simultaneous HDMI output and SDI output, so director monitoring, DIT backup, and streaming encoding can all run at once, cutting setup costs to a minimum. The transmitter has an SDI input, HDMI 2.0 input, HDMI 2.0 loop-out, Type-C output and DC power input; the receiver has an SDI output, HDMI 2.0 output, Type-C output and DC power input. The top panel carries the power button, menu knob, return button, full-color LCD display and the connection status and video input indicators.
1.05-inch Full-Color LCD Display
Shows signal status, channel band and battery level in real time, all data visualized on screen for faster settings. The display shows the number of connected devices, battery level and power, wireless connection status, the 2.4, 5 and 6 GHz channels and the signal resolution.

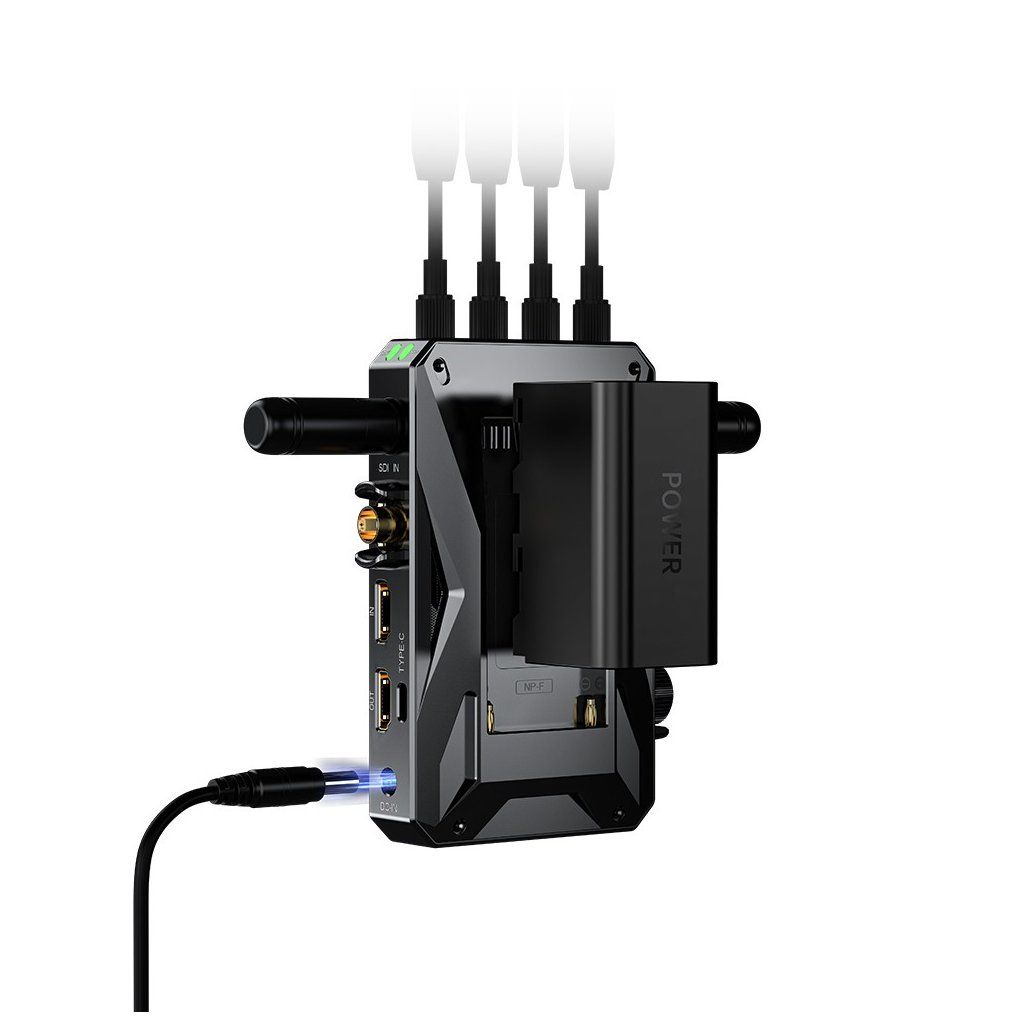

Power Freedom, No More Battery Anxiety
Dual power supply from NP-F battery and a DC adapter keeps you running all day without a break, making sure that shootings stay on schedule.
Military-Grade Design, Fearless of Collision
Aerospace aluminum material meets military-grade anti-collision and scratch resistance. The built-in thermal system keeps core temperature ≤45 °C under heavy load, ensuring non-stop, full-speed transmission without throttling.
Atlas X, Unlock Limitless Creativity
No matter how chaotic the set, the signal stays rock-solid. Thanks to triple-band frequency-hopping transmission technology (2.4 GHz + 5 GHz + 6 GHz + DFS channels), Atlas X delivers outstanding anti-interference performance, guaranteeing stable transmission even in the most complex shooting environments and effortlessly handling every challenge.
Multi-Person Collaboration, Multi-Screen Monitoring Made Easy
Atlas X supports one-to-four multi-screen collaboration. It can connect and manage four display terminals at the same time, delivering lossless 4K Ultra-HD images with real-time monitoring. This covers multi-camera shootings and on-set coordination in one go, noticeably boosting team collaboration and working efficiency.
Live Streaming Made Simple
Plug the Atlas X receiver into any computer with a single USB Type-C cable and its video signal appears on your computer instantly, ready for remote viewing via meeting apps or direct OBS streaming. No extra steps, no extra devices, just efficient live-streaming.
- Transmitter (TX) – 1×
- Receiver (RX) – 1×
- 2.4/5 GHz antenna – 8×
- 6 GHz antenna – 4×

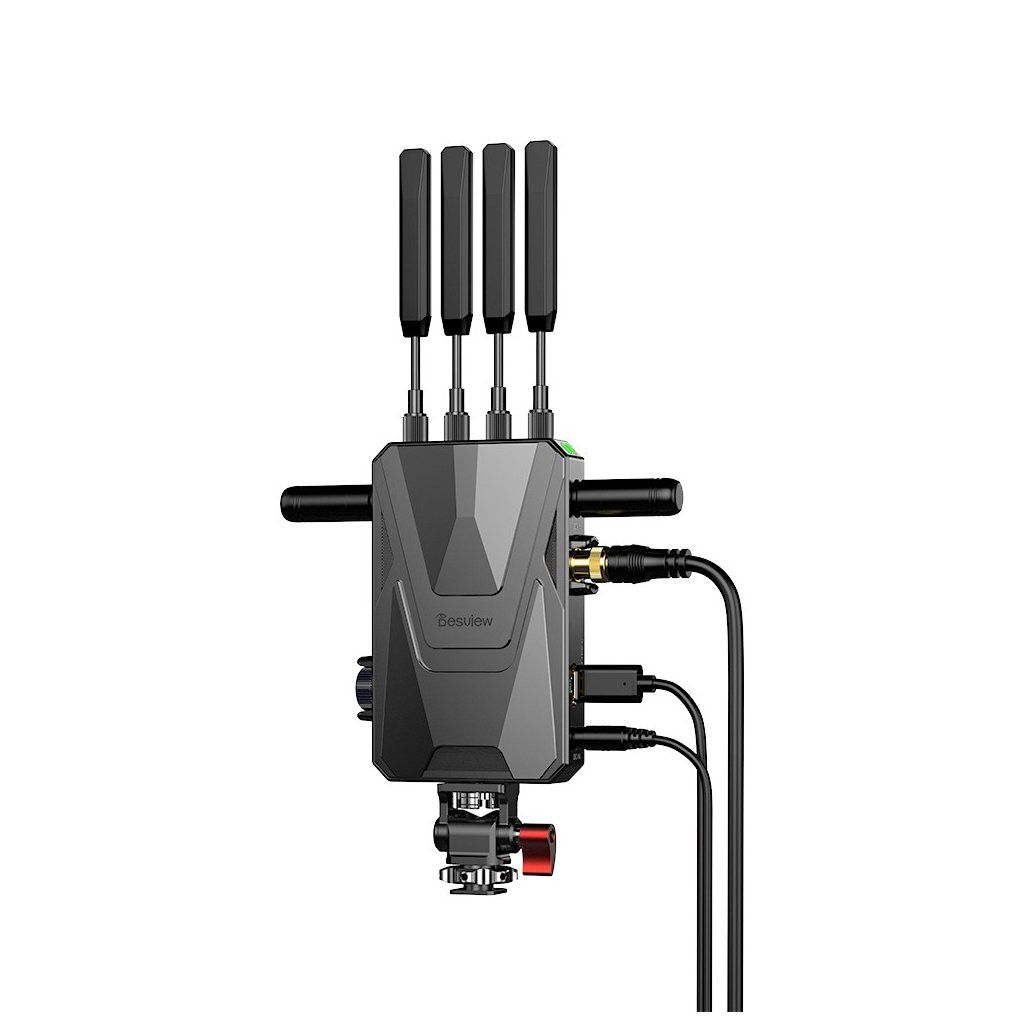

- Camera mount – 1×
- Instruction manual / certificate – 1×
- Operating frequency range: 2.4–2.4835 GHz, 5.18–5.825 GHz, 5.965–7.085 GHz
- HDMI video formats: 4Kp60 / 59.94 / 30 / 29.97 / 24 / 23.97; 1080p60 / 59.94 / 30 / 29.97 / 25 / 24; 1080i60 / 50; 720p60 / 50
- SDI video formats: 1080p60 / 59.94 / 30 / 29.97 / 25 / 24; 1080i60 / 50; 720p60 / 50
- Audio format: PCM
- HDMI / HDCP protocol: HDMI 2.0 / HDCP 1.4 and 2.3
- Transmission latency: 35 ms
- Video encoding: H.265
- Max. transmission distance: 3000 m (unobstructed, no interference)
- Antennas: external
- Transmitter interfaces: HDMI input, HDMI loop-out, SDI input, DC power input, Type-C output
- Receiver interfaces: HDMI output, SDI output, DC power input, Type-C output
- Controls: power button, return / pairing button, menu knob
- Indicators: connection status, video signal
- Display: 1.05″ full-color LCD
- Power supply: DC 7.4–16.8 V / NP-F battery 6.4–8.4 V
- Cooling: fan with intelligent temperature control
- Dimensions (excluding antennas): 130 × 95 × 30 mm
- Power consumption: transmitter 9 W, receiver 7 W
- Operating temperature: −10 to 45 °C
- Storage temperature: −40 to 60 °C
- Weight (excluding antennas): transmitter 330 g, receiver 330 g
Dodatočné parametre
| Kategória: | Bezdrôtové video |
|---|---|
| Záruka: | 2 roky |
| EAN: | 6970602271631 |
