Desview D21-HB Desview
Kód: ADES-D21HBXPodrobný popis
The Desview D21-HB is a 21.5" broadcast monitor with 1000-nit brightness and a new vertical monitoring mode. With corner supports it can stand upright, and the UI menu can be switched between horizontal and vertical orientation to suit the scene you are shooting. The screen can be set to single, dual, triple or quad view, and a picture-in-picture mode covers different monitoring needs.
D21-HB broadcast monitor – new vertical monitoring mode
- Multi-screen mode (4P, PBP/PIP)
- Full waveform monitoring
- Protective case
- Innovative vertical monitoring
- Customizable styles with 3D-LUT
- Professional HDMI and SDI interfaces
Professional auxiliary functions
Built-in histograms, waveform and vectorscope intuitively display light, shade and colour conditions, allowing you to observe every frame and achieve the best results. False colour, peak focus, monochrome display, zebra lines, centre marker, safety frame, composition assist, aspect ratio markers, colour settings and programmable shortcut keys are also available.
Full waveform monitoring in HDMI and SDI mode
The D21-HB has built-in full waveform monitoring and supports both HDMI and SDI modes. Waveform diagrams help you better understand and analyse the quality of the video signal.

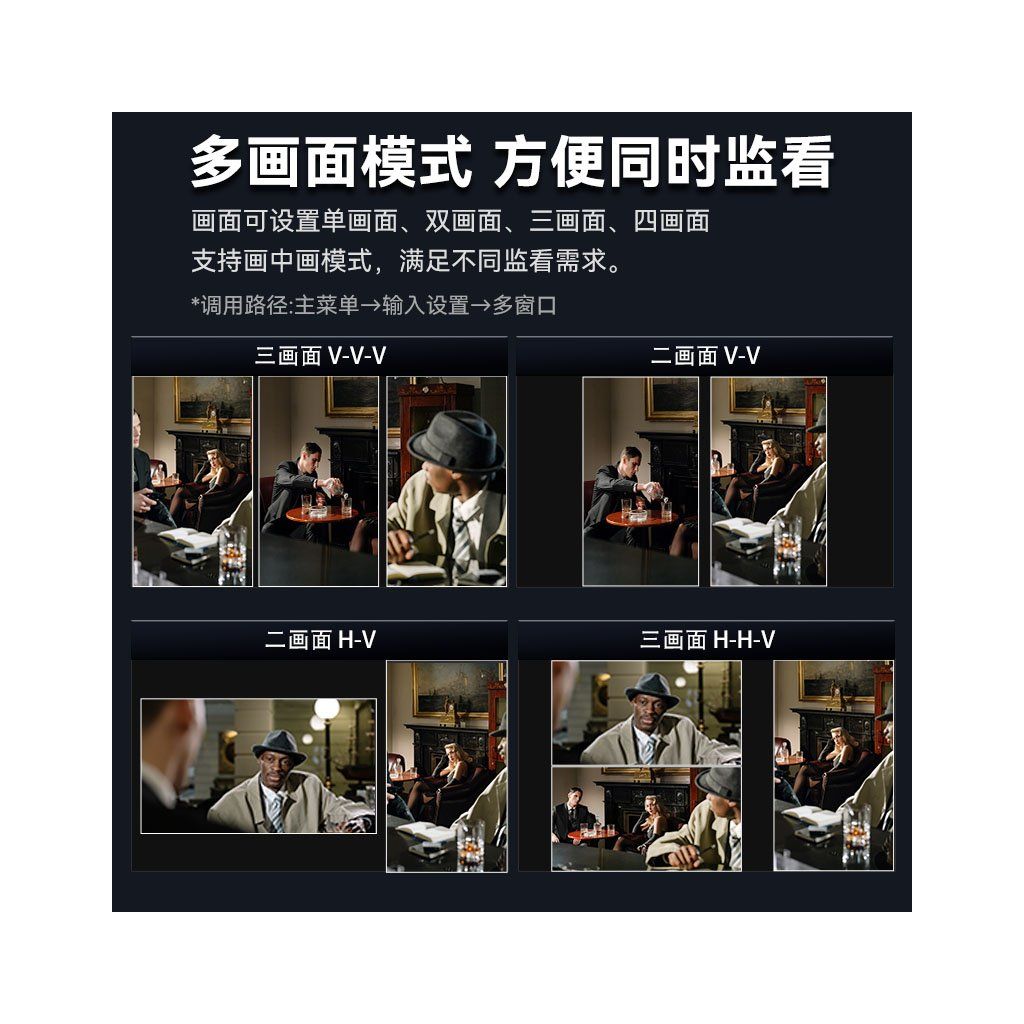

Multi-screen mode – convenient simultaneous monitoring
The screen can be set to single, dual, triple or quad view and supports picture-in-picture mode to meet different monitoring needs.
Triple vertical multi-view monitoring in particular is very well suited to short videos, short films or a broadcast reel.

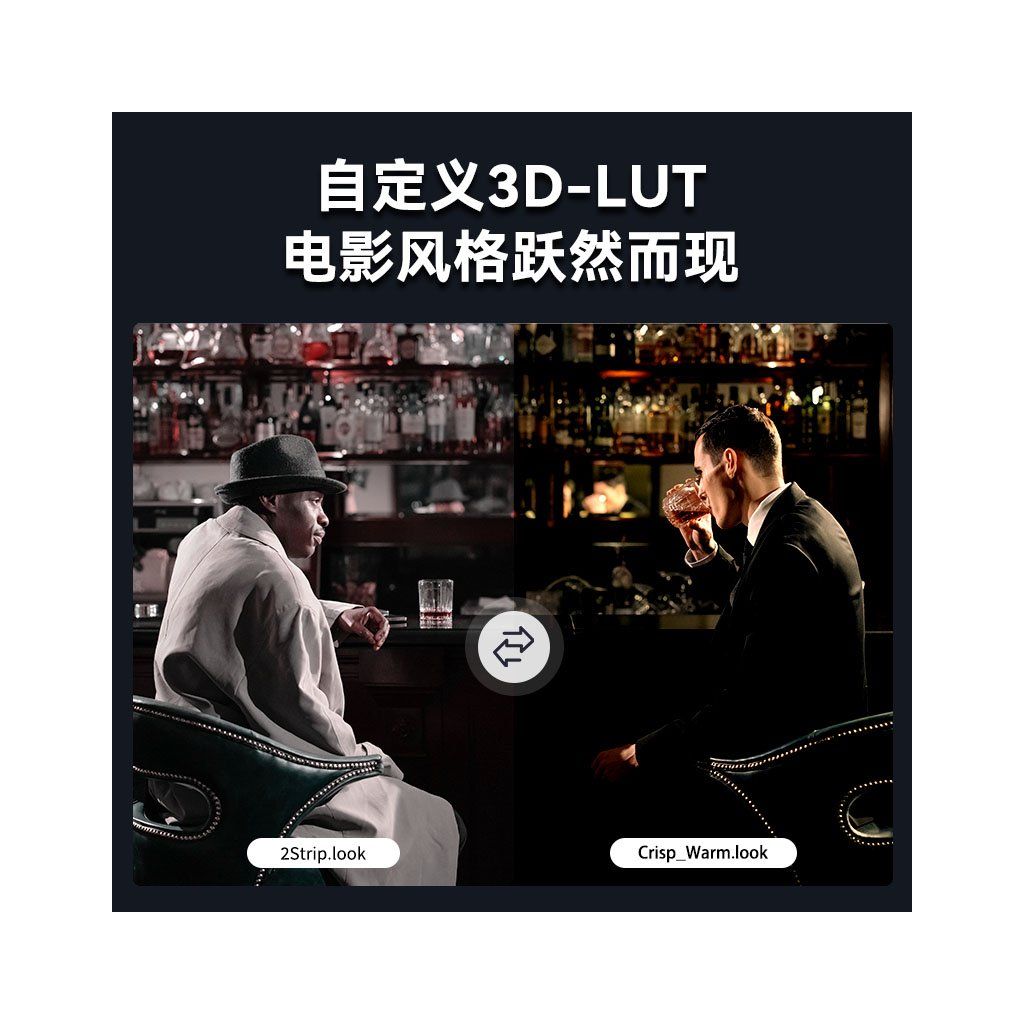

Custom 3D-LUT cinematic style and HDR support
Multiple LUT styles are built in and custom LUTs can be imported. Define your own creative cinematic style, whatever you like.
HDR monitoring support brings more dynamic range, more image detail and more distinct tonal levels – natural light and dark colours.

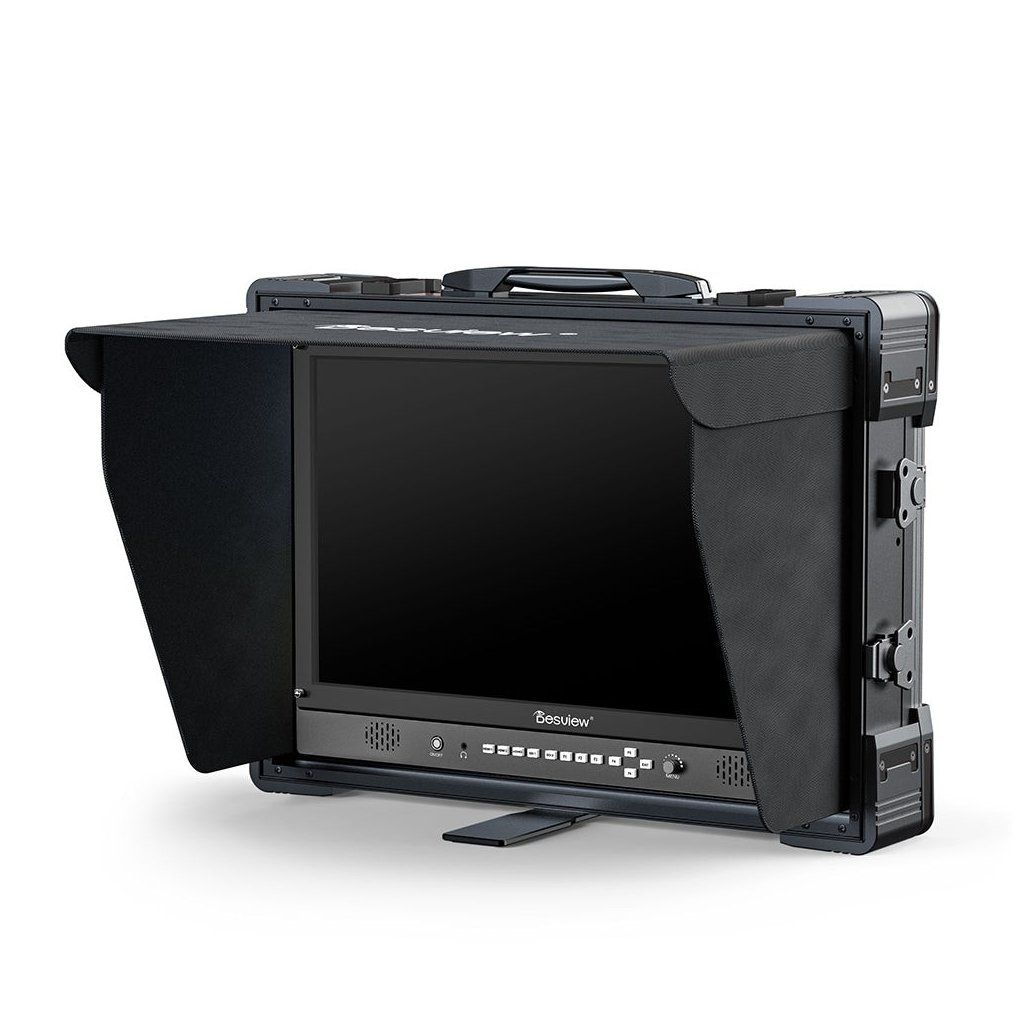

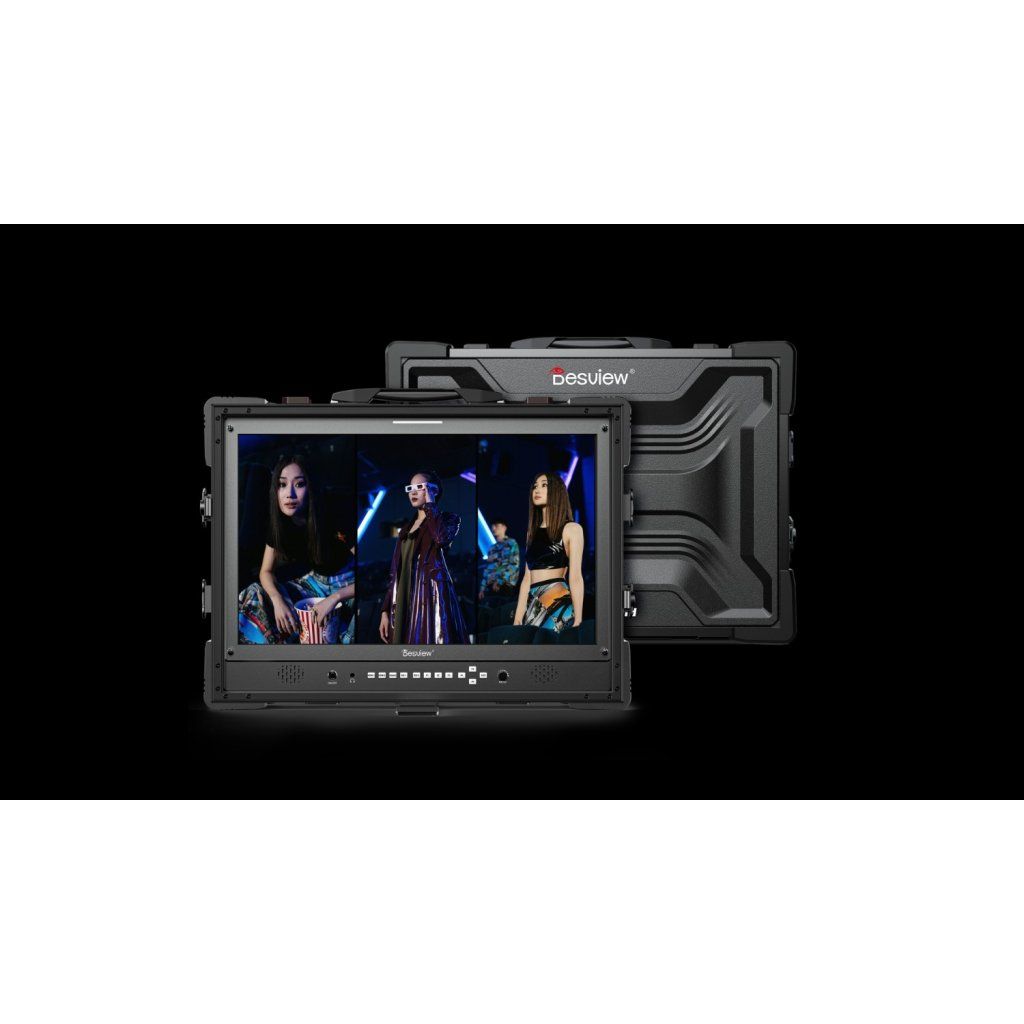

Master version protective case
It uses an all-aluminium alloy frame combined with a strong shell that effectively resists accidental impacts.
Portable protective case
Easy to carry, quickly adaptable to various locations and enhancing shooting efficiency.
Vertical screen – innovative monitoring
With corner supports, the D21-HB can stand upright for vertical screen monitoring. The UI menu can also be switched horizontally and vertically to meet the shooting needs of different scenes. The corner supports for the protective case are optional.
1080p display with vibrant colours
High-definition image quality with a physical resolution of 1920 × 1080. Vibrant colours and LED backlight.
- 1000:1 contrast ratio
- 1000 nits brightness
- 1080p Full HD
- 178° (H/V) viewing angle
99.5% DCI-P3 – vivid and colourful
A large screen with a professional colour gamut and wide viewing angle – no colour shift when viewed from any angle.
Built-in BT.2020, SMPTE-C, Rec.709 and DCI-P3 colour spaces adapt to different video production workflows.
4K 60 Hz HDMI – three inputs and one output
Three 4K@60 Hz HDMI signal inputs and one output transmit the picture without loss, making it smoother and clearer.
SDI input and output – professional creation starts here
Two SDI inputs and two SDI loop outputs provide flexibility and diversity for your creations. Easily connect multiple devices and unlock unlimited creative possibilities.
Three power supply modes for long-lasting power
The monitor supports V-mount batteries, an AC power cord and an XLR power adapter. Three different power supply modes adapt to the shooting needs of different scenes.
Tally light
The front tally light provides three different colour signals: red, green and blue. The T stand shown is optional.
- D21-HB monitor – 1×
- AC power cord – 1×
- HDMI cable – 1×
- dust cloth – 1×
- user manual and warranty card – 1×
- protective case (Master version) – 1×
- sunshade – 1×
- Model: D21-HB
- Size: 21.5" IPS LCD
- Brightness: 1000 nits
- Resolution: 1920 × 1080 (1080p)
- Colour gamut: 99.5% DCI-P3
- Contrast ratio: 1000:1
- Colour depth: 10-bit (8-bit + 2 FRC)
- Viewing angle: 178° (H/V)
- Aspect ratio: 16:9
- Colour calibration: Delta E < 2
- Backlight: LED
- HDMI input: 3× HDMI 2.0 (4K 60 Hz)
- HDMI output: 1× HDMI 2.0
- SDI input: 2×
- SDI output: 2× loop out
- Audio output: 3.5 mm stereo
- Data interface: USB 2.0
- Tally: RJ45
- Power supply: AC power cord, XLR power adapter, V-mount battery
- Speakers: 2× (2 Ω, 8 W)
- Case material: aluminium alloy
- Operating temperature: 0–50 °C
- Storage temperature: −20 to 60 °C
- Net weight: 12.76 kg
- Monitor dimensions: 584 × 426 × 177 mm
Dodatočné parametre
| Kategória: | Desview |
|---|---|
| Záruka: | 2 roky |
| EAN: | 6970602271143 |
