Desview OL14 Desview

Podrobný popis

The Desview OL14 is a professional-grade production monitor with a 13.3-inch 4K AMOLED display, 1500 nits peak brightness, 4K HDMI and SDI inputs and outputs, and HDR support. Designed for precise framing and color accuracy in outdoor and studio shoots, it is ideal for filmmakers, videographers and content creators seeking reliable visual monitoring.

4K AMOLED true-color monitoring. A cutting-edge AMOLED display in an ultra flagship-grade production monitor delivers boundless image quality and unmatched performance – three vertical views side by side and every image cinematic.

4K AMOLED true-color display

The pro-grade benchmark for visual performance. Beneath the cover glass and a thin film sits an AMOLED panel whose pixels emit their own light – no backlight needed.

4K AMOLED, true color frame by frame

4K Ultra HD resolution, 1.07 billion colors and 100% of the cinema-grade DCI-P3 color gamut reproduce every subtle gradation of light and shadow. Deep blacks and clean highlights give short dramas true cinematic visual tension.

Peak brightness of 1500 nits, no creative limits

A peak brightness of 1500 nits is paired with a 500,000:1 contrast ratio. Even on brightly lit locations the monitor reveals shadow detail, so complex shots can be approved on the first take.

Professional color, precise to the end

Each monitor undergoes rigorous panel screening and full-screen color uniformity control and is individually factory-calibrated using a hardware 3D LUT, so every frame shows peak imagery in flawless color.

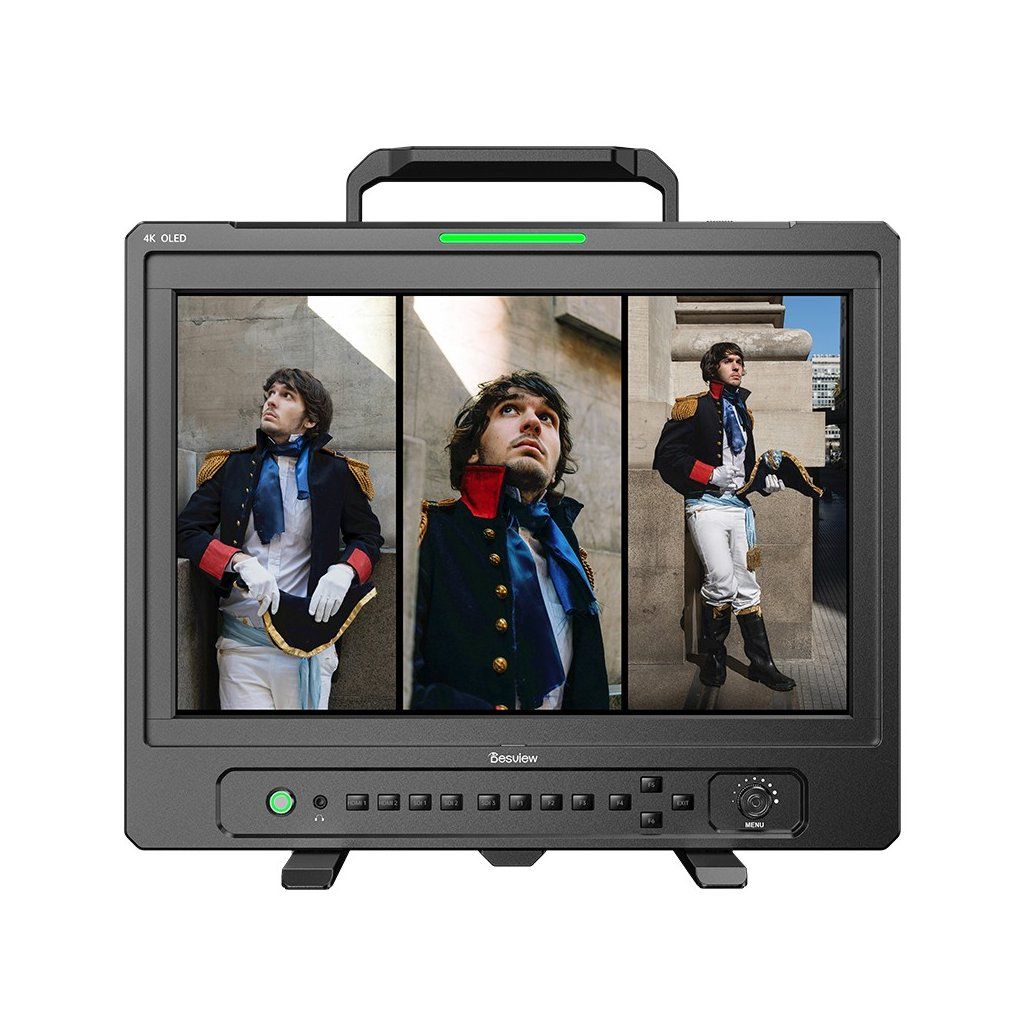

Horizontal and vertical multi-view monitoring

As the industry pioneer of vertical-screen systems, Desview equips the OL14/OL16 with eight monitoring modes (single, dual, triple and quad view) with free switching between horizontal and vertical orientation. One unit replaces several traditional monitors – perfect for vertical short dramas, short videos and live streams. In the captions, H stands for a horizontal and V for a vertical image.

All-new housing: pro performance meets portability

Aluminum alloy, rugged protection. The housing is made of premium aluminum for higher strength and durability while keeping the weight low.

Multiple mounting points to expand your rig. Wireless video transmission, lighting and other accessories attach in seconds to the 1/4" and 3/8" threads with ARRI locating pins.

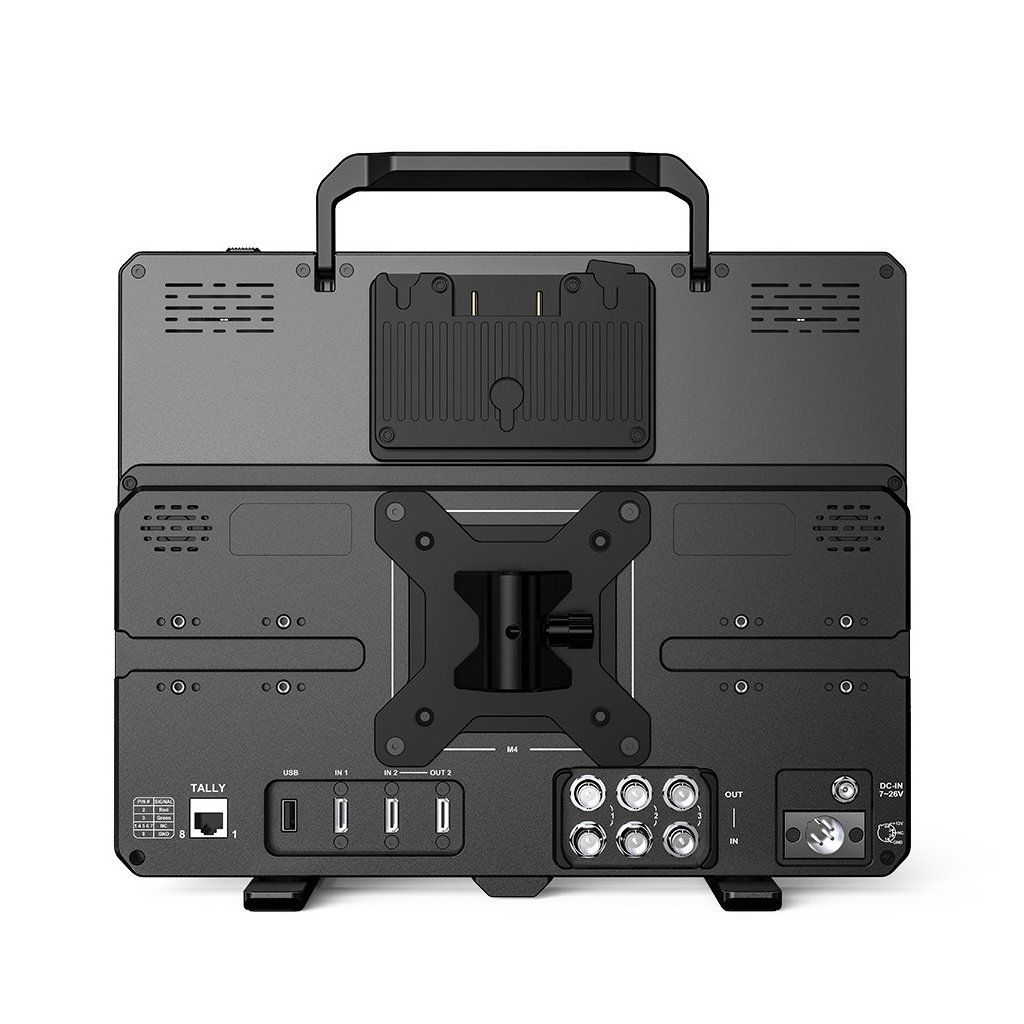

Handle, VESA mount and hidden stand

Handle for quick moves. The top handle makes changing locations easy and adds built-in expansion points, boosting convenience and mobility.

VESA mount for fast changeovers. The VESA mount on the back allows quick installation on a light stand and provides fast, stable monitoring for vertical short dramas, live broadcasts and multi-camera transitions.

Hidden stand, deployed in seconds. The built-in hidden, rotatable stand keeps the monitor rock-steady on any flat surface.

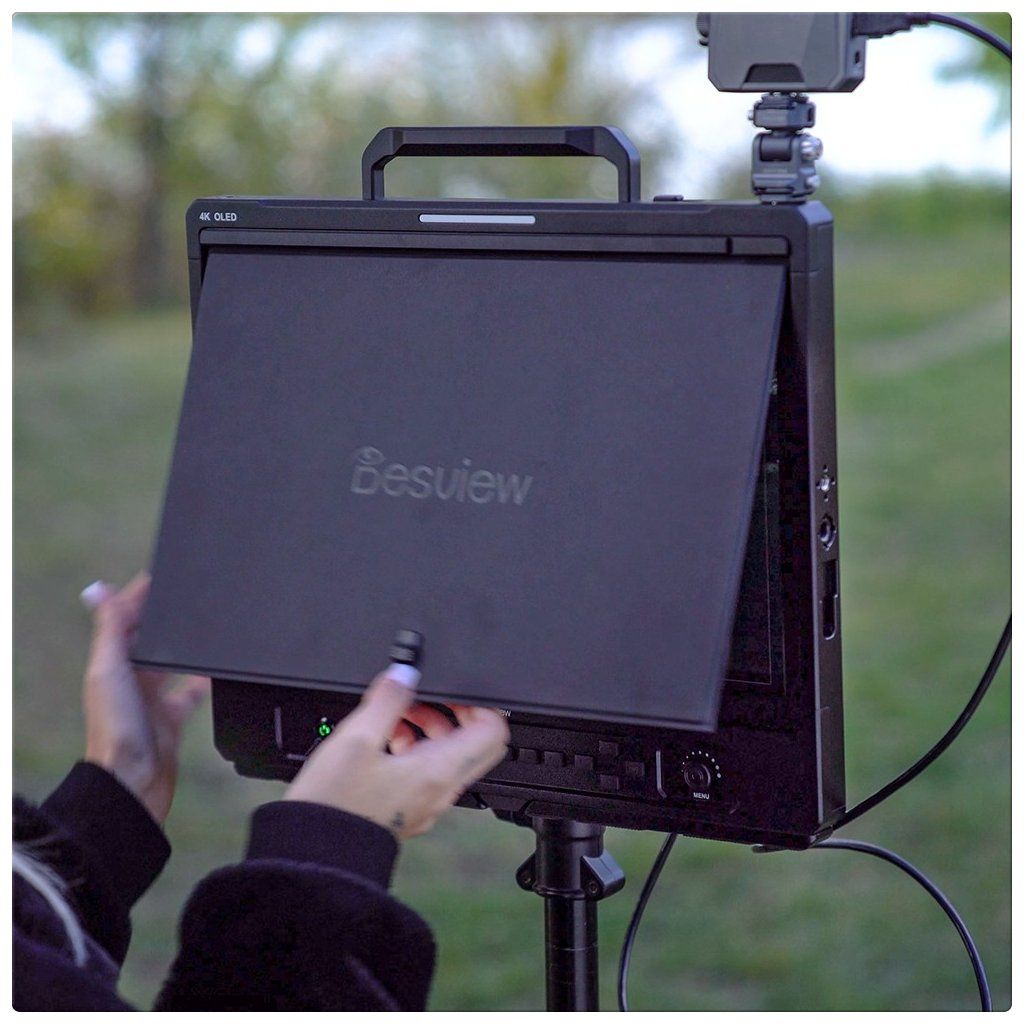

Quick-release sunhood for outdoor shooting

The quick-release sunhood with a magnetic lock snaps on and off in seconds and protects the screen when packed.

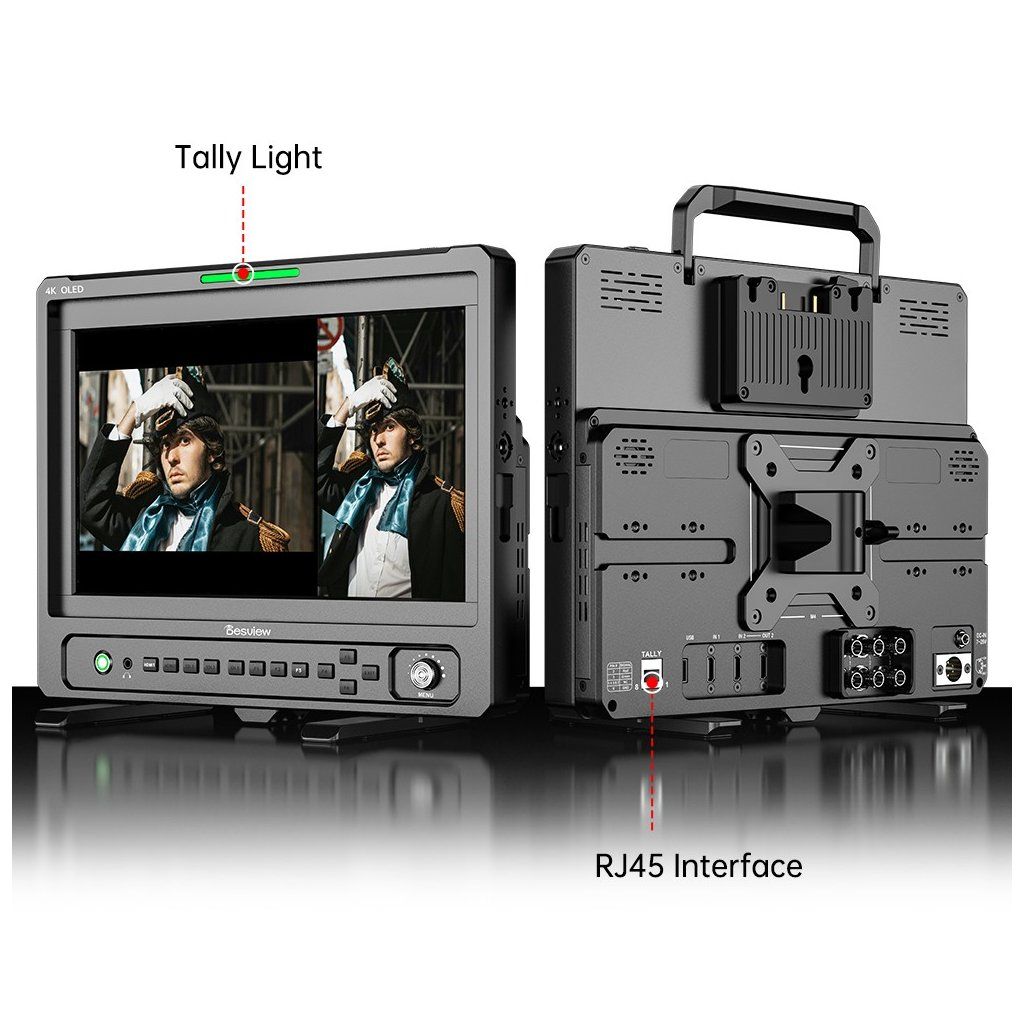

Tally indicator light

The front tally light provides three color signals – red, green and blue. Simply connect it via the rear RJ45 interface to check the signal output status instantly.

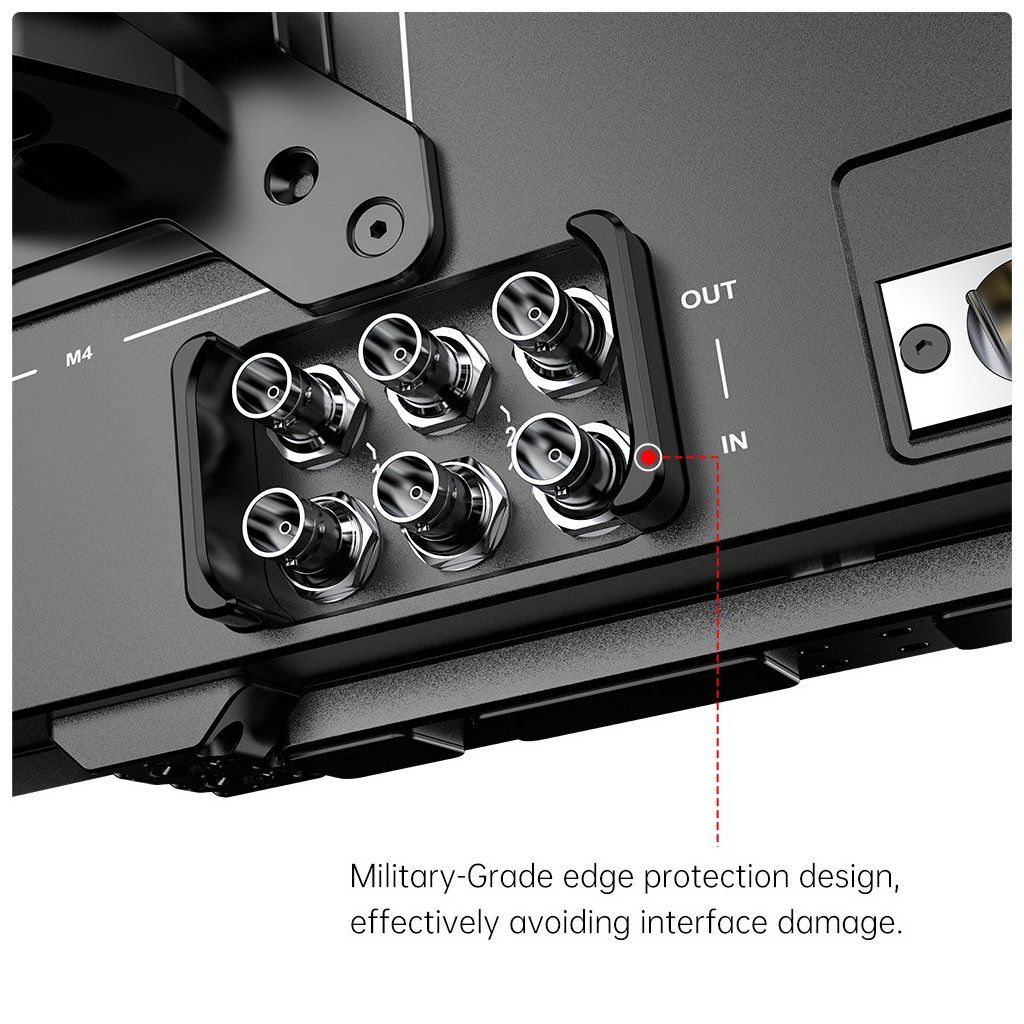

Professional SDI interface for multi-device workflows

Three SDI channels with input and loop-out ensure stable transmission, give your work flexibility, connect easily with multiple devices and open up new creative possibilities. Military-grade edge protection effectively prevents damage to the connectors.

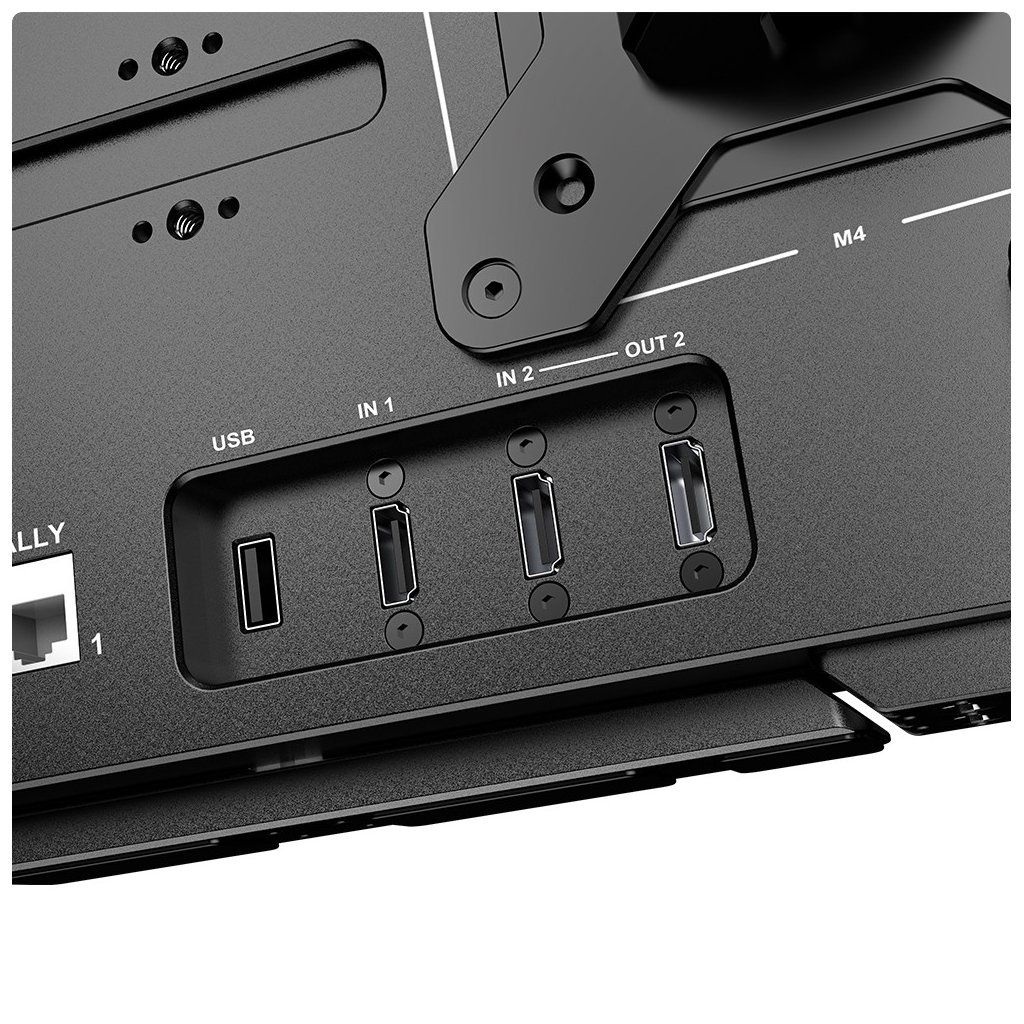

HDMI interface for every scenario

Two HDMI inputs for 4K 60p signals and one loop-out deliver lossless, smooth and clear images. The interface handles high resolutions and adapts flexibly to any setup.

Professional assist tools – precise and efficient

Comprehensive monitoring assist functions help you control every detail of the picture precisely and capture every flawless frame – speeding up work on set and raising final image quality. Tools include false color, zebra lines, histogram, waveform, vectorscope, peak focusing, monochrome display, HDR, audio meters, anamorphic mode, aspect ratio markers, grid lines, composition assist and image rotation.

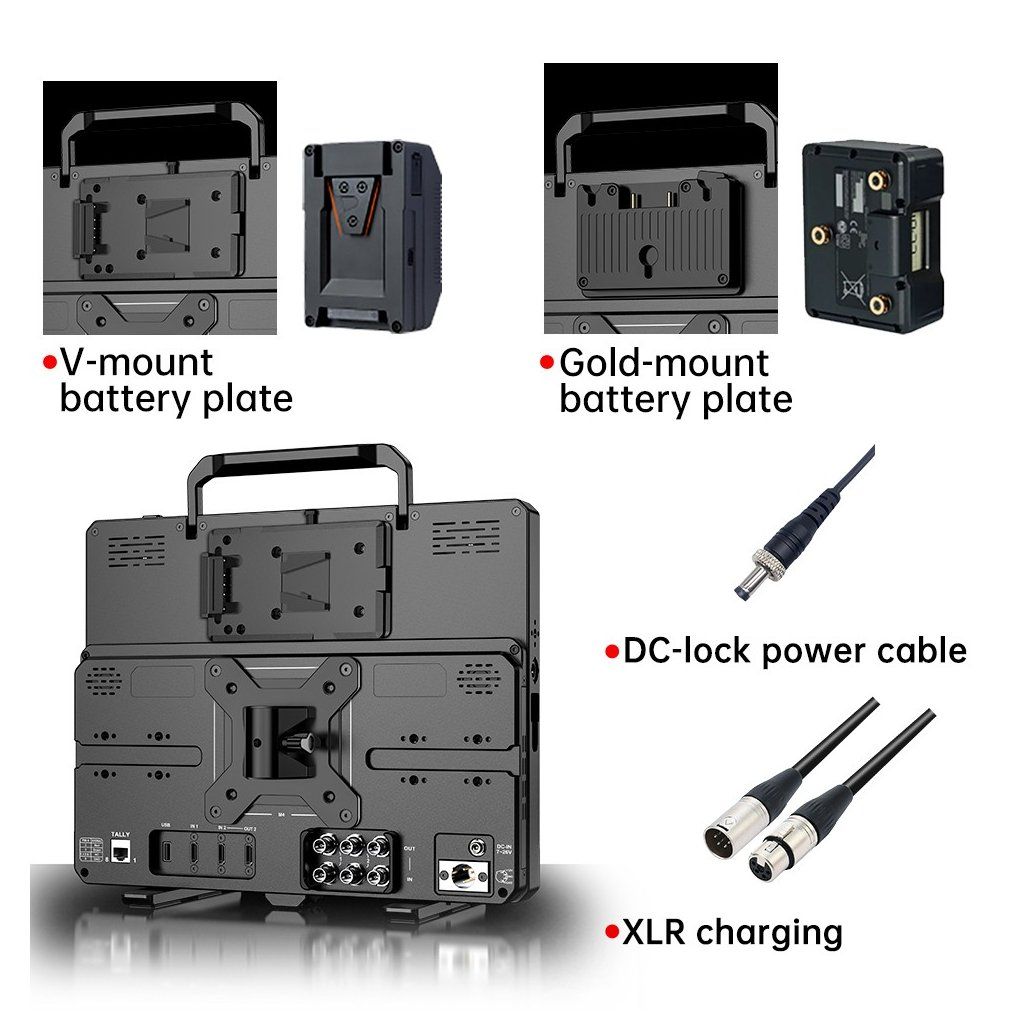

Multiple power options – anytime, anywhere

No more battery anxiety – power the monitor to suit the situation:

• V-mount or Gold-mount battery plate (optional): outdoor shooting
• DC-lock power cable: direct power for indoor studio shooting
• XLR power: for emergencies during transitions between locations

• 1× Desview OL14 monitor
• 1× sunhood
• 1× protective case
• 1× HDMI cable (A–A)
• 1× power cord
• 1× power adapter
• 1× cleaning cloth
• 1× user manual and warranty card

• Model: OL14
• Screen size: 13.3"
• Display: AMOLED, self-illuminating
• Resolution: 4K
• Peak brightness: 1500 nits
• Contrast ratio: 500,000:1
• Color depth: 10-bit (1.074 billion colors)
• Color gamut: 100% DCI-P3
• Viewing angle: 170° (H/V)
• HDMI inputs: 2× (4K 60p)
• HDMI output: 1× loop-out of the second HDMI channel
• SDI inputs: 3×
• SDI outputs: 3× loop-out
• Audio output: 3.5 mm stereo jack
• Data interface: USB
• Tally: RJ45
• Power supply: XLR 7–26 V; locking DC connector 7–26 V; optional V-mount or Gold-mount battery plate
• Speakers: 2× 8 Ω / 3 W
• Housing material: aluminum alloy
• Operating temperature: 0 to 50 °C
• Storage temperature: −20 to 60 °C
• Net weight: 2.9 kg
