Desview Thunderbolt TX/RX Desview

Kód: ADES-THUNDERBOLT-TX/RXX

Značka: Desview

€133,06 €108,18 bez DPH

Môžeme doručiť do:

Detailné informácie

Popis
Diskusia

Podrobný popis

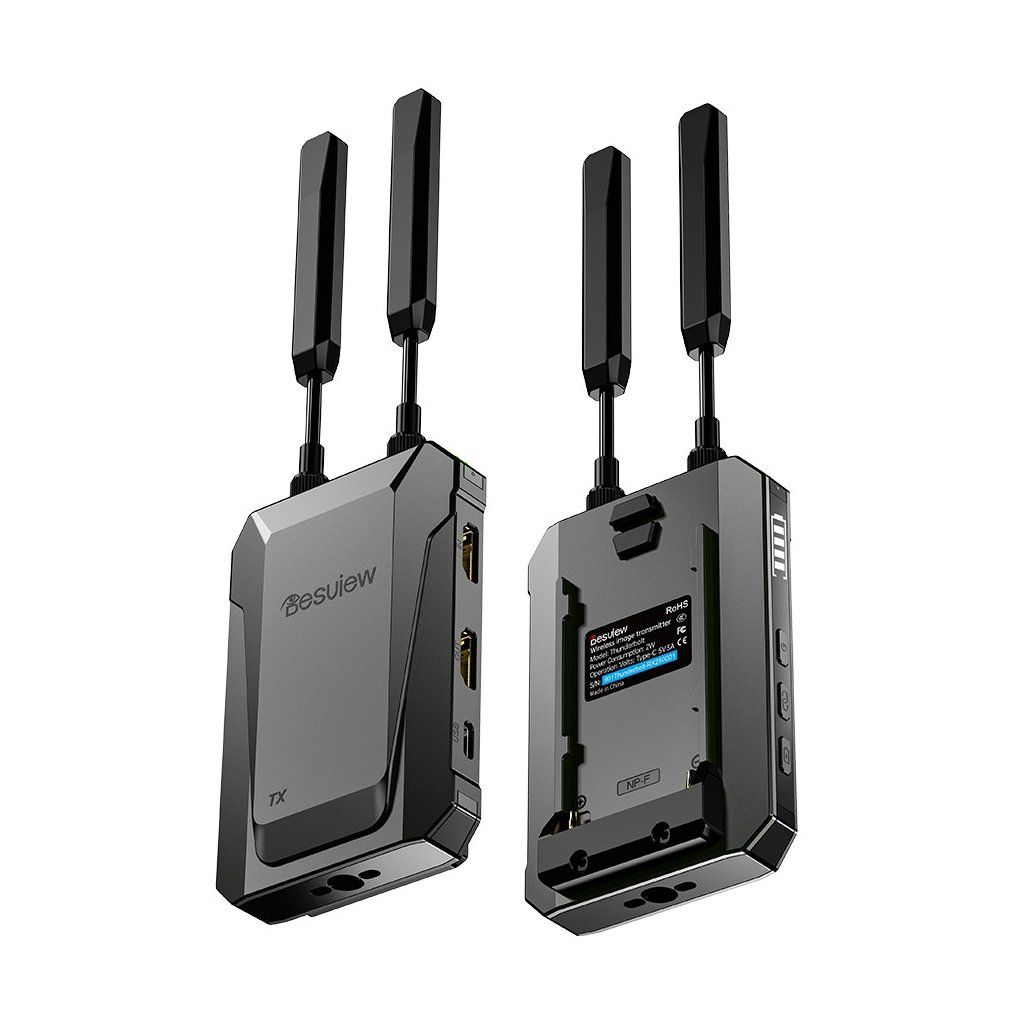

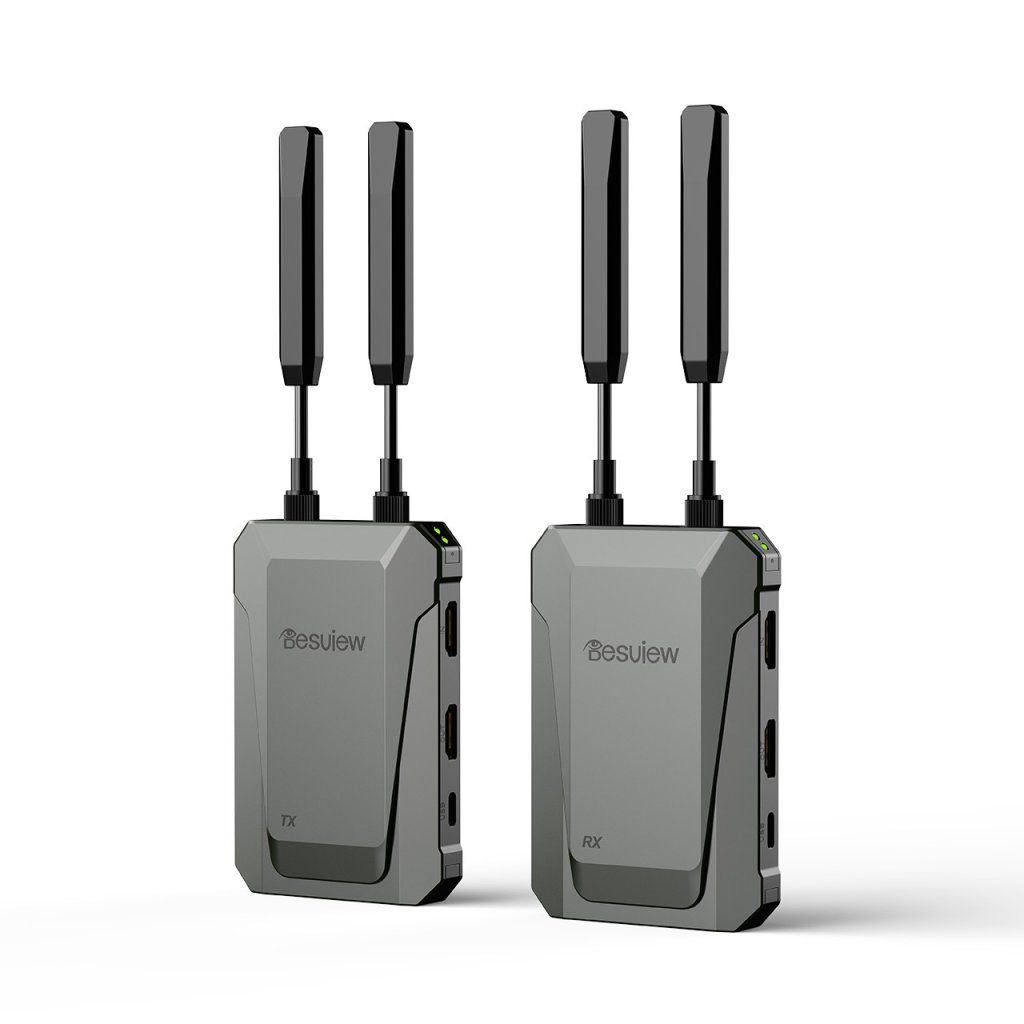

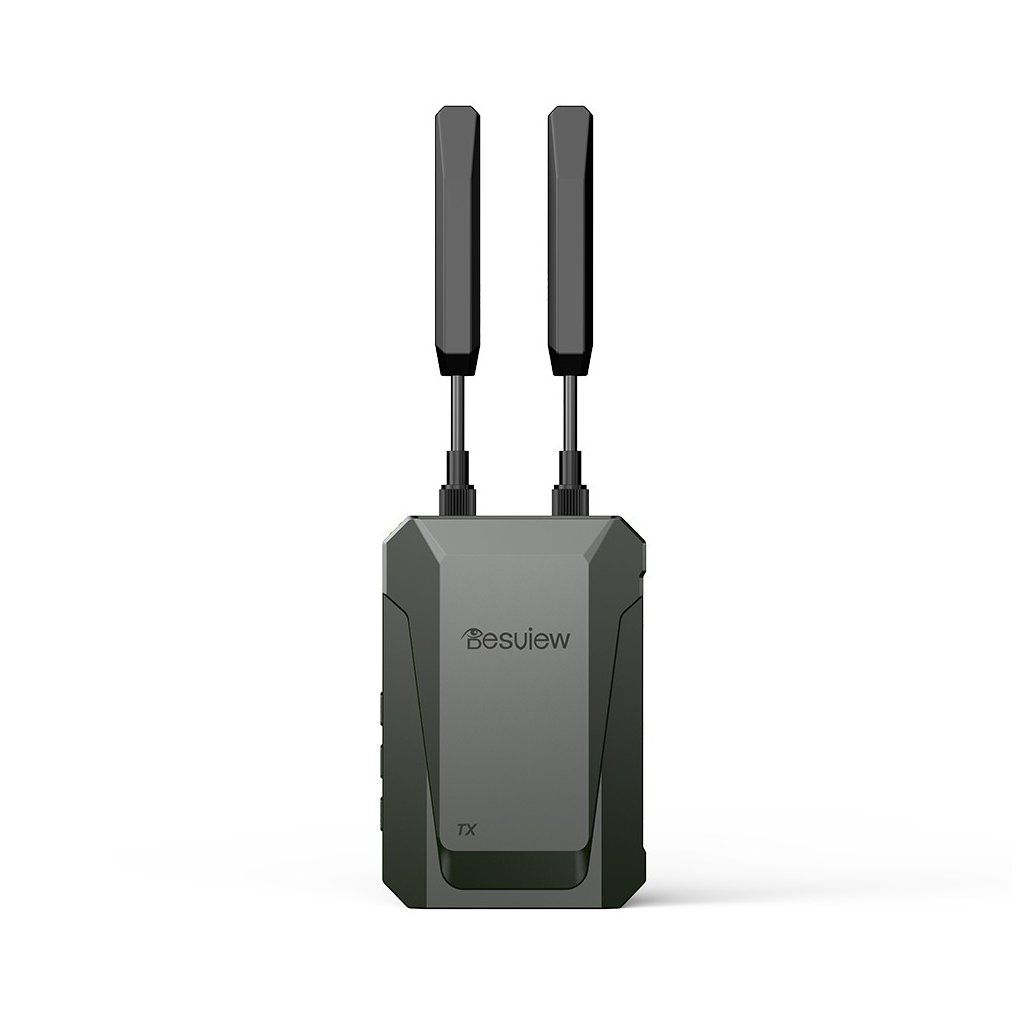

Desview Thunderbolt TX/RX wireless video transmitter receiver system for professional video production. Achieve seamless HD wireless transmission for your cameras and monitors with ultra low latency. Featuring robust build quality and reliable performance for studios and live events. Enhance your workflow with this essential piece of filmmaking gear. It carries 1080p60 up to 400 m with 60 ms latency.

Desview Thunderbolt – 1080p wireless video transmission

Key features

Supports 1080p60 lossless transmission
Auto-frequency hopping and smart anti-interference
Low latency of 60 ms
Up to 400 m transmission distance
Professional-grade HDMI interface
Flexible dual-power options
Ultralight design of 197 g

Key features

True HD & truly smooth, lossless image

Using H.264 high-efficiency encoding and decoding technology, it supports up to 1080p 60fps lossless transmission and is downward compatible with multiple resolutions. Whether you're live-streaming or shooting film, every frame stays fluid and free of motion blur.

Auto-frequency hopping and smart anti-interference

Using invisible smart hopping, it can detect environmental interference in real time and switch to the best channel, so the connection always stays rock-solid, even in complex environments, eliminating signal stutter. The system operates in the 5.18–5.24 GHz and 5.745–5.825 GHz bands.

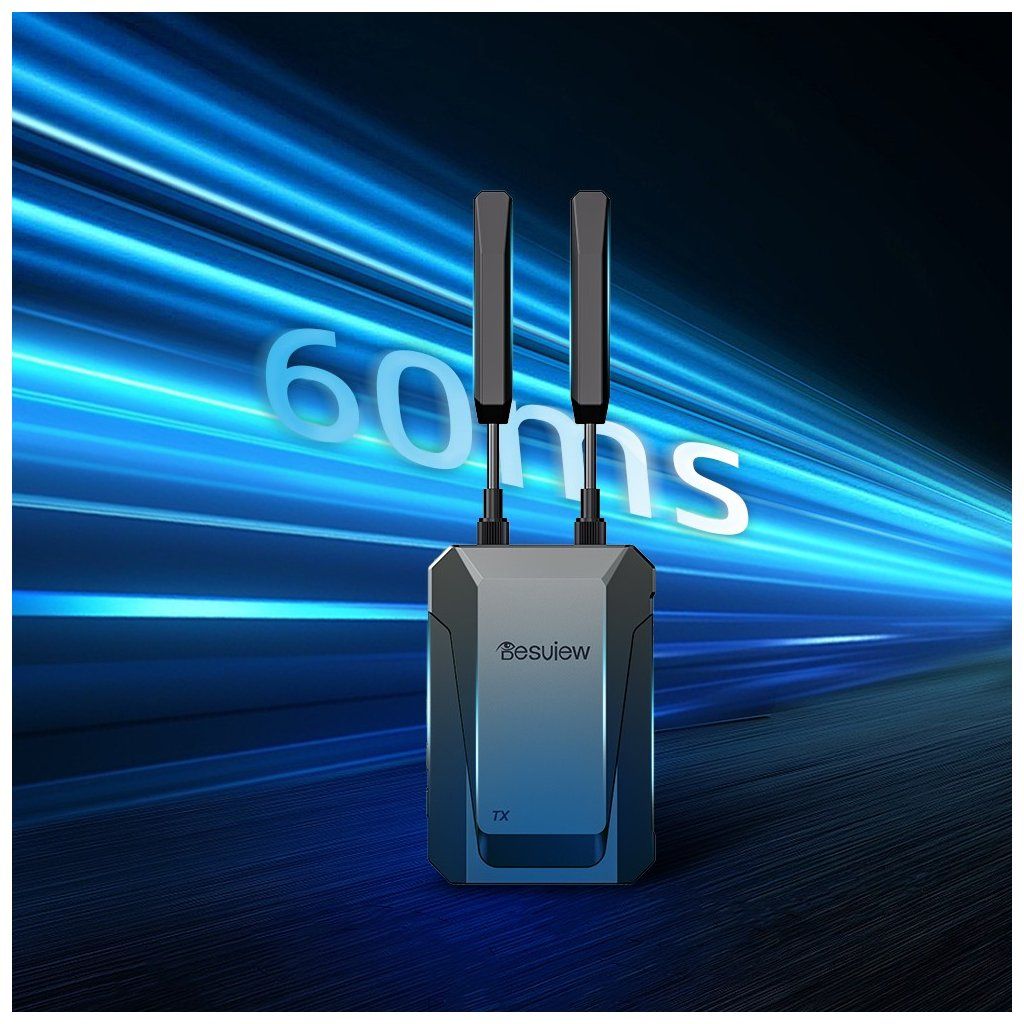

Lightning-fast, millisecond control

One-to-one 60 ms low latency between transmitter and receiver keeps director monitoring, precise framing, motion tracking, drone transmission and other demanding scenarios running smoothly without lag. No motion blur, just real-time response that rivals a wired connection.

Signal without limits, range up to 400 m

In real-world tests, it delivers a transmission distance of up to 400 m in open and obstruction-free environments, covering outdoor shootings, large-venue monitoring, and multi-floor collaborations, extending the boundaries of your creativity. Each unit has two external 3 dBi antennas (2T2R).

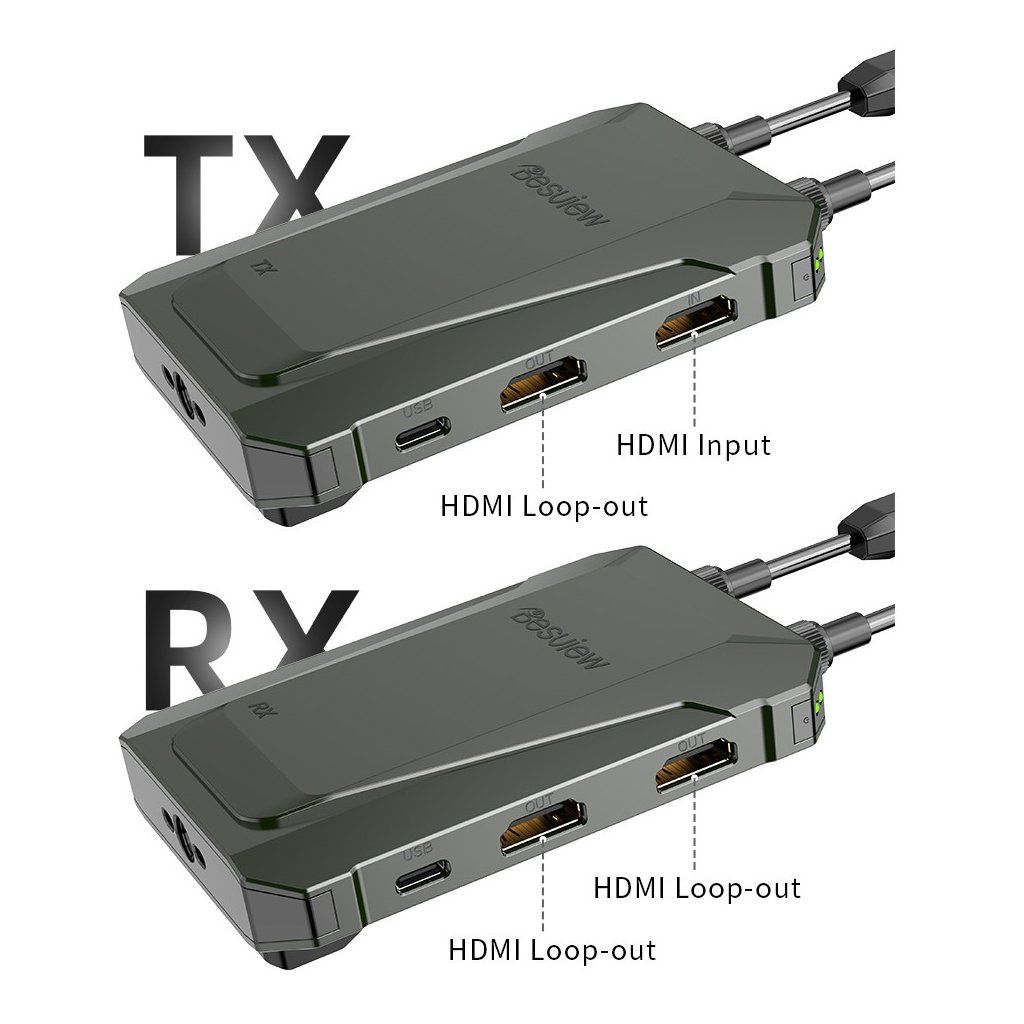

All-in-one ports, quick setup

Plug-and-play signal input: the transmitter has an HDMI input and an HDMI loop-out, so you can plug in the camera or mirrorless camera easily and keep local monitoring for easy framing.

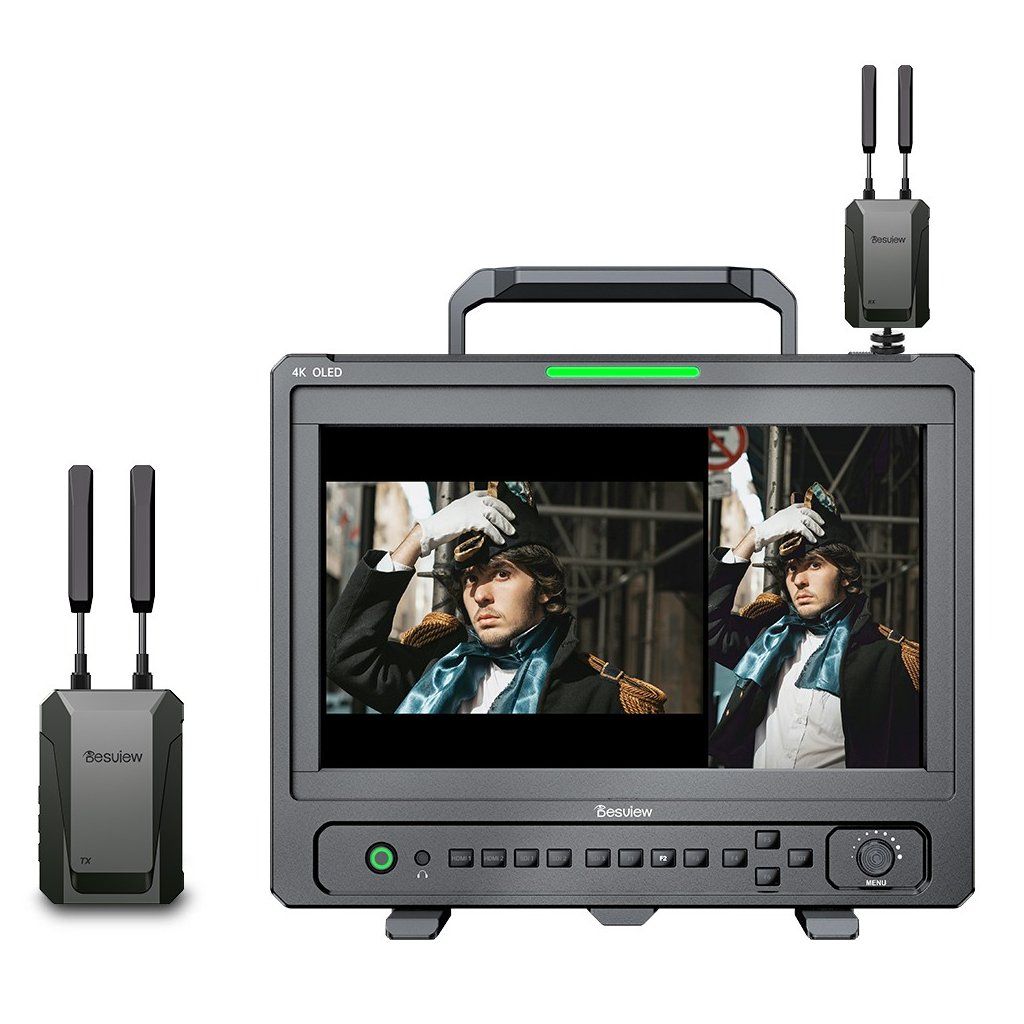

Effortless monitoring and distribution: the receiver has dual HDMI outputs, so you can plug in the director monitor, assistant monitor or recorder at the same time, with no extra splitter needed, which improves monitoring efficiency without extra steps.

Both units also have a USB-C port for power and data transmission.

All-in-one ports, quick setup

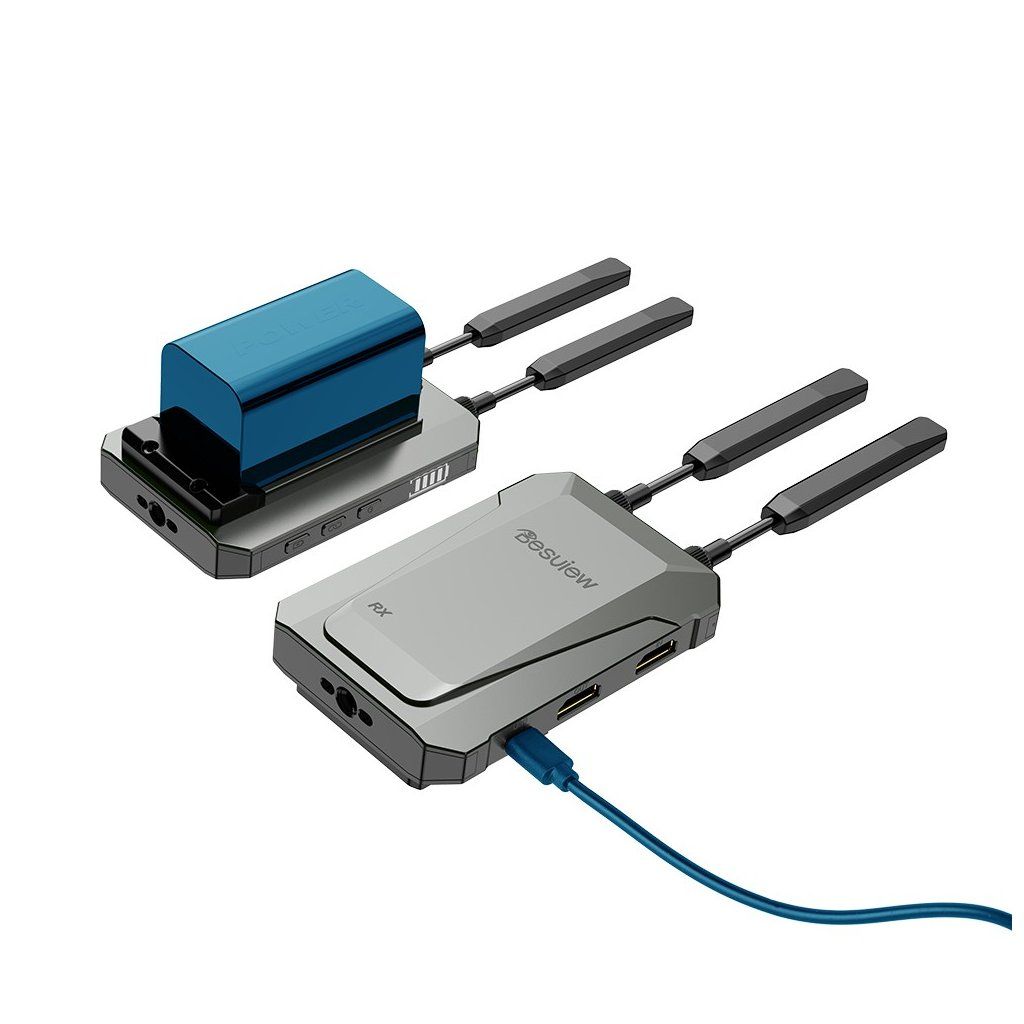

Power anytime and anywhere

Runs on an NP-F battery or USB-C power (5 V / 2 A). One NP-F970 battery lasts over 6 hours. Plug in a power bank and it keeps running all day without a break.

Professional HDCP protocol support, no copyright worries

Full HDCP 1.4 compliance, no risk of copyright blocks when shooting reels, ads and short films.

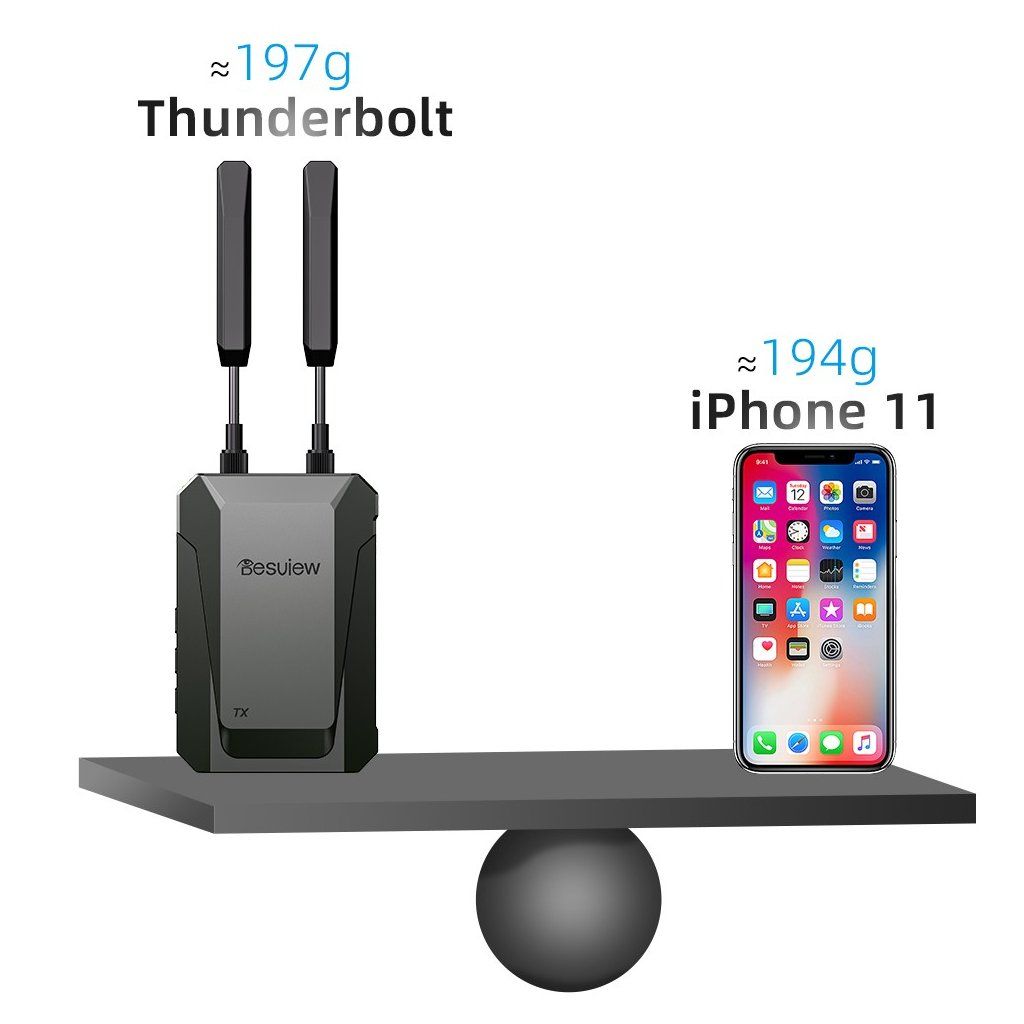

Ultralight design for on-the-go shooting

Both transmitter and receiver weigh only 197 g, integrate into camera cages or drones with ease, perfect for solo shooters who need maximum mobility. Each unit measures just 104 × 70 × 16 mm.

Transmitter (TX) – 1×
Receiver (RX) – 1×
Antenna – 4×
Cold shoe mount – 1×
Instruction manual / certificate – 1×

Operating frequency: 5.18–5.24 GHz, 5.745–5.825 GHz
Video formats: 1080p60 / 59.94 / 30 / 29.97 / 25 / 24, 1080i60 / 50, 720p60 / 50, 576p60, 576i60, 480p60, 480i60
Audio format: PCM
HDMI / HDCP: HDMI 1.3 / HDCP 1.4
Video encoding: H.264
Latency: 60 ms
Max. range: 400 m (unobstructed, no interference)
Antennas: 2T2R, external, 3 dBi

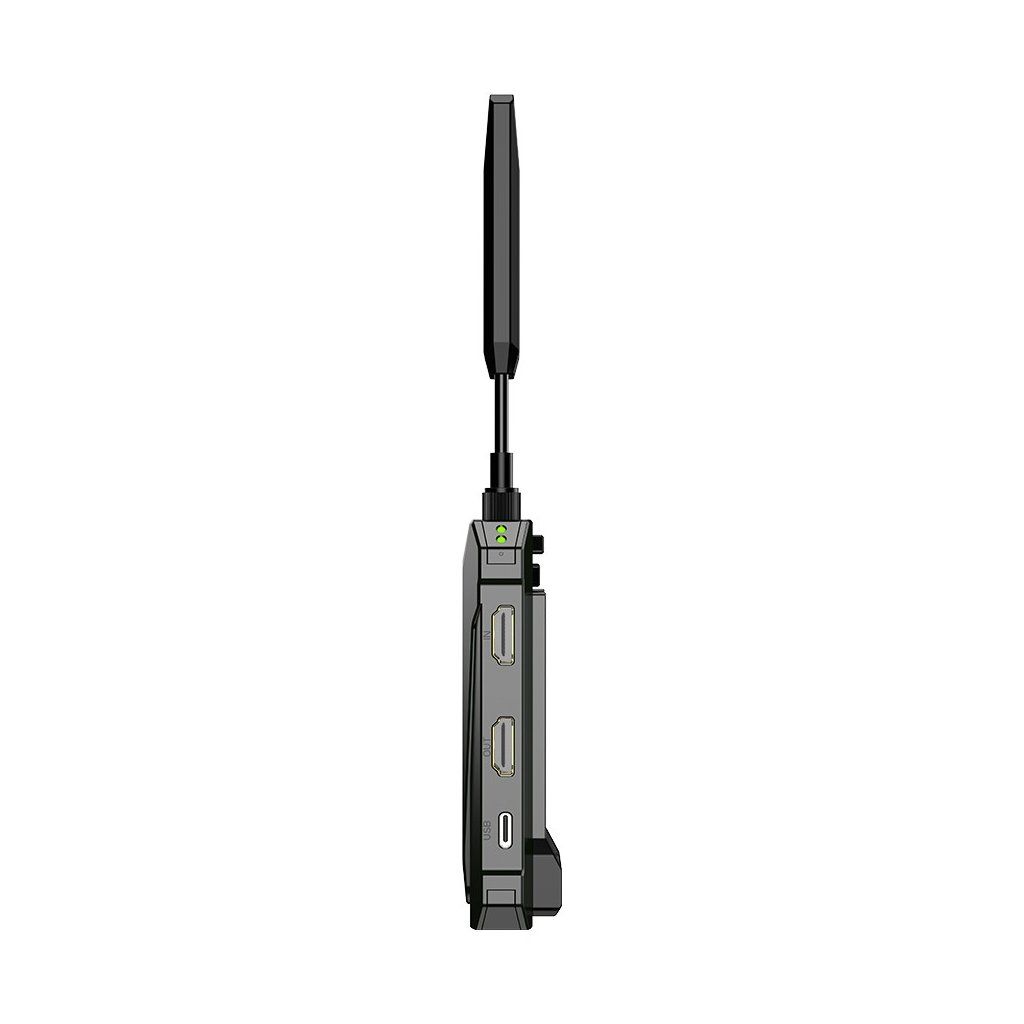

Transmitter ports: HDMI input, HDMI loop-out, USB-C
Receiver ports: 2× HDMI output, USB-C

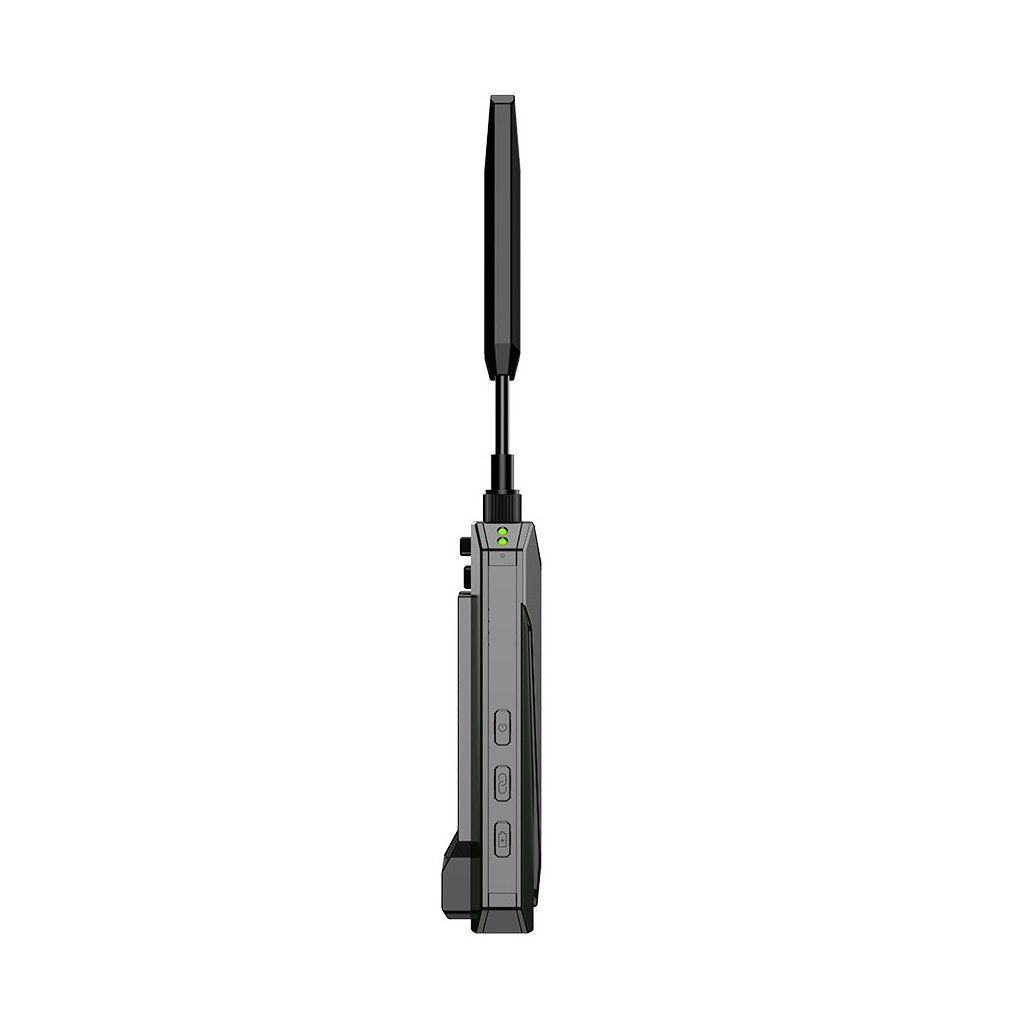

Buttons: power, pairing, battery level
Indicators: power on / off, network connection
Power supply: USB-C (5 V / 2 A) or NP-F battery (6.4–8.4 V)
Power consumption: transmitter 2.5 W, receiver 2 W
Dimensions: 104 × 70 × 16 mm (each unit)
Weight: transmitter 197 g, receiver 197 g
Operating temperature: −10 to 45 °C
Storage temperature: −40 to 60 °C
