DZOFILM Catta Ace FF 18–35 mm T2.9 Cine Zoom (PL/EF, Black) DZO Optics + Zľava na kurz Lens Brothers

Podrobný popis

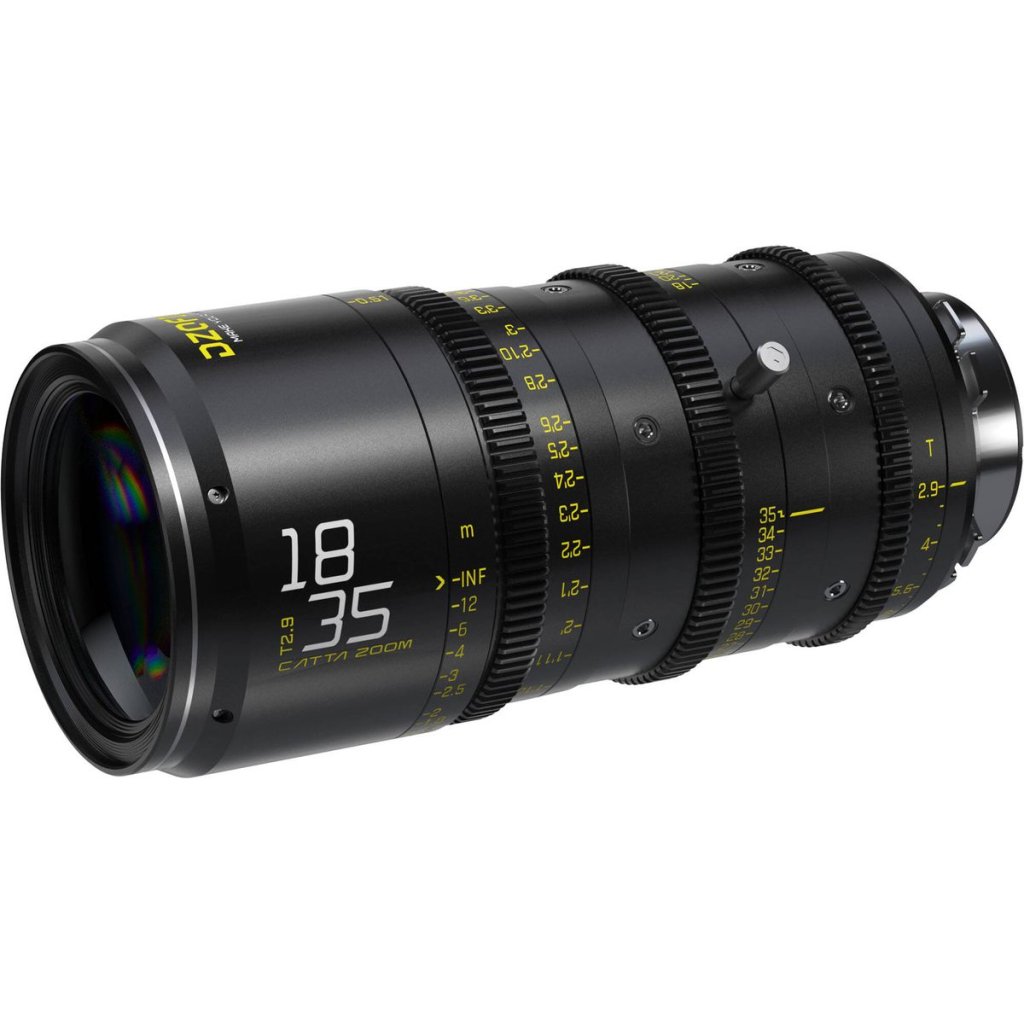

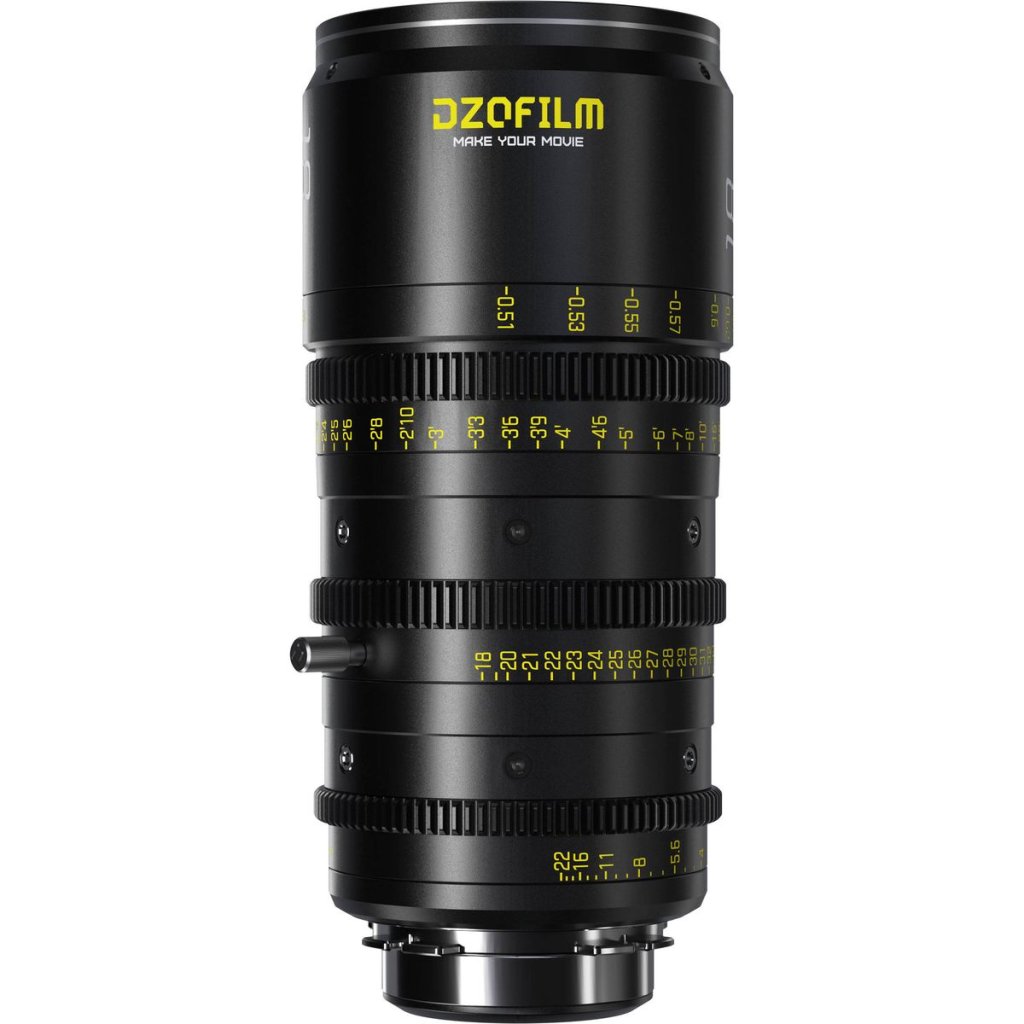

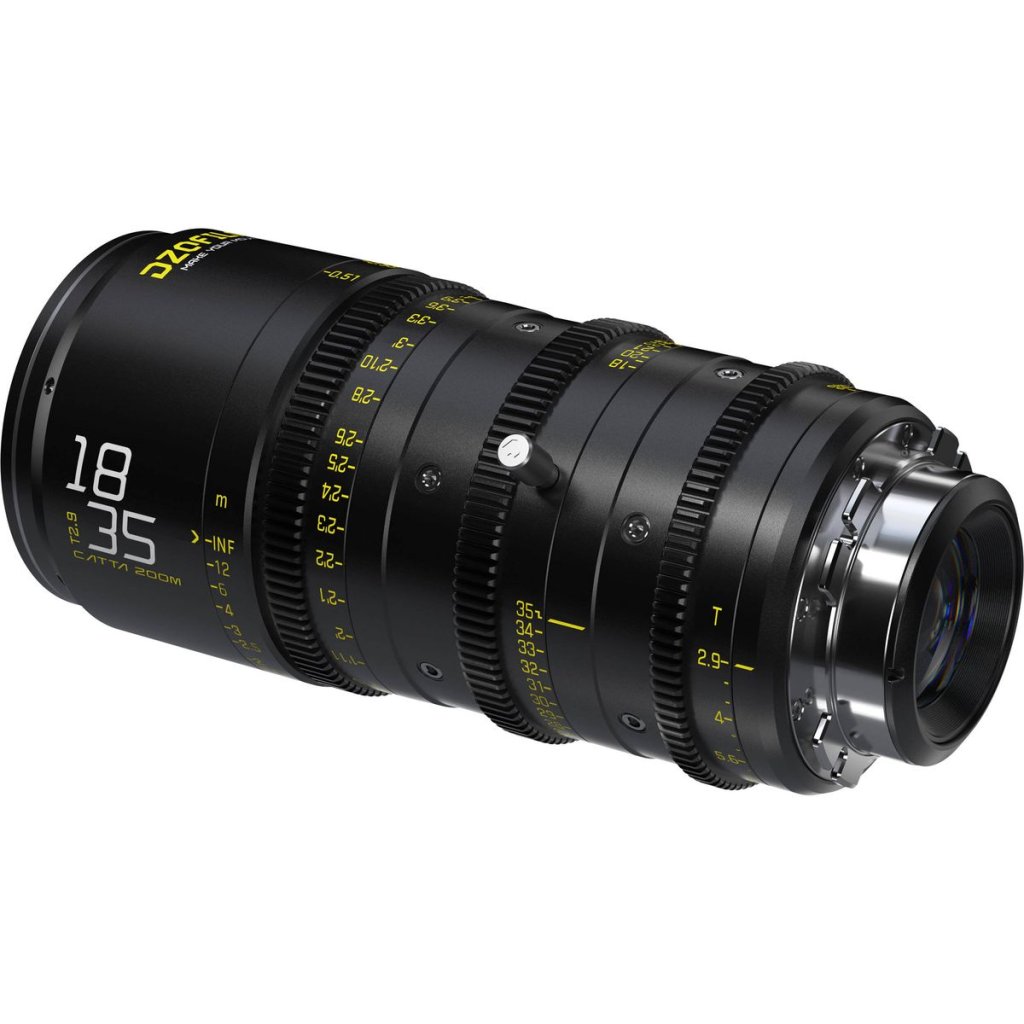

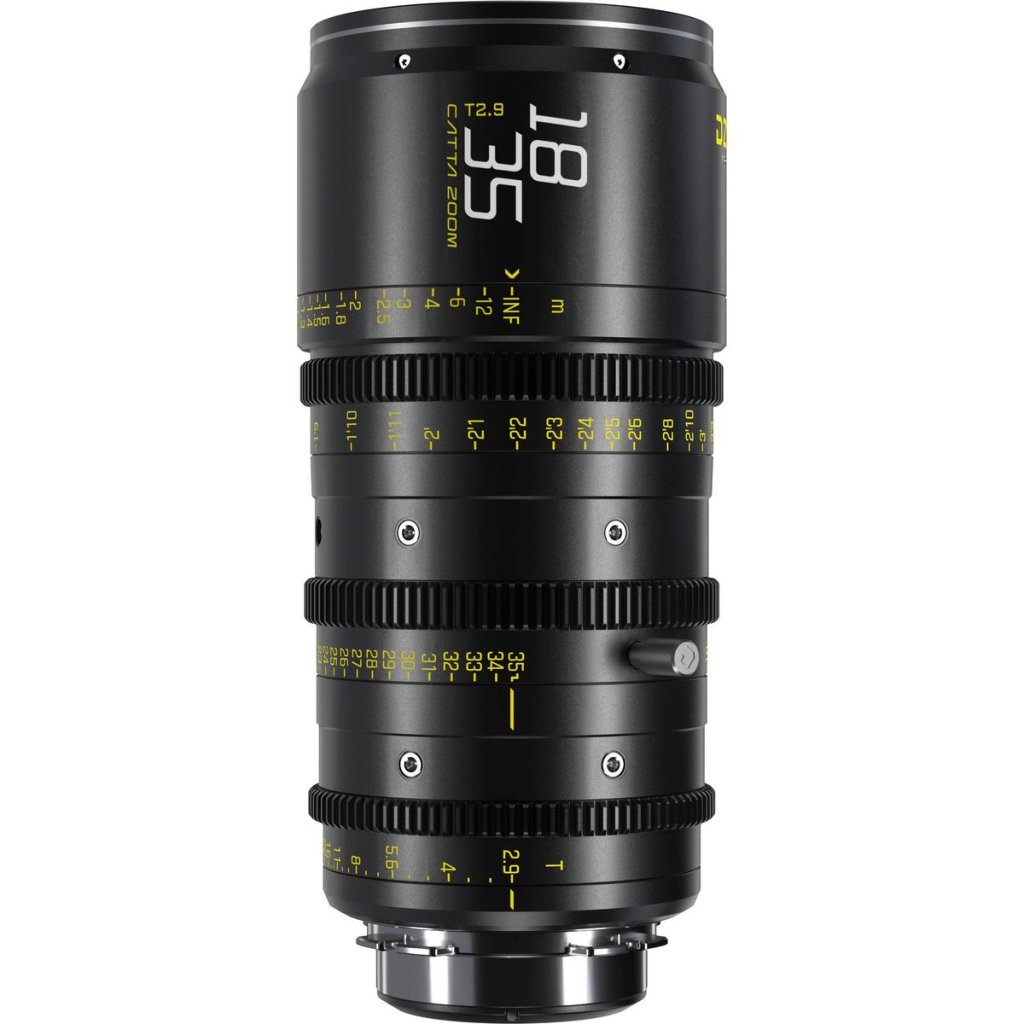

The DZOFilm Catta Ace FF 18–35 mm T2.9 Black is a parfocal cine zoom lens designed for full-frame sensors. It complements the Catta Ace 35–80 and 70–135 mm lenses with a wide 18–35 mm range, while maintaining a constant T2.9 aperture for smooth zooming within a single shot.

The aluminum body, featuring fiberglass and polycarbonate components, keeps the lens lightweight for use on a rig or with a stabilizer. Manual focus has a 270° rotation, the aperture features 16 blades, and the interchangeable mount system supports PL, EF, and LPL configurations.

18–35MM FULL-FRAME CINE ZOOM

A wide-angle full-frame cine zoom with a constant T2.9 aperture. Its 18–35mm range, parfocal design and 0.51m minimum focus help keep a shot under control while reframing.

OFFICIAL CATTA ACE 18–35 MM EXAMPLES

ON-SET VIEW

This official production frame shows the Catta Ace 18–35 mm on a cine rig outdoors. Its wide range and compact cine mechanics leave room to reframe without changing lenses.

IMAGE EXAMPLE

An official sample frame from DZOFILM’s Catta Ace 18–35 mm materials. The 0.51 m minimum focus distance is useful when working close to a subject.

WORKING WITH A SCENE

A second official example from the same project brings together natural light and detail. It is visual inspiration, not a laboratory test.

• Focal length: 18–35 mm
• Zoom: 1.9×
• Aperture: T2.9–T22
• Coverage / Image Circle: Full Frame / 43.5 mm
• Mounts: PL / EF / LPL
• Optical design: 20 elements in 14 groups
• Minimum Focus Distance: 0.51 m
• Focusing: manual, 270°
• Aperture: manual, 77°; 16 blades
• Thread pitch: 0.8 MOD
• Front diameter / filter: 80 mm / M77
• Length: 179.5 mm (PL), 187.5 mm (EF/LPL)
• Lens weight: approximately 1,850 g
• Material: aluminum alloy, fiberglass, and polycarbonate
