DzoFilm Catta ACE FF Zoom Bundle 35-80/70-135 T2.9 Black DZO Optics

Podrobný popis

The DZOFilm Catta Ace FF Zoom Bundle combines parfocal 35–80mm and 70–135mm T2.9 cine zooms for Full Frame and Vista Vision. Both lenses are supplied with PL mounts, while two interchangeable EF mounts, full mounting accessories, and a safety case are included. A constant T2.9 to T22 aperture, 16-blade irises, and 0.8 MOD gearing provide one consistent cinema workflow from 35 to 135mm.

Catta Ace 2-lens bundle

From medium shot to telephoto

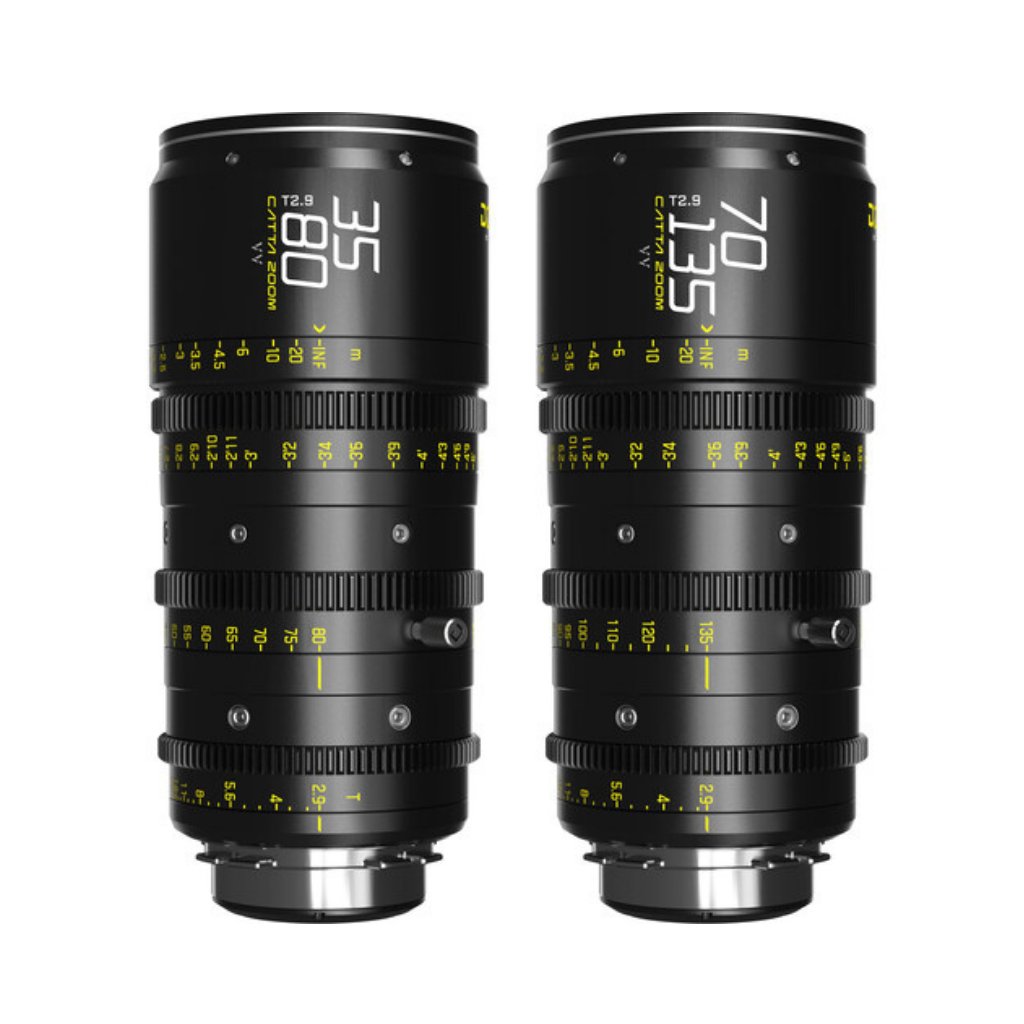

The DZOFilm Catta Ace bundle combines two parfocal full-frame cine zooms, 35–80mm and 70–135mm T2.9. Both are supplied with PL mounts; two interchangeable EF mounts are included for an easy system change without manufacturer service.

35–80 + 70–135 mmT2.9–T22PL + EF

Two focal ranges, one workflow

The lenses share 0.8 MOD cinema gearing, an 80mm front diameter, and 16-blade irises. The 35–80mm covers a 43.5mm image circle, focuses from 0.74m, and has a 2.3× zoom ratio. The 70–135mm covers 46.5mm for Full Frame/Vista Vision, focuses from 0.76m, and has a 1.9× zoom ratio.

Protected complete set

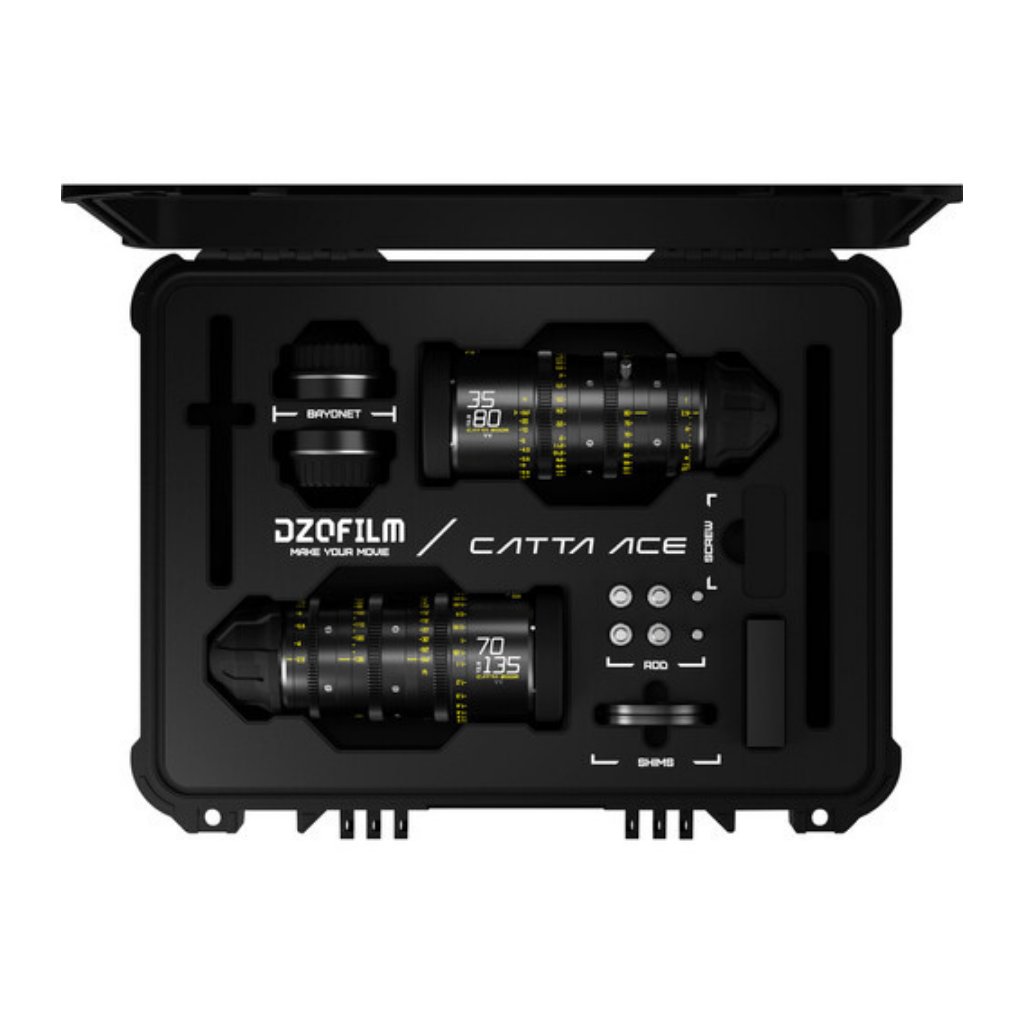

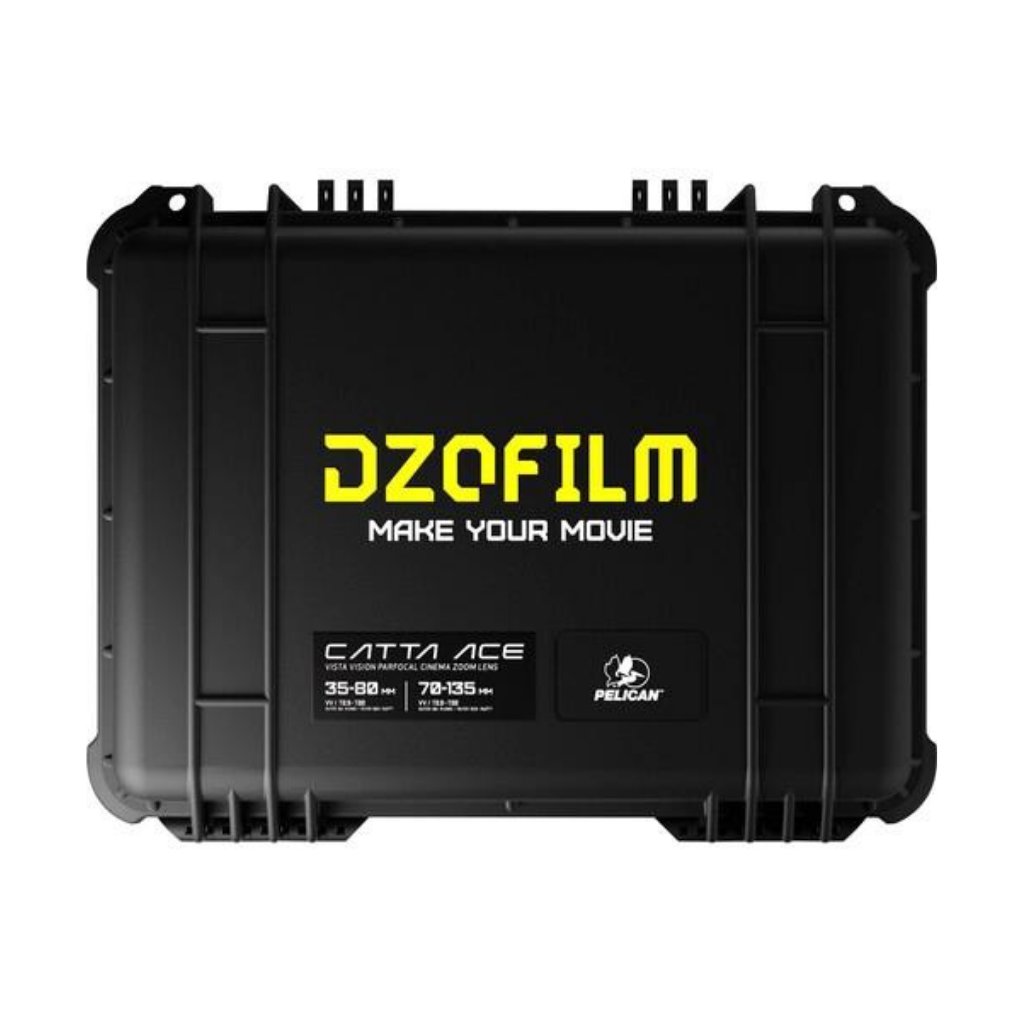

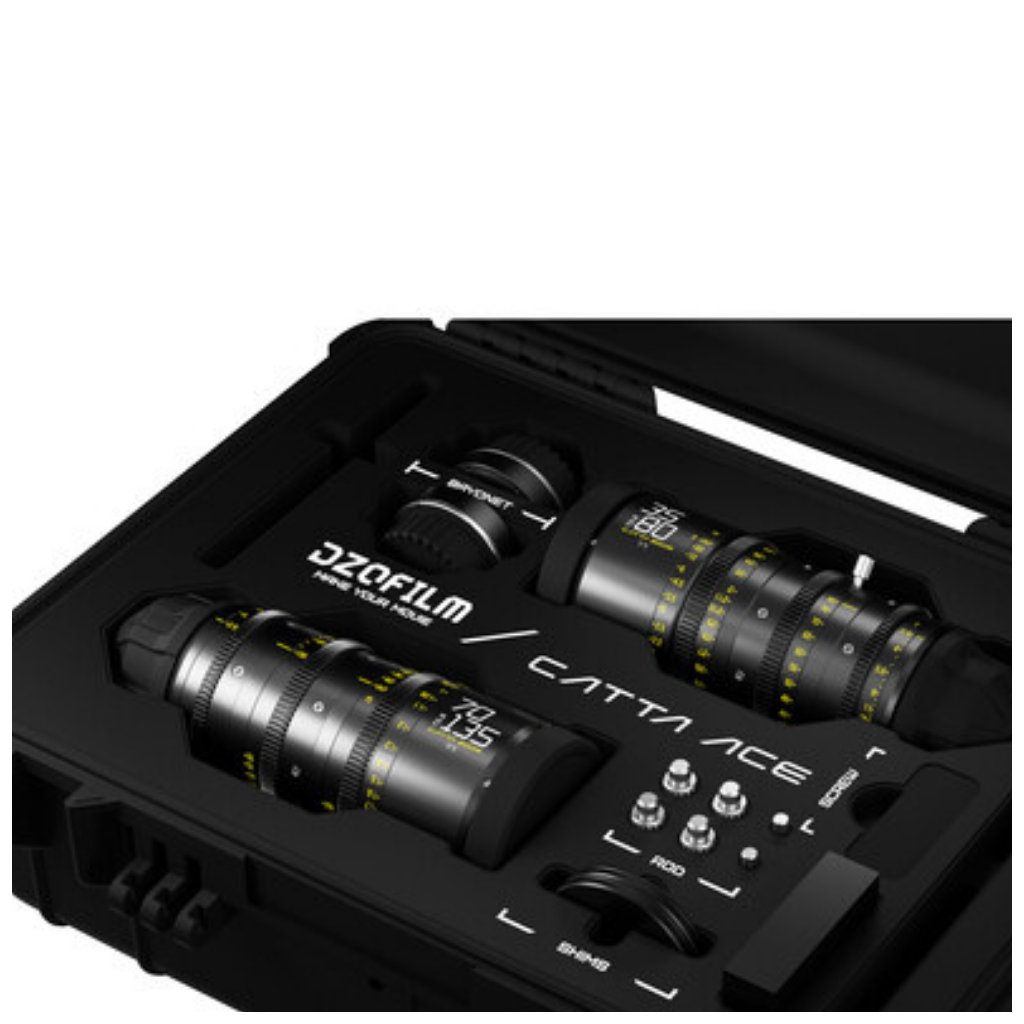

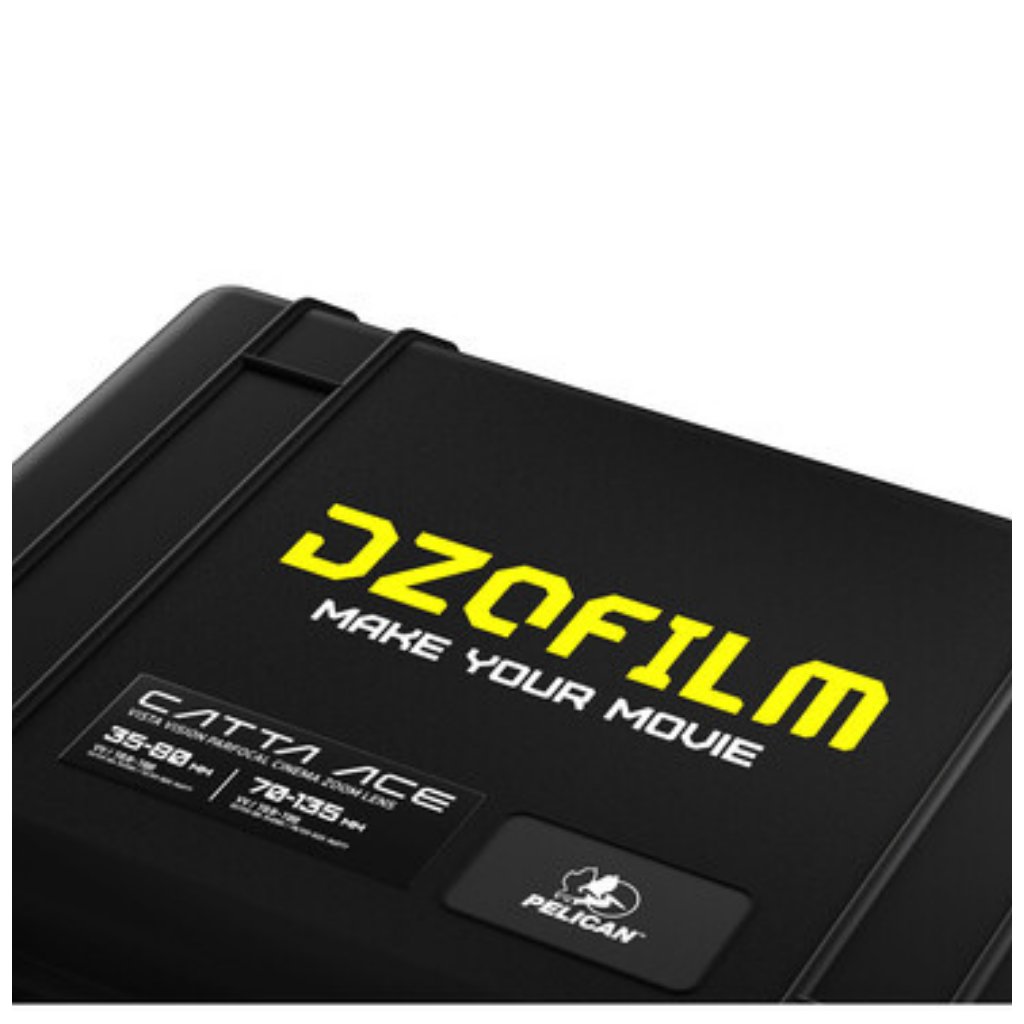

The safety case stores and transports the complete set. Each lens has its own caps, EF kit with rear cap, shims, support base, and support rod. The kit covers a practical 35 to 135mm range without mixing lens series.

• 1× Catta Ace 35–80mm T2.9 lens, PL
• 1× Catta Ace 70–135mm T2.9 lens, PL
• 2× front lens cap
• 2× PL rear lens cap
• 2× EF mount
• 2× EF rear lens cap
• 2× shim set
• 2× support base
• 2× support rod
• 1× safety case

• Kit contents: 35–80 mm a 70–135 mm Cine Zoom
• Mounts: PL osazený, EF v balení
• Aperture: T2.9–T22
• Coverage: 43,5 mm (35–80) / 46,5 mm (70–135)
• Iris: 16 lamel
• Minimum focus: 0,74 m / 0,76 m
• Zoom ratio: 2,3× / 1,9×
• Gearing: 0,8 MOD
• Front / filter diameter: 80 mm / M77
• Lens weights: 1 635 g / 1 710 g
