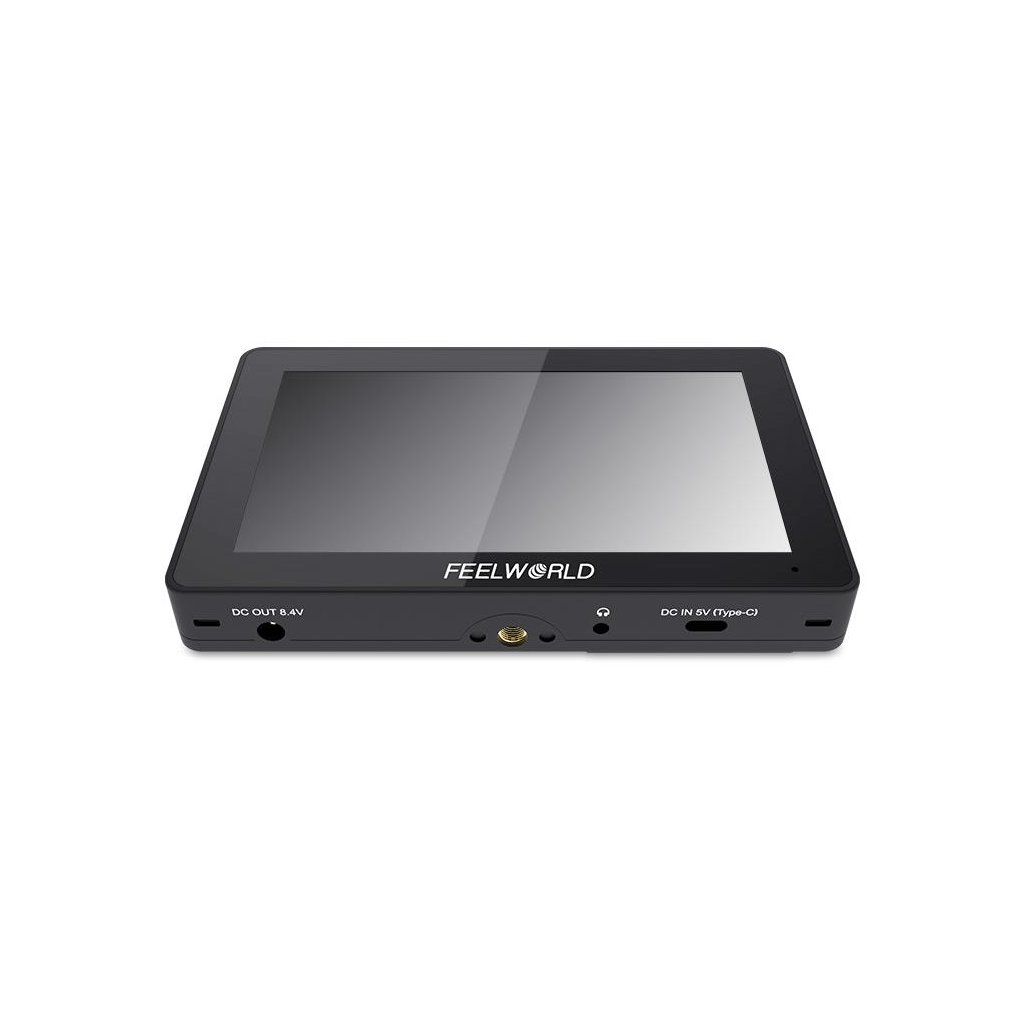

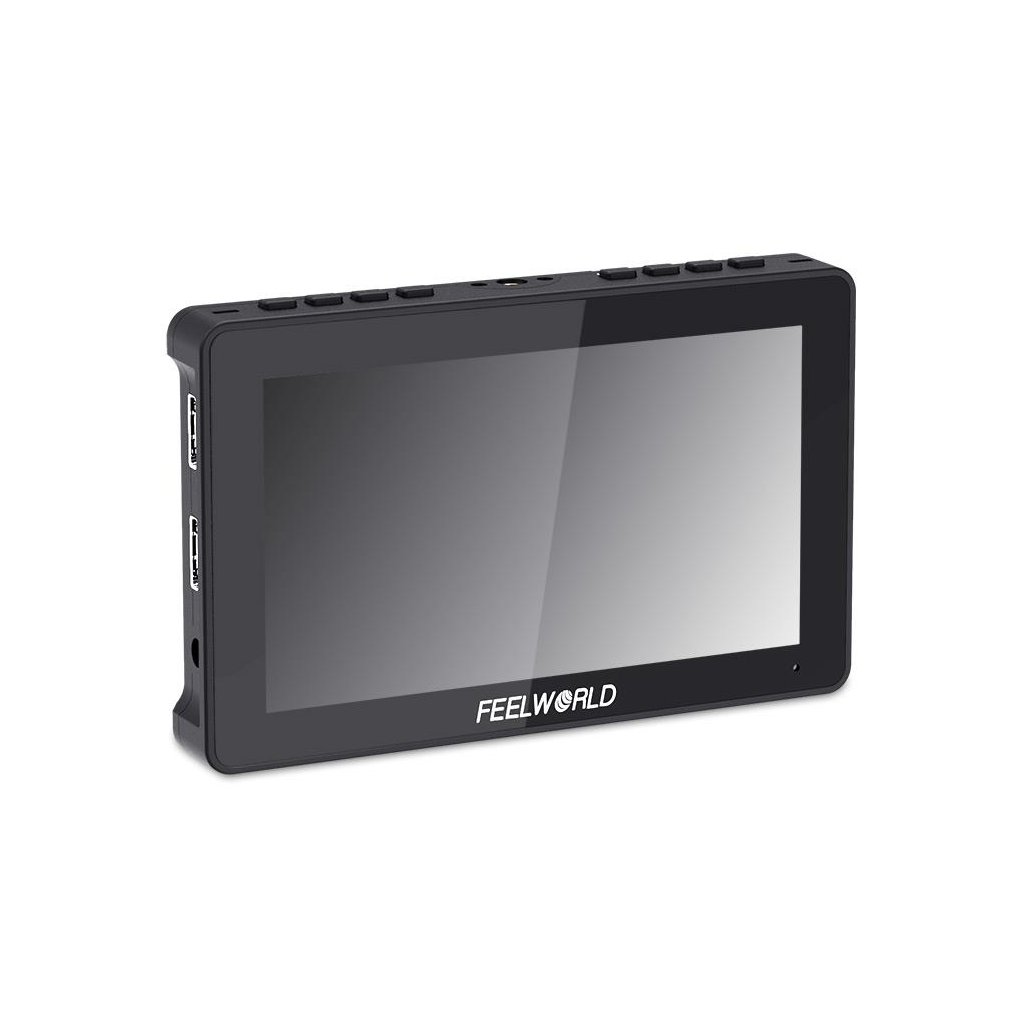

F5 Pro V4 6 Inch Touch Screen DSLR Camera Field Monitor Feelworld

Podrobný popis

FEELWORLD F5 Pro V4 6 Inch Touch Screen DSLR Camera Field Monitor, 500nit. Monitor includes many useful features such as histogram, false colors, focus assist, built-in audio, pixel by pixel, frame guides, nine grids, etc.

The F5 Pro is sure to add instant production value for mirrorless and DSLR shooters. Its bright touch screen, professional software tools, and convenient mounting is invaluable for shooters looking to do more with less gear. The monitor includes a plethora of useful features such as histogram, false color, focus assist, embedded audio, pixel to pixel, frame guides, nine grid etc.

Designed for Every Situation

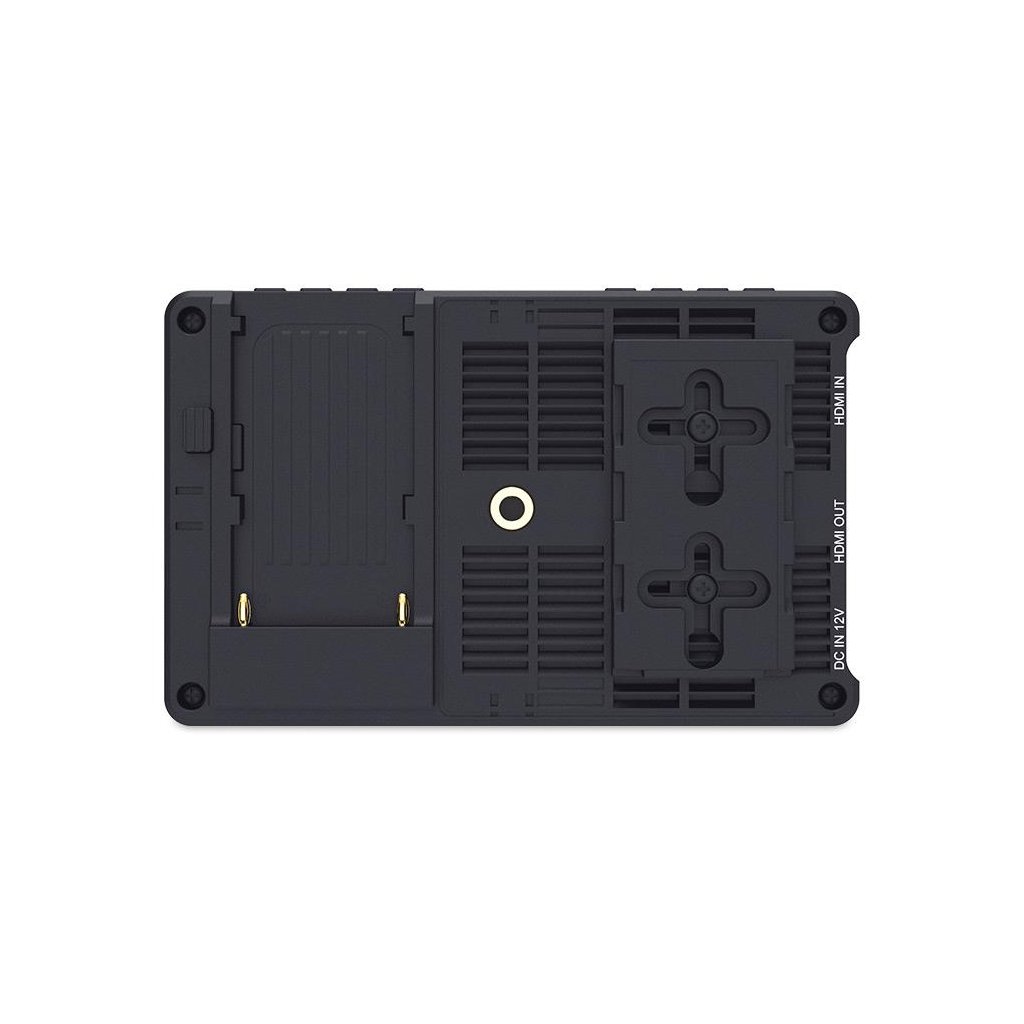

We shaved F5 Pro down to just 245g and added 1/4-20 screw mounts top, bottom and right for ease of cage, adaptor rigging, and tilt arm. There are an F970 battery plate and an install/ power kit on the back of the monitor, the install/ power kit can power and install the external equipment, like wireless transmitter, LED light and others which equipped with Sony F970 battery plate. F5 Pro is compatible with most cameras and HDMI-ready devices and is the perfect companion for the shooters that are always on the go.

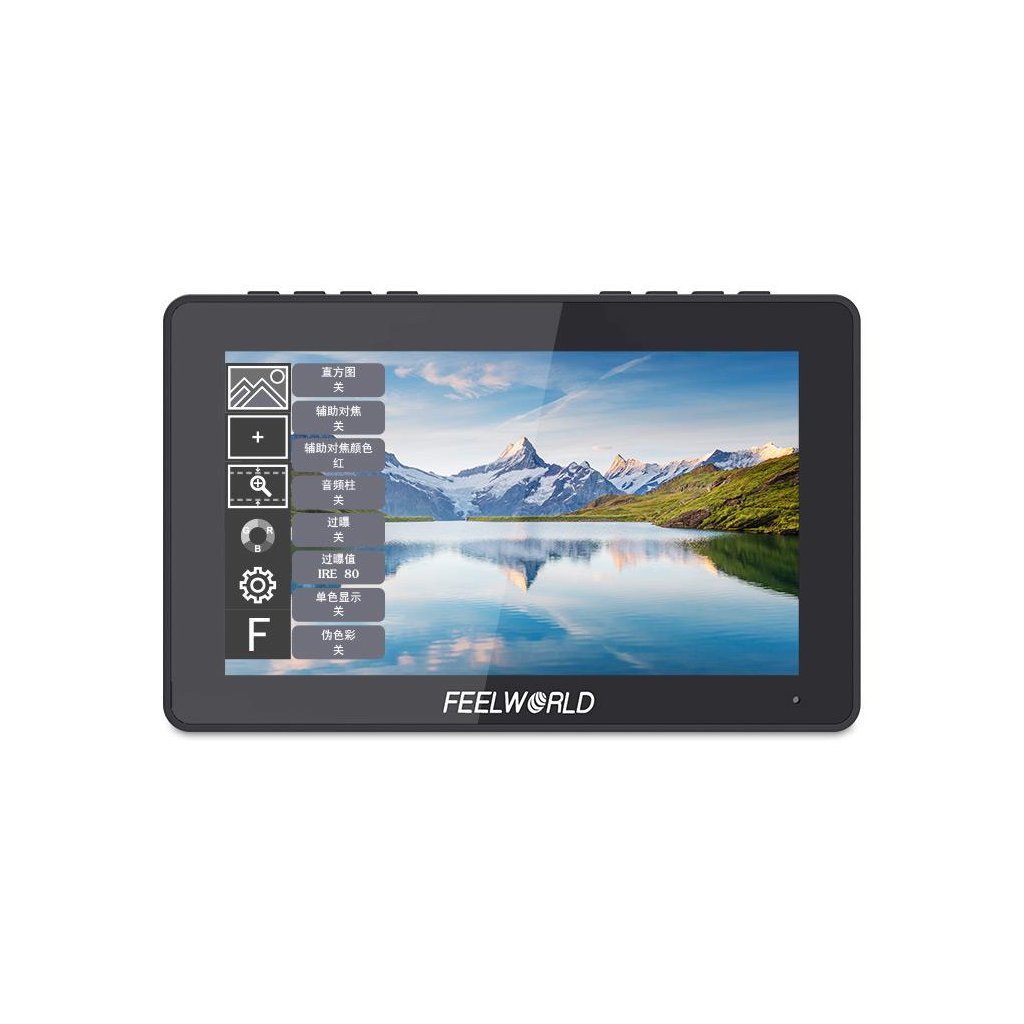

Easy Touchscreen Controls, Freely Zoom In and Out
Adopt full touch screen control, you can easily and intuitively zoom in and Out of your shot with the pinch-to-zoom gesture.

Intuitive Controls and Menus

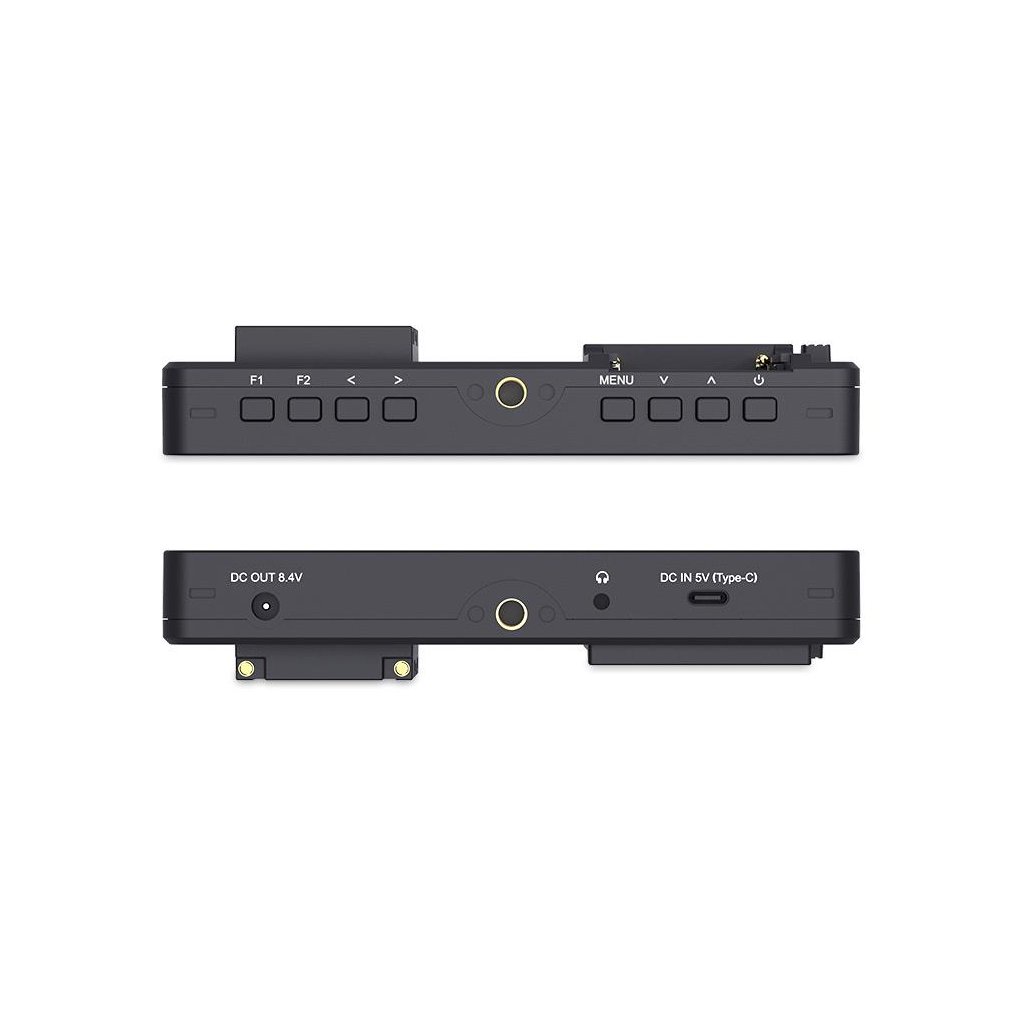

You can touch the screen or physical buttons to browse the menu and set functions. F5 Pro's key distribution design is simple and easy to operate. At the top of the monitor, there are 2 custom function buttons, you can set them as commonly used functions. You can also set the shortcut function of the left and right keys directly in the menu setting function, which can be set to backlight adjustment or volume adjustment, directly press "﹤" to decrease the value; directly press "﹥" to increase the value. And the monitor will automatically save the parameters you have previously set, and keep the original settings when you turn it on next time. It does not need to be reset, which is convenient and simple.

Connect to Director Monitor
Display live picture on multiple displays simultaneously.

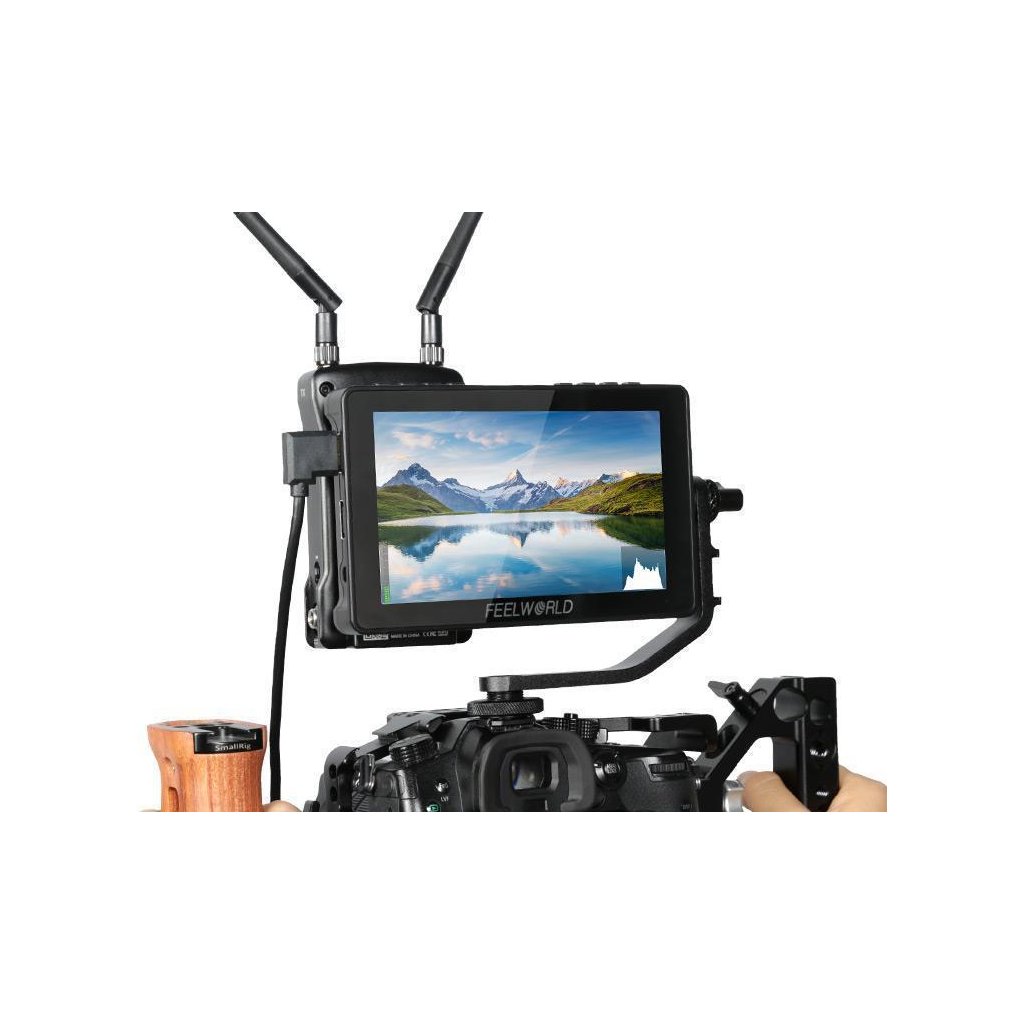

Convenient Mounting - Tilt Arm
Every F5 Pro monitor will ship with a cold shoe mounted Tilt Arm. Shooters will have a secure way to position their monitor while maintaining a low profile.
• Allows the F5 Pro monitor to rotate 360 degrees for viewing convenience
• Secure and lightweight mounting via shoe mount or 1/4"-20 thread
• Includes a shoe mount of its own for accessories like a microphone, LED light, or wireless receiver, etc.

Flexible Install Both on Camera and Gimbal
To convenient the various angles monitoring
F5 Pro features standard 1/4" mount points (top, bottom, right, middle back) for attaching it to cameras and rigs. Not only you can install it on a monitor through tilt arm, but also you can mount it on a handheld stabilizer or securely attach it to the top of your camera as the ultimate HD viewfinder! If you install it on the bottom of the device, you can also combine the image flip function to maintain the correct orientation of the screen!

Portable Sunshade, Easy Install
The F5 Pro monitor is equipped with a sunshade, which allows the photographer to focus more on the video and avoid the interference of strong light, providing a better visual experience. The installation process is simple and fast, which is very suitable for outdoor shooting.

Introduction

• Screen Size：  6" IPS Touch Screen
• Resolution：   1920x1080 pixels
• Aspect ratio： 16:9
• Brightness：   450cd/m²

Input

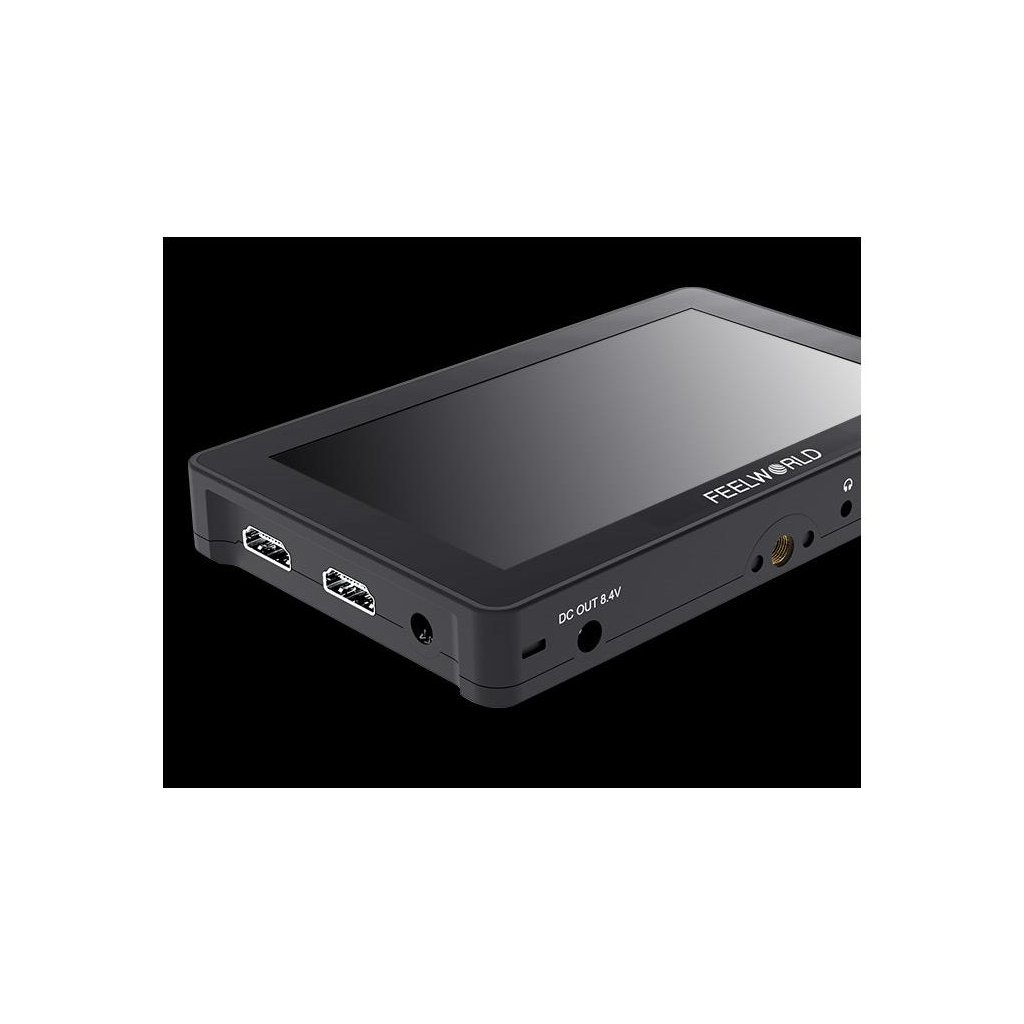

• HDMI, Type-C 5V In
• Output
• HDMI, Stereo Headphones, DC OUT 8.4V, Barrel (5.5mm outer, 2.1mm inner; Power DSLR or mirrorless camera)

FEATURES

• High Resolution: Full HD 1920x1080,High Contrast: 1000:1, High Brightness: 450cd/m², 160° wide viewing angles IPS Panel

• This innovative external power supply design reduces the need for photographers to connect to external wireless transmission, LED light, and other equipment

• Support 3D LUT Log to Rec.709, user 3D LUT Upload

• It provides auxiliary power out; allowing shooters to power their cameras

• All waves

• Waveform (RGB, Y, YUV)

• Histogram(RGB1, Y, RGB2)

• Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus)

• False Colors

• Zebra Exposure

• Nine Grid

• Scan Mode (Under Scan, Over Scan)

• Zoom (4x,9x,16x)

• Anamorphic Mode (1.3x, 2.0x, 2.0x mag, User-defined adjustment: 1.20X~2.00X)

• Pixel to Pixel

• Center Marker

• Safe Area (80%,85%,90%,93%,96%,2.35:1)

• Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)

• Marker Colors (Red, Green, Blue, White, Black）

• Check Field (Red/Green/Blue/Mono)

• Image Flip (H, V, H/V)

• Image Freeze

• Zoom All (0~500 adjustable)

• U/D & L/R Zoom (0~500 adjustable)

• Color Temperature Adjustment

Package Include

Standard Accessories:
1× Micro HDMI Cable
1× Sunshade
1× Tilt Arm
1× Disassemble Wrench
1× TYPE-C to USB
1× Manual
