Float System Bottom Counterweight Bracket Tilta

Podrobný popis

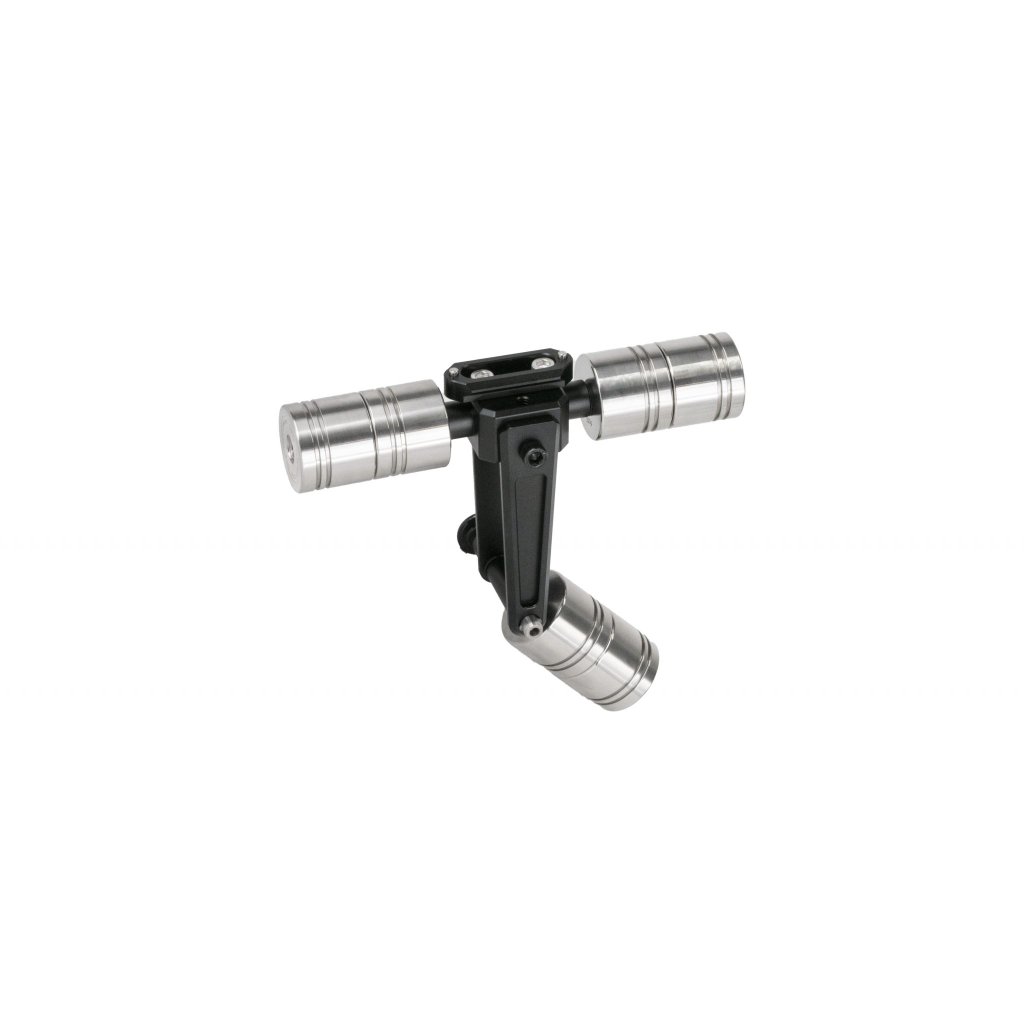

The Tilta GSS-T01-BCB Bottom Counterweight Bracket is an essential add-on for the Tilta Float System that enables perfect balance when using lightweight cameras. It replaces the standard V-mount/Gold-mount battery plate with a NATO-rail-mounted bracket and includes six rotatable 220 g (7.76 oz) counterweights, allowing precise front-to-back and side-to-side balancing for smaller rigs on the Float stabilizing arm.

The GSS-T01-BCB Bottom Counterweight Bracket solves the balancing challenge posed by ultra-light camera builds that don’t rely on heavy V-mount or Gold-mount batteries. The bracket quickly clamps onto the Float post via an integrated NATO rail and provides a central spindle onto which six 220 g stainless-steel-weighted discs are stacked. Each disc can spin freely, letting operators fine-tune static balance in every axis without adding bulk. Ideal for users running Sony FX3/A7S III, Canon R5 C, Z CAM, Blackmagic Pocket cameras or any setup under ≈4–5 kg total weight.

Key Features

• Enables perfect balance for small/lightweight camera packages on Tilta Float
• Replaces heavy V/Gold-mount battery plate with counterweight system
• Quick NATO-rail attachment – no tools required
• 6 × 220 g (7.76 oz) rotatable counterweight discs
• Discs spin independently for precise tilt/roll adjustment
• CNC aluminum + stainless steel construction
• Low-profile design maintains compact Float silhouette

• Tilta Float System Bottom Counterweight Bracket
• 6 x Counterweight (7.7 oz)
• Allen Wrench

• Compatibility: Tilta Float Handheld Support System (GSS-T01)
• Mounting: 1× NATO clamp (bottom of Float post)
• Counterweights: 6× 220 g / 7.76 oz each (total 1.32 kg / 46.56 oz)
• Materials: Aluminum alloy, stainless steel
• Color: Black
