Hollyland Mars 4K RX Hollyland
Kód: AHL-MARS 4K RECEIVERXPodrobný popis

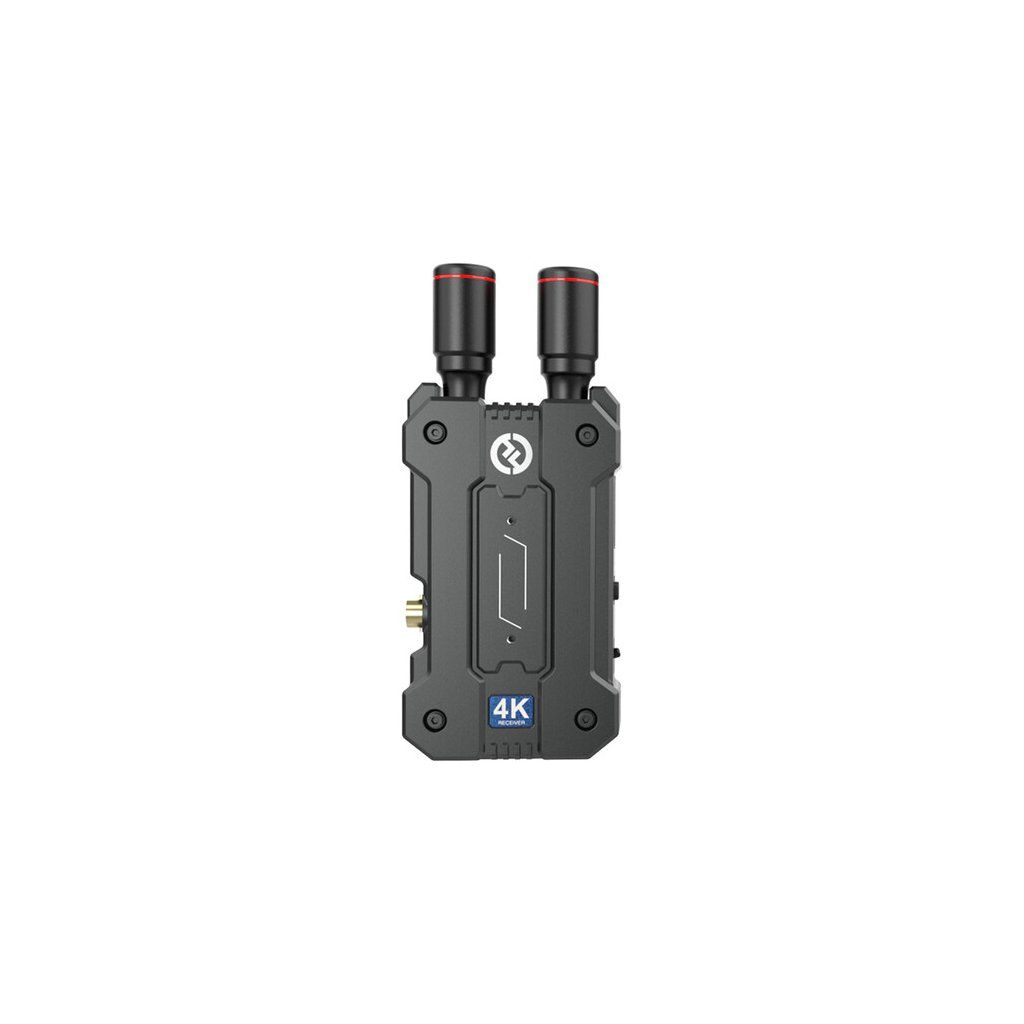

Hollyland Mars 4K RX is a standalone receiver for wireless video up to 4K30 with HDMI and 3G-SDI outputs. The line-of-sight range reaches 150 m and latency is 0.06 s. It adds a second monitoring position to a Mars 4K transmitter, for example for the director or the focus puller, and shows link status on its color display. Powered by NP-F, DC or USB-C.
A second view for the crew
Unit for a monitor, a recorder or the control room, with HDMI 1.4b and 3G-SDI outputs. Two receivers can connect to one transmitter.

A view for the whole crew
The Mars 4K transmitter serves two receivers or up to four phones and tablets running the HollyView app. The director, producer, gaffer and sound mixer can all watch the shot at the same time.
150 m line of sight
Covers an area the size of a soccer field.
8–20 Mbps
Dual-core codec chip, 12 Mbps default bitrate.
Fractional frame rates
23.98, 29.97 and 59.94 fps for broadcast and film production.
NP-F, DC and USB-C
Power from a battery, a 6–16 V source or USB-C 5 V / 2.5 A.
4K UHD over HDMI, SDI for pro cameras
The receiver has HDMI 1.4b and 3G-SDI outputs. It delivers up to 4K30 over HDMI and up to 1080p60 over SDI, including fractional frame rates.

Smart channel scan and selection
At startup Mars 4K scans the available channels and picks the most robust one. The channel scan shows which channels are occupied and which are free, so you can switch channels right on location.

A sharp image with 0.06 s latency
The dual-core codec chip works at 8–20 Mbps with 12 Mbps as the default. The 0.06 s latency applies to a 1080p60 signal and keeps the preview smooth for focusing and checking the shot.

Monitor, control room and mobile view
The transmitter connects to two receivers, to four mobile devices, or to one receiver plus two phones or tablets in the HollyView app.
Receiver for the monitor
The standalone receiver adds another physical HDMI and SDI output to a compatible Mars 4K transmitter. It runs on an NP-F battery, a 6–16 V DC source or USB-C 5 V / 2.5 A.

- Mars 4K receiver ×1
- Antenna ×2
- Locking DC power adapter ×1
- User guide ×1
- Warranty card ×1
- Type: standalone Mars 4K RX receiver
- Wireless transmission: up to 4K30 over HDMI, up to 1080p60 over 3G-SDI
- Outputs: HDMI 1.4b and 3G-SDI
- USB-C: USB 2.0 OTG
- Range: up to 150 m line of sight
- Latency: 0.06 s (1080p60, laboratory test)
- Frequency: 5.1–5.8 GHz, 20 MHz bandwidth
- Bitrate: 8–20 Mbps, 12 Mbps default
- Receiver sensitivity: −90 dBm
- Power: NP-F 6.8–8.4 V, DC 6–16 V or USB-C 5 V / 2.5 A
- Power consumption: less than 5 W
- Dimensions: 115 × 65 × 32 mm
- Weight: 223 g without antennas
- Operating temperature: −10 to 60 °C
Dodatočné parametre
| Kategória: | Hollyland wireless video systém |
|---|---|
| Záruka: | 2 roky |
| EAN: | 6970758744171 |
