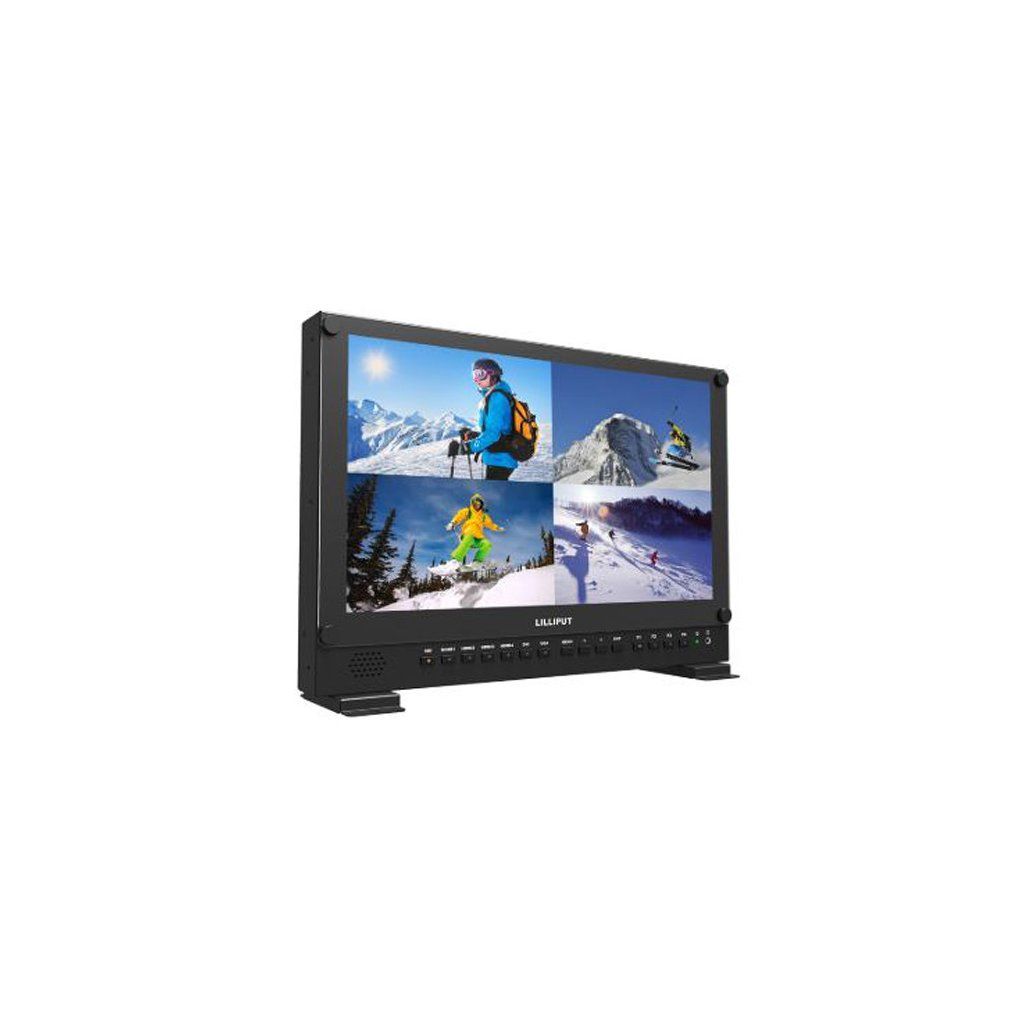

Lilliput BM150-4KS Lilliput
Kód: ABM150-4KSXPodrobný popis
The Lilliput BM150-4KS is a 15.6″ 4K broadcast director monitor in a rugged carry-on case for studio and field use. The 3840 × 2160 panel displays 3G-SDI, four HDMI inputs (two at 4K 60 Hz), DVI and VGA, and offers HDR10, custom 3D LUT loading via USB and quad view. It runs on mains or V-Lock / Anton Bauer batteries and can also be rack-mounted.
15.6" 4K monitor in a case for studio and field
A 3840 × 2160 director monitor with HDR and 3D LUT that you carry in its case, stand on a desk or build into a rack.
Four sources on one screen
Quad view displays signals from different inputs at the same time – SDI, HDMI, DVI and VGA – so you can watch several cameras or sources on a single monitor.
HDR10
Sharper images, greater detail and richer colors on the HDMI input.
Custom 3D LUTs
Load .cube files from a USB flash drive; S-Log, S-Log2 and S-Log3 supported.
4K 60 Hz via HDMI
Two HDMI 2.0 inputs accept 4K 60 Hz, two HDMI 1.4 inputs 4K 30 Hz.
Case or rack
Carry case for transport, VESA 75/100 mm mounting and rack installation.
More information
About the monitor
The monitor is built into a durable hard case suitable for studio and field use. It offers multiple inputs including HDMI and SDI, works with sources up to 4K resolution, and supports adjustable HDR as well as built-in and custom 3D LUTs loaded via USB.
It can be powered by the included adapter or a battery plate, the 75/100 mm VESA mount makes it easy to set up on a stand, and rubber feet on the case allow vertical positioning. The included sunshade improves visibility outdoors.
- 1× monitor Lilliput BM150-4KS
- 1× carrying case
- 1× power adapter
- 1× sunshade
- Brand: Lilliput
- Model: BM150-4KS
- Display: 15.6"
- Resolution: 3840 × 2160 (4K UHD), 16:9
- Brightness: 330 cd/m²
- Contrast: 1,000:1
- Viewing angle (H/V): 176° / 176°
- HDR: HDR10 (HDMI input)
- Supported log formats: Sony S-Log / S-Log2 / S-Log3
- LUT: 3D LUT (.cube format), loaded via USB
- Calibration: Rec.709 with optional calibration probe
- Video inputs: 1× 3G-SDI, 2× HDMI 2.0 (up to 4K 60 Hz), 2× HDMI 1.4 (up to 4K 30 Hz), DVI, VGA
- Video outputs: 1× 3G-SDI (loop)
- SDI formats: 720p 50/60, 1080i 50/60, 1080PsF 24/25/30, 1080p 24/25/30/50/60
- HDMI formats: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
- Audio: SDI 12 ch 48 kHz/24-bit, HDMI 2 ch, 1 built-in speaker, 3.5 mm headphones
- Functions: HDR, 3D LUT, quad view, peaking, false color, exposure (zebra), histogram, audio level meter, markers, check field, aspect ratio, zoom
- Power: DC 12–24 V (XLR)
- Batteries: V-Lock or Anton Bauer, 14.4 V nominal
- Power consumption: ≤ 32 W
- Operating temperature: 0 to 50 °C
- Storage temperature: -20 to 60 °C
- Dimensions (L × W × D): 389 × 267 × 38 mm / 524 × 305 × 170 mm (with case)
- Weight: 3.4 kg / 12 kg (with case)
- Mounting: VESA 75/100 mm
Dodatočné parametre
| Kategória: | Lilliput |
|---|---|
| Záruka: | 2 roky |
| EAN: | 6950821601563 |
| Položka bola vypredaná… | |
