The Lilliput BM230-4KS is a 23.8″ 4K broadcast director monitor supplied with a carrying case, so you can move it safely between studio, outside broadcast and set. The 3840 × 2160 panel with 330 cd/m² accepts 3G-SDI, four HDMI inputs (one at 4K 60 Hz), DVI and VGA, and offers HDR10, custom 3D LUTs and quad view. It runs on mains or V-Lock / Anton Bauer batteries.

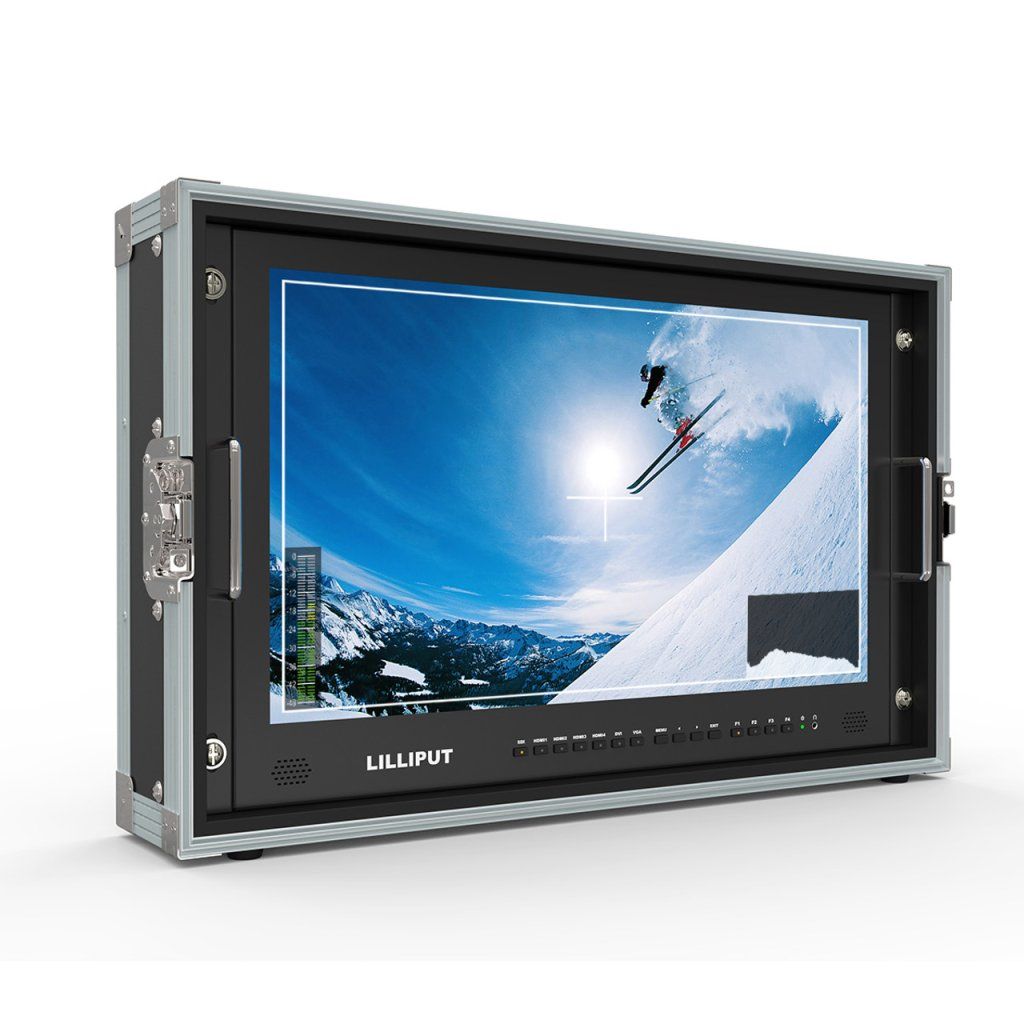

A large 4K view that packs into a case
A 23.8" 3840 × 2160 display for directing and image control – on set, in outside broadcasts and in the studio, carried in its case.
Several cameras on one screen
The large display shows four different sources at once – SDI, HDMI, DVI and VGA – so the director keeps the whole camera setup in view on a single screen.
HDR10
Sharper images, greater detail and richer colors on the HDMI input.
3D LUT via USB
Custom .cube tables plus S-Log, S-Log2 and S-Log3 support.
Wireless receiver
The rear has room for an optional wireless HDMI receiver.
Case and battery
Carrying case and DC 12–24 V power or V-Lock / Anton Bauer batteries.
More information
About the monitor

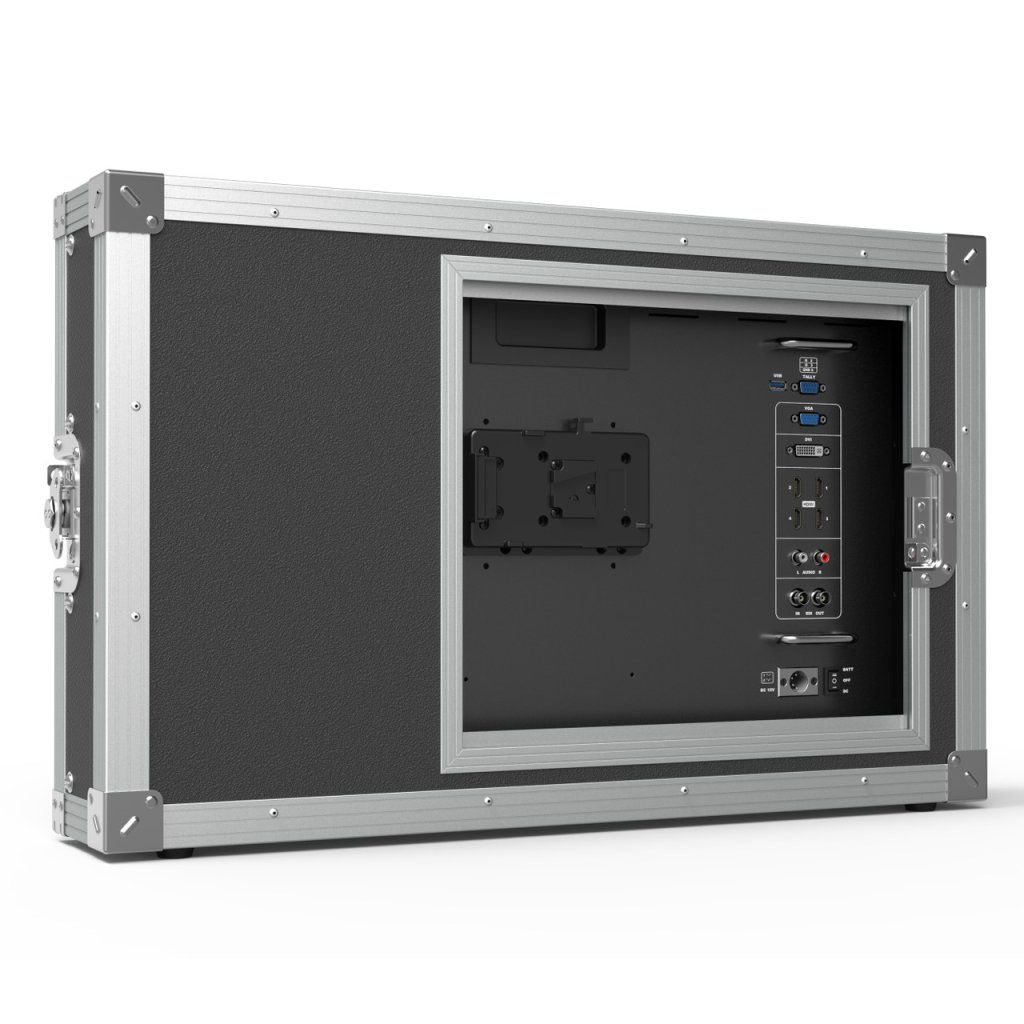

The monitor is designed for field and studio work: the carrying case protects the display in transit, and on site it runs on mains via the XLR input or on a battery. The rear panel carries the power switch, a connector protector and room for an optional wireless HDMI receiver.
- 1× monitor Lilliput BM230-4KS
- 1× carrying case
- Brand: Lilliput
- Model: BM230-4KS
- Display: 23.8"
- Resolution: 3840 × 2160 (4K UHD), 16:9
- Brightness: 330 cd/m²
- Contrast: 1,000:1
- Viewing angle (H/V): 178° / 178°
- HDR: HDR10 (HDMI input)
- Supported log formats: Sony S-Log / S-Log2 / S-Log3
- LUT: 3D LUT (.cube format), loaded via USB
- Calibration: Rec.709 with optional calibration probe
- Video inputs: 1× 3G-SDI, 1× HDMI 2.0 (up to 4K 60 Hz), 3× HDMI 1.4 (up to 4K 30 Hz), DVI, VGA
- Video outputs: 1× 3G-SDI (loop)
- SDI formats: 720p 50/60, 1080i 50/60, 1080PsF 24/25/30, 1080p 24/25/30/50/60
- HDMI formats: 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60, 2160p 24/25/30/50/60
- Audio: SDI 12 ch 48 kHz/24-bit, HDMI 2 ch, 2 built-in speakers, 3.5 mm headphones
- Functions: HDR, 3D LUT, quad view, peaking, false color, exposure (zebra), histogram, audio level meter, markers, check field, aspect ratio, zoom
- Power: DC 12–24 V (XLR)
- Batteries: V-Lock or Anton Bauer, 14.4 V nominal
- Power consumption: ≤ 61.5 W
- Operating temperature: 0 to 50 °C
- Storage temperature: -20 to 60 °C
- Dimensions (L × W × D): 579 × 376.5 × 45 mm / 666 × 417 × 173 mm (with case)
- Weight: 8.6 kg / 17 kg (with case)
- Mounting: VESA 75/100 mm
