LUT7S Feelworld

Podrobný popis

7" camera monitor with high brightness (2,200 cd/m², incl. ambient light sensor for automatic brightness adjustment), touch screen and support for 3D LUT corrections (integrated "Log to Rec.709" preset or import of custom .cube files). It comes with a set of "Retrofit" files. Mini/Micro HDMI-HDMI cable and mounting bracket. LUT7S variant with 4K HDMI and 3G-SDI I/O.

• Display: 7" LED IPS touch panel
• Display resolution: 1920x1200
• Aspect ratio: 16:10
• Brightness: 2200 cd/m², 1,200:1 contrast

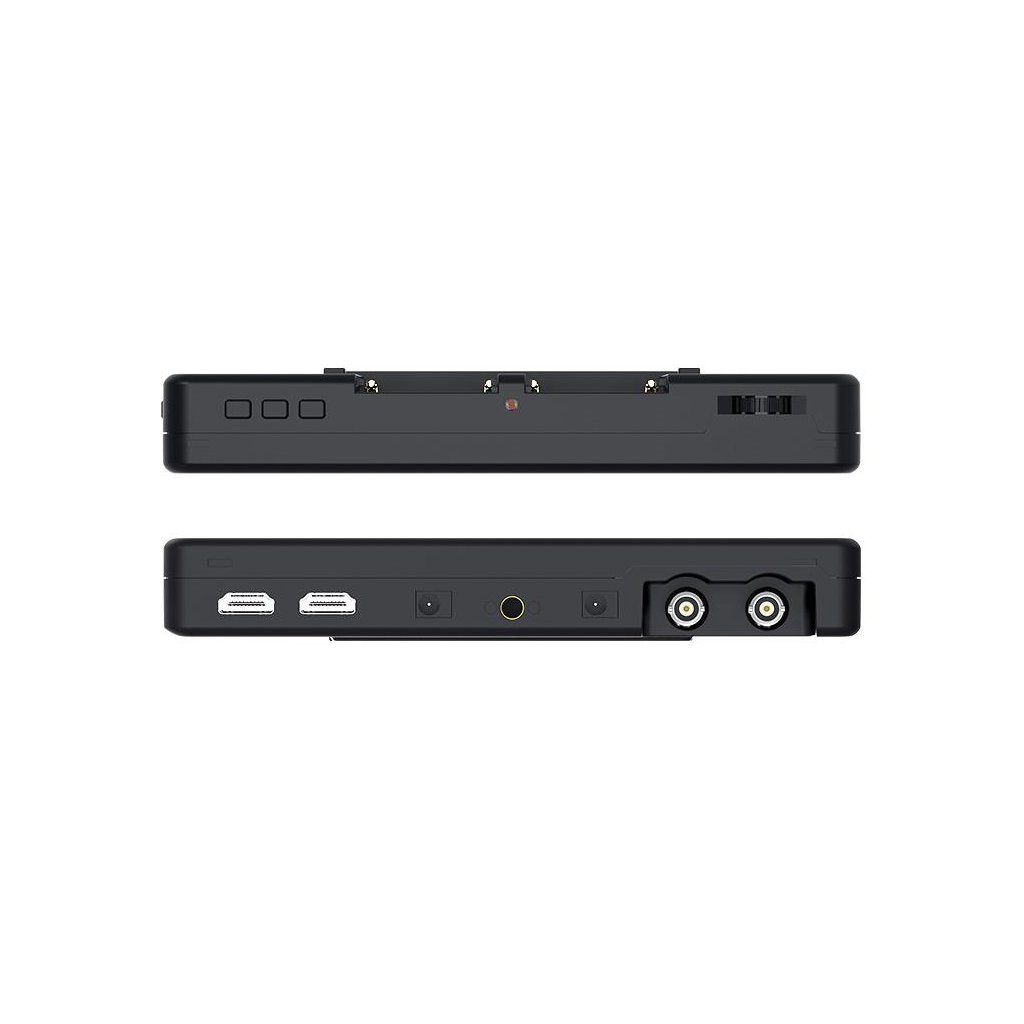

• Inputs: 4K HDMI, 3G-SDI, 7-21 V=/≤ 20 W
• Outputs: 4K HDMI, 3G-SDI, 8V=, headphone
• Dimensions: 190x126x27 mm
• Weight: 460 g (without battery)
  1/4"-20 threads (sides, bottom wall), Tilt Arm (included)
  Import of 3D LUT tables
  2x Sony L Series battery slot (compatible with F970 F960 F950 F930 F770 F750 F730 F570 F550 F530 QM91D QM91 QM90D QM90 QM71D QM71 QM70D QM70 QM51D QM51 FM71 FM70)
• Functions: signal measurement (waveform, vectorscope), histogram, focus assist, false color, zebra, half-scan, Under/Overscan, anamorphic mode (1.25x, 1.33x, 1.5x, 2.0x), h/v rollover, grid, center cross, safe zone (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1), aspect ratio (16:9, 16:10, 4:3, 1.85:1, 2.35:1), color temperature, zoom (100-300%), Pixel-to-Pixel, etc.
• Supported modes: 480i/576i/480p/576p, 1080i (60/59.94/50), 720p (60/59.94/50/30/29.97/25/24/23.98), 1080p (60/59.94/50/30/29.97/25/24/23.98), 4K UHD 3840x2160p (30/29.97/25/24/23.98Hz), 4096x2160p (24Hz)
