Blackmagic MultiView 4 is a new multi viewer that lets customers monitor 4 completely independent SDI video sources on a single display. Customers can monitor any combination of SD, HD and Ultra HD formats and frame rates all at the same time. Blackmagic MultiView 4 can output to regular HD monitors, however when customers plug in an Ultra HD display, they will get four times the resolution of a simple HD only multi viewer.

Blackmagic MultiView 4 includes four completely independent multi rate 6G-SDI inputs with separate loop through outputs that are compatible with existing SD, HD and Ultra HD equipment up to 2160p30. All inputs feature automatic frame re-synchronization, so customers can mix and match any combination of video standards and frame rates, including referenced or non-referenced NTSC, PAL, 720p, 1080i, 1080p, and Ultra HD up to 2160p30, all on the same display all at the same time.

Customers can output to either regular 1080 HD or high resolution 2160p Ultra HD screens. Because Ultra HD runs at 3840 x 2160, which is four times the resolution of regular 1080 HD, the images are extremely sharp. This means when customers use it with an Ultra HD monitor, they get 4 full resolution 1080 HD views all at the same time on the same monitor, with each view being full resolution HD with no scaling. When this feature is used with very large screen consumer televisions, extremely high quality master control monitoring systems can be built at very low cost.



Blackmagic MultiView 4 is the perfect solution for live production, on set, in control rooms, or any place where space is tight and customers don’t have room for extra monitors. Customers no longer have to connect multiple monitors, dozens of cables or run extra power. They simply plug in cameras, decks, switchers, routers and feeds into the SDI connections on Blackmagic MultiView 4 and can see everything with amazing clarity and detail on a single HD or Ultra HD display.

Designed to be plug and play, customers can simply connect sources and instantly see a standard 2x2 layout on an HD or Ultra HD television. Using the included Ethernet remote control software, customers can turn on audio meters, choose which audio to output, as well as create custom labels, and more. Blackmagic MultiView 4 is also compatible with the optional Teranex Mini Smart Panel for customers that need to add front panel controls. For the ultimate in broadcast reliability and redundancy, you can even power MultiView 4 via the AC connection as well as power over Ethernet.



Blackmagic MultiView 4 is designed using the same compact, elegant enclosure as Blackmagic Design’s Teranex Mini converters so they are small enough to be used in fly away cases, outside broadcast vehicles, housed in equipment racks or even sitting on a desktop. They are only one third of a single rack space wide, so customers can mount them on the optional Teranex Mini Rack Shelf side by side with additional MultiView 4 or Teranex Mini products.

“The new Blackmagic MultiView 4 is exciting because it’s like having 4 completely independent HD broadcast monitors on a single display,” said Grant Petty, CEO, Blackmagic Design. “Even facilities that aren’t working in Ultra HD yet can take advantage of the increased resolution and clarity when using an Ultra HD display to monitor regular HD sources. They get four times the resolution and four times the clarity of an older style HD only multi viewer! The extra resolution is really important on live productions where you’re monitoring camera feeds and need to check focus. Customers also get the ability to view mixed video formats with different frame rates at the same time on a single screen, and the quality is amazing!”



Blackmagic MultiView 4 Key Features

• Advanced multi view allows the use of Ultra HD television for twice the image sharpness.
• Display up to 4 SDI sources on a single HD or Ultra HD display via SDI or HDMI.
• 4 multi rate 6G-SDI inputs with loop through outputs.
• Compatible with all SD, HD and Ultra HD equipment and formats up to 2160p30.
• Automatic frame re-sync allows simultaneous display of mixed SD, HD and Ultra HD formats.
• Standard quad split view.
• Supported output resolutions: 1920 x 1080 and 3840 x 2160.
• Compact portable ? width 1RU design with professional connections for easy installation.
• Built in 90V - 240V AC international power supply for use anywhere in the world.
• Remote control via Ethernet using the included Mac and Windows software.
• Supports power over Ethernet (PoE+) which can also be used as a backup power source.
• Blackmagic MultiView 4 can be looped for customized display arrangements.

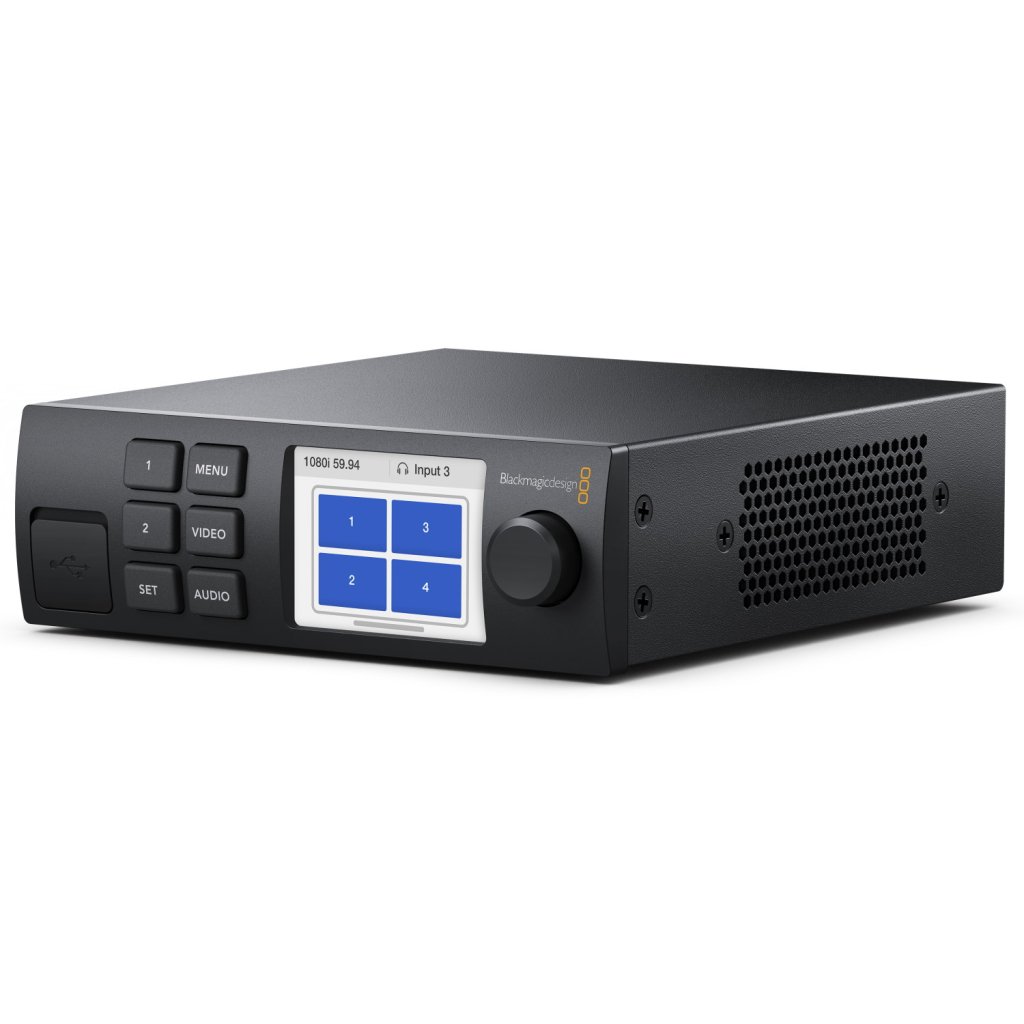

• Supports optional Teranex Smart Panel that adds push buttons and built in LCD monitor.
• Supports optional Teranex Mini Rack Shelf for installation into equipment racks.

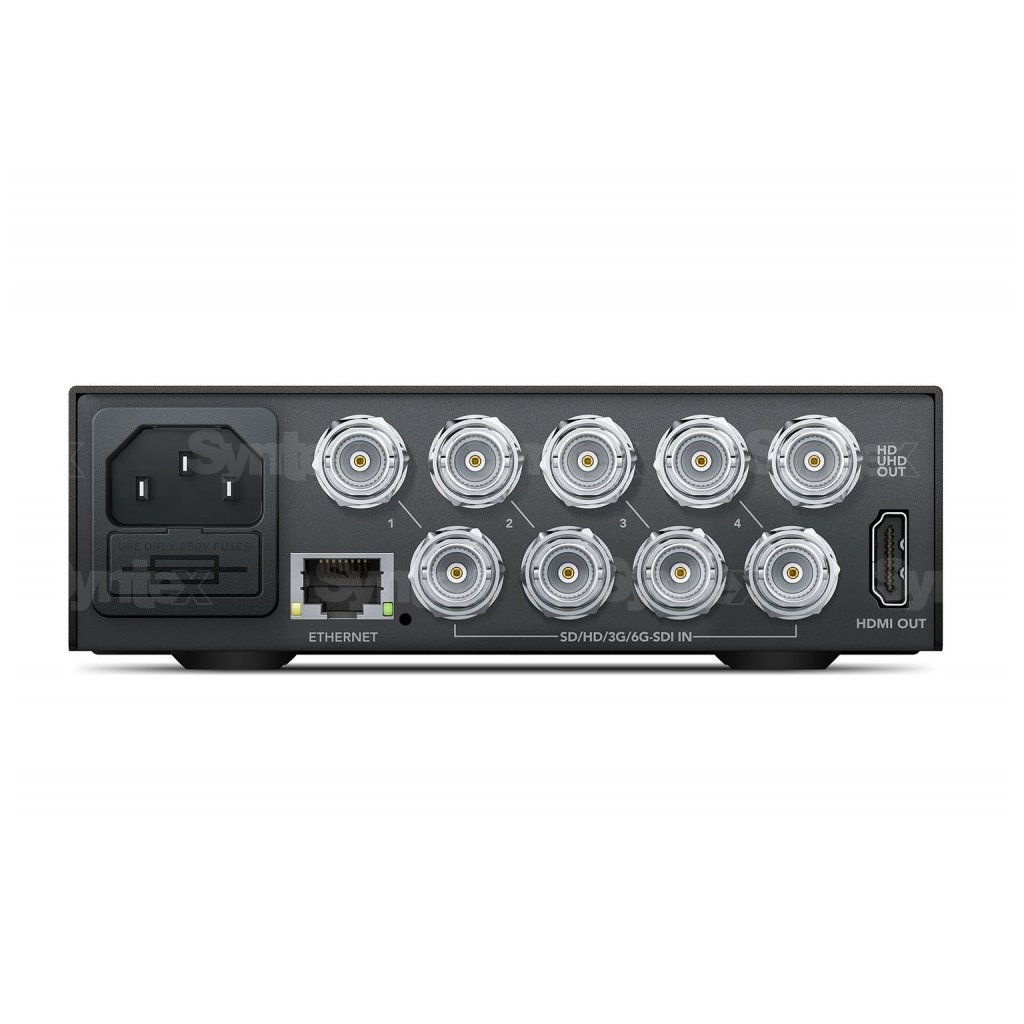

Connections

SDI Video Inputs

4 x 10-bit SD-SDI, HD-SDI and 6G‑SDI.

SDI Video Outputs

4 loop, 1 HD/Ultra HD.

SDI Rates

270Mb, 1.5G, 3G, 6G.

SDI Video Multi View Outputs

1 x 10-bit HD-SDI and 10 bit 6G‑SDI

HDMI Video Multi View Outputs

1 x HDMI type A connector. Output supports EDID of the monitor.

SDI Reclocking

On all SDI outputs, auto switching between standard definition, high definition or 6G‑SDI video.

Reference Input

None

Multi Rate Support

Auto detection of SD, HD or 6G‑SDI. Simultaneous viewing of 4K, HD and SD video.

Updates

USB 2.0 high speed (480Mb/s) interface or via Ethernet.

Configuration

RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.

Operating Systems

Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.

Windows 10, 64-bit.
