Nucleus-Nano: Wireless Lens Control System with Nucleus-M Motor ( P-Tap to 7-pin cable included WLC-T03-PTAP-7P) Tilta

Podrobný popis

The Tilta Nucleus-Nano Wireless Lens Control System with Nucleus-M Motor is a powerful focus and zoom control solution designed for gimbal and handheld camera setups. By pairing the compact Nucleus-Nano handwheel with the high-torque Nucleus-M motor, this system delivers precise wireless lens control for stiffer photo and cinema lenses, making it ideal for professional filmmaking and stabilized shooting environments.

The Tilta Nucleus-Nano Wireless Lens Control System with Nucleus-M Motor combines lightweight wireless control with the added torque needed for demanding lens setups. Designed primarily for use on handheld gimbals, this configuration replaces the standard Nano motor with the more powerful Nucleus-M motor, allowing smooth and reliable control of focus, iris, or zoom on heavier or stiffer lenses.

The system includes the Nucleus-Nano wireless focus handwheel, which communicates with the motor via 2.4 GHz wireless signal and provides responsive, lag-free control from long distances. The handwheel features programmable A/B hard stops, run/stop functionality, and an ergonomic design with a rosewood-lined grip. Multiple adapters allow the handwheel to mount directly onto popular gimbals such as the DJI Ronin-S, Tilta Gravity G2X, and Zhiyun Crane.

At the heart of the system, the Nucleus-M motor features a brushless, integrated drive design with adjustable torque settings and cine-standard 0.8 MOD gearing. The motor supports automatic or manual calibration and mounts to either 15mm or 19mm rods. Power cables, batteries, chargers, gear rings, and mounting accessories are included, making this a complete, ready-to-shoot wireless lens control solution packed neatly into a soft carrying case.

Key Features

• Wireless focus/zoom control system optimized for gimbal use
• High-torque Nucleus-M motor for stiff photo and cine lenses
• Nucleus-Nano wireless focus handwheel with zero-latency response
• Long-range 2.4 GHz wireless operation
• Adjustable torque settings and automatic/manual calibration
• Gimbal mounting adapters for DJI Ronin-S, Gravity G2X, and Zhiyun Crane
• Includes power cables, batteries, charger, gear rings, and accessories
• Compact, lightweight components with professional performance

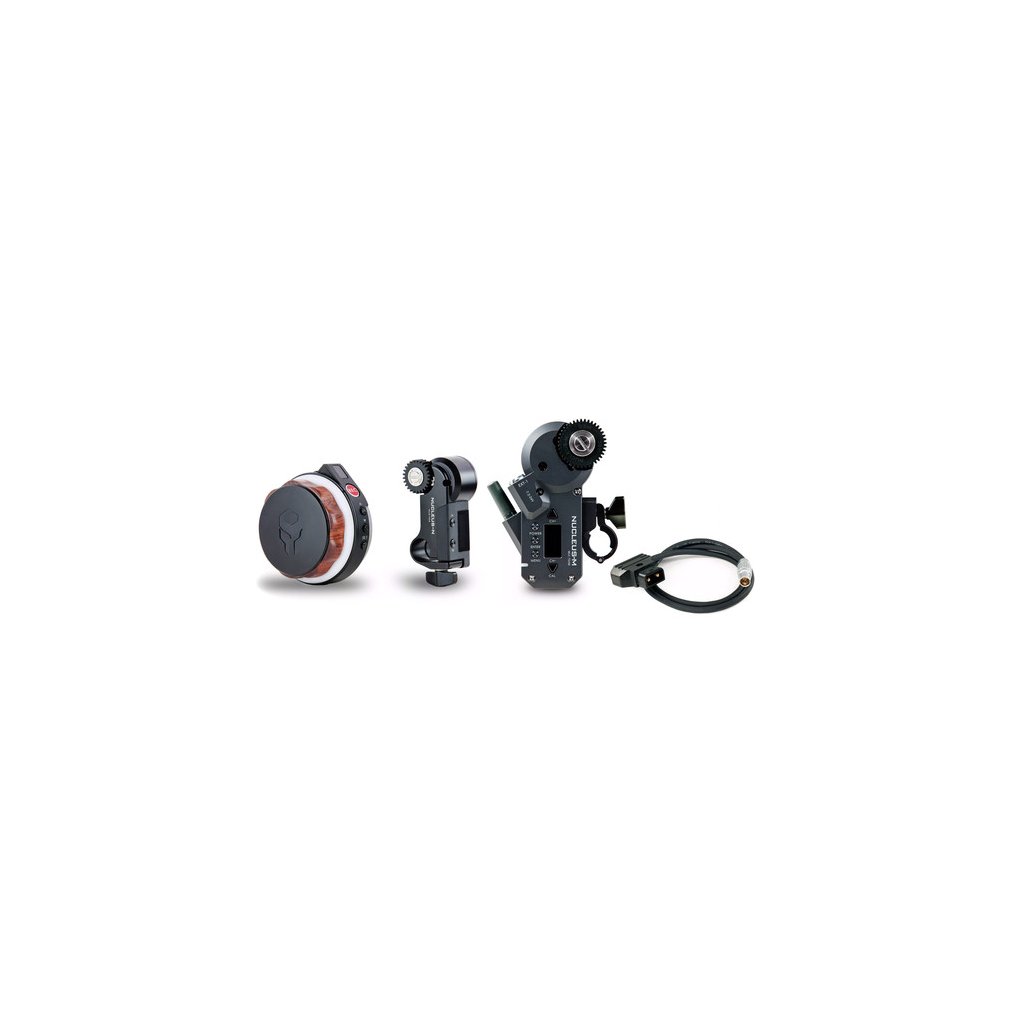

• Nucleus-Nano Wireless Focus Handwheel
• Tilta Nucleus-M FIZ Lens Control Motor
• 15mm LWS Baseplate with Rod Clamp
• Adjustable Lens Gear Rings (2×)
• Ronin-S to Micro-USB Power Cable
• Nucleus-M D-Tap to 7-Pin Power Cable
• Handwheel Adapter for DJI Ronin-S / Gravity G2X
• Handwheel Adapter for Zhiyun Crane
• Nucleus-Nano 14500 Battery Charger
• Batteries
• Power and Control Cables

• Wireless Frequency: 2.4 GHz
• Maximum Range: Up to 1640 ft / 500 m (unobstructed)
• Motor Gear:MOD: 0.8,Teeth: 35,Pitch: 32
• Face Width: 0.4" / 10 mm
• Rod Compatibility: 15 mm, 19 mm
• Motor Torque Settings: High / Medium / Low
• Voltage Range: 7.2–24 V
• Operating Temperature: -4 to 122°F / -20 to 50°C
• Motor Weight:6.7 oz / 190 g (motor only),7.9 oz / 225 g (with 15mm rod adapter),7.8 oz / 221 g (with 19mm rod adapter)
• Materials: Aluminum alloy, stainless steel, ABS plastic
