PT12X-SE-WH-G3 PTZOptics

Podrobný popis

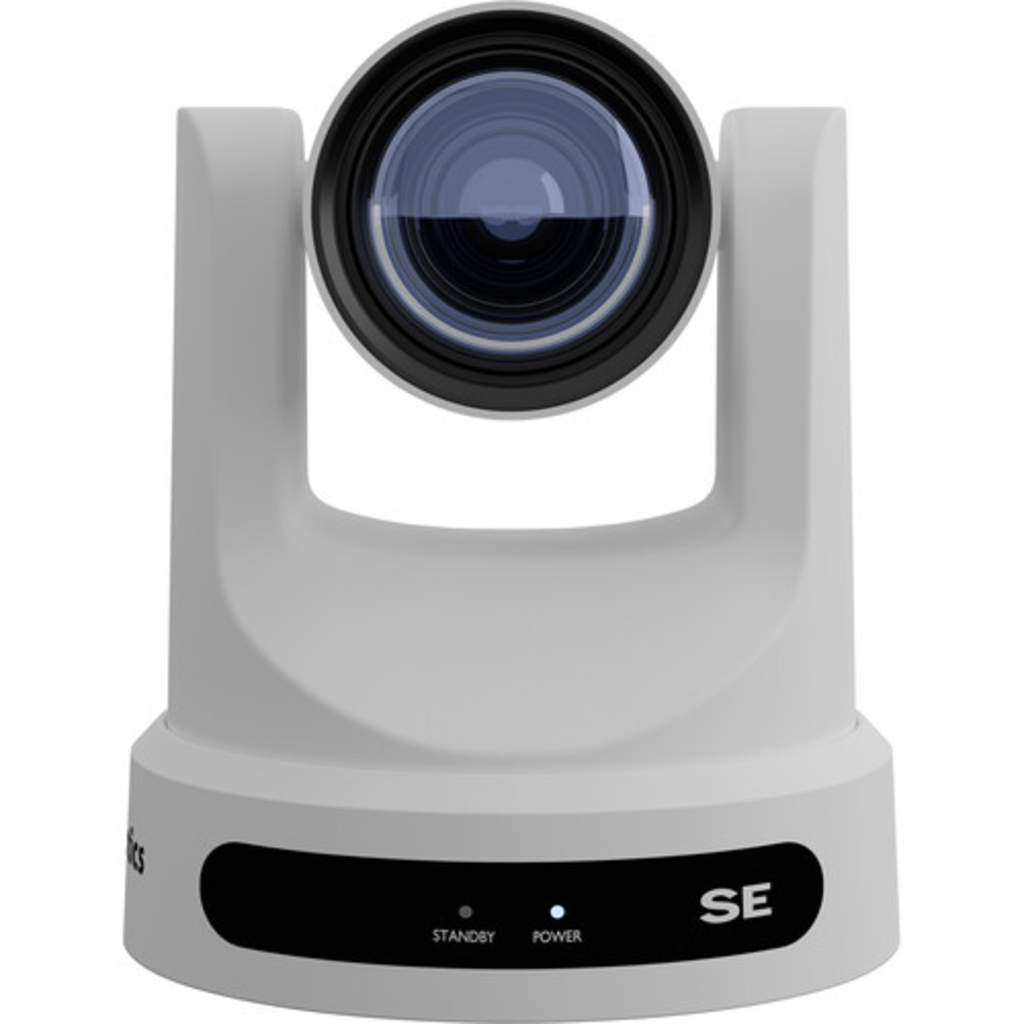

The PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (White) is a professional Full HD PTZ camera designed for live streaming, video conferencing, education, and worship applications. Featuring 1080p60 video capture, advanced auto-tracking, 12x optical zoom, NDI|HX support, and simultaneous HDMI, 3G-SDI, USB-C, and IP outputs, this versatile camera delivers smooth, high-quality video performance with flexible connectivity and control options.

The PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (White) is a feature-rich PTZ camera built for professional streaming, hybrid meetings, remote learning, worship services, and live production environments. Equipped with a high-performance 1/2.8"-type CMOS sensor and support for Full HD 1080p60 video capture, the Move SE produces sharp, detailed video with reliable low-light performance and advanced image processing technologies.

The camera’s integrated auto-tracking functionality automatically follows presenters and speakers as they move around the room, making it ideal for classrooms, conference rooms, corporate presentations, and worship streaming without requiring a dedicated camera operator. Its powerful 12x optical zoom lens combined with up to 16x digital zoom provides flexible framing and detailed close-up shots while maintaining excellent image clarity.

Designed for modern production workflows, the camera supports simultaneous video output through HDMI, 3G-SDI, USB-C, and IP streaming connections. It supports H.264, H.265, and MJPEG compression formats for efficient streaming and broad compatibility with professional AV systems. Streaming protocol support includes RTSP, RTMP, RTMPS, SRT, ONVIF, TCP, and UDP, enabling seamless integration into live streaming, conferencing, and broadcast environments. A free NDI|HX upgrade is also available for enhanced IP-based video production.

Additional professional features include 255 programmable camera presets, wide dynamic range, 3D noise reduction, stereo audio embedding through 3.5mm audio connections, tally light support, and control via IP, RS-232, RS-485, or the included IR remote control. The camera can be powered using the included 12V power supply or via PoE (Power over Ethernet) for simplified installation and reduced cabling.

Key Features

• Full HD 1080p60 PTZ camera
• Built-in auto-tracking functionality
• 12x optical zoom lens with 16x digital zoom
• Simultaneous HDMI, 3G-SDI, USB-C, and IP outputs
• Free NDI|HX support upgrade available
• Supports H.264, H.265, and MJPEG compression
• RTSP, RTMP, RTMPS, SRT, ONVIF, TCP, and UDP streaming support
• Wide dynamic range and 3D noise reduction
• Excellent low-light performance
• 255 programmable camera presets
• Tally light support
• IP, RS-232, RS-485, and IR remote control support
• Stereo audio input/output via 3.5mm connectors
• PoE (802.3af) and 12V DC power support
• Compatible with Zoom, Microsoft Teams, Skype, and other conferencing platforms

• PTZOptics Move SE SDI/HDMI/USB/IP PTZ Camera with 12x Optical Zoom (White)
• IR Remote Control
• Power Adapter
• Documentation

Imaging

• Image Sensor: 1/2.8"-Type CMOS
• Effective Resolution: 2.07 MP
• Shutter Speed: 1/10000 to 1/30 sec
• Minimum Illumination: 0.5 lux
• Signal-to-Noise Ratio: 55 dB
• Focus Control: Auto / Manual
• White Balance: Auto, Indoor, Outdoor, Manual, One Push
• Image Functions: Flip, Mirror (Vertical)

Lens

• Focal Length: 4.1 to 49.2mm
• Optical Zoom: 12x
• Digital Zoom: 16x
• Maximum Aperture: f/1.8 to 2.68
• Field of View:
  • Horizontal: 72.5° to 6.9°
  • Vertical: 44.8° to 3.9°

Video & Streaming

• Maximum Resolution:
  • 1920 × 1080p up to 60 fps
  • 1280 × 720p up to 60 fps
• Streaming Compression: H.264 / H.265 / MJPEG
• Streaming Protocols: ONVIF, RTMP, RTMPS, RTSP, SRT, TCP, UDP
• Broadcast Standards: NTSC / PAL
• Internal Recording: No

Pan & Tilt

• Pan Range: 340° (-170° to 170°)
• Tilt Range: 120° (-30° to 90°)
• Pan Speed: 1.7 to 69.9°/s
• Tilt Speed: 1.7 to 100°/s
• Preset Positions: 255
• Tally Light: Yes

Connectivity

• Video Outputs:
  • HDMI 1.4
  • 3G-SDI (BNC)
  • RJ45 IP Output
  • USB-C 3.0
• Audio I/O:
  • 3.5mm Stereo Line Input
  • 3.5mm Stereo Line Output
• Control Interfaces:
  • RS-232 In/Out
  • RS-485
  • IP Control
  • IR Remote
• Additional Ports:
  • USB-A (Firmware)
  • RJ45 (Lens Control)

Power

• Power Input: 12V DC
• PoE Support: IEEE 802.3af
• Power Consumption: 12W

Physical

• Color: White
• Materials: Aluminum, Plastic
• Mounting Options: 1/4"-20 Female, M3 Female
• Dimensions: 6.7 × 6.5 × 5.6" (169 × 164 × 142 mm)
• Weight: 3.24 lb (1.47 kg)

Compatibility

• Operating Systems: Windows 7 or later, macOS, Linux
