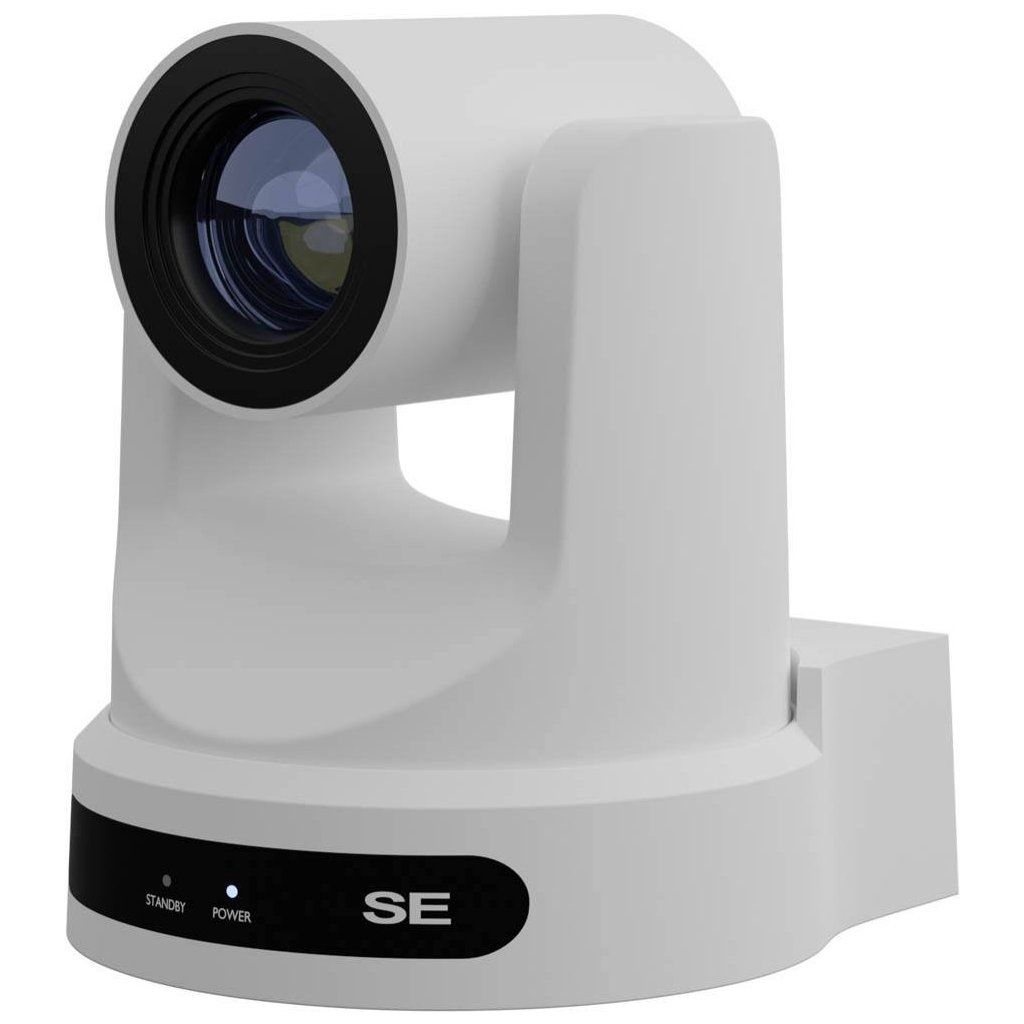

PT20X-SE-WH-G3 PTZOptics

Podrobný popis

The PTZOptics professional PTZ camera, featuring an elegant white design, delivers top-notch image quality for demanding video productions. Thanks to its powerful 20x optical zoom, you can easily capture even the smallest details from a great distance. The third generation of these cameras offers improved connectivity options via HDMI, SDI, and USB interfaces, ensuring maximum flexibility when integrating into your system. Smooth movement and precise focusing are ideal for live broadcasts, video conferences, or lecture recordings. This reliable technology will elevate your visual communication to a professional level.

Product Description

The PTZOptics Move SE 20X is a professional PTZ camera designed for high-quality video production in various environments, such as classrooms, video conferencing, and corporate spaces. It combines multiple outputs, including HDMI, 3G-SDI, USB, and IP, into a single device, with the option to upgrade to NDI HX. The camera delivers sharp 1080p video at 60 fps thanks to its advanced sensor and optical zoom.

Image Sensor and Resolution

The camera uses a 1/2.8-inch SONY CMOS sensor with 2.07 million effective pixels. It supports 1920x1080p resolution at frame rates of 60/59.94/50/30/29.97/25 Hz and 1280x720p at 60/50 Hz. It features 2D and 3D noise reduction for clear images even in low light, with a minimum illumination of 0.5 lux at F1.8 and AGC enabled. The shutter speed ranges from 1/30s to 1/10000s, and the camera supports a wide dynamic range for better performance in low light.

Optical Zoom and Field of View

A 20x optical zoom with a focal length ranging from 4.1 mm to 49.2 mm and an aperture of F1.8 to F2.68 provides a horizontal field of view from 3.4° (telephoto) to 60.7° (wide) and a vertical field of view from 1.9° to 34.1°. These specifications allow for both detailed close-ups and wide-angle views, ideal for presentations and surveillance.

Pan-tilt movement and presets

Pan movement ±170° at speeds of 1.7°/s to 100°/s, tilt movement from -30° to +90° at speeds of 1.7°/s to 69.9°/s. The camera stores up to 255 presets with 0.1° precision. It supports image rotation, mirroring, and image freeze for flexible use.

Outputs and Control

Outputs include HDMI, 3G-SDI, USB 3.0 Type C, USB 2.0 Type A, and IP over LAN/Ethernet. Control is via serial RS232 and RS485, IR remote control, or IP network. Integrated automatic motion tracking facilitates live streaming without manual intervention.

Electrical and Physical Specifications

Power supply: 12V DC or PoE (802.3af) with a maximum current of 2A. Construction: white aluminum and plastic, with a Kensington lock for security. Additional features include line in/out, a resolution control knob, and a reset button.

Applications and benefits

The camera is optimized for live streaming, video production, and remote presentations thanks to its high image quality, fast motion capture, and easy integration into systems. Built-in auto-tracking features and low noise ensure reliable real-time performance.
