PT20X4K-PRODUCER-SJOY PTZOptics

Podrobný popis

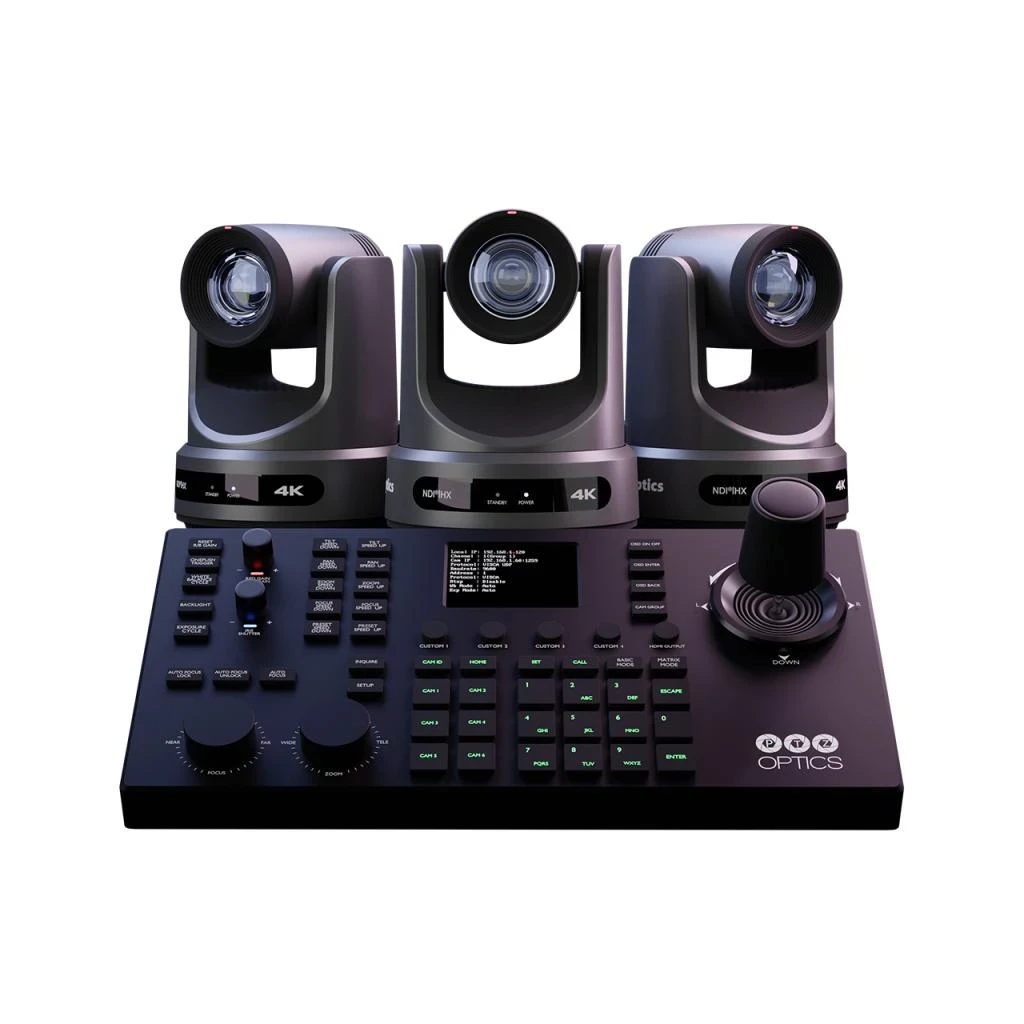

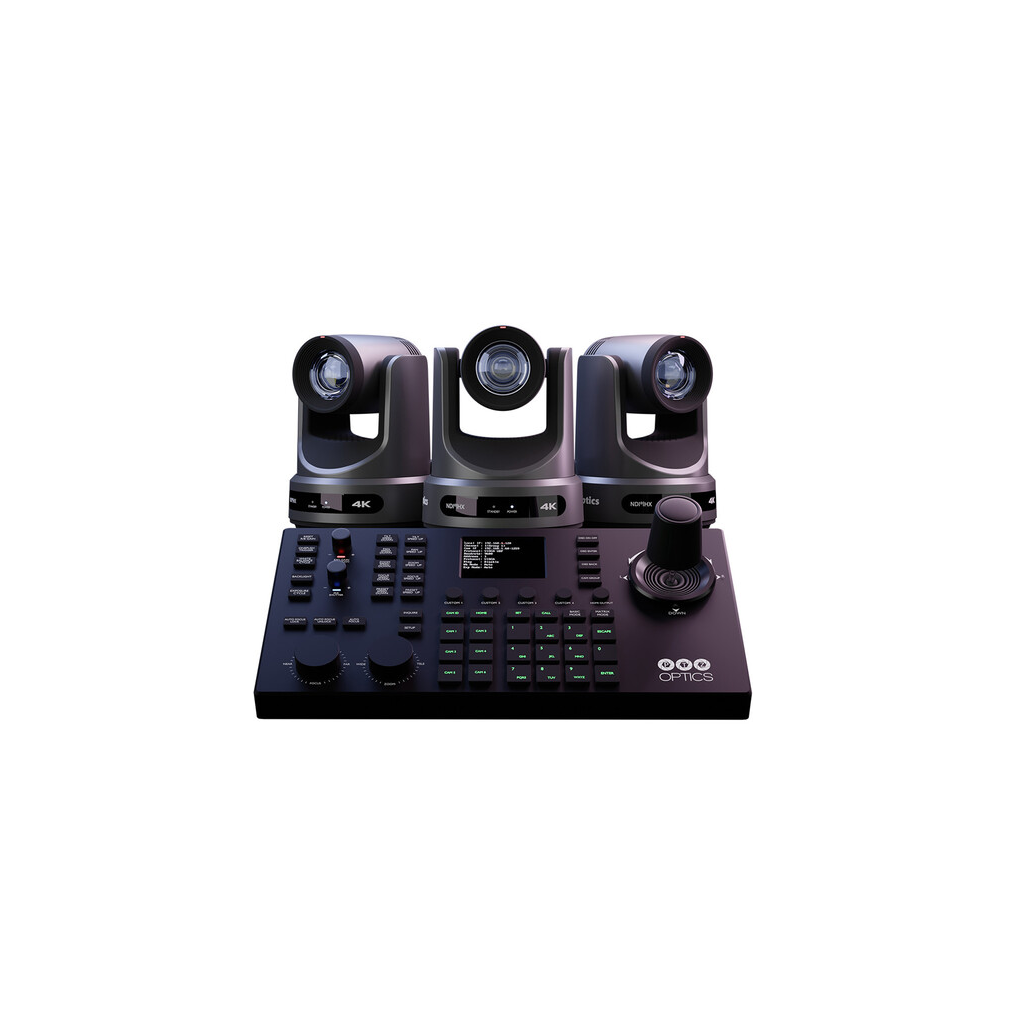

The PTZOptics Producer-4K Camera & Controller Bundle (Gray) is a complete professional multi-camera production system featuring three Move 4K PTZ cameras with 20x optical zoom and the SuperJoy IP/serial joystick controller. Designed for live streaming, worship services, education, corporate events, and broadcast production, the bundle supports UHD 4K60 video capture, NDI|HX3, HDMI, SDI, USB, and IP streaming with advanced auto-tracking and professional camera control capabilities.

The PTZOptics Producer-4K Camera & Controller Bundle (Gray) delivers a complete professional-grade multi-camera production solution for live streaming, hybrid events, worship services, education, sports coverage, corporate presentations, and broadcast environments. This comprehensive bundle combines three PTZOptics Move 4K PTZ cameras with the advanced SuperJoy joystick controller, providing powerful remote camera operation and flexible production workflows.

Each Move 4K camera features a high-performance 1/1.8" CMOS sensor with 8.42MP resolution capable of capturing crystal-clear UHD 4K video at up to 60 fps. Built-in auto-tracking technology allows the cameras to automatically follow presenters or speakers without requiring a dedicated operator, making the system ideal for classrooms, conference rooms, houses of worship, and live event productions.

The integrated 20x optical zoom lens with additional digital zoom capabilities enables detailed close-up shots from long distances while maintaining excellent image quality. Wide dynamic range, advanced 3D noise reduction, and exceptional low-light performance ensure consistently sharp and professional-looking video in challenging lighting conditions.

The cameras support simultaneous video output via HDMI 2.0, 3G-SDI, USB, and IP streaming with native NDI|HX3 support for modern network-based production workflows. Support for H.264, H.265, and MJPEG compression along with streaming protocols including RTSP, RTMP, RTMPS, SRT, ONVIF, and UDP provides broad compatibility with professional AV and streaming systems.

The included PTZOptics SuperJoy controller enables precise pan, tilt, zoom, focus, exposure, and white balance control for up to 28 PTZ cameras across multiple groups. Featuring support for NDI, VISCA, Pelco, ONVIF, and serial/IP communication protocols, the controller offers seamless compatibility with PTZOptics and numerous third-party PTZ camera brands. Its professional joystick design, LCD display, illuminated buttons, programmable presets, and HDMI monitoring output provide intuitive and efficient live production control.

With PoE+ support, flexible connectivity options, tally lights, audio embedding, and extensive software compatibility, the Producer-4K bundle offers a scalable and professional solution for advanced multi-camera video production environments.

Key Features

• Complete multi-camera PTZ production bundle
• Includes 3x Move 4K PTZ cameras and SuperJoy controller
• UHD 4K video capture up to 60 fps
• 20x optical zoom with digital zoom support
• Built-in auto-tracking functionality
• Simultaneous HDMI, SDI, USB, and IP outputs
• Native NDI|HX3 support
• H.264, H.265, and MJPEG video compression
• Supports RTSP, RTMP, RTMPS, SRT, ONVIF, and UDP streaming
• Professional joystick controller for up to 28 cameras
• IP, RS-232, RS-422, and RS-485 control support
• 255 programmable camera presets
• Tally light support
• PoE+ support for simplified installation
• Wide dynamic range and 3D noise reduction
• Audio input/output for embedded streaming audio
• Compatible with OBS, Zoom, Teams, Skype, and professional AV workflows

• 3x PTZOptics Move 4K PTZ Cameras with 20x Optical Zoom (Gray)
• PTZOptics SuperJoy IP/Serial PTZ Camera Controller
• IR Remote Controls
• Power Adapters
• RS-232C Cable
• Documentation and Installation Accessories

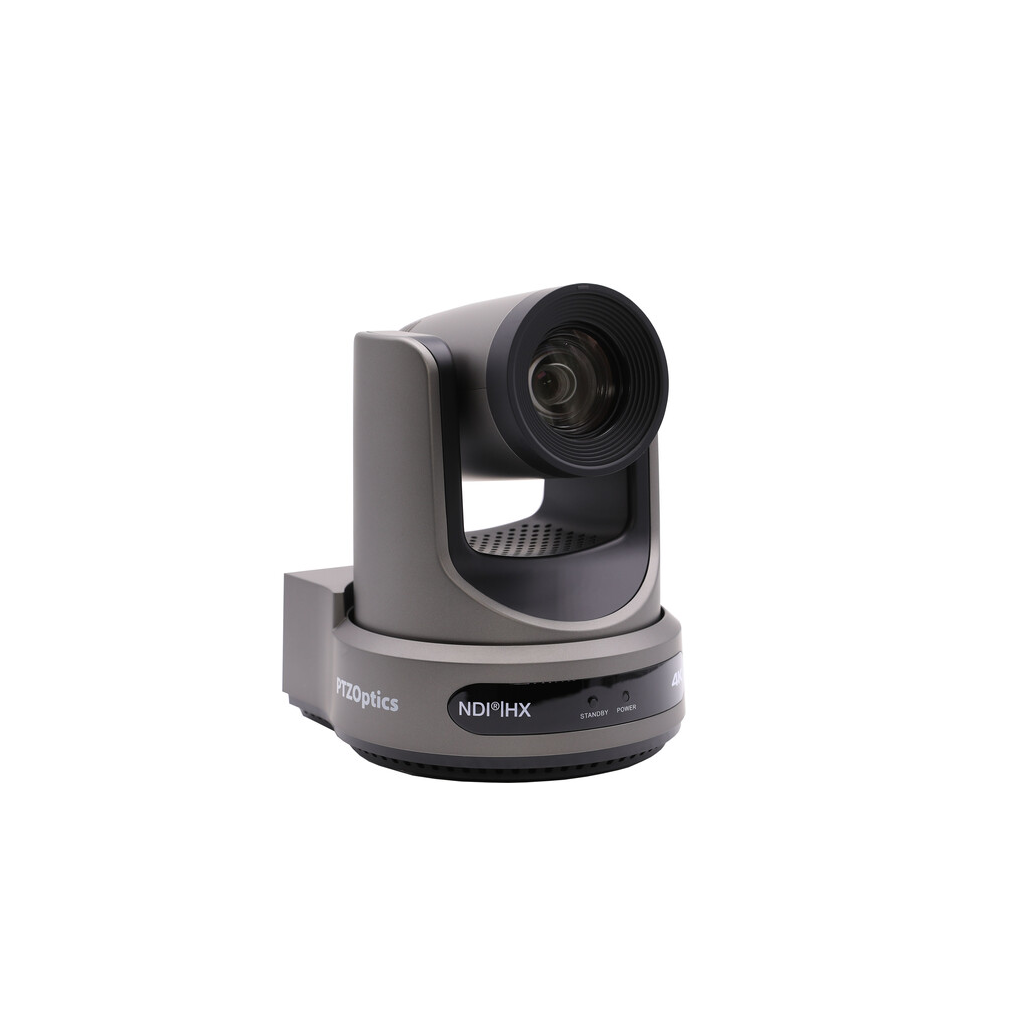

Move 4K PTZ Cameras (Each)

Imaging

• Image Sensor: 1/1.8"-Type CMOS
• Effective Resolution: 8.42 MP (3840 × 2160)
• Maximum Resolution: UHD 4K60
• Minimum Illumination: 0.5 lux
• Signal-to-Noise Ratio: 55 dB
• Shutter Speed: 1/10000 to 1/30 sec

Lens

• Optical Zoom: 20x
• Digital Zoom:
  • 2x (1080p)
  • 3x (720p)
• Focal Length: 6.25 to 125mm
• Maximum Aperture: f/1.58 to 3.95
• Field of View:
  • Horizontal: 60.7° to 3.5°
  • Vertical: 34.1° to 1.89°

Video & Streaming

• HDMI Output: Up to UHD 4K60
• SDI Output: Up to 1080p60
• USB/IP Output: Up to UHD 4K60
• Streaming Compression: H.264 / H.265 / MJPEG
• Streaming Protocols: HTTP, NDI, NDI HX, ONVIF, RTMP, RTMPS, RTSP, SRT, UDP
• Broadcast Standards: NTSC / PAL

Pan & Tilt

• Pan Range: 340°
• Tilt Range: 120°
• Preset Positions: 255
• Auto-Tracking: Yes
• Tally Light: Yes

Connectivity

• Video Outputs:
  • HDMI 2.0
  • 3G-SDI
  • RJ45 IP/NDI
  • USB 2.0
• Audio I/O:
  • 3.5mm stereo line input
  • 3.5mm stereo line output
• Control Interfaces:
  • RS-232
  • RS-485
  • IP Control
  • IR Remote

Power

• Power Options: 12V DC / PoE+ (802.3at)
• Power Consumption: 18W

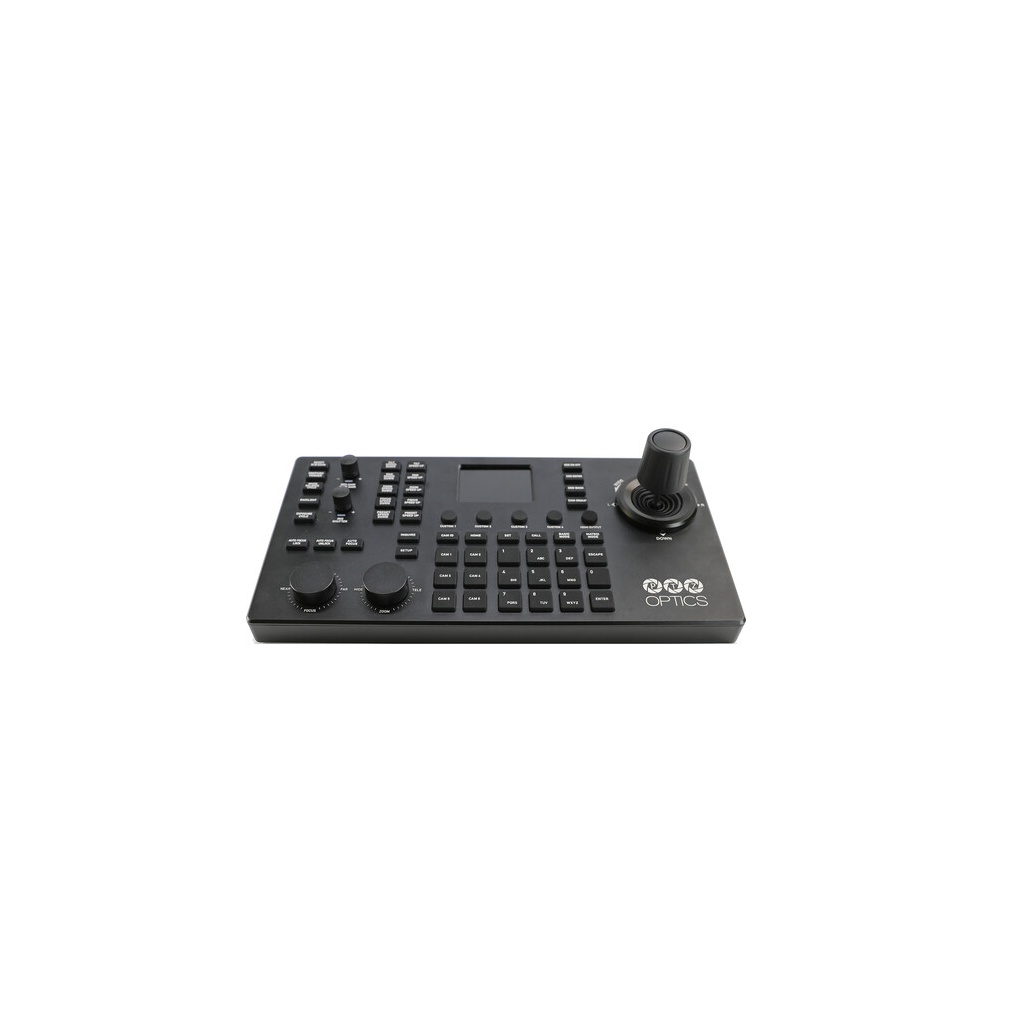

SuperJoy Controller

Control Features

• Controls up to 28 PTZ cameras
• Four groups of seven cameras
• Supports NDI, VISCA, Pelco-P, Pelco-D, and ONVIF
• Fine-tune pan, tilt, zoom, focus, iris, and exposure
• 255 presets, 9 quick presets, 4 super presets
• HDMI program/RTSP monitoring output
• Large LCD status display
• Illuminated buttons for low-light operation

Connectivity

• IP, RS-232, RS-422, RS-485 communication
• USB import/export support
• PoE support
• HDMI output

Physical

• Bundle Color: Gray
• Camera Materials: Aluminum and Plastic
• Camera Weight: 3.24 lb (1.47 kg) each
