Sennheiser CL 20 PP – anténní kabel 20 m, 2× RP-SMA Sennheiser
Kód: ACL 20 PPXPodrobný popis

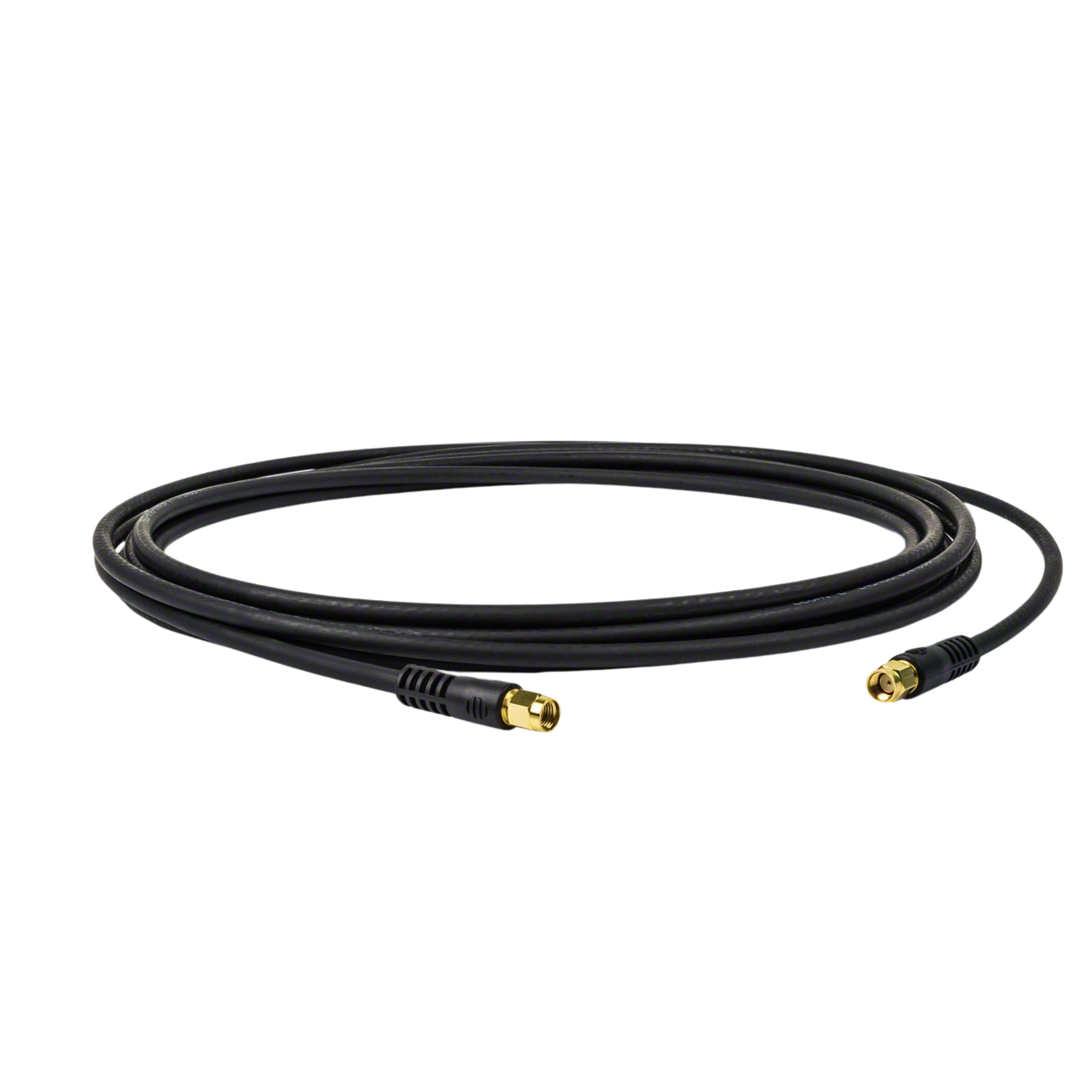

The Sennheiser CL 20 PP is a 20-meter antenna cable for the SpeechLine Digital Wireless system. Both ends are equipped with reverse SMA (RP-SMA) connectors, and the cable is used to connect a remote antenna to a compatible receiver or antenna accessory.
Antenna Cable for SpeechLine Installations
The CL 20 PP extends the antenna run by 20 meters. It uses reverse SMA connectors on both ends and is designed for use with the Sennheiser SpeechLine Digital Wireless system.
- Length: 20 m
- 2× reverse SMA (RP-SMA) plugs
- Attenuation: 10 dB
- Genuine Sennheiser accessory
Antenna Run Design
The manufacturer specifies an attenuation of 10 dB for the CL 20 PP. When antennas are located at a distance, it is therefore necessary to take the cable length into account and adjust the transmit power setting of a compatible receiver according to the system design.
Package Contents and Technical Specifications
Included in the package: 1× CL 20 PP cable.
| Model | CL 20 PP |
|---|---|
| Order Number | 507428 |
| Length | 20 m |
| Connector 1 | Reverse SMA plug |
| Connector 2 | reverse SMA plug |
| Attenuation | 10 dB |
| Weight | 878 g |
Dodatočné parametre
| Kategória: | Audio rozhrania a redukcie |
|---|---|
| Záruka: | 2 roky |
| EAN: | 4044155221183 |
| Položka bola vypredaná… | |
