Shimbol M7 Shimbol
Kód: AM7XPodrobný popis

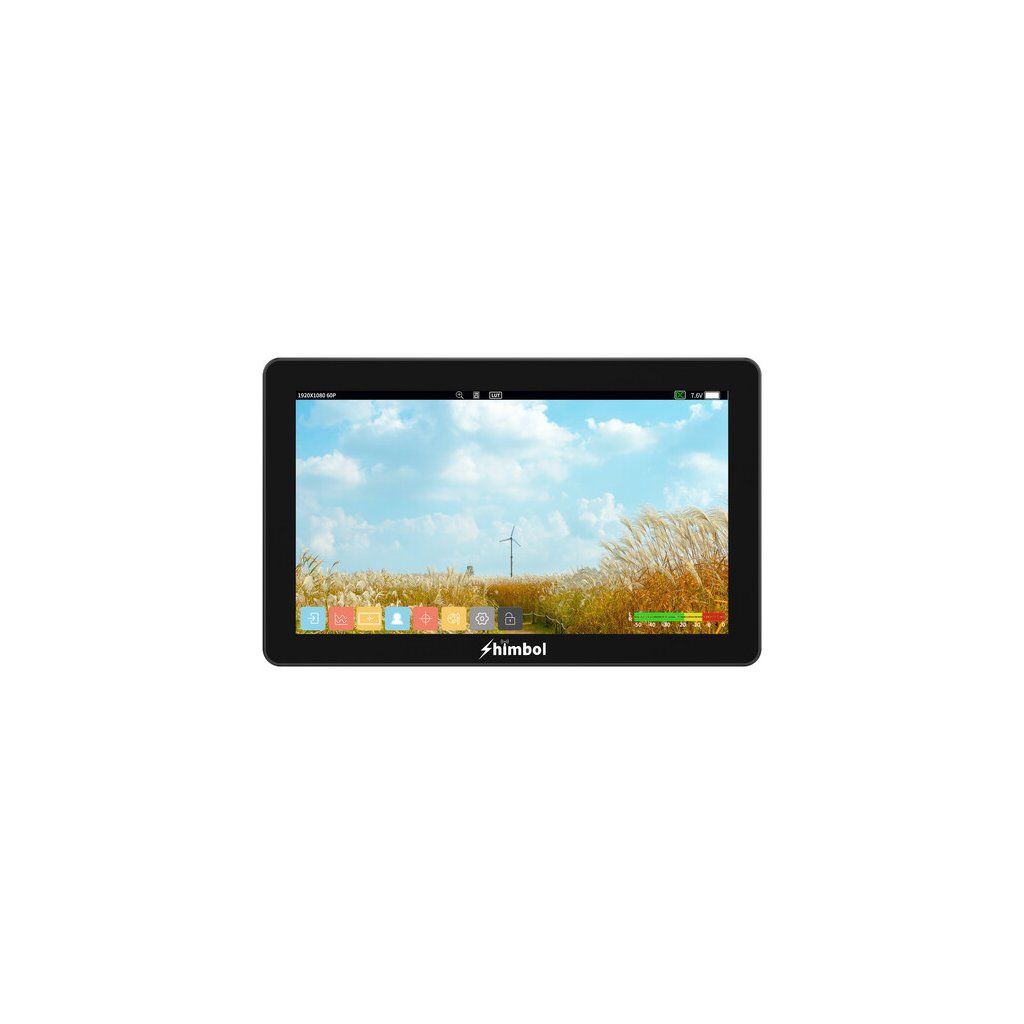

The Shimbol M7 is a 7″ touchscreen on-camera monitor with HDMI and 3G-SDI inputs, a Full HD IPS panel and 2,000 cd/m² brightness. It covers the DCI-P3 color gamut with a Delta E below 1, displays signals up to 4K30 including HDR monitoring in HLG mode and passes the picture on via HDMI and SDI outputs, also with a 3D LUT applied. It runs on two NP-F batteries or DC power.
A large, bright preview for HDMI and SDI
A seven-inch monitor for stills cameras as well as cinema cameras with SDI output. A bright display, accurate color and SDI to HDMI conversion make it a versatile preview for the camera operator and the assistant.

SDI to HDMI conversion
A signal fed into the SDI input is also passed to the HDMI output. The HDMI and SDI outputs can carry the picture with a 3D LUT applied for other monitors on set.
2,000 cd/m²
A 1,800:1 contrast ratio and high brightness keep the picture readable in harsh light.
Delta E below 1
DCI-P3 color gamut and professional calibration for true colors without shifts.
From 7 W
At 1,000 cd/m² the monitor draws only 7 W, the maximum is under 10 W.
455 g
The CNC-machined aluminum body is rigid yet light.
7″ Full HD at 2,000 cd/m²
The IPS display with 1920 × 1080 resolution, a 1,800:1 contrast ratio and a 170° viewing angle stays readable outdoors. The monitor displays signals up to 4K30, and the built-in HLG mode enables HDR monitoring. DCI-P3 color gamut with a Delta E below 1 ensures faithful color.

Custom 3D LUTs on screen and outputs
Load your own LUTs in .cube format (17 × 17 × 17 or 33 × 33 × 33) and see the final look of the image while you shoot. The LUT can also be sent to the HDMI and SDI outputs.

Clear touch control
A new icon-based user interface puts functions one tap away. Custom RGB settings, filters, false color, anamorphic de-squeeze, masks and a precise waveform are on hand for checking picture and audio.

Rigid, light aluminum body
The body is CNC-machined from a single piece of aviation-grade aluminum alloy, making it durable yet light. The monitor comes in blue-gray and weighs 455 g.

Two NP-F batteries or DC
The back carries two plates for Sony NP-F batteries, and the monitor can also run on DC 7–16 V. At 1,000 cd/m² it draws only 7 W, with a maximum below 10 W. Batteries are not included.

HDMI and SDI inputs and outputs
The monitor has HDMI and 3G-SDI inputs, HDMI and SDI outputs and a 3.5 mm headphone output. The SDI input signal can be converted to the HDMI output. The SD card slot is used for firmware updates.

- Shimbol M7 monitor
- Carry case
- Tempered glass screen protector
- Cleaning cloth
- Hot shoe mount
- SDI cable
- HDMI cable
- SD card
- User manual
- Screen size: 7″, IPS touchscreen
- Resolution: 1920 × 1080
- Aspect ratio: 16:9
- Brightness: 2,000 cd/m²
- Contrast ratio: 1,800:1
- Viewing angle: 170° (H/V)
- Color gamut: DCI-P3, Delta E below 1
- Inputs: HDMI, 3G-SDI, DC, SD card slot
- Outputs: HDMI, SDI, 3.5 mm headphones
- LUT output: HDMI and SDI
- LUT format: .cube (17 × 17 × 17 and 33 × 33 × 33)
- Audio: 48 kHz
- Power: 2× NP-F battery or DC 7–16 V
- Power consumption: less than 10 W (7 W at 1,000 cd/m²)
- Firmware update: SD card
- Material: CNC-machined aluminum alloy
- Color: blue-gray
- Weight: 455 g
- Dimensions: 178.8 × 110.8 × 20.3/28.3 mm
Dodatočné parametre
| Kategória: | Shimbol |
|---|---|
| Záruka: | 2 roky |
| EAN: | 6974223640128 |
