skládací montážní deska ve tvaru L pro Sony Alpha 7 V / 7R V / Alpha 7 IV / Alpha 7S III 3984 SmallRig

Podrobný popis

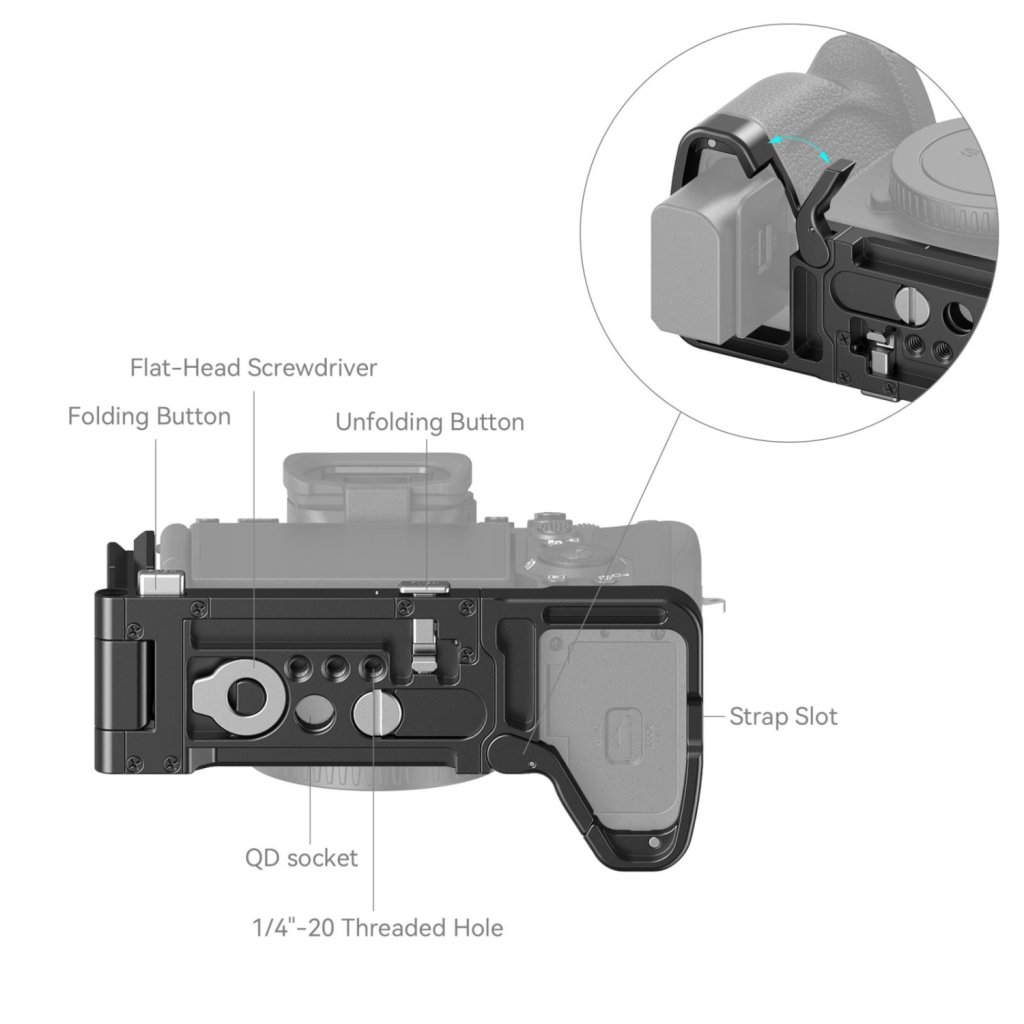

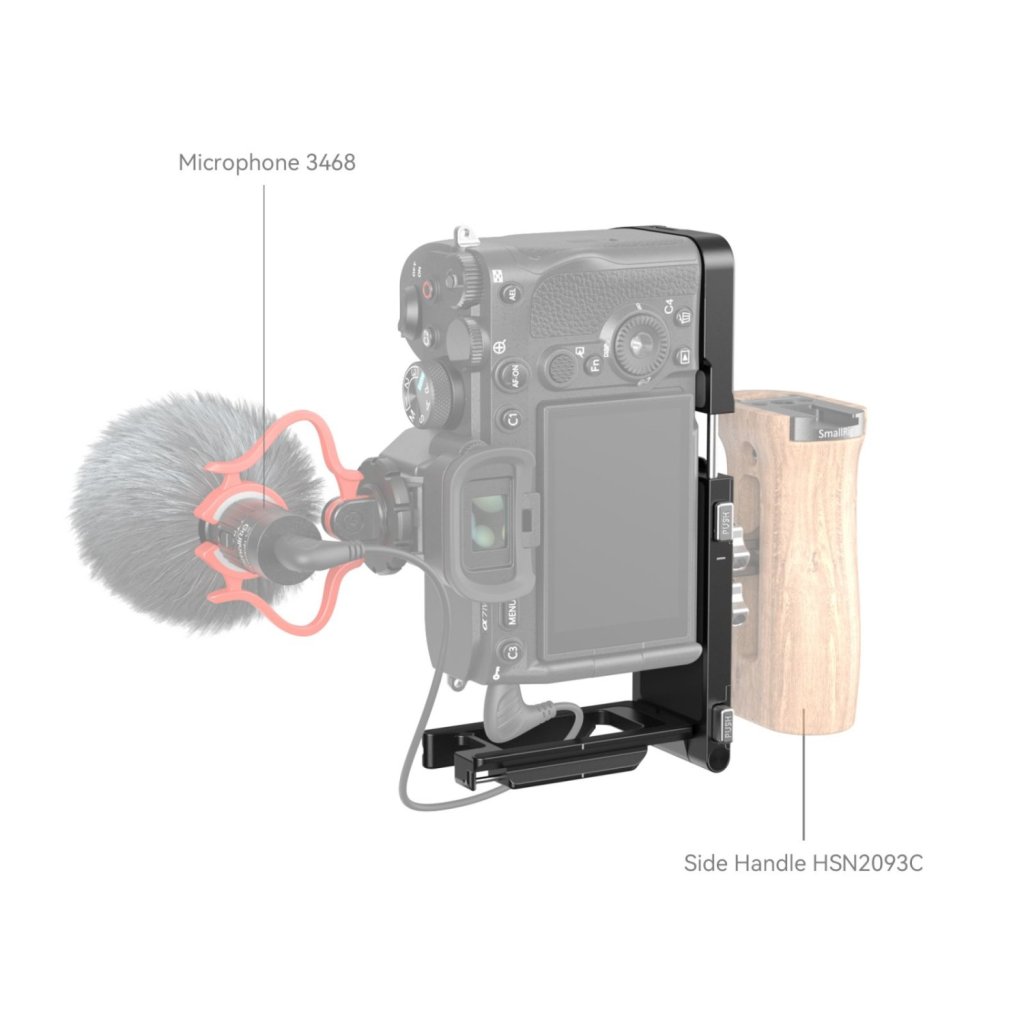

The SmallRig Foldable L-Shaped Mounting Plate for Sony Alpha 7 V/7R V/Alpha 7 IV/Alpha 7S III 3984 facilitates quick switching between horizontal and vertical shooting while maintaining access to the flip-out LCD screen. The Arca-Swiss side plate quickly folds down onto the bottom plate with a folding button for horizontal shooting and stores as a single piece of portable accessory, and the base plate can be extended for vertical shooting to allow access to cables. The L-bracket is secured with a 1/4"-20 screw and positioning pins at the bottom and features pads to prevent scratches and twisting, as well as a hinge arm at the battery door that adapts to the curve of the camera and increases comfort when holding. The base plate has several 1/4"-20 threaded holes for the Magic Arm3873 and Cold Shoe 2935 for a monitor, microphone, and other accessories during video production, a hole for a wrist strap, and a QD connector for quick attachment of a QD shoulder strap and wrist strap. A slotted screwdriver is also available for disassembly and tightening of the L-bracket.

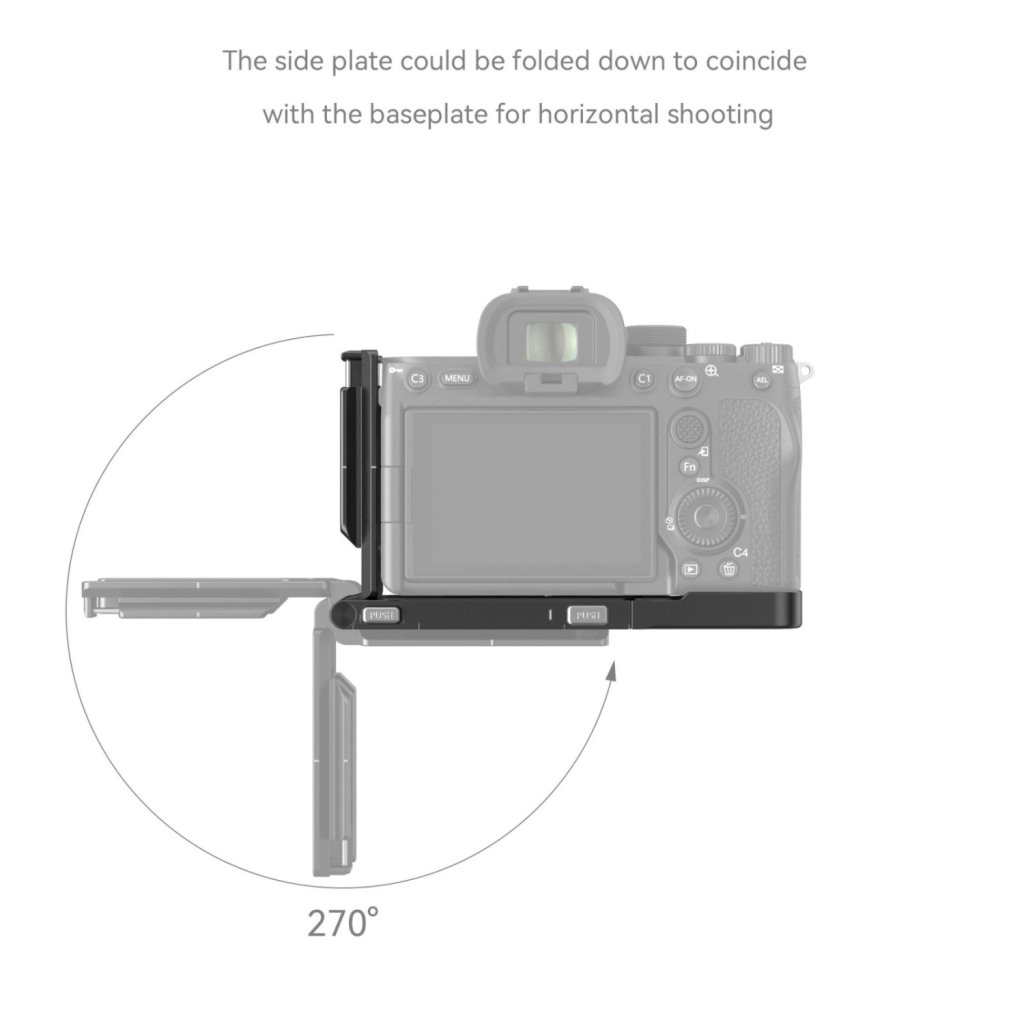

1. Arca-Swiss L-bracket, press-to-flip design allows quick folding of the side plate to the bottom for horizontal shooting.

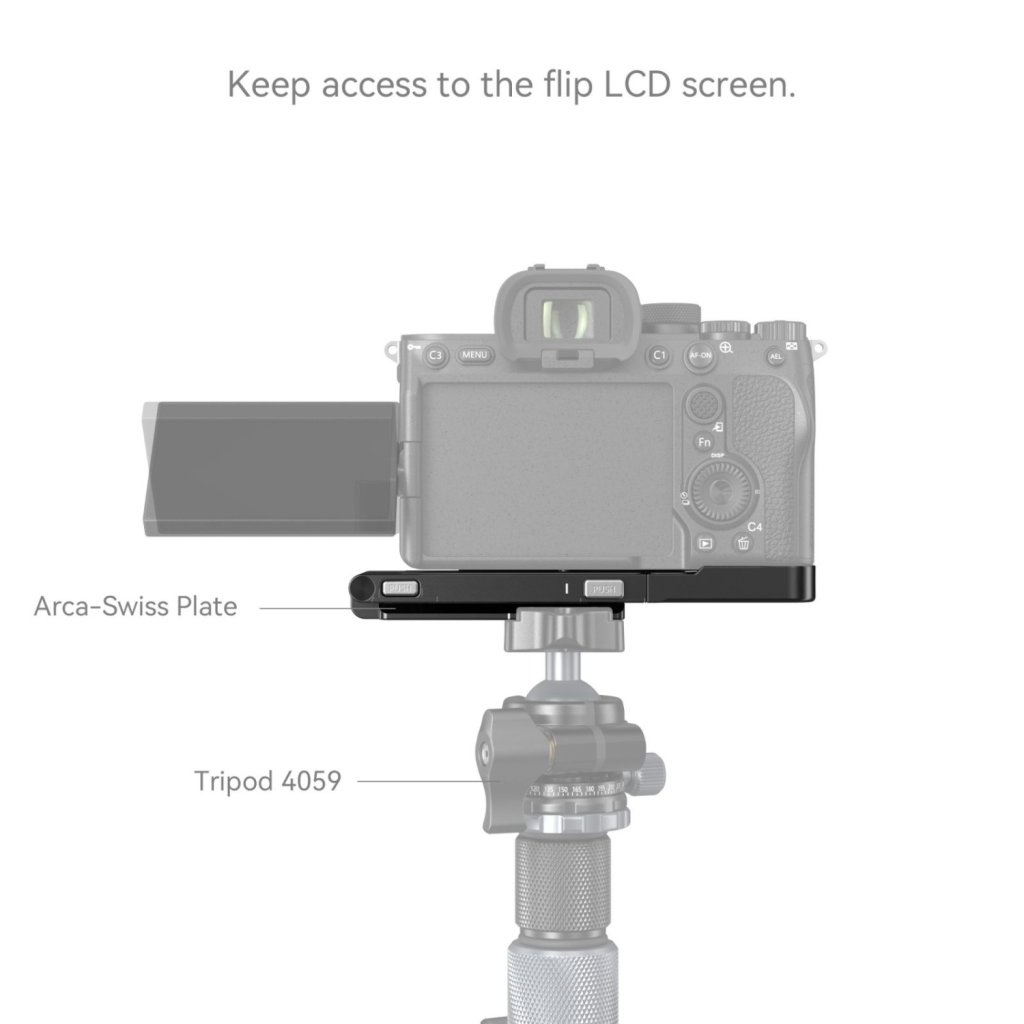

2. When shooting horizontally, the LCD screen can be smoothly rotated to the side and flipped down.
3. Folds and stores as one portable accessory.

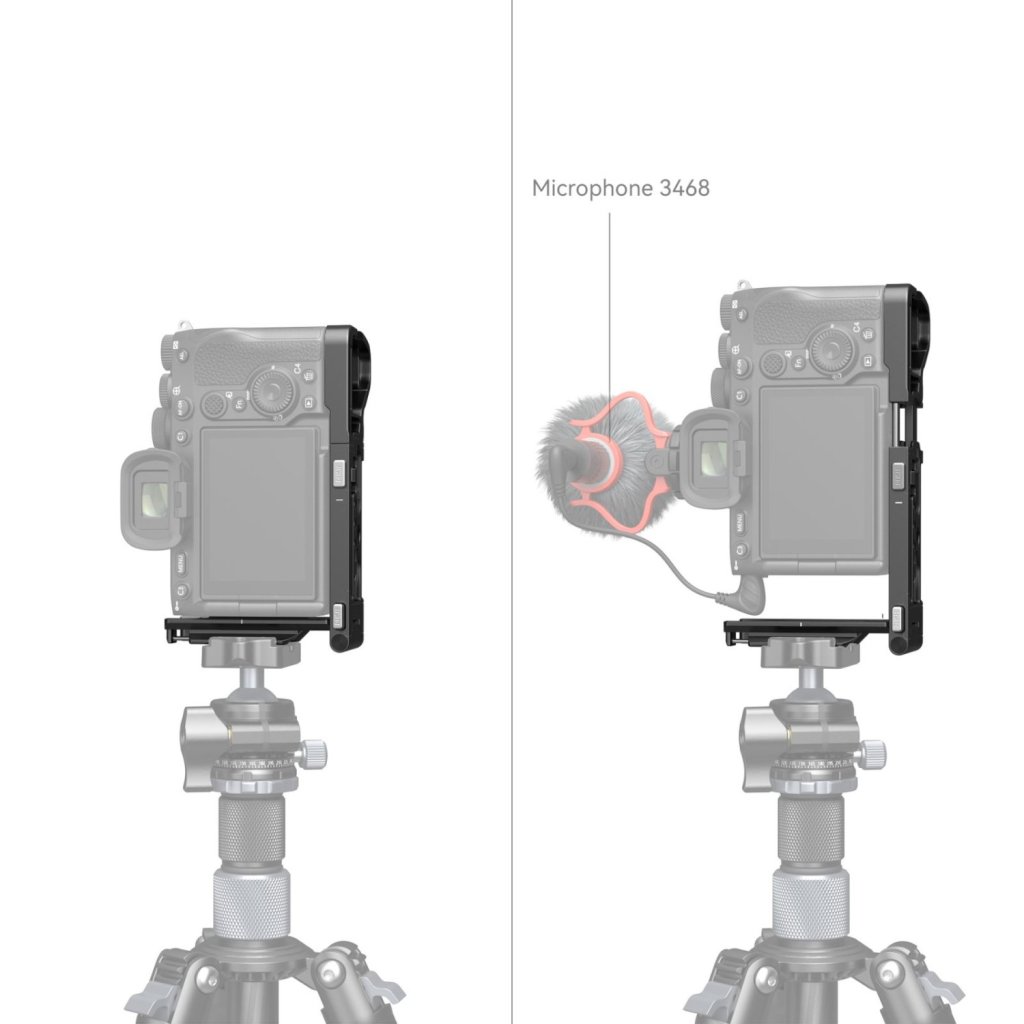

4. For vertical shooting, extend the base plate to route cables.
5. The suspension arm on the battery cover adapts to the curvature of the camera and enhances the holding experience.

Note:
1. When shooting vertically, the base plate can be extended to install the cable. The HDMI interface can be used normally, but the USB-C and Multi interfaces are only compatible with right-angle data cables.
2. The maximum load capacity in vertical shooting mode is 5 kg.
