SmallRig 145W 4-Port PD Power Adapter USB-C 4748 SmallRig
Kód: A4748XPodrobný popis
SmallRig 4748 power adapter with four USB-C ports and 145 W total: it charges V-mount and NP-F batteries, a camera, phone and laptop at once, with C1 and C2 delivering up to 140 W over PD3.1.
4-port 145 W USB-C charging adapter
SmallRig 4748 power adapter with four USB-C ports and 145 W total: it charges V-mount and NP-F batteries, a camera, phone and laptop at once, with C1 and C2 delivering up to 140 W over PD3.1.
Up to 140 W from one port

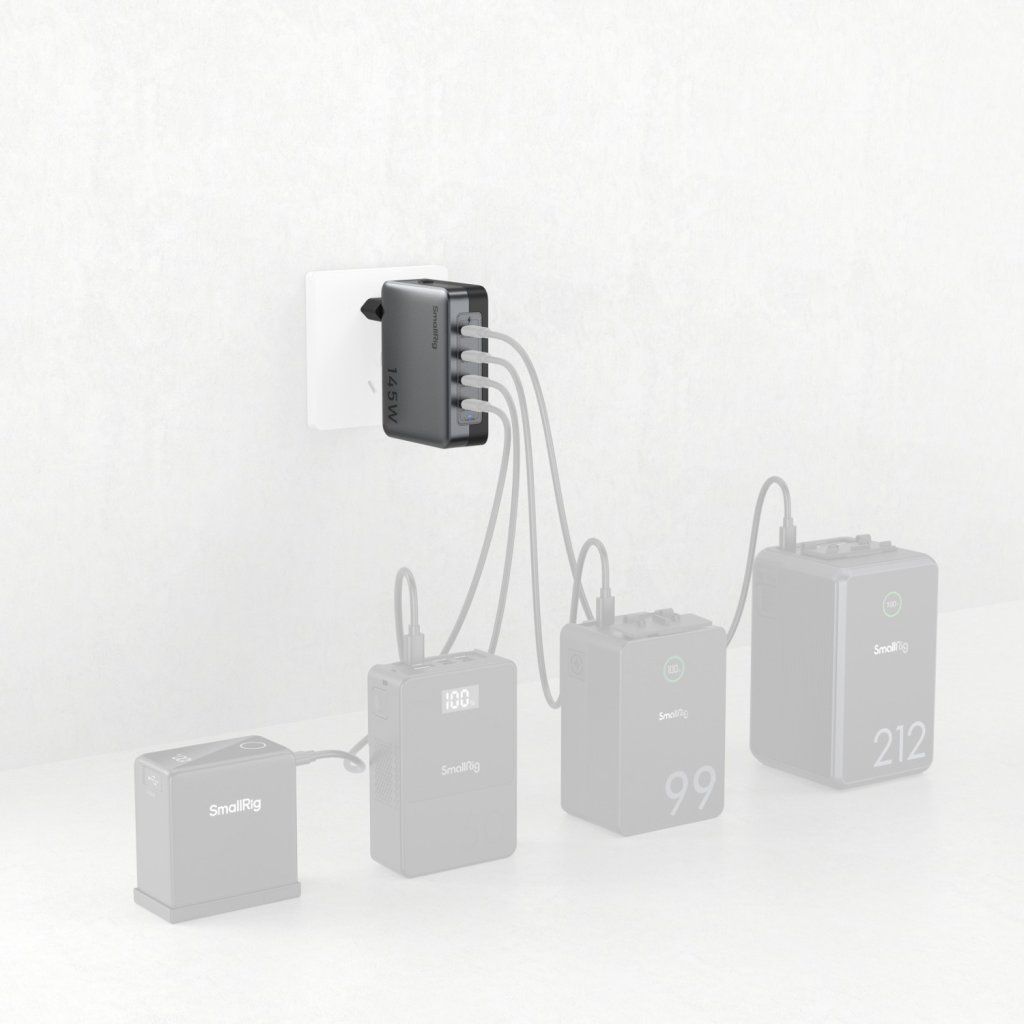

Four USB-C ports with a total of 145 W charge V-mount and NP-F batteries, a camera, a phone and a laptop at once. Ports C1 and C2 give up to 140 W over PD3.1.

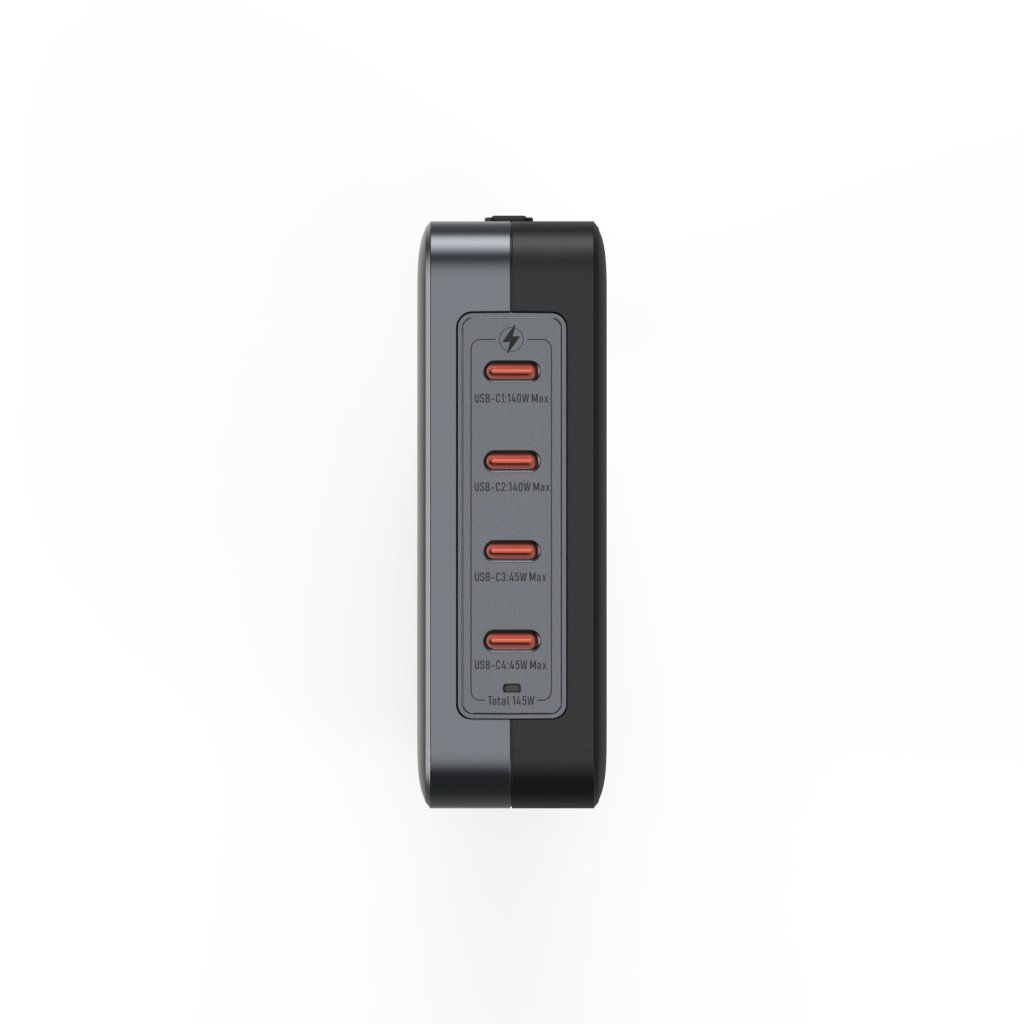

USB-C1 / C2: 140 W
Each of these ports delivers up to 140 W over PD3.1.
USB-C3 / C4: 45 W
The other two ports deliver up to 45 W each.
Output protection
Every output has short-circuit and overcurrent protection.
Power indicator
An LED shows whether the power is connected.
1. High Power Output: With a total power of 145W, the charger supports a maximum of 140W power output per single port using PD3.1, providing strong support for high-power devices.
2. Fast Charging: All four ports support fast charging, with USB-C1 / C2 offering a maximum output of 140W and USB-C3 / C4 providing up to 45W, enhancing charging efficiency.
3. Multi-Device Compatibility: Compatible with various electronic devices such as smartphones, computers, cameras, and batteries, catering to diverse charging needs in different scenarios.
4. Safety Protection Features: Each output port is equipped with short-circuit and overcurrent protection, ensuring safety during usage.
5. Portable Design: Compact and convenient for travel and daily use, ideal for on-the-go charging.
6. Power Status Indication: LED lights indicate power connection (on) and disconnection (off), providing clear visibility of the charging status.
SmallRig 145W 4-Port PD Power Adapter (EU Standard) 4748 is a highly efficient and versatile charging device with a total output power of 145W. Featuring four USB-C ports, this charger supports simultaneous charging of multiple devices such as V mount batteries, NP-F batteries, rechargeable camera batteries, smartphones, computers, etc., making it suitable for various usage scenarios. All ports support fast charging, with USB-C1 / C2 supporting a maximum single-port output of 140W through PD3.1, and USB-C3 / C4 supporting a maximum output of 45W, providing strong support for high-power devices and significantly enhancing charging efficiency. Each output port is equipped with short-circuit and overcurrent protection to ensure safe usage. Additionally, the compact size of the charger makes it convenient for travel and daily use. The power status indicator light design illuminates when connected to power and turns off when disconnected, providing a clear overview of the charging status.
Certification: CE RoHS
Button / Indicator Function:
Power Indicator:
Power connected: Light on.
Power disconnected: Light off.
Compatible With
V mount batteries, NP-F batteries, rechargeable camera batteries, smartphones, tablets, and laptops.
1× Operating Instruction
1× User Manual
1× Guarantee Card

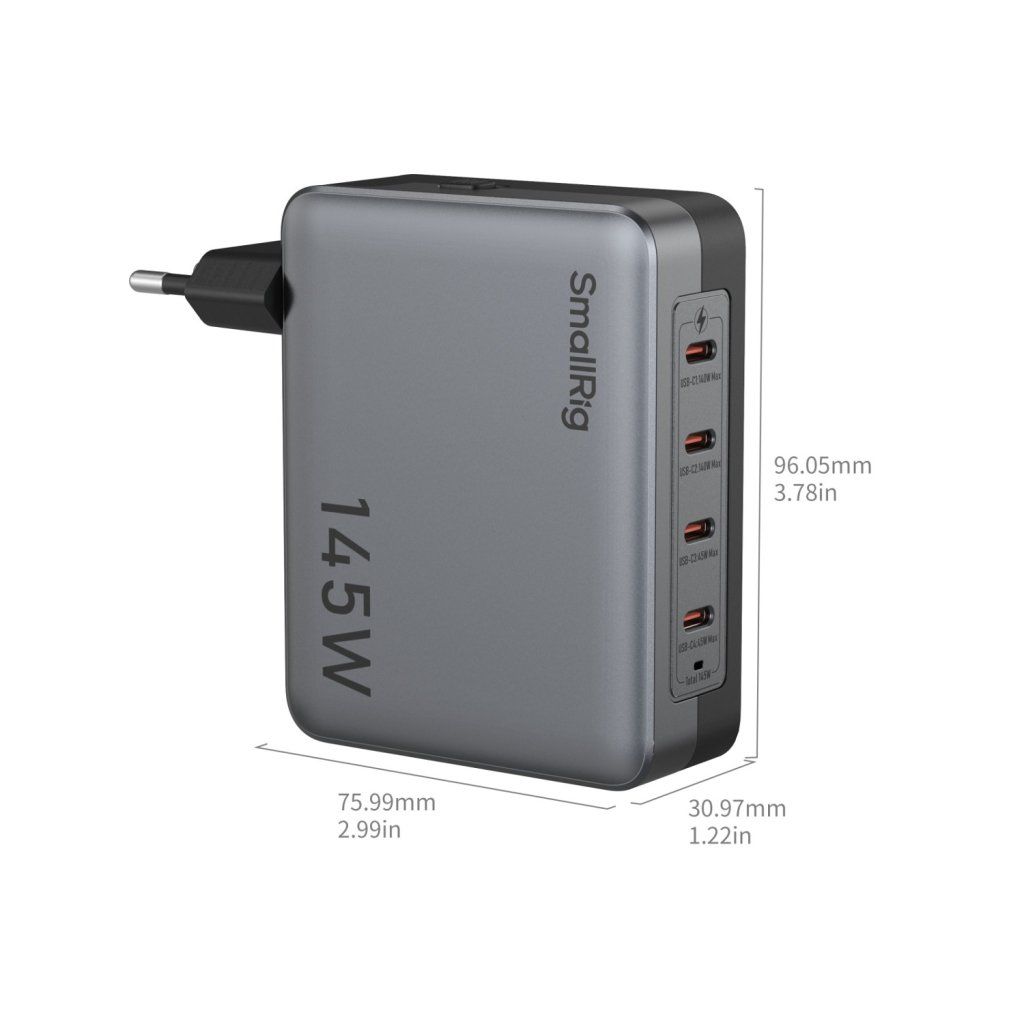

Product Dimensions: 97.0 × 76.0 × 31.0 mm / 3.8 × 3.0 × 1.2in
Package Weight: 468.3 g / 16.5oz
Package Dimensions: 155.0 × 123.0 × 53.0 mm / 6.1 × 4.8 × 2.1in
Material: PC
Total Output Power: 145 W
Power Input: 100-240VAC 50 / 60Hz 2.2 A
Power Output:
Single-Port Mode:
USB-C1 / C2: 28V5 A (140 W) Max
USB-C3 / C4: 20V2.25 A (45 W) Max
Total: 140 W Max
Dual-Port Mode:
C1 + C2 / C3 + C4:
USB-C1 / C2: 20V5 A Max
USB-C3 / C4: 20V2.25 A Max
C1 + C2:
USB-C1 / C2: 20V3.25 A Max
C3 + C4:
USB-C3 / C4: 9V2.22 A Max
Total: 145 W Max
Triple-Port Mode:
C1 + C2 + C3 / 4:
USB-C1: 20V3.25 A Max
USB-C2: 20V1.5 A Max
USB-C3 / C4: 20V2.25 A Max
C1 / C2 + C3 + C4:
USB-C1 / C2: 20V5 A Max
USB-C3 / USB-C4: 9V2.22 A Max
Total: 145 W Max
Quad-Port Mode:
USB-C1: 20V3.25 A Max
USB-C2: 20V1.5 A Max
USB-C3: 9V2.22 A Max
USB-C4: 9V2.22 A Max
Total: 145 W Max
Dodatočné parametre
| Kategória: | Univerzálne nabíjačky |
|---|---|
| Záruka: | 2 roky |
| EAN: | 6941590017259 |
