SmallRig 240W 4-Port PD Power Adapter USB-C 4752 SmallRig
Kód: A4752XPodrobný popis

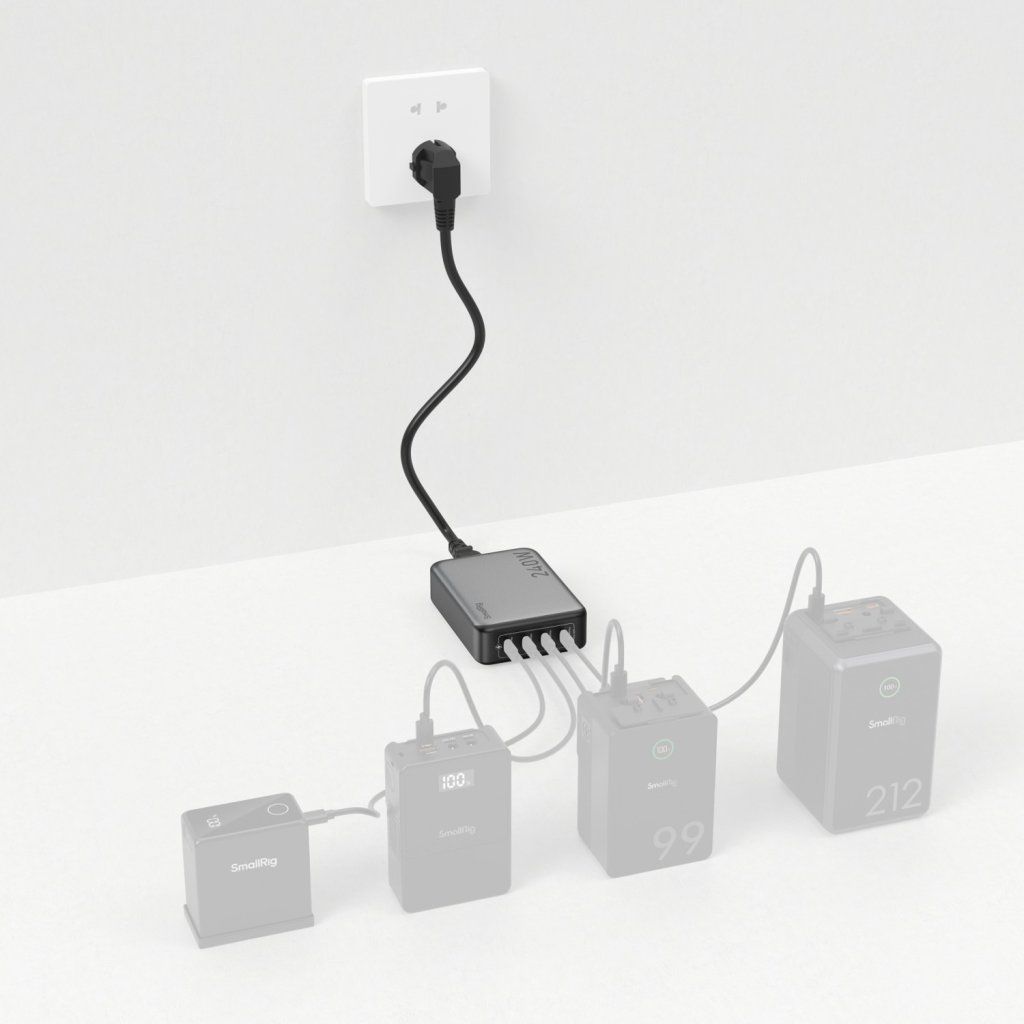

A 240 W SmallRig power adapter with four USB-C ports. Each port delivers up to 140 W under PD3.1, so V-mount and NP-F batteries, a laptop and a phone can all charge at once. Every output has short-circuit and overcurrent protection.
4-port 240 W USB-C charging adapter
A 240 W SmallRig power adapter with four USB-C ports.
Up to 140 W from each port
Four USB-C ports with a total of 240 W; each handles up to 140 W over PD3.1. V-mount and NP-F batteries, a laptop and a phone charge at once.
240 W in total
The four ports together deliver up to 240 W.
Four ports at 140 W

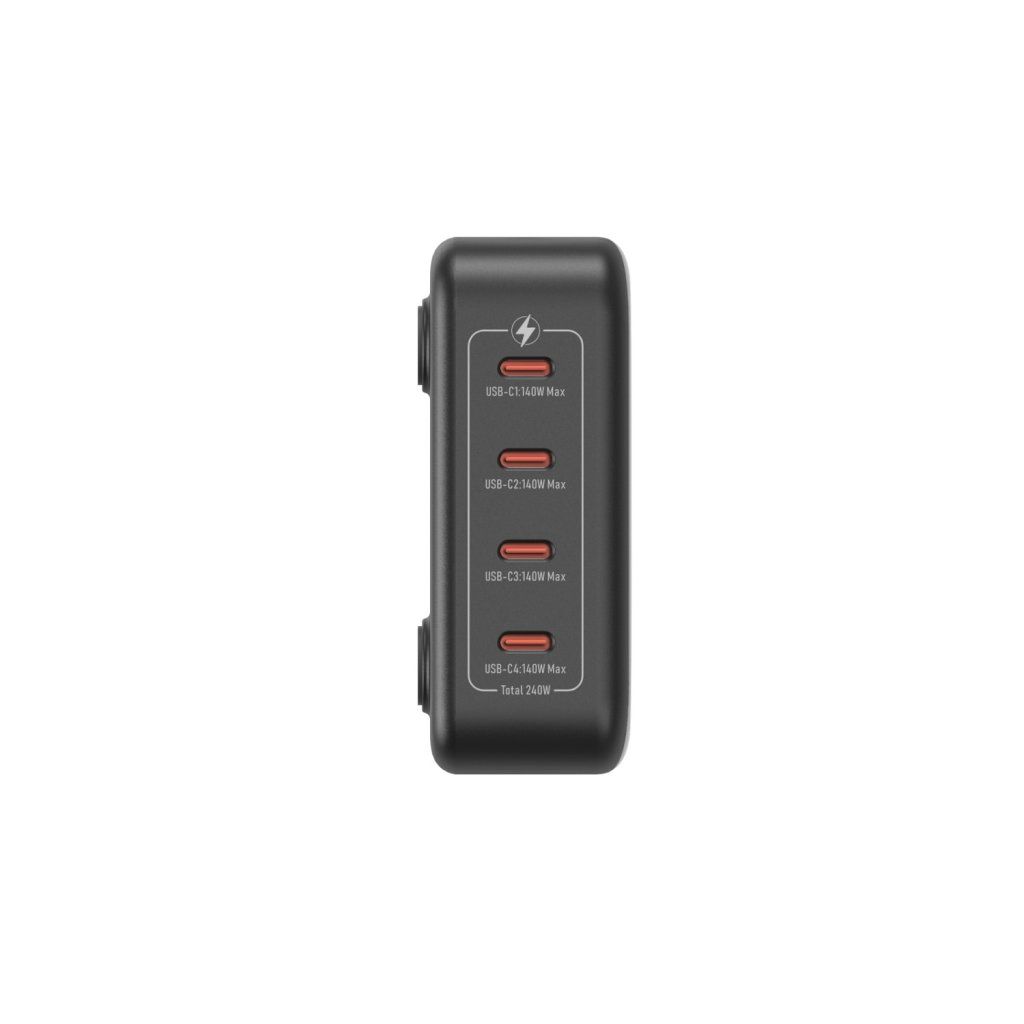

Ports C1, C2, C3 and C4 each give up to 140 W.
Output protection
Every output has short-circuit and overcurrent protection.
Input 100-240 V AC
Input 100-240 V AC, 50/60 Hz, 4.0 A.
1. High Power Output: With a total power of 240W, the charger supports up to 140W power output per a single port using PD3.1, providing strong support for high-power devices.
2. Fast Charging: All four ports support fast charging, with each USB-C port (C1 / C2 / C3 / C4) providing up to 140W.
3. Multi-Device Compatibility: Compatible with various electronic devices such as V mount batteries, NP-F batteries, rechargeable camera batteries, smartphones, and computers, catering to diverse charging needs in different scenarios.
4. Safety Protection Features: Each output port is equipped with short-circuit and overcurrent protection, ensuring safety during usage.
5. Portable Design: Compact and convenient for travel and daily use, ideal for on-the-go charging.
SmallRig 240W 4-Port PD Power Adapter (EU Standard) 4752 is a highly efficient and versatile charging device with a total output power of 240W. Featuring four USB-C ports, this charger supports simultaneous charging of multiple devices such as V mount batteries, NP-F batteries, rechargeable camera batteries, smartphones, computers, cameras, and more, making it suitable for various usage scenarios. All ports support fast charging, with each port supporting up to 140W (Max) output through PD3.1, providing strong support for high-power devices and significantly enhancing charging efficiency. Each output port is equipped with short-circuit and overcurrent protection to ensure safe usage. Additionally, the compact size of the charger makes it convenient for travel and daily use.
Certification: CE RoHS
Compatible With
V mount batteries, NP-F batteries, cameras with direct charging batteries, smartphones, tablets, and laptops.

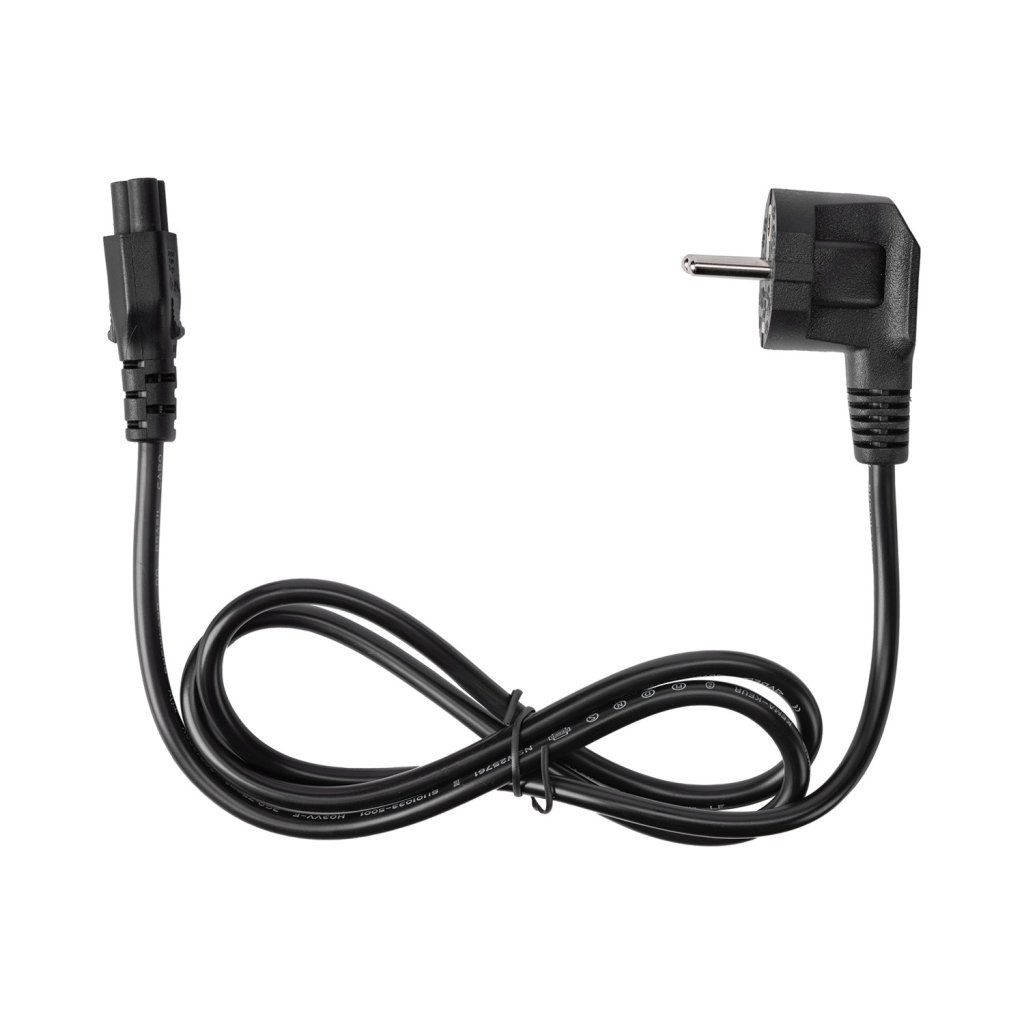

1× AC Power Cable (EU Standard)

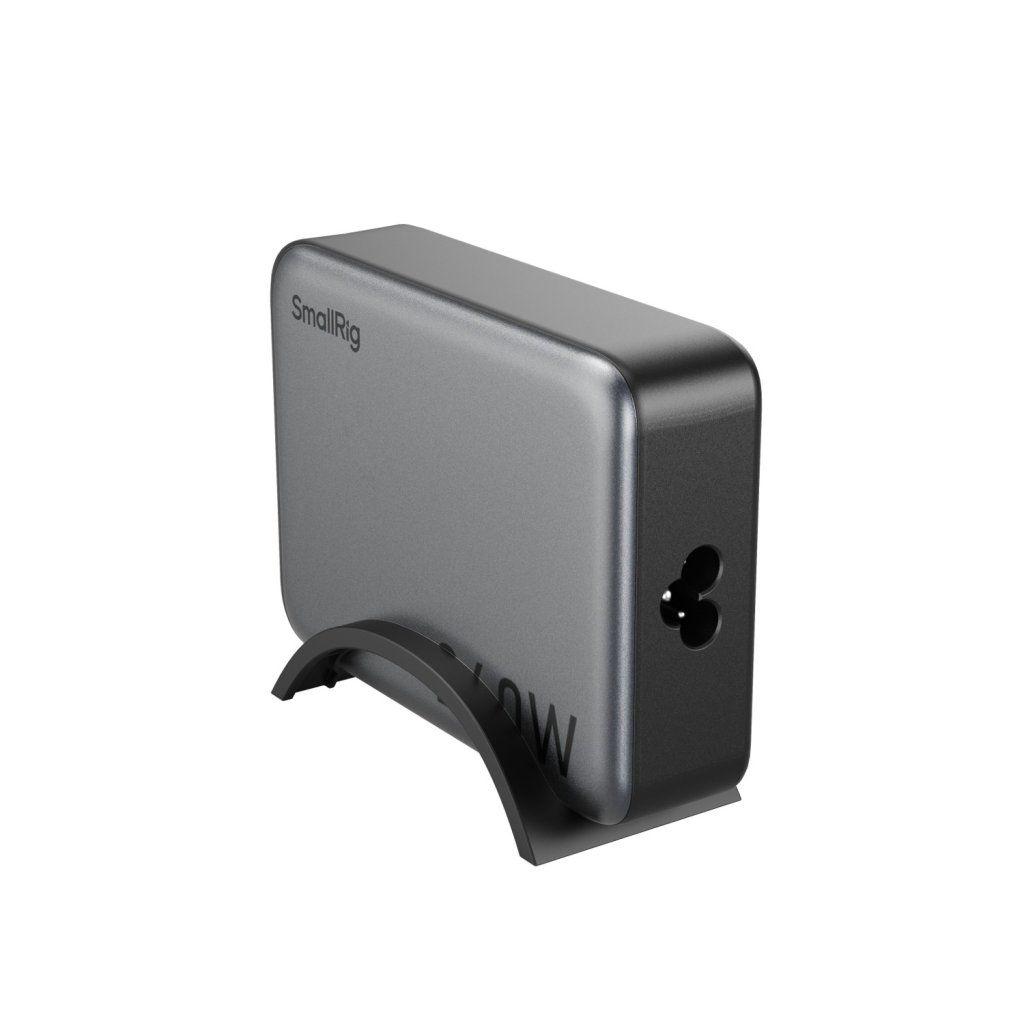

1× Adapter Bracket
1× Operating Instruction
1× User Manual
1× Guarantee Card

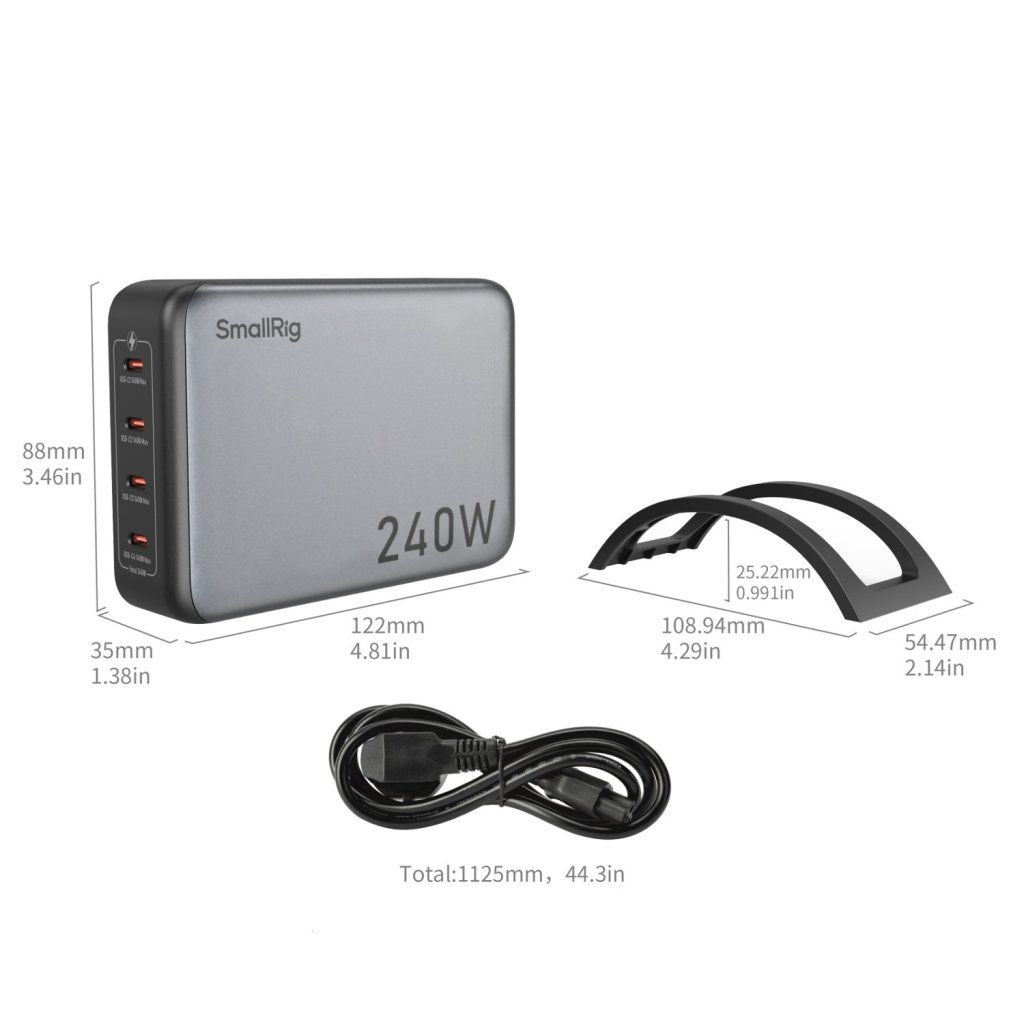

Product Dimensions: 122.0 × 88.0 × 35.0 mm / 4.8 × 3.5 × 1.4in
Package Weight: 739.2 ± 10.0 g / 26.1oz ± 0.4oz
Package Dimensions: 214.0 × 174.0 × 53.0 mm / 8.4 × 6.8 × 2.1in
Material: PC
Total Output Power: 240 W
Power Input: 100-240VAC 50 / 60Hz 4.0 A
Power Output:
Single-Port Mode:
USB-C1 / C2 / C3 / C4:
5V3 A 9V3 A 5V5 A 20V5 A 28V5 A
Total: 140 W MAX
Dual-Port Mode:
C1 + C2 / C3 + C4:
100 W + 40 W / 40 W + 100 W / 70 W + 70 W
Total: 140 W MAX
C1 + C3 / C1 + C4 / C2 + C3 / C2 + C4:
140 W + 100 W
Total: 240 W Max
Triple-Port Mode:
USB-C1 + C2 + C3 / C1 + C2 + C4:
70 W + 70 W + 100 W / 100 W + 40 W + 100 W / 40 W + 100 W + 100 W
Total: 240 W Max
C2 + C3 + C4 / C1 + C3 + C4:
140 W + 60 W + 40 W / 140 W + 40 W + 60 W / 140 W + 50 W + 50 W
Total: 240 W MAX
Quad-Port Mode:
USB-C1 + C2 + C3 + C4:
100 W + 40 W + 60 W + 40 W / 100 W + 40 W + 40 W + 60 W / 100 W + 40 W + 50 W + 50 W / 70 W + 70 W + 50 W + 50 W / 70 W + 70 W + 60 W + 40 W / 70 W + 70 W + 40 W + 60 W / 40 W + 100 W + 40 W + 60 W / 40 W + 100 W + 60 W + 40 W / 40 W + 100 W + 50 W + 50 W
Total: 240 W Max
