SmallRig 6″ Suction Cup Camera Mount 4114 SmallRig

Podrobný popis

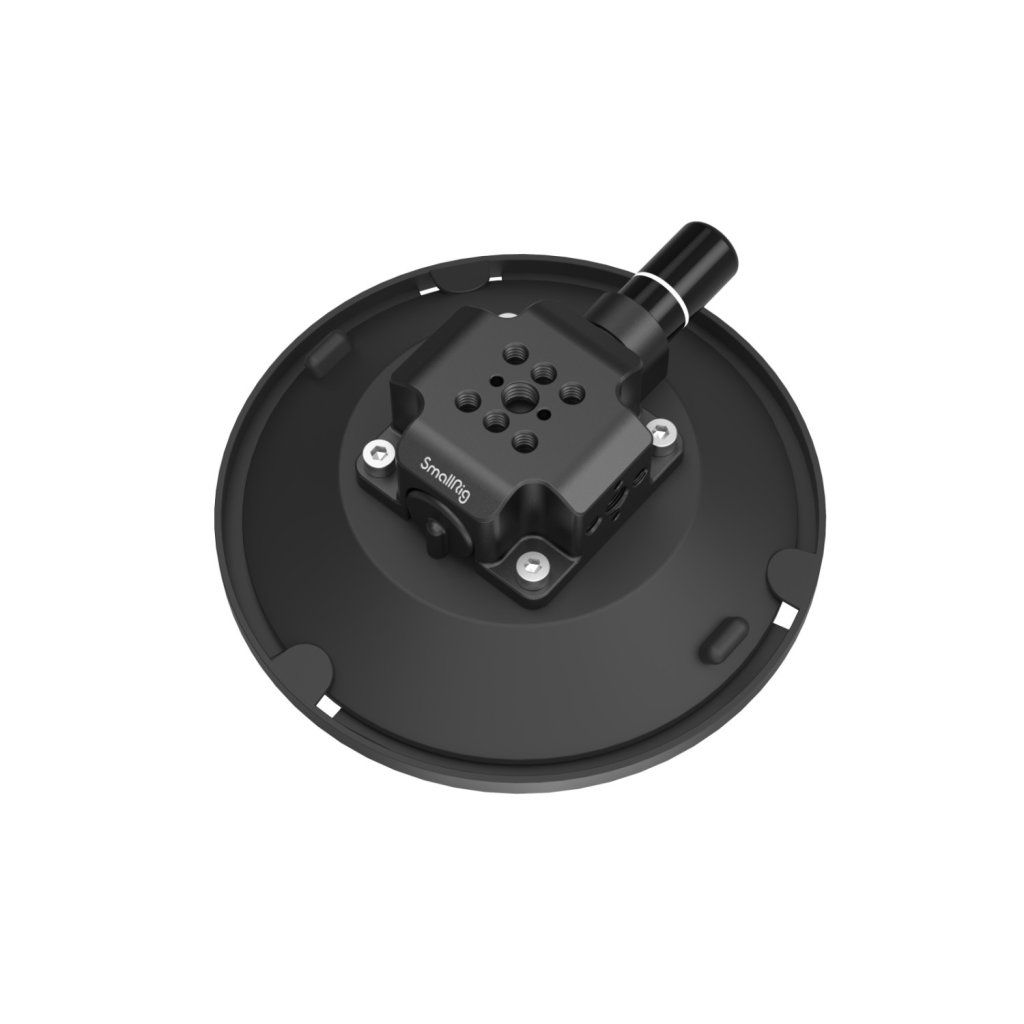

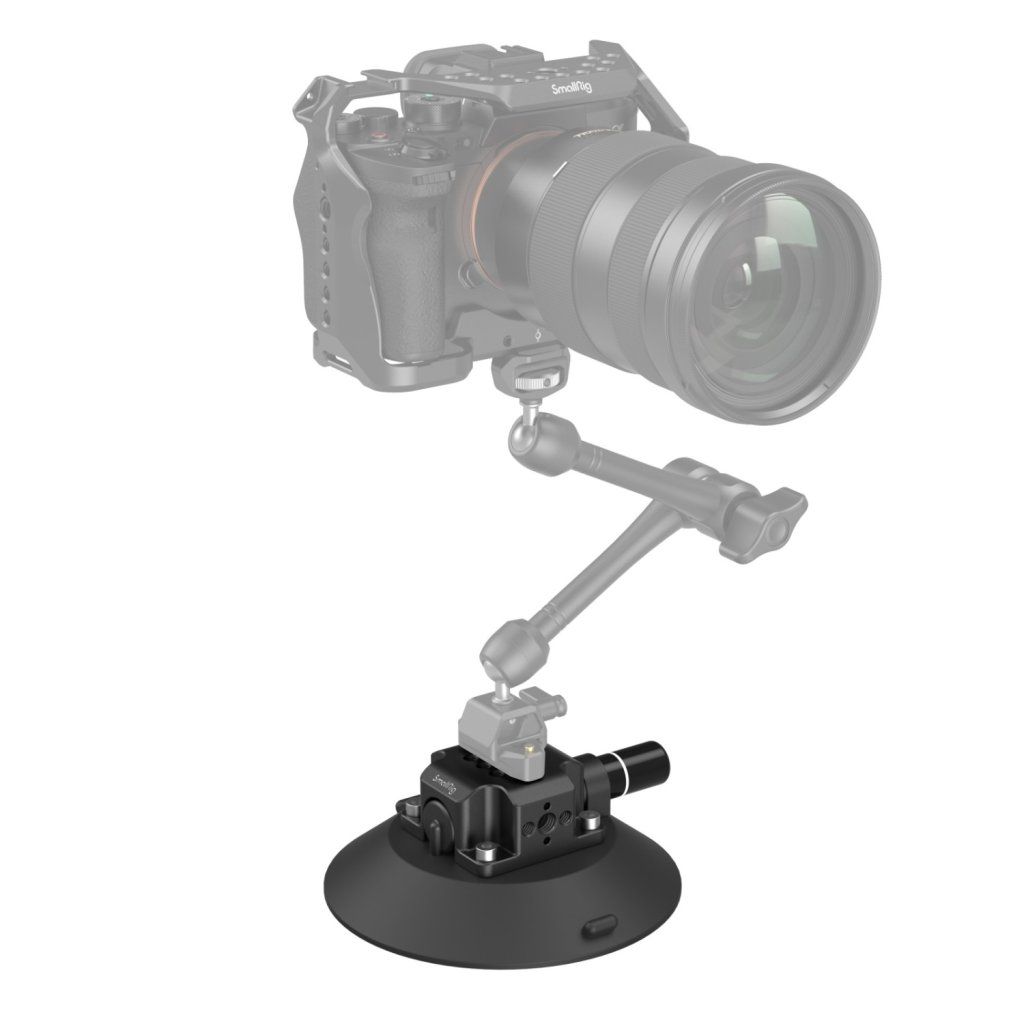

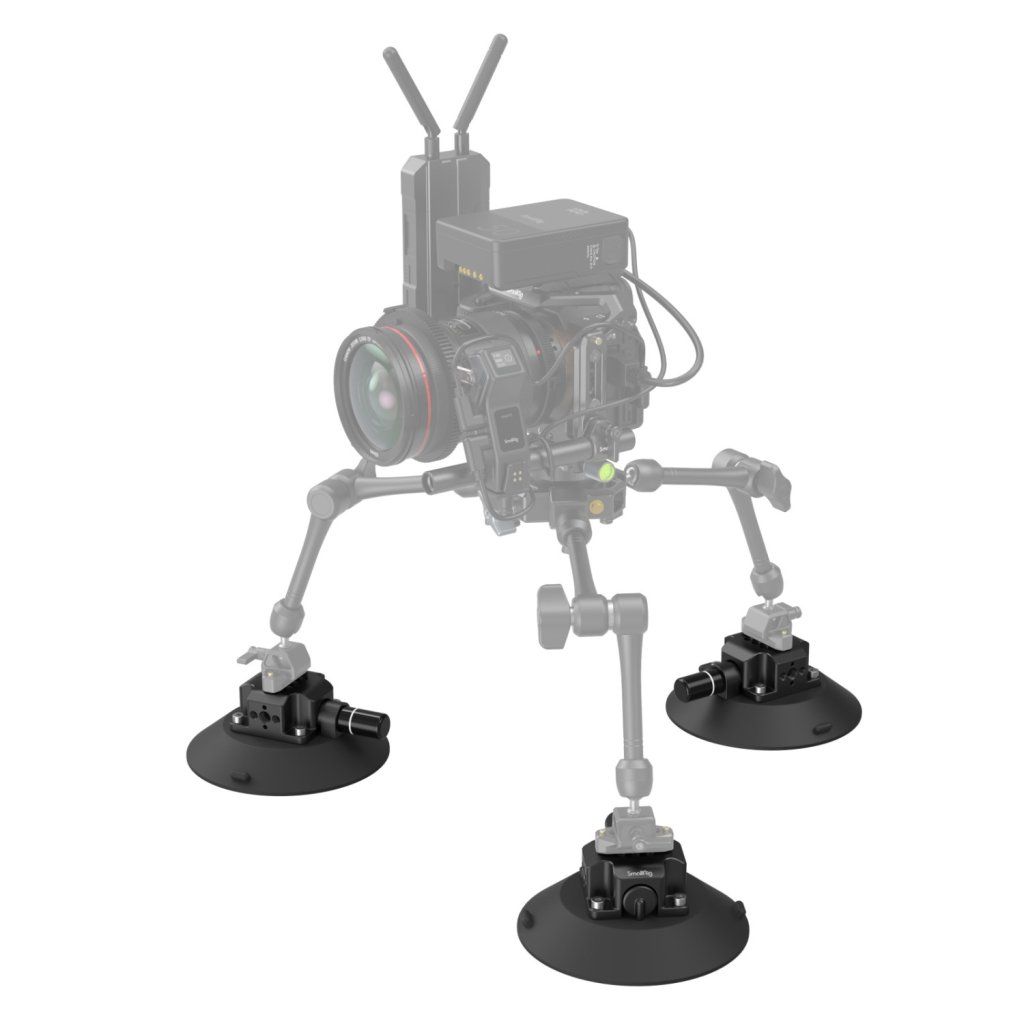

The SmallRig 4114 6" suction cup camera mount sticks a camera to glass, bodywork or any smooth wall. Its hand pump holds the vacuum for 24 hours, it carries up to 80 kg horizontally and the NBR rubber works from -20°C to 60°C.

1. Industrial-grade suction cup mount, locked by hand pump, safe and reliable.
2. Unique material, excellent  airtightness,  and wear resistance for continuous, stable, and high-strength suction force  to ensure safety.
3. Powerful suction that lasts 24 hours, load capacity of 80 kg.

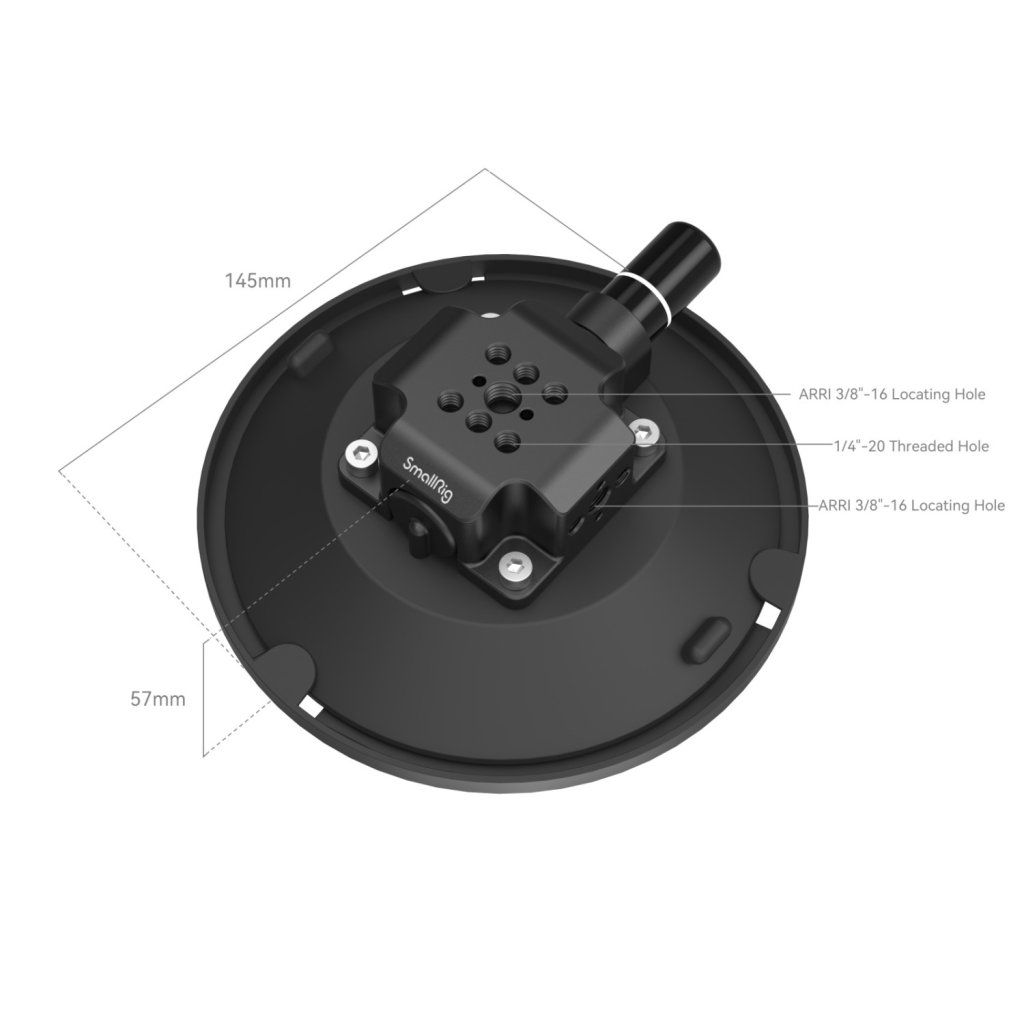

4. Multiple accessory mounting points, including 1/4"-20 threaded holes and ARRI 3/8"-16 locating holes.

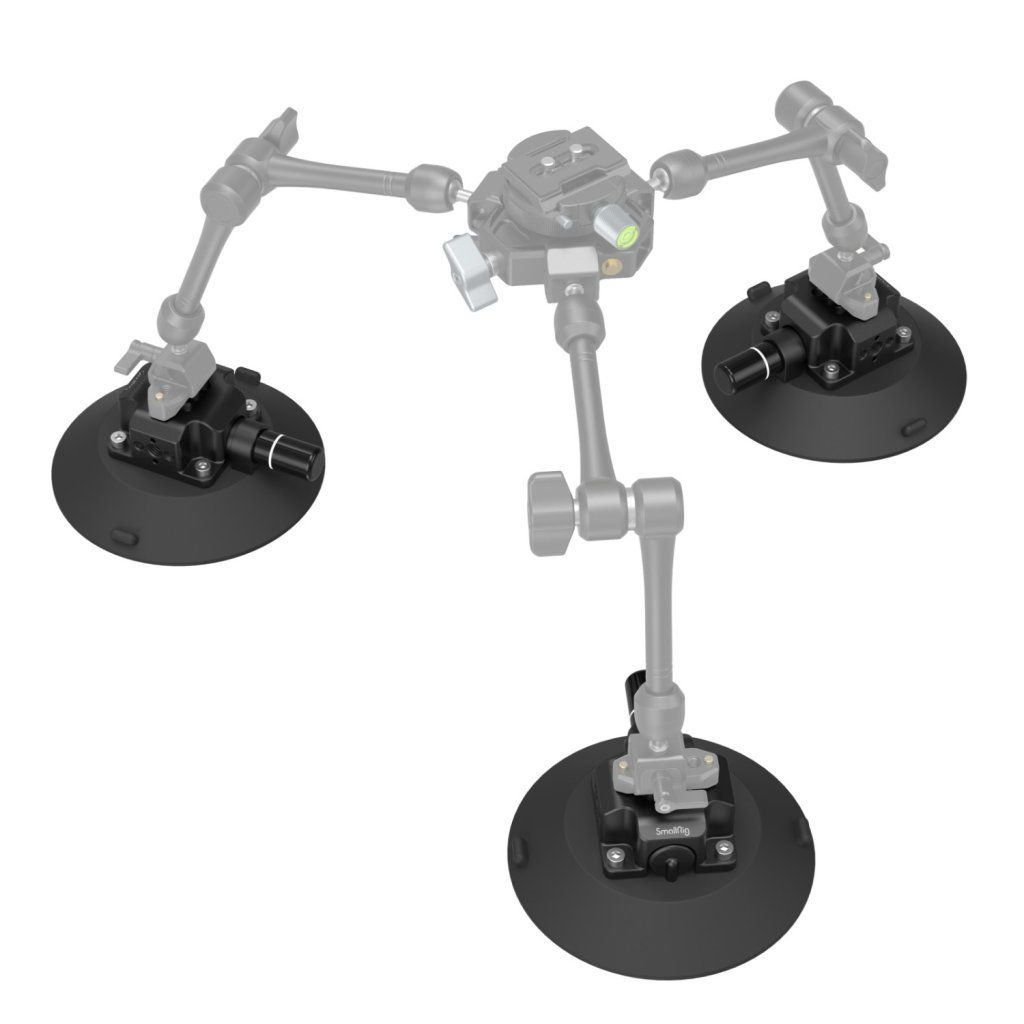

The box contains the suction cup mount, sucker, hand pump and dust cover. Besides the 1/4"-20 and ARRI 3/8"-16 locating holes it also has 3/8"-16 threaded holes and takes magic arms 3873, 3874, 2906B, 2070B or 2115C.

Disclaimer: Please mount it onto recommended surfaces and check at least every four hours.

Note:
1. Suitable for clean, dry, and smooth surfaces, not for rough, wet, uneven, dirty, or fragile surfaces.
2. Please always keep the sucker and filter cotton intact and clean.
3. Please apply it carefully to coated surfaces.
4. When the safety-line indicator shows, it means vacuum loss. Pump the plunger until 100% vacuum pressure.

Warnings:
1. The 6″ Suction Cup Camera Mount, when adhering to a still object, has a tested maximum horizontal suction of 80 kg and maximum vertical suction of 60 kg. Please check the suction force every 24 hours.
2. It is recommended, when adhering to a vehicle, the 6″ Suction Cup Camera Mount work with a cable tether and bears no more than 8 kg. Please run the vehicle smoothly at a speed of below 80 km/h and check the suction force every 2 hours.
3. Suitable for dry, flat, glossy, solid surfaces, not for painted surfaces, natural marble, old tiles, breathable wallpaper, diatom mud walls, unpainted wood, frosted glass, and other rough or breathable materials.
4. Works at -20°C to 60°C.
5. When the safety-line indicator shows, it means vacuum loss. Pump the plunger until 100% vacuum pressure.
6. Please follow the instructions. Products that are damaged due to improper use are not eligible for after-sales service.

Note:  According to the indoor experiment, the vertical load capacity is up to 8kg while using with 14" lever arm. The laboratory data is for reference only, actual product may vary due to product enhancement.



Hoods of Car

Doors of Car

Windshield in the Car

On the Clean Walls

---

1 x 6″ Suction Cup Camera Mount

---

Product Dimensions: 159.0 x 159.0 x 60.9mm
Package Dimensions: 184 x 178 x 80 mm
Product Weight: 482g±5g
Package Weight: 680g±5g
Material(s): Aluminum Alloy, NBR, ABS, Stainless Steel
