SmallRig V Mount Battery Plate 2988 SmallRig
Kód: A2988XPodrobný popis
The SmallRig 2988 V-mount battery plate powers your rig from the battery's own outputs, and two stoppers keep the battery from twisting. Its 1/4"-20, M3, M4 and ARRI 3/8"-16 threads take a magic arm or rod clamp.

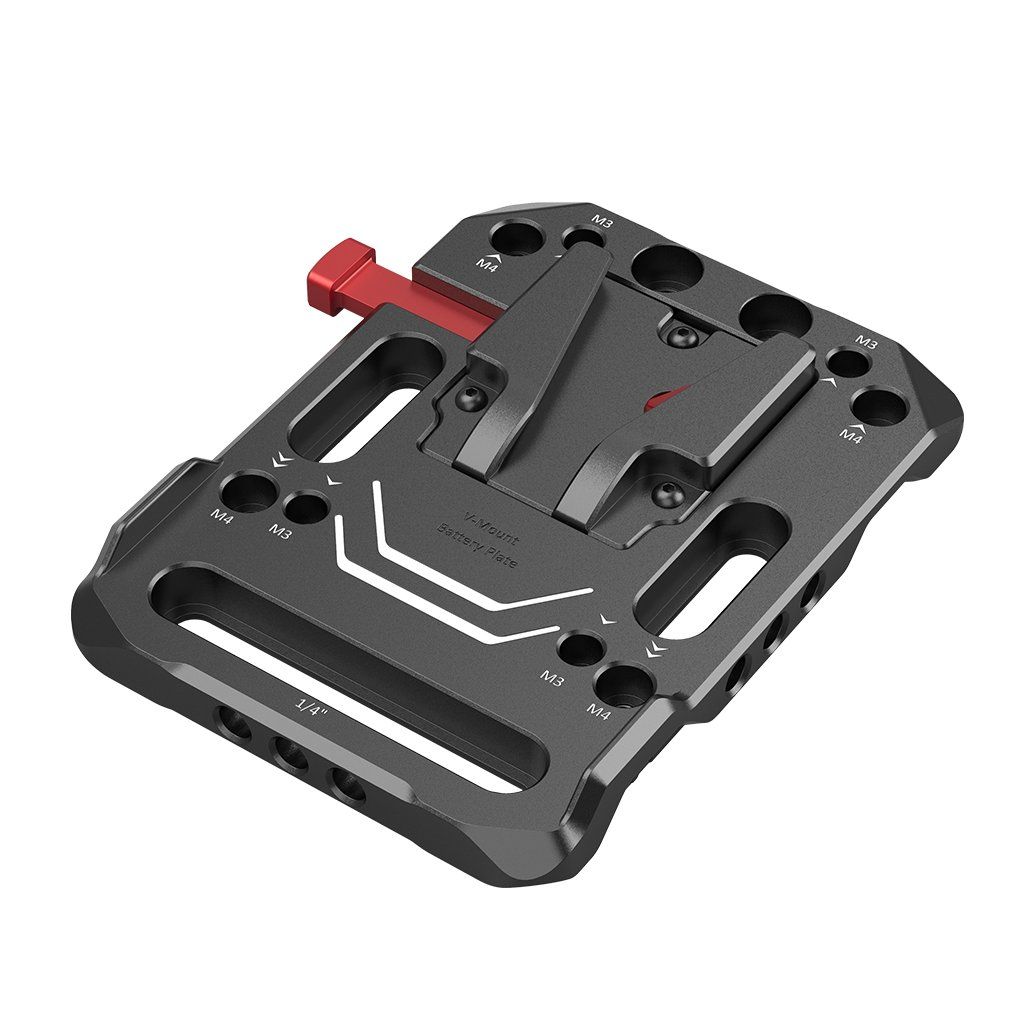

Battery plate for V-mount
The SmallRig 2988 V-mount battery plate powers your rig from the battery's own outputs, and two stoppers keep the battery from twisting.
Two stops prevent twisting
The plate has a standard V-mount and takes most V-mount batteries, so the rig is powered from the battery's outputs.
Threads and holes
1/4"-20, M3, M4 and ARRI 3/8"-16 for a rod clamp or Magic Arm.
No power outputs
The plate is purely a battery mount; the outputs are on the battery.
Exceptions
Does not fit the PAGlink series or the Patona Premium BP-190WS.
No V-Lock part
The male V-Lock part is not included.
Key features
1. The plate uses a standard V mount and fits most V mount batteries, giving the camera rig greater battery life through the battery's power ports.
2. Two stoppers prevent the battery from twisting when attached.

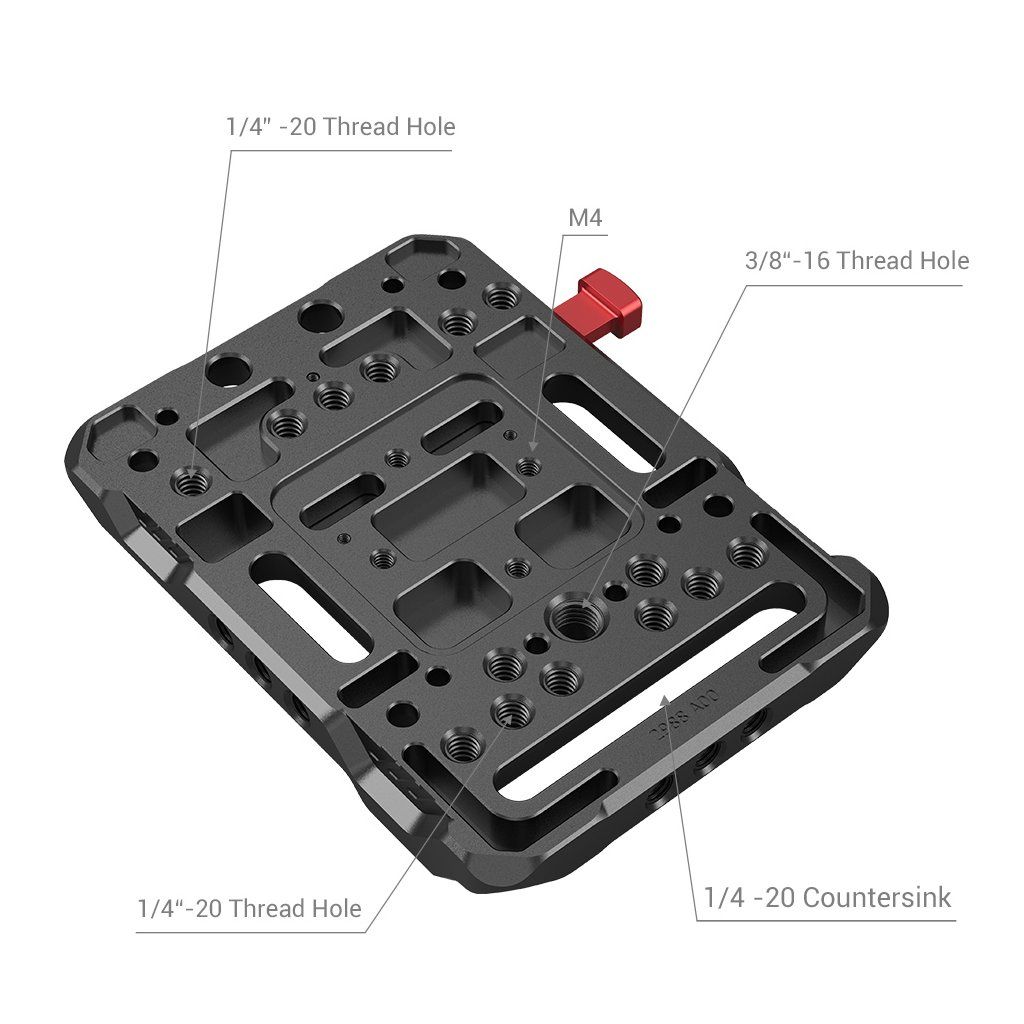

3. Multiple 1/4"-20, M3 and M4 countersinks, 1/4"-20 and M4 threaded holes and an ARRI 3/8"-16 threaded hole allow a dual rod clamp, a magic arm or other accessories to be attached.

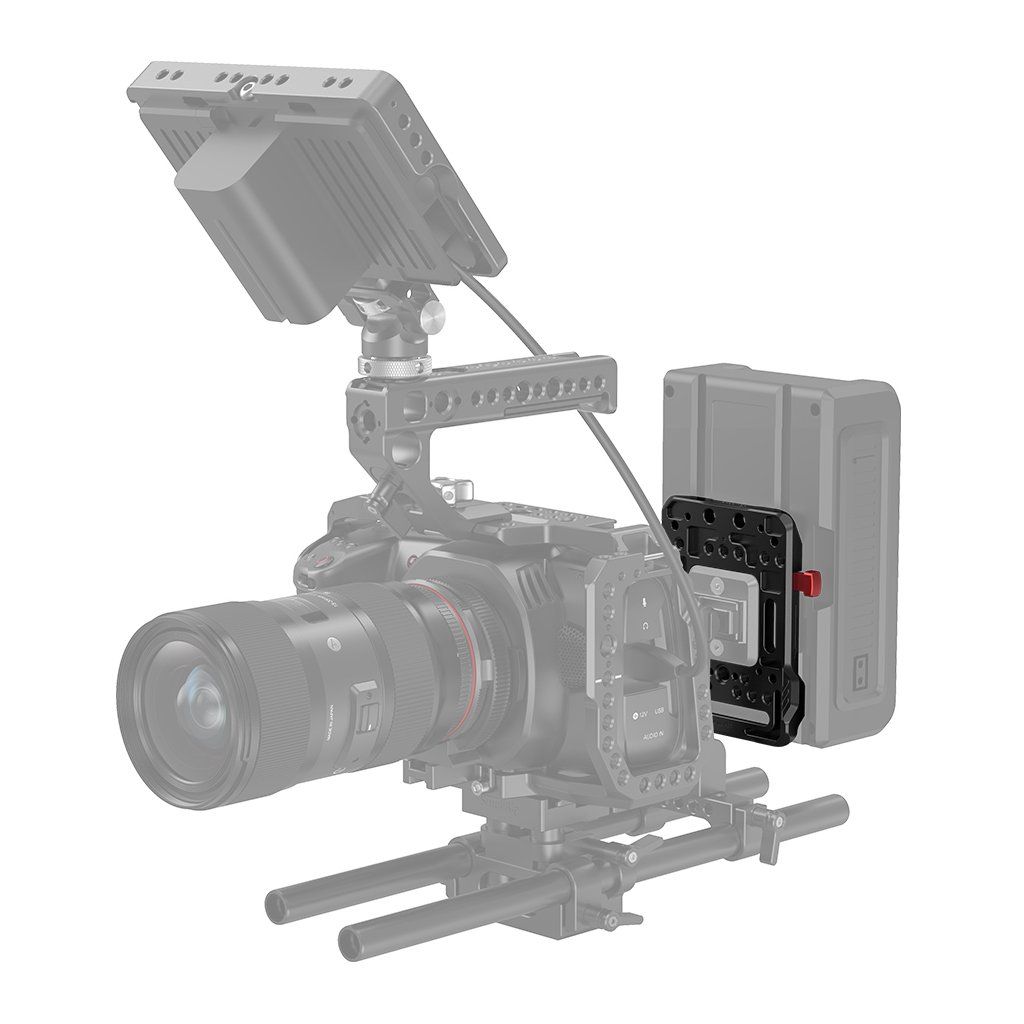

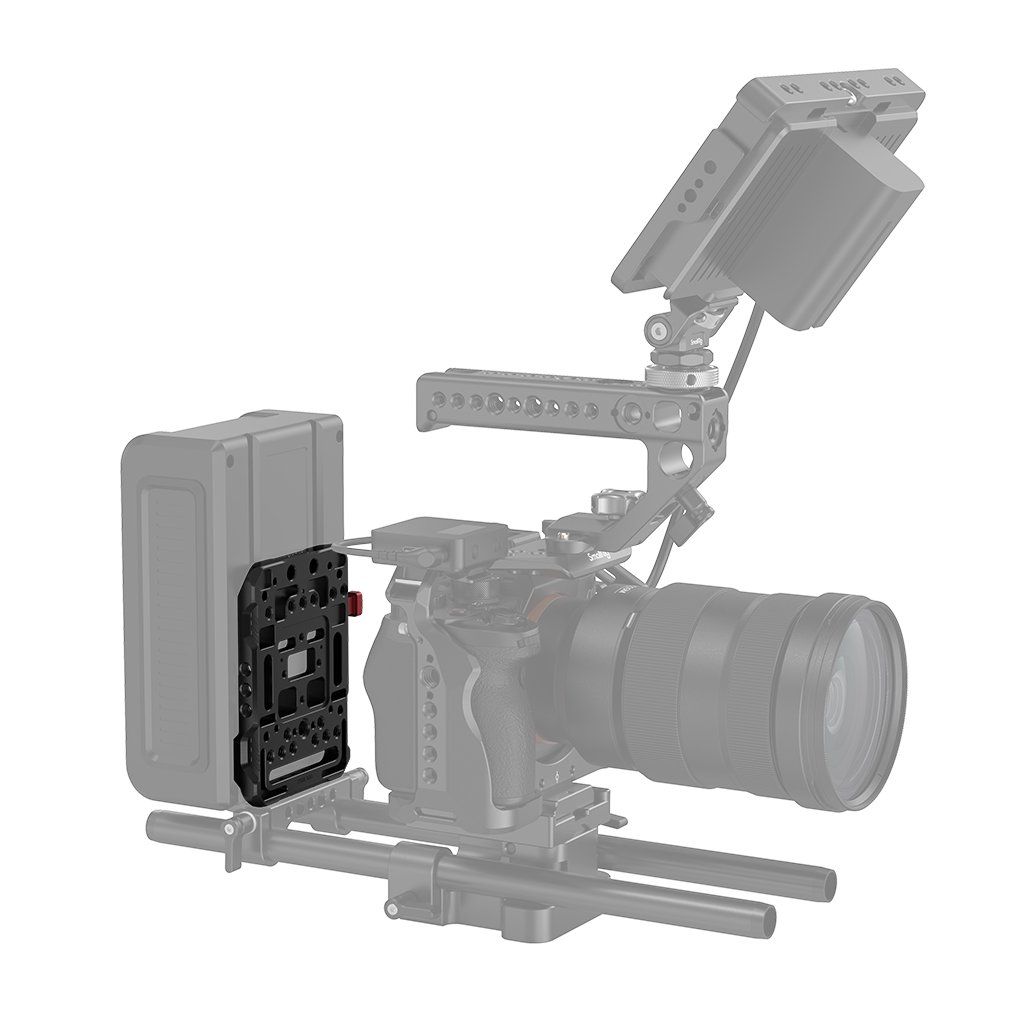

4. It supports a variety of installation methods and is compatible with the Blackmagic URSA Mini.
Note
1. No V-Lock part (male) is provided with the plate.
2. This is purely a mounting solution for a V-mount battery – there are no power ports on the plate.
Compatibility: the plate fits most V mount batteries except the PAGlink series and the Patona Premium Battery for BP-190WS.

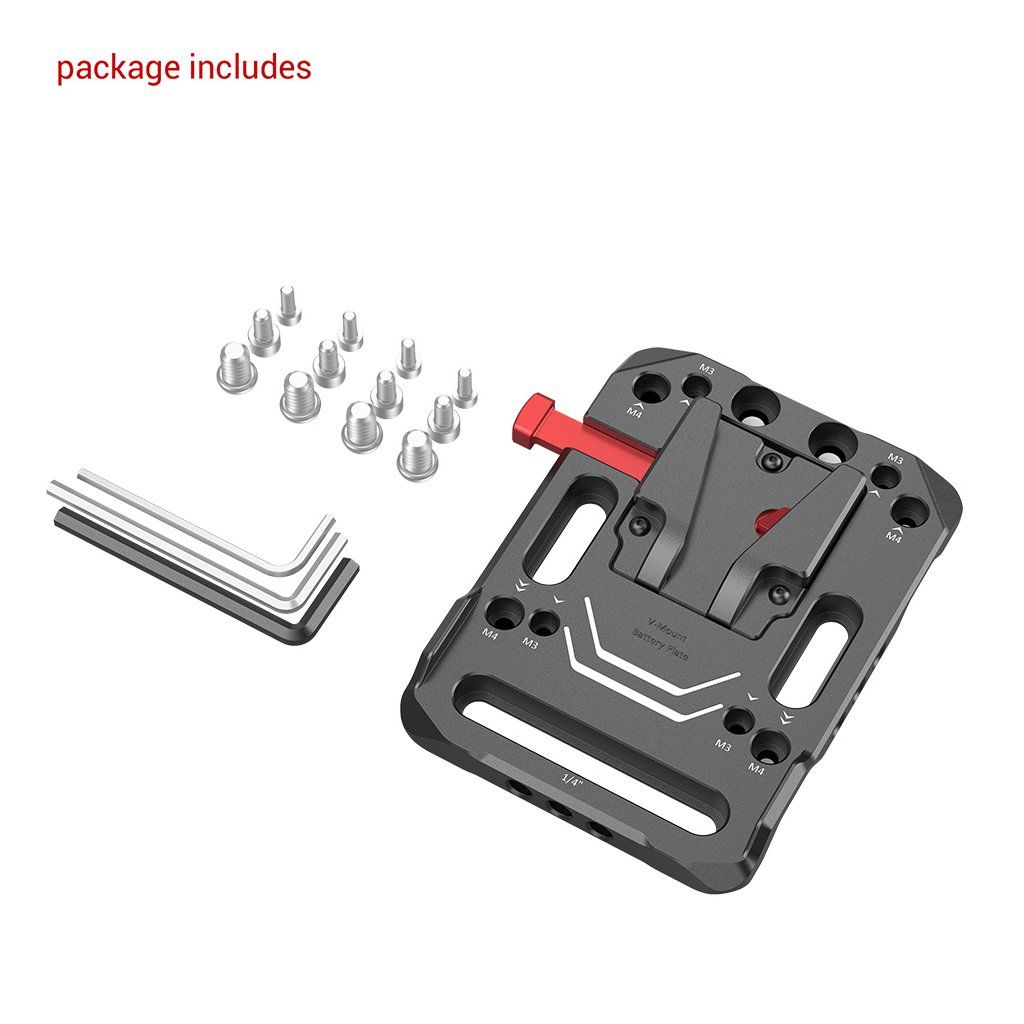

3× Allen wrench
2 × 1/4"-20 screw
4× M4 screw
4× M3 screw
Package dimensions: 120 × 100 × 40 mm
Net weight: 140 g ± 5 g
Package weight: 182 g ± 5 g
Material(s): aluminium alloy
Dodatočné parametre
| Kategória: | V-Mount príslušenstvo |
|---|---|
| Záruka: | 2 roky |
| EAN: | 6941590003610 |
