SmallRig x Caleb Pike VB212 mini V Mount Battery 4293 SmallRig

Podrobný popis

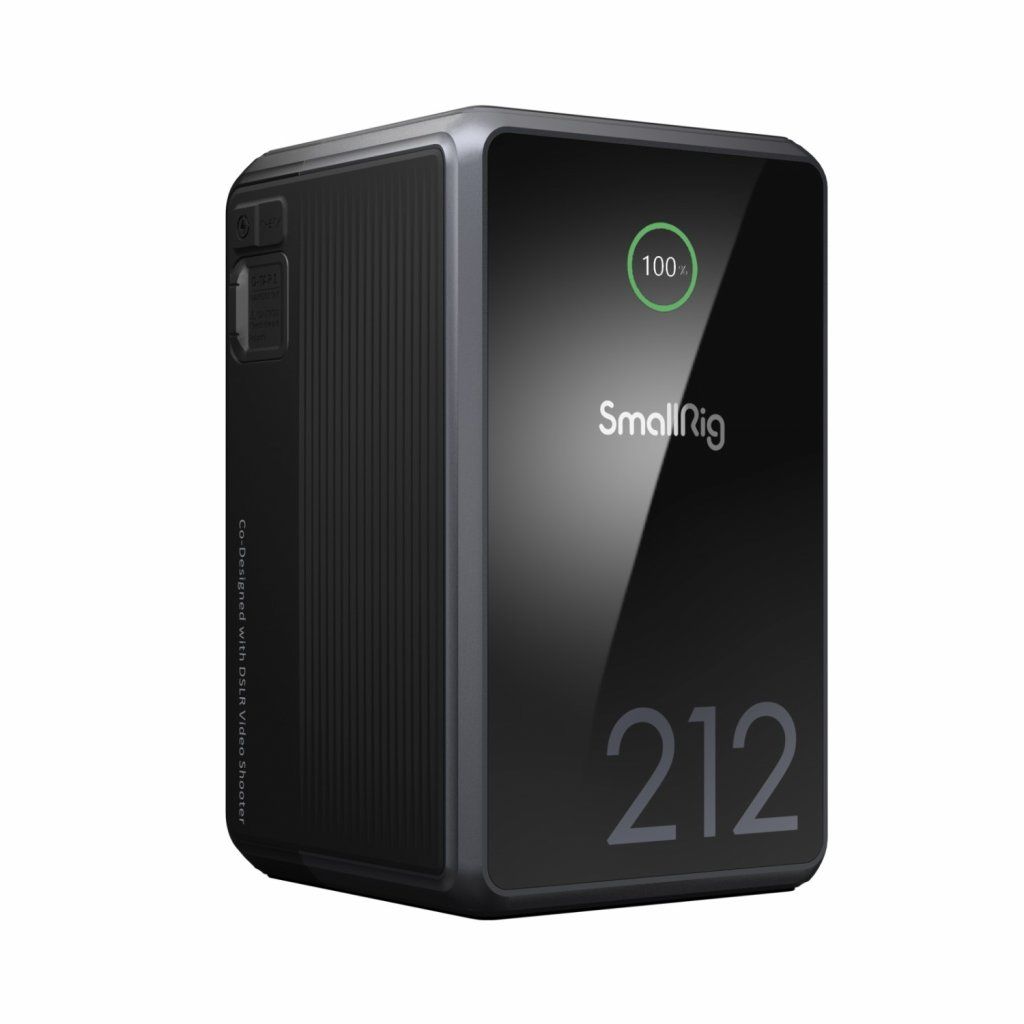

The SmallRig x Caleb Pike VB212 4293 mini V-mount battery packs 212Wh into a compact body. Bidirectional USB-C handles 140W, alongside two D-Tap ports, USB-A and 8V and 12V outputs for a camera, monitor or laptop.

Key features
1. A smart BMS chip supports 140 W (max.) fast charging; fully charged in 2–2.5 hours
2. Premium high-capacity LG cells withstand repeated charging and discharging, safe and stable
3. Highly integrated, ultra-compact design suited to travel

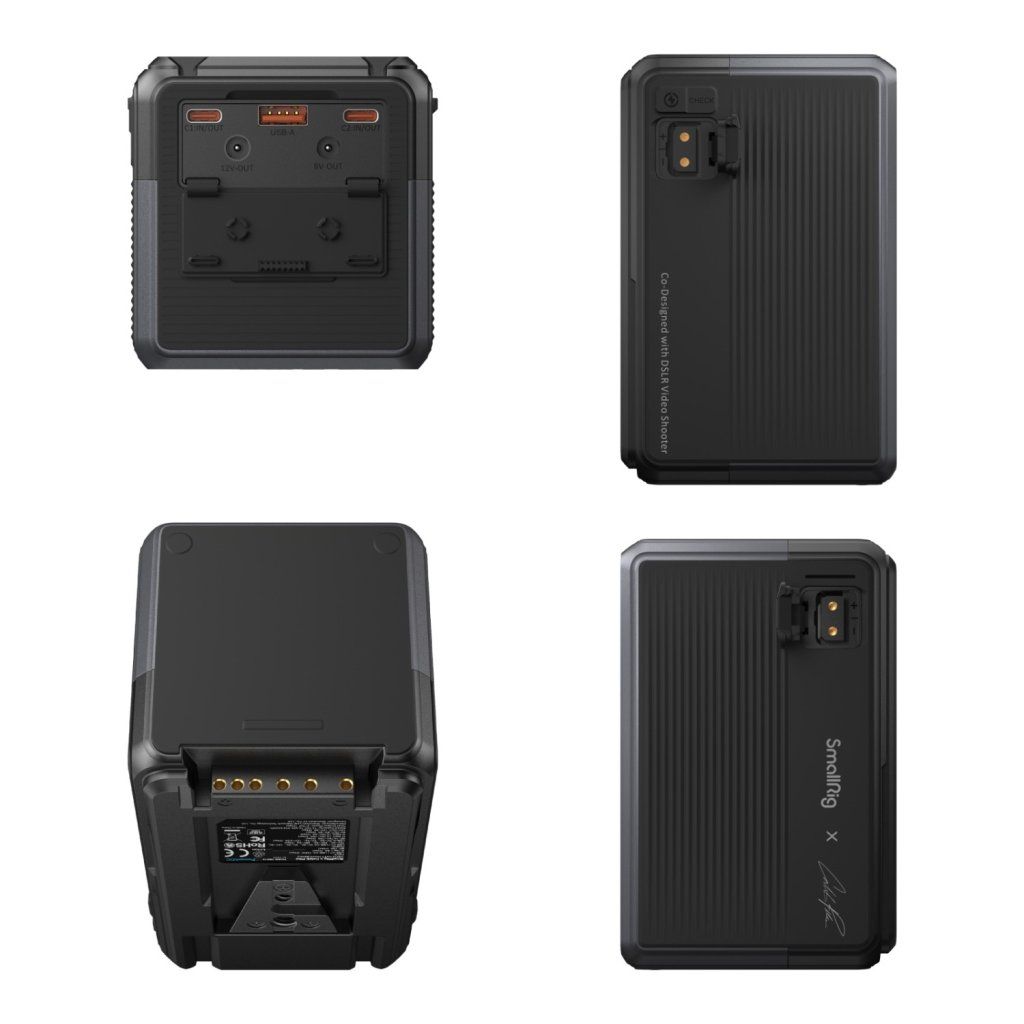

4. Multiple interfaces: two USB-C ports, two D-Tap ports, one USB-A port, plus 8 V and 12 V outputs; each interface uses a parallel circuit, so USB-C and USB-A can fast charge at the same time
5. Aluminium alloy, silicone, TPU and PC V0; four layers of aluminium frames inside and a silicone layer outside make the battery sturdy, drop resistant, heat resistant and flame retardant
6. A durable PC and acrylic front cover resists scratches
7. The TFT display shows the battery status clearly and precisely
8. A precisely designed cover and well-placed grooves make handling easy

The BMS chip has a built-in 16-bit Smart ADC converter which, together with the MCU and the TFT display, lets you check the battery status anytime and anywhere. The built-in premium cells (with no overstated capacity) take repeated charge and discharge cycles, which delivers performance and stability. The design follows internationally recognised standards such as MSDS, UN38.3, IEC62133, UL2054 and UL62368, making use safer. The aluminium alloy body with a silicone coating is sturdy and drop resistant, while TPU and PC V0 resist heat and fire. The acrylic cover adds durability and protects the TFT display. The precisely designed cover and well-placed grooves allow quick handling of the dust cover.

Easy operation
Press once to check the charge level, press again to turn the screen off.
Press four times to switch the low-current mode on or off.
Press and hold for 10 seconds to force a restart.

Compatibility

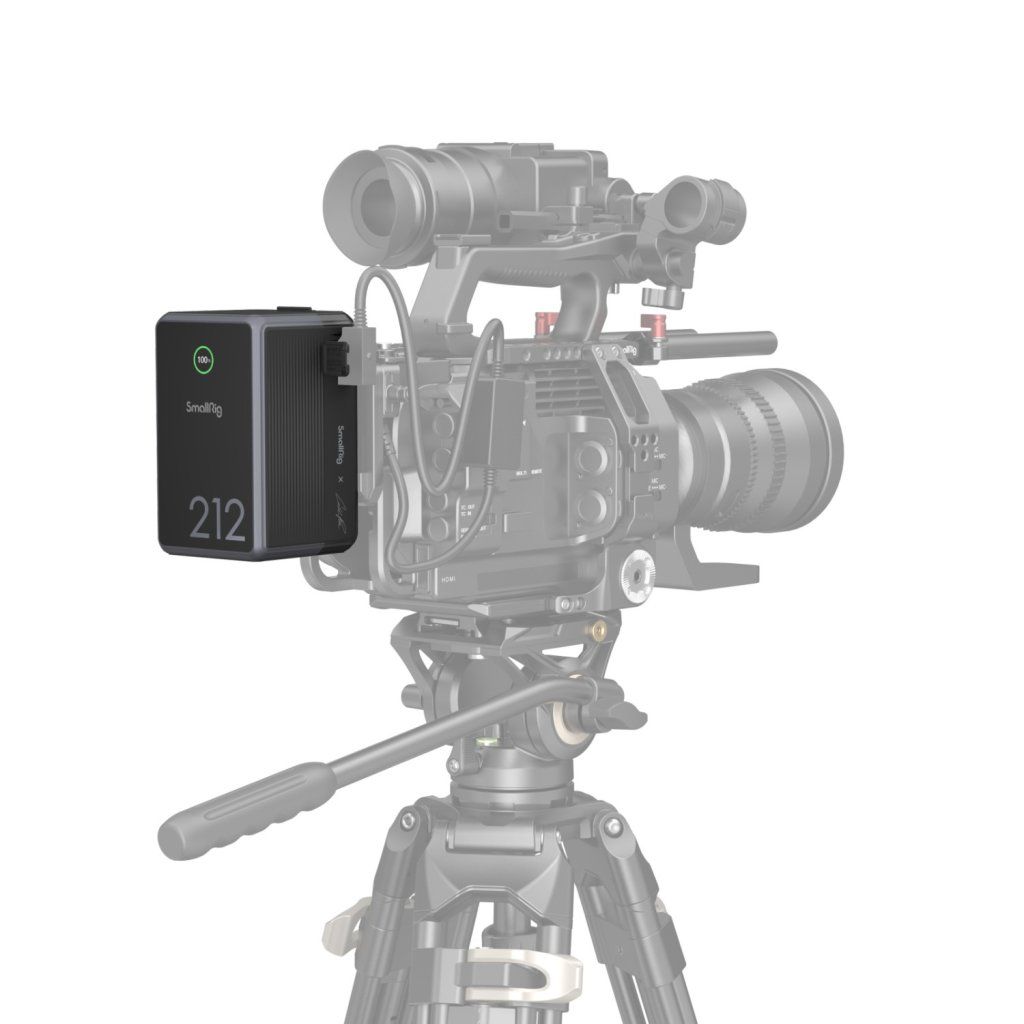

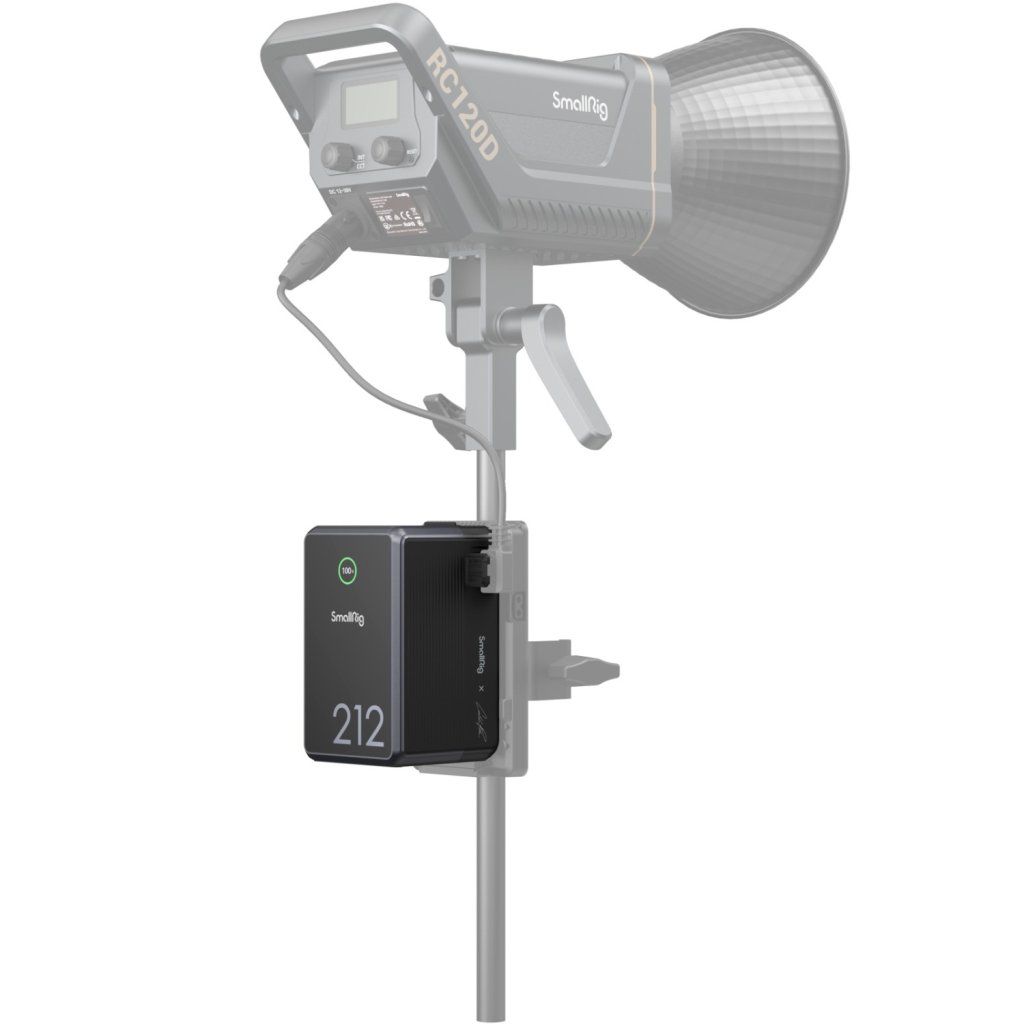

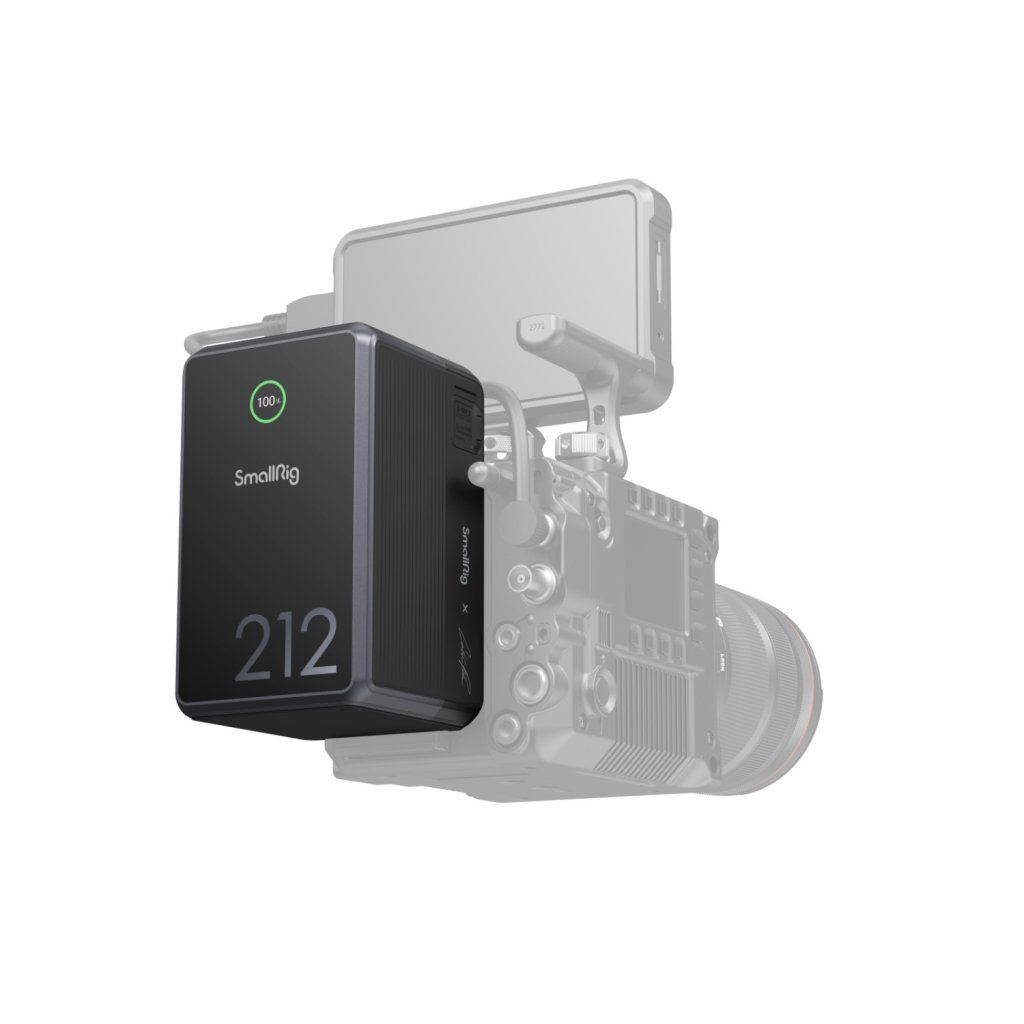

Mirrorless cameras, cameras, camcorders, cine cameras, monitors, follow focus units, video transmitters, LED video lights, mobile phones, tablets, laptops and more.

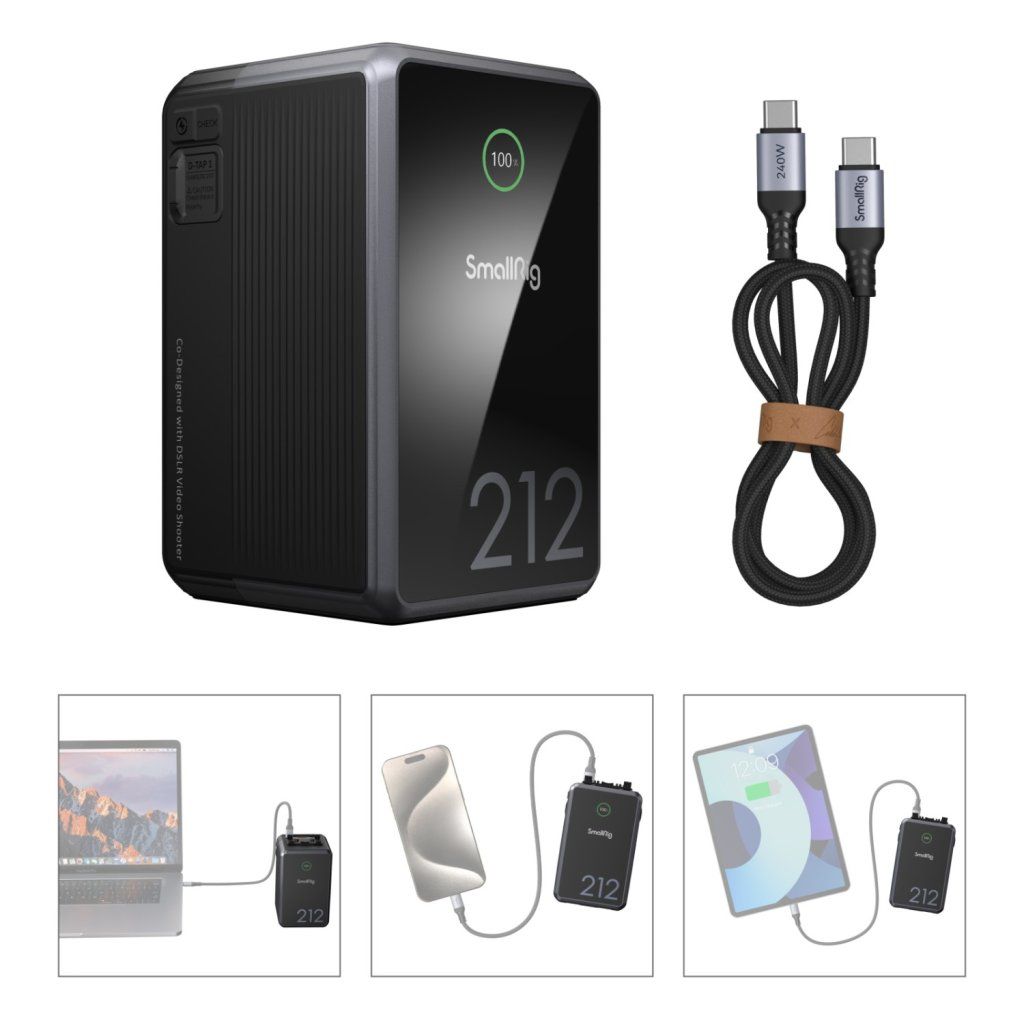

1x VB212 mini V Mount battery
1x 240 W USB-C charging cable

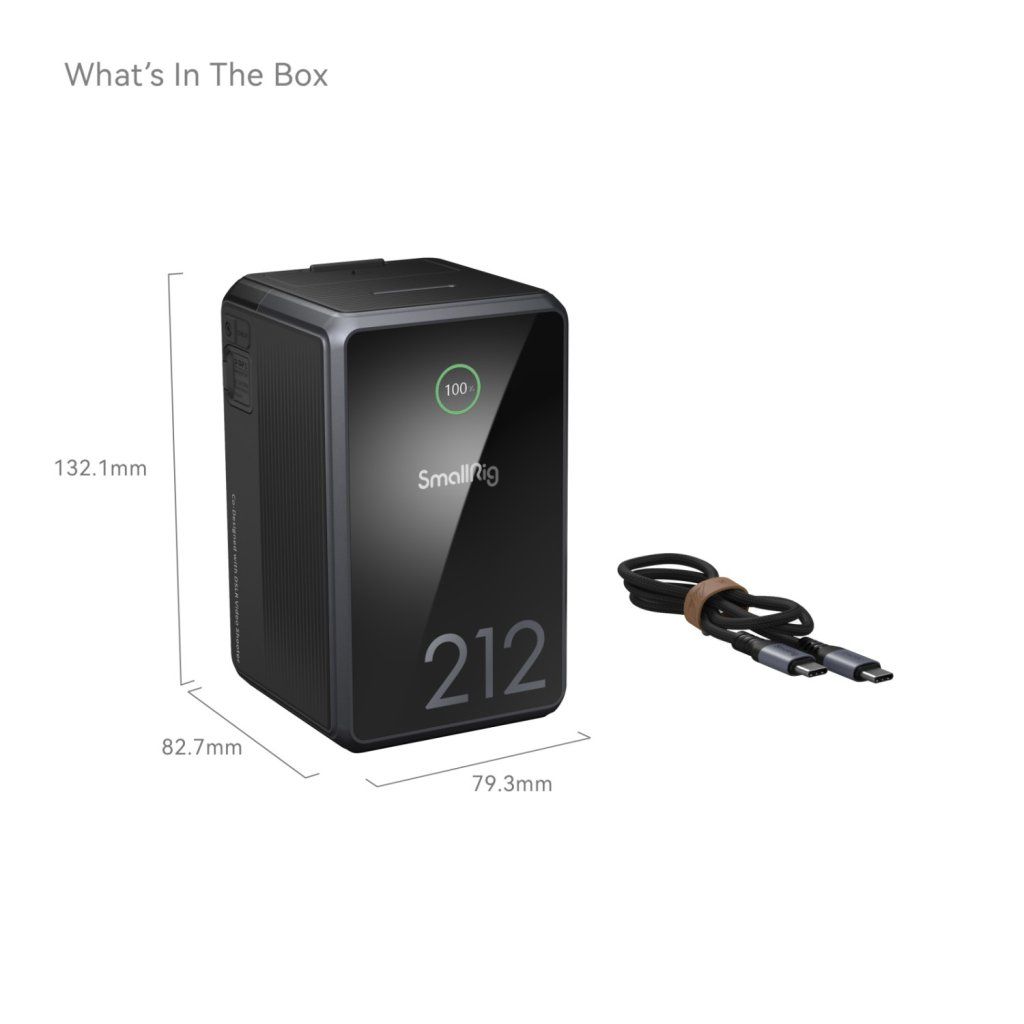

Product Dimensions: 132.1 x 82.7 x 79.3 mm
Package Dimensions: 166 x 130.5 x 99 mm
Product Weight: 1345 ± 10.0 g
Package Weight: 1643 ± 10.0 g
Materials: Aluminium alloy, silicone, TPU, PC V0
Capacity: 14.76 V / 14.4 Ah / 212.544 Wh
Rated power: 212 W
Input: USB-C1 / USB-C2 140 W (max.), D-Tap1 8 A (max.), BP 10 A (max.)
Output: USB-C1 / USB-C2 5 V/3 A, 9 V/3 A, 12 V/3 A, 15 V/3 A, 20 V/5 A, 28 V/5 A (max.); USB-A 5 V/3 A, 9 V/3 A, 12 V/2.5 A (max.); BP 14.76 V/19 A (max.); D-Tap1 14.76 V/10 A (max.); D-Tap2 14.76 V/6 A (max.); 8V-OUT 8 V/3 A (max.); 12V-OUT 12 V/3 A (max.)
Charging protocols: USB-C1 / USB-C2 PD3.1, QC2.0, QC3.0, PPS, AFC, DCP-1.5A, APPLE-2.4A; USB-A QC2.0, QC3.0, AFC, DCP-1.5A, APPLE-2.4A
Cut-off voltage: 11.2 V
Operating temperature: -15 °C to 60 °C
Charging temperature: 0 °C to 50 °C
Charging methods: Bluetooth mode, charger with BP port, 16.8 V D-Tap charger, USB-C
