Tilta Full Camera Cage for Canon R5C - Black Tilta

Podrobný popis

The Tilta TA-T32 full camera cage wraps the Canon EOS R5 C along the exact outline of the body while leaving every button, port and the battery compartment free. It offers an ARRI rosette, two cold shoe mounts, NATO rails on the top and left side, a row of 1/4”-20 threads with locating pins and several M3 threads. The box also contains an HDMI cable clamp, an EF adapter support and the TA-T32 quick release plate.

A cage tailored to the R5 C

The cage follows the outline of the Canon EOS R5 C including the viewfinder hump and the cooling vent. It bolts to the body with a 1/4”-20 screw and is held by a locating pin, so the body cannot twist inside it. Buttons, the mode dial and the top display stay exposed.

Custom design and precise CNC machining

The top plate carries two cold shoe mounts and a NATO rail; the left side adds another NATO rail and an ARRI rosette. Space is left clear around the camera buttons, so the camera can be operated with the cage fitted.

Easy battery swaps

The bottom plate leaves the battery compartment free — you swap the battery without taking the rig apart. The plate also holds a slot with the flathead magnetic screwdriver supplied by the manufacturer.

Silicone cushions protect the body

Built-in silicone cushions on the top and bottom hold the body in place and protect its finish from being scratched by the aluminium frame.

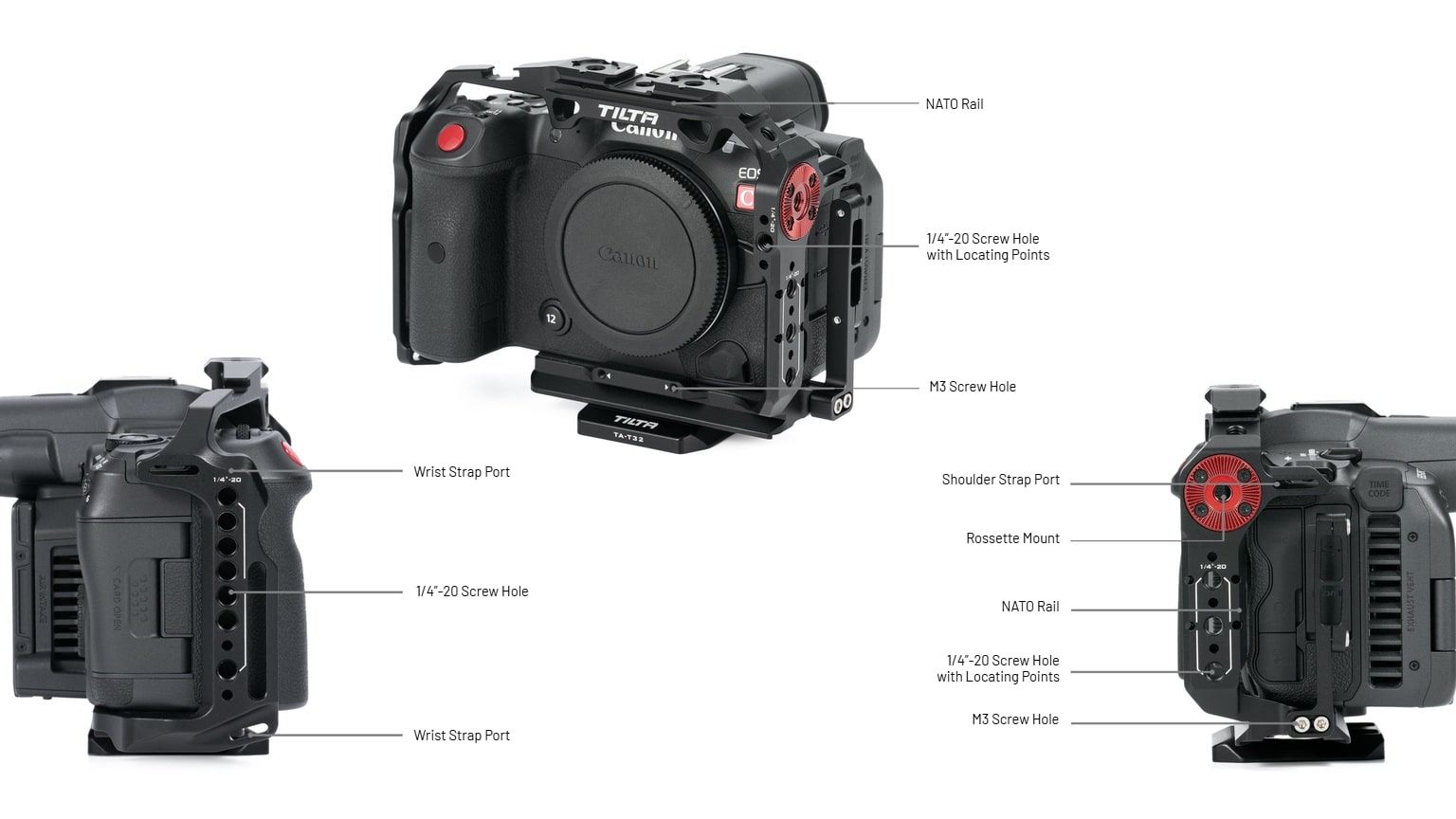

Mounting points on the sides

Both sides and the top carry NATO rails, 1/4”-20 threads with locating pins and M3 threads for small brackets. The ARRI rosette on the right side takes a side handle; the loops at the top and bottom are for a wrist strap and a shoulder strap.

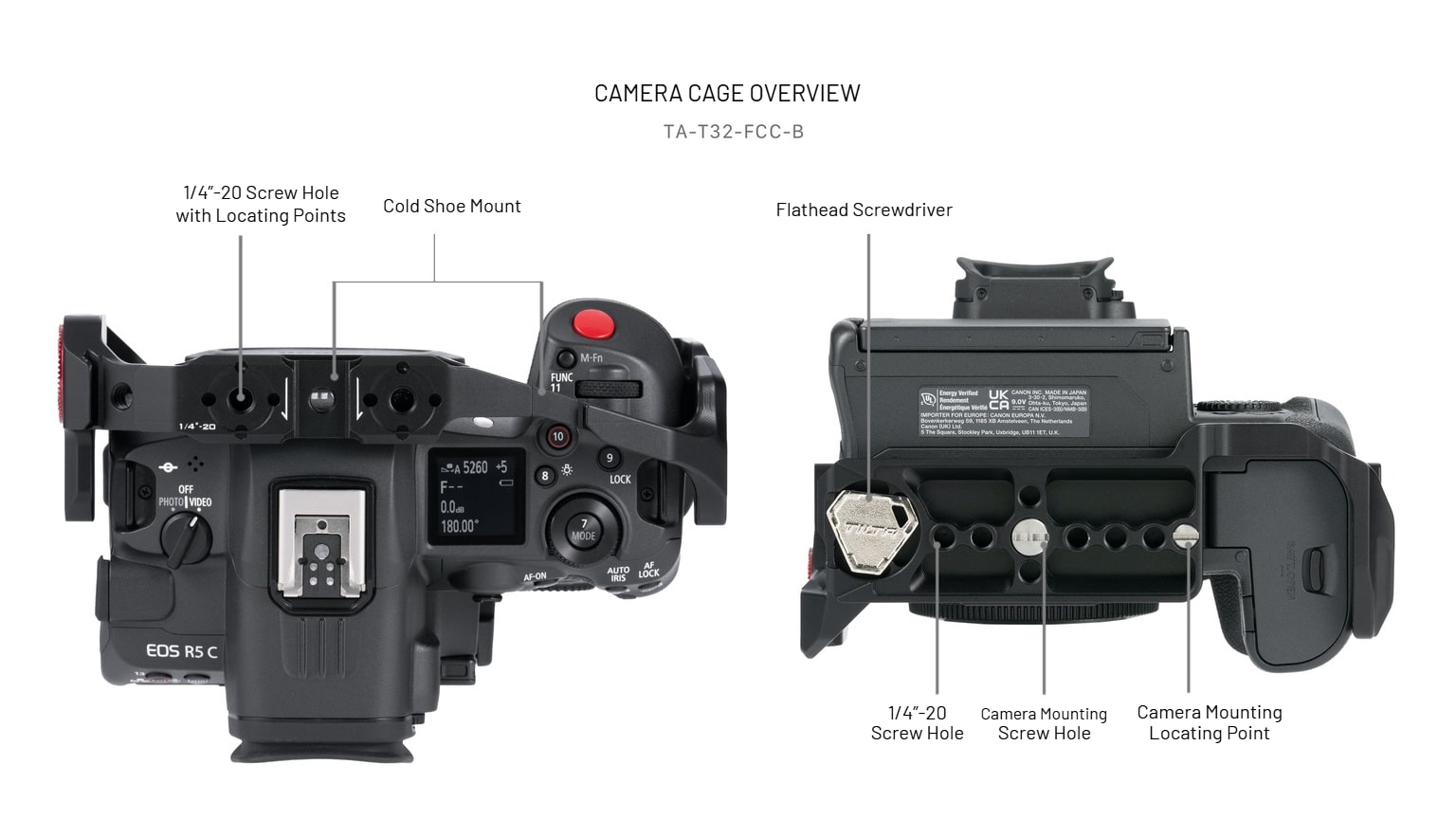

Top and bottom view

The top plate has two cold shoe mounts and 1/4”-20 threads with locating pins. The bottom plate carries the screw and locating pin that hold the camera body, another 1/4”-20 thread and a flathead magnetic screwdriver seated in its slot.

What you can attach to the cage

The NATO rails and the ARRI rosette are ready for the Tilta Type IV/VI side handles and for the compact NATO top handle. The base fits Tilta quick release plates and natively supports the Smart V Mount Battery Baseplate and the LWS Baseplate Type IV. The aluminium frame also has integrated slots for a shoulder strap.

HDMI cable clamp and EF adapter support

The clamp bolts to the side of the cage and secures the HDMI cable and an optional USB-C cable against being pulled loose — when recording to an external recorder a loose cable means a ruined take. The EF adapter support attaches to the front of the cage with M3 screws and braces an RF to EF mount adapter, so a follow focus system cannot shift the image.

• 1× Full Camera Cage for Canon R5C – Black (TA-T32-FCC-B)
• 1× HDMI Clamp Attachment for Canon R5C – Black (TA-T32-CC1-B)
• 1× EF Mount Adapter Support for Canon R5C – Black (TA-T32-LAS-B)
• 1× TA-T32 Quick Release Plate

• Cage dimensions: 158,6 × 63,3 × 117 mm
• Cage weight: 182,5 g
• Material: aluminium alloy, stainless steel
• Colour: black
• Mounting points: ARRI rosette, 2× cold shoe mount, NATO rail on the top and left side, 1/4”-20 threads with locating pins, M3 threads, wrist strap and shoulder strap loops
• Compatibility: Canon EOS R5 C
