Ulanzi DC04 4-in-1 Card Reader SD/microSD/CFexpress A and B, USB-C, Black Ulanzi
Kód: AX156XPodrobný popis
The Ulanzi DC04 is a memory card reader with four slots — SD, microSD (TF), CFexpress Type A and CFexpress Type B — and it reads three of them at the same time. Over USB 3.2 Gen 2 it offers a theoretical 240 MB/s on SD and microSD, 700 MB/s on CFexpress Type A and 800 MB/s on CFexpress Type B, so a gigabyte of footage moves across in about four seconds. The aluminium alloy body carries the heat of a long transfer away, the supplied cable has a USB-C end with a slip-on USB-A adapter, and no drivers are needed on Windows, macOS or Linux.
Four slots, three cards at once
A reader for SD, microSD, CFexpress Type A and Type B over USB 3.2 Gen 2. A gigabyte of footage moves across in about four seconds.
A whole shoot in one connection
No more swapping cards one after another. Three slots work together, and the cable with a slip-on adapter serves both a laptop and a tablet.

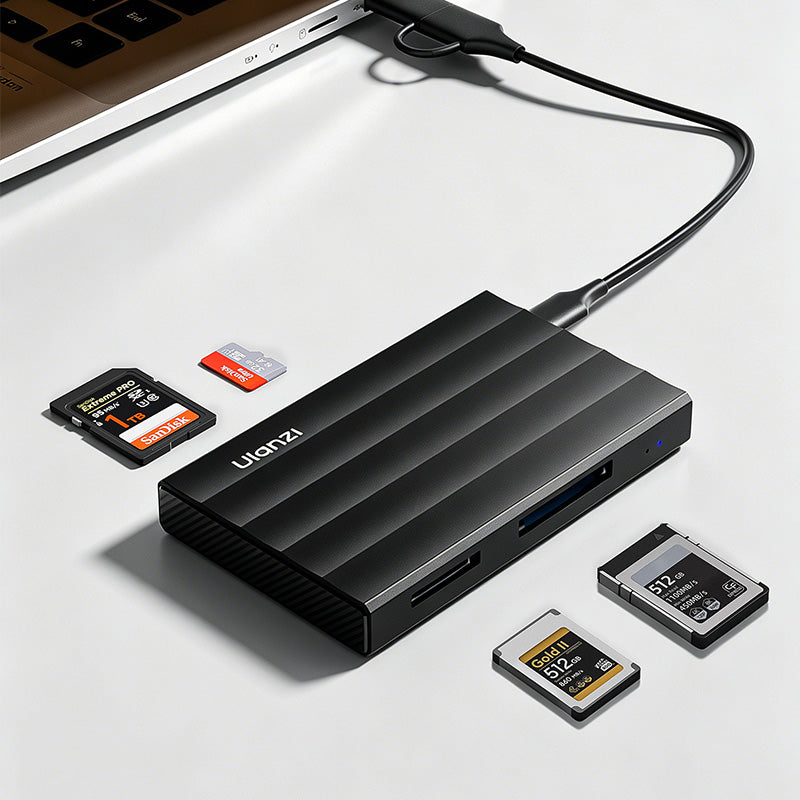

Field photo and video
Copy CFexpress cards straight to a laptop.
Backup after the shoot
SD, microSD and CFexpress in one go.
Phone and tablet
USB-C cable with a USB-A adapter.
In the bag
Aluminium and a silicone sleeve, 100 g.
Four slots, three cards at once
One body carries slots for SD, microSD (TF), CFexpress Type A and CFexpress Type B. Three of them work together: microSD, SD and one of the CFexpress cards. Type A and Type B are not read at the same time; insert both and Type A takes priority.
Up to 800 MB/s, depending on the card
Each slot has its own ceiling. SD and microSD run at a theoretical 240 MB/s, CFexpress Type A at 700 MB/s and Type B at 800 MB/s. Real speed always depends on the card, the computer and the files being copied.
The figures the maker measured
Ulanzi also publishes its own lab results. CFexpress Type B: read from 800 MB/s, write from 700 MB/s. Type A: read from 700 MB/s, write from 600 MB/s. microSD 4.0: read from 200 MB/s, write from 150 MB/s. SD 3.0: read from 160 MB/s, write from 90 MB/s. Each figure names the test card.
USB 3.2 Gen 2, USB-C and USB-A

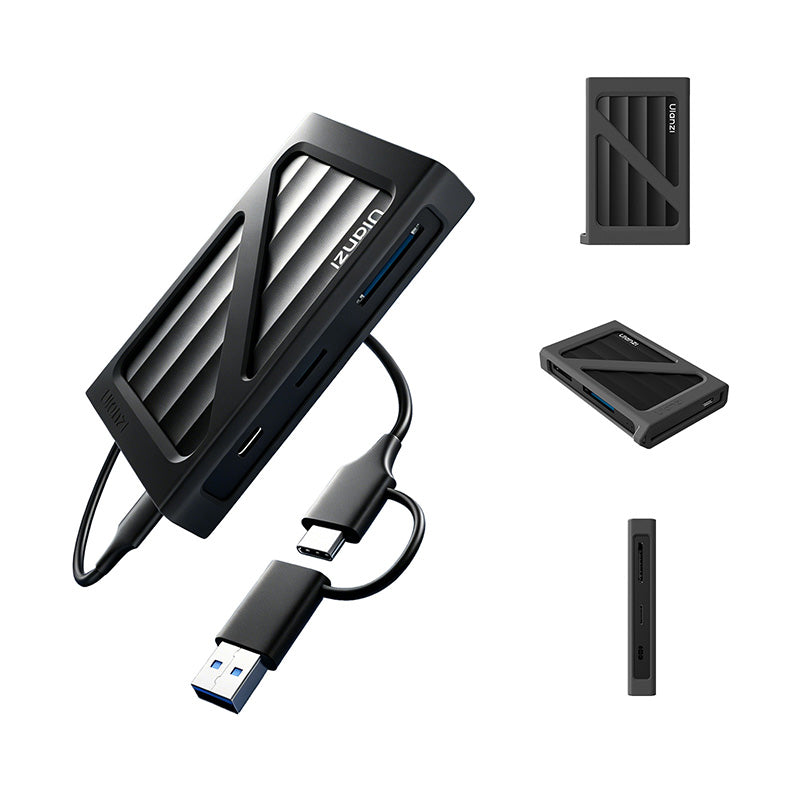

The reader connects to a computer over a USB-C port and transfers on USB 3.2 Gen 2. The box holds a cable whose USB-C end carries a slip-on USB-A adapter, so one piece serves an older laptop and a new tablet alike.
Phone and tablet
The reader also connects to a tablet or phone, but the connected device has to support OTG. The card then shows up as an ordinary drive.
Plug in and go, no drivers
There is no software to install. Windows, macOS and Linux mount the reader on their own and the card shows up as an ordinary drive. Two indicator lamps on the edge show whether power is connected and whether the computer link is up.
A power input for demanding cards
Next to the host port sits a second USB-C connector that works as a power input, 5 V and 3 A maximum. When the computer cannot supply enough current and a card fails to appear or a write does not finish, feed power into this input.

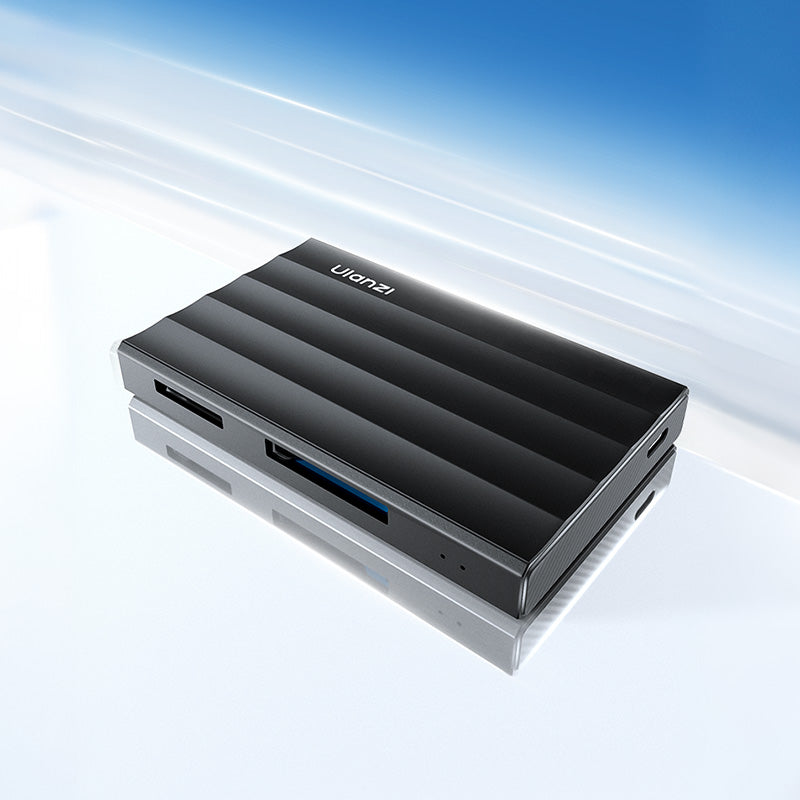

The aluminium body sheds heat
The shell is aluminium alloy with lengthwise ribs. Metal spreads the heat of a long transfer over the whole surface and carries it away, so speed does not fall off as the reader warms up.

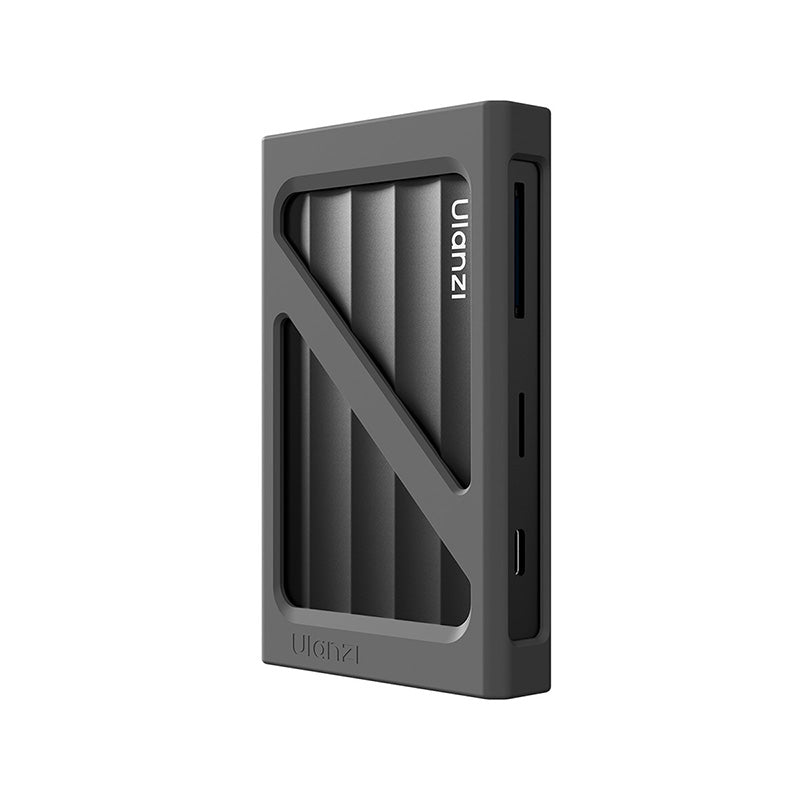

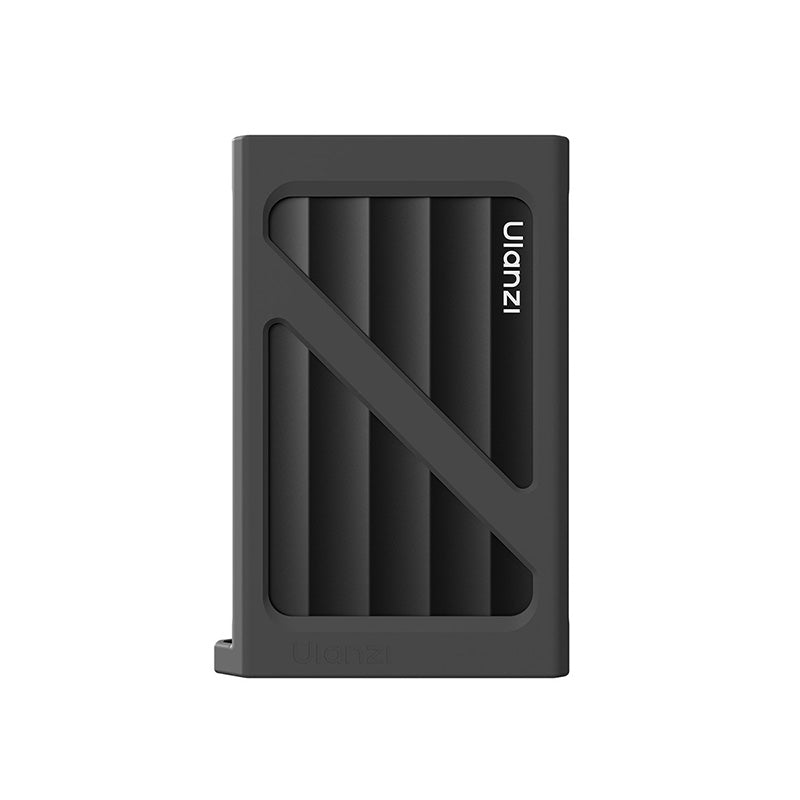

A silicone sleeve guards against scuffs
A silicone sleeve is in the box. It protects the reader against scuffs and small knocks and leaves the slots and connectors accessible.
Pocket size
The body measures 104 × 63 × 13 mm and weighs 100 g. It sits in your palm, in a camera bag pocket or in the side pocket of a backpack.

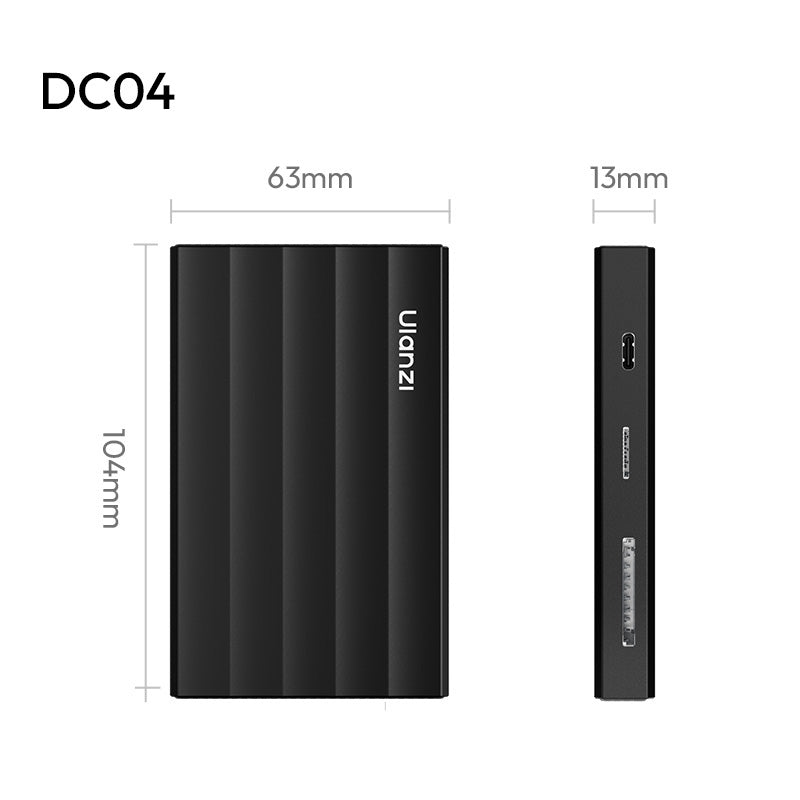

Dimensions at a glance
The manufacturer’s dimensioned drawing: 104 × 63 × 13 mm.
More information
A 4-in-1 memory card reader with CFexpress Type A and B
The Ulanzi DC04 is a memory card reader with four slots — SD, microSD (TF), CFexpress Type A and CFexpress Type B — and it reads three of them at the same time. Over USB 3.2 Gen 2 it offers a theoretical 240 MB/s on SD and microSD, 700 MB/s on CFexpress Type A and 800 MB/s on CFexpress Type B. The aluminium alloy body carries the heat of a long transfer away, the supplied cable has a USB-C end with a slip-on USB-A adapter, and no drivers are needed on Windows, macOS or Linux.

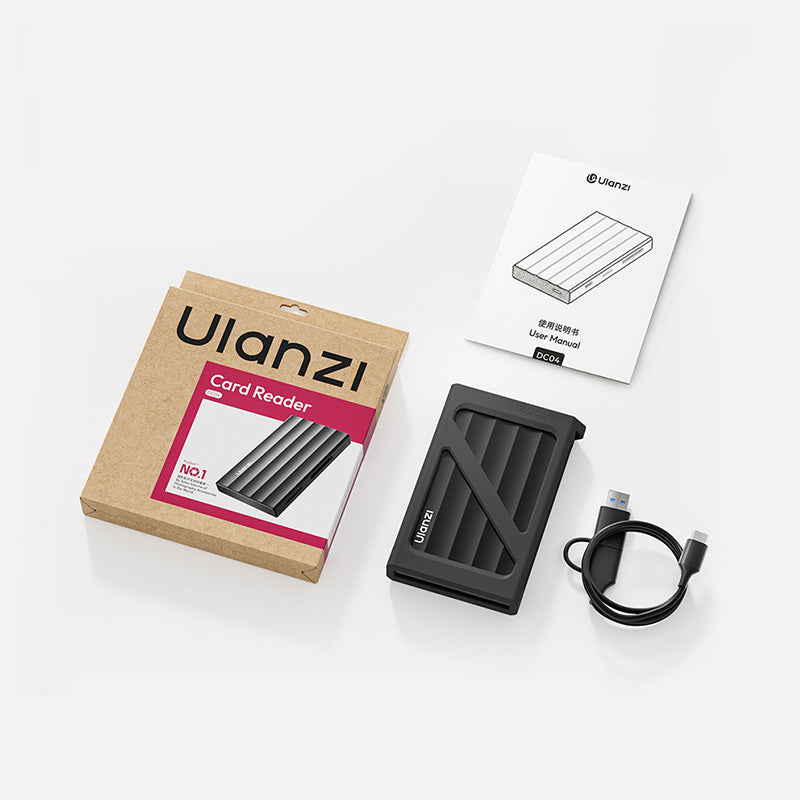

- 1× Ulanzi DC04 memory card reader
- 1× silicone protective sleeve
- 1× USB-C cable with slip-on USB-A adapter
- 1× user manual
- Brand: Ulanzi
- Model: DC04 (X156)
- Type: 4-in-1 memory card reader
- Slots: SD ×1, microSD (TF) ×1, CFexpress Type A ×1, CFexpress Type B ×1
- Supported cards: SD / SDHC / SDXC, microSD / microSDHC / microSDXC, CFexpress Type A, CFexpress Type B
- Simultaneous reading: up to three cards: microSD + SD + CFexpress Type A, or microSD + SD + CFexpress Type B; not Type A and Type B together
- Interface: USB-C (host port), cable with slip-on USB-A adapter
- Transfer standard: USB 3.2 Gen 2
- Theoretical speed, SD / microSD: up to 240 MB/s
- Theoretical speed, CFexpress Type A: up to 700 MB/s
- Theoretical speed, CFexpress Type B: up to 800 MB/s
- Maker-measured, CFexpress Type B: read from 800 MB/s, write from 700 MB/s (Lexar Professional 128 GB)
- Maker-measured, CFexpress Type A: read from 700 MB/s, write from 600 MB/s (CHIPFANCIER GOLD 256 GB)
- Maker-measured, microSD 4.0: read from 200 MB/s, write from 150 MB/s (TOPSSD 256 GB, UHS-II / U3 / A2)
- Maker-measured, SD 3.0: read from 160 MB/s, write from 90 MB/s (Kingston Canvas Go! Plus 128 GB, UHS-I / U3 / A2)
- Power input: USB-C, 5 V / 3 A max.
- Indicators: two: power and computer link
- Supported systems: Windows, macOS, Linux
- Material: aluminium alloy and plastic
- Dimensions: 104 × 63 × 13 mm
- Body weight: 100 g
- Weight with packaging: 210 g
- Color: black
