Ultimatte Smart Remote 4
SD card contains software and manual
Rack mount ears
Ultimatte Smart Remote 4 Blackmagic Design
Kód: AULTMSMTREM4XPodrobný popis

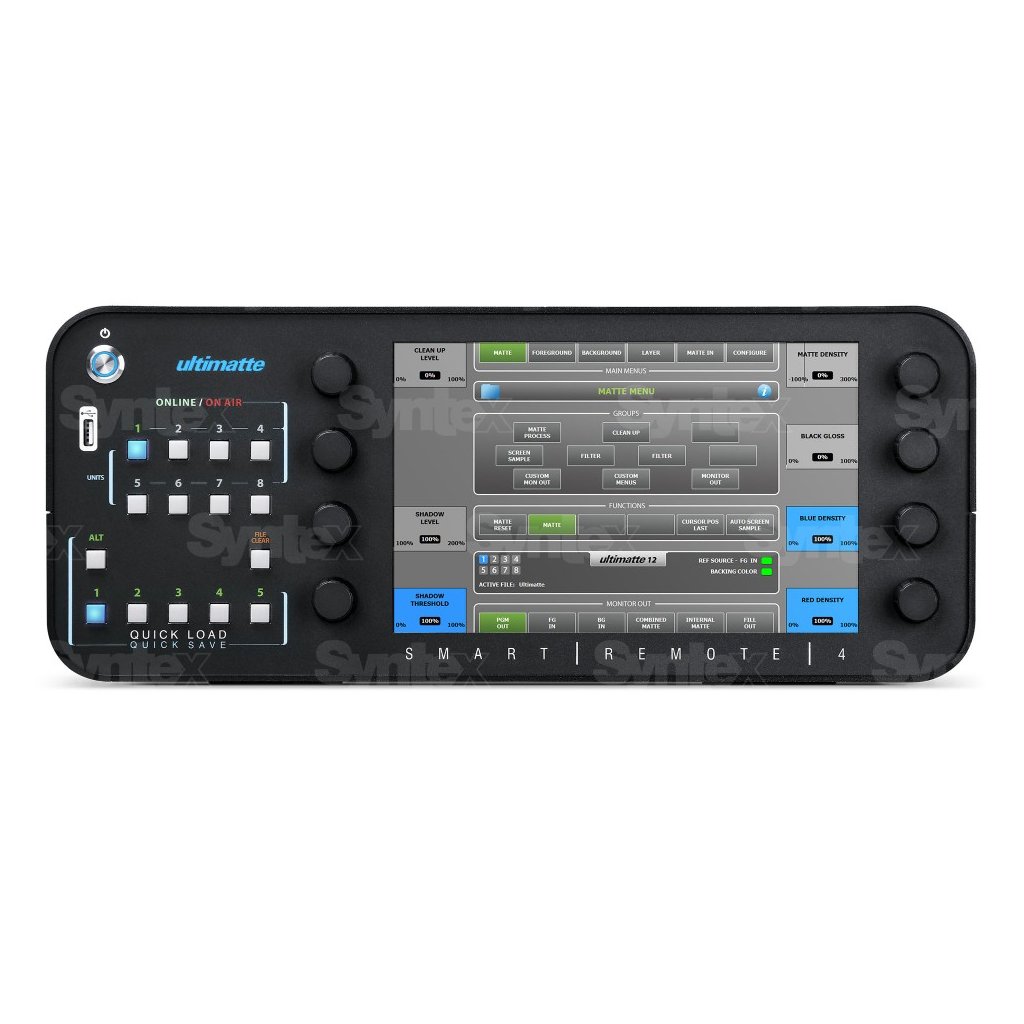

Touchscreen controller with Ethernet interface and the ability to connect up to 8 Ultimatte 12 units without the need for a router or hub. The Smart Remote 4 is equipped with buttons for direct control of important Ultimatte 12 parameters - such as loading and saving presets - as well as a touch screen for setting all other functions.
Introducing Ultimatte 12
The all new Ultimatte 12 is more than the world’s best keyer, it’s an advanced real time compositing processor designed for the next generation of broadcast graphics. Ultimatte 12 features entirely new algorithms and color science that deliver true photorealistic composites. You get incredible edge handling, greater color separation, amazing color fidelity and better spill suppression than ever before, even in dark shadow areas or through transparent objects such as windows! The high performance 12G-SDI design gives you the power to work in Ultra HD and HD with sub pixel processing for amazing image quality. Imagine presenting the weather, sports, news and entertainment in a cinematic quality environment, all composited in real time.
Live Broadcast, Television and Film Production
Add augmented reality and virtual environments to any broadcast!
Whether you’re working in broadcast news, sports, traditional television and film production, or even magazine style entertainment programming, Ultimatte 12 has the quality for incredibly life-like composites that place your talent into any scene! Ultimatte 12 can work with both fixed cameras and static backgrounds, or automated virtual set systems. You can also use Ultimatte 12 to layer computer generated augmented reality objects into a scene, complete with realistic transparency that your talent can walk behind! Ultimatte 12 is also perfect for on set pre visualization in television and film production because it lets actors and directors see the virtual sets while they’re shooting against a green screen.
When you’re working live and have multiple cameras shooting from different angles, it’s common for the green or blue screen to suffer from variations. The keyers built into live production switchers use the same keying parameters for all cameras, which complicates keying and image quality because each camera sees the green screen a little differently. Ultimatte 12 eliminates these problems with incredible new technology at an affordable price so it’s now possible to add keyers to every camera. That ensures you always get the best possible key! With the power of a dedicated keyer on every camera, Ultimatte 12 is perfect for live broadcast news, weather, sports, virtual studios and more!
Realistic Augmented Reality
Incredible new realistic layer mode for compositing colored "glass look" objects!
Adding translucent objects, such as colored or tinted glass and computer graphics, is virtually impossible with a traditional keyer. That’s because you can’t subtract a blue or green screen out of a semi-transparent colored object without changing the object’s original color. Now, with Ultimatte 12, you get a revolutionary new “realistic” layer compositing mode that lets you add tinted objects on top of the foreground image for a whole new generation of realistic translucent glass look broadcast graphics. This means that when you look through the object, or your talent walks behind it, the tinted colors are accurately preserved, making the shot look completely realistic!
One Touch Keying
Automatic scene analysis for incredibly fast keys!
When it comes to live production, you need to work fast. Ultimatte 12 features one touch keying technology that analyzes a scene and automatically sets over a 100 parameters so you get great keys without having to do a lot of extra work! The first step is to ensure your scene is well lit and that the cameras are properly white balanced, then you simply activate the auto key and Ultimatte will do all the work for you! One touch keying is dramatically faster and helps you accurately pull a key with minimum effort. That leaves your operators free to focus on the overall program with less distractions, while Ultimatte 12 takes care of the rest!
Click the File Clear button to see how Ultimatte 12 auto adjusts.
Advanced Image Processing
New algorithms and expanded internal color space!
Ultimatte 12 features new, incredibly advanced image processing algorithms and a huge internal color space. It automatically generates internal mattes so different parts of the image can be processed separately based on the colors in each area. It’s like having the power of multiple Ultimatte keyers all working together on the same image! You get fine edge detail where it’s needed the most, like on hair, and smoother transitions between colors or other objects in the scene. Everything is handled by new math and sub pixel processing that’s designed for incredible quality and clarity in both HD and Ultra HD!
Incredible Color Fidelity
Faithfully reproduce bright colors that were impossible before!
With Ultimatte 12, you get new advanced flare, edge and transition processing so you can remove the background, without affecting the colors you want to keep! What this means is you’ll be able to retain and faithfully reproduce colors that are impossible on other keyers, such as a bright yellow dress in front of a green screen! Ultimatte 12 is smart enough to isolate and treat different parts of the image separately, while also keeping the color transitions between areas smooth. You get the highest quality compositing, so the final output looks photorealistic. Unlike other keyers, Ultimatte 12 delivers crisp clear images with vibrant colors that pop!
Shadows and Transparency
Key and composite images with shadows and transparency!
The improved flare algorithms in Ultimatte 12 can remove green tinting and spill from anything, which is one of the reasons why Ultimatte 12 creates true, realistic looking virtual environments! That also means you don’t have to worry about shadows or transparent objects with reflections. Ultimatte 12 automatically samples the colors, creates seamless mattes for walls, floors and other parts of the image, and then applies the necessary corrections. Shadows are properly mapped and composited onto the new background, spill is removed, and transparent objects are handled with perfection!
Highest Quality Connections
Connect to SDI equipment in HD and Ultra HD!
1.
Redundant power
Dual independent 110-240V power supplies.
2.
USB-C
Quickly update firmwarevia USB.
3.
Ethernet
Connect Smart Remote 4 or custom control devices.
4.
GPI Trigger
Used for remote control of on air tally indicators.
5.
Keying Sources
7 SDI inputs and loop outs for background, foreground etc.
6.
Program Outputs
SDI connections for program, fill and matte outputs.
7.
Talent Reference
Connect a talent monitor so actors can see their composite.
8.
Preview Monitor
SDI inputs and outputs for connecting operator monitors
Dedicated Compositing Inputs
Ultimatte 12 features 7 different input connections with loop outputs that are used to composite different elements together. These include foreground and background, along with holdout and garbage mattes, as well as additional layer inputs for superimposing additional images over the composited image. Ultimatte 12 even lets you use sources that are not synchronized when working with static shots!
BG IN
Source input containing the new background such as a virtual set feed or matte painting.
BG MATTE IN
Used to displace opaque areas in the background so foreground elements can appear behind them.
G MATTE IN
Used when overshooting to composite a virtual set into the shot that is larger than the green or blue screen.
FG IN
Foreground input connector for attaching your source camera. This is the talent feed for your Ultimatte.
H MATTE IN
The hold out matte input is used to define areas in the image that are not to be composited.
LAYER IN
Downstream keyer input that allows you to superimpose additional sources over the foreground.
LAYER MATTE IN
This input connection is for the matte that coincides with the downstream keyer layer input.
PROGRAM OUT
Displays the final output with background, foreground and layers all composited together.
Advanced 12G-SDI
Designed for Ultra HD and compatible with everything!
The advanced 12G-SDI connections on Ultimatte 12 go far beyond those found on other keyers. Only 12G-SDI gives you high frame rate Ultra HD via a single BNC connection that also plugs into all of your regular HD equipment! That means Ultimatte 12 is compatible with virtually all SD, HD, 3G, 6G and 12G-SDI equipment, and supports all HD and Ultra HD formats up to 2160p60! You can use Ultimatte 12 with your HD cameras today and switch to Ultra HD when you’re ready!
Ultimatte Smart Remote 4
Control up to 8 Ultimatte units with one remote!
Ultimatte Smart Remote 4 is a touchscreen remote that connects via Ethernet to control Ultimatte 12. It can be used on the desktop or rack mounted with other equipment. Up to eight Ultimatte 12 units can be daisy chained together and connected to the same Smart Remote, so you don’t have to worry about adding a video router or hub! Smart Remote 4 features physical buttons so you can switch and control any attached Ultimatte 12. There are also buttons for quickly loading and saving presets, along with a touchscreen that gives you total control over every parameter. It’s easy to design your own custom control solutions for Ultimatte 12 because it uses a simple, open text based protocol. You can even Telnet into Ultimatte 12 over your network, so you can develop and test custom control solutions.
Connections
Software Updates
2 x USB 2.0 and 1 x USB 3.0 for firmware updates.
SVGA Output
SVGA output allows for graphics to be viewed on an external VGA monitor.
Ethernet
2 x 10/100 Mbps Ethernet ports to connect to LAN networks for controlling Ultimatte 12.
RS-422
2 x for controlling Ultimatte 11.
Product Specifics
Rotary Knobs
8 x rotary knobs for adjusting parameters.
Unit ID Buttons
8 x buttons. Illuminated blue for active.
Unit ID LED Indicators
Illuminated green for on line and red for on air.
Alt + Quick Load/Save Buttons
Alt button plus 5 buttons for saving files into volatile RAM.
Quick Load/Save Buttons
5 x buttons for loading files stored in volatile RAM.
File Clear Button
1 x button for One Touch Keying.
Alt + File Clear
Alt button plus file clear button for One Touch Keying using some user defined presets.
Customizable Menus
4 x menus for building your own menu with your most used controls.
LED Control
User adjustable brightness control for LEDs.
Fan Speed Control
User adjustable.
Software
Software Updates
Software updates via USB to load Smart Remote utility.
Control
Touchscreen
10.1 inch 1280 x 800 colour display panel. Integrated capacitive touchscreen with onscreen controls for settings and navigating menus.
Operating Systems
Windows 10, 64-bit.
Power Requirements
Power Supply
100 - 240V AC.
Power Usage
24W
Physical Installation
Adjustable desk mounting option.
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 35°C (32° to 95°F)
Storage Temperature
-20° to 60° C (-4° to 140° F)
Relative Humidity
0% to 90% non-condensing.
Warranty
12 Month Limited Manufacturer's Warranty.
