Viltrox DC-X3 with SDI Viltrox

Podrobný popis

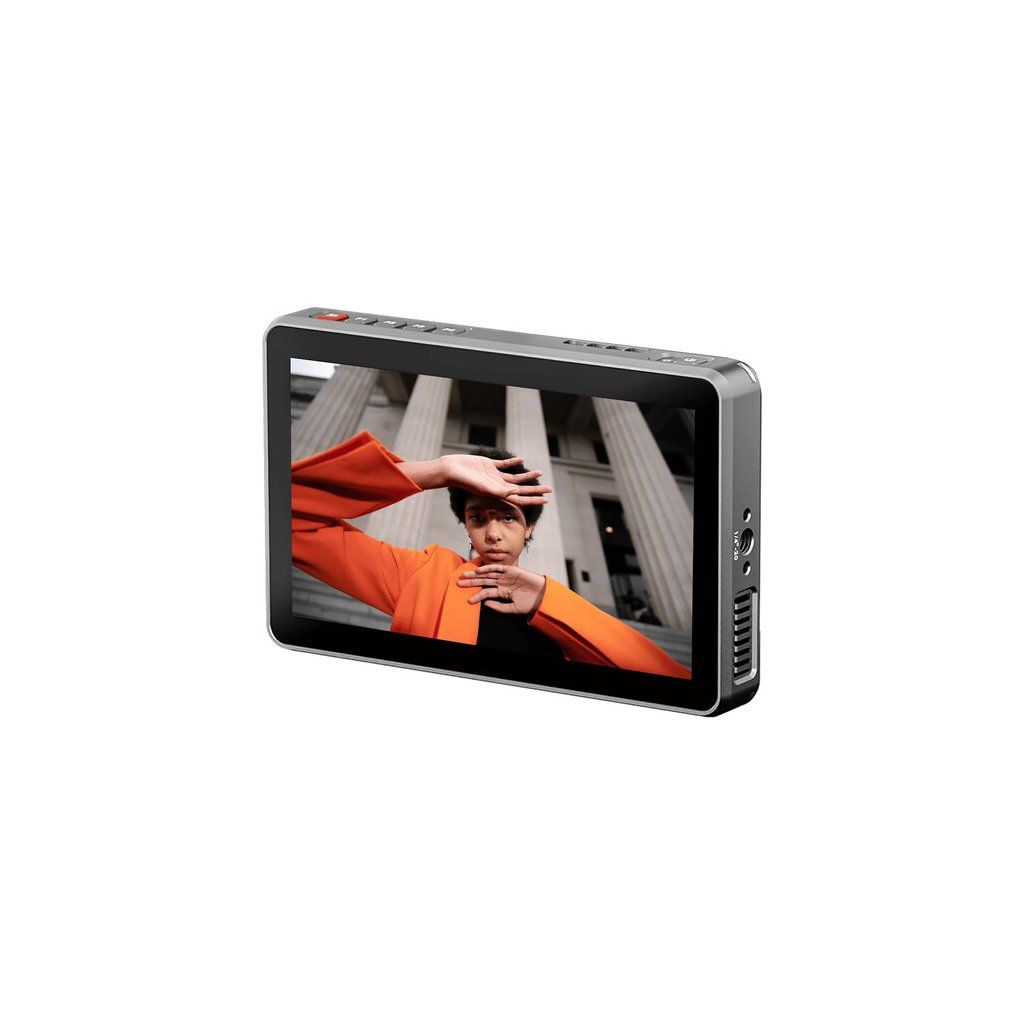

The Viltrox DC-X3 is a high-brightness 6-inch touchscreen on-camera monitor designed for professional video production. With a full HD 1920x1080 resolution, 2000-nit brightness for daylight visibility, and support for HDMI and 3G-SDI input/output, it ensures precise monitoring. Features like 3D LUT import, L-series battery compatibility, and audio monitoring enhance its versatility for filmmakers.

RELIABLE VIEWING EVEN OUTDOORS

VILTROX DC-X3

A 6-inch Full HD touchscreen monitor with 2,000 nits of brightness for working in direct sunlight and in demanding production environments. The DC‑X3 combines HDMI and 3G‑SDI inputs and a pass-through output in a compact aluminum body.

Features such as waveform, histogram, zebra, peaking, and the ability to import custom 3D LUTs bring precise image control directly to the camera position.

6″ FullHD 2,000nits HDMI + 3G-SDI

TOUCH CONTROL AND QUICK KEYS

The full-screen touchscreen and programmable shortcuts allow you to quickly access the tools that are essential during a shoot. A resolution of 1920 × 1080, a 60 Hz refresh rate, and a wide 160° viewing angle make it easy to accurately assess focus and composition.

2,000 NITS FOR DAYLIGHT

High brightness of 2000 nits helps maintain a readable preview even outdoors. The IPS panel covers 100% ±3% sRGB/Rec.709, so the monitor can be used for continuous color and exposure checks right on set.

HDMI AND 3G-SDI IN ONE MONITOR

The DC‑X3 offers both HDMI and 3G‑SDI inputs and outputs and supports signals up to 4K at 30 Hz. This makes it easy to integrate into a camera chain with both HDMI and SDI devices; a 3.5mm headphone output enables audio monitoring.

• 1× Viltrox DC-X3 monitor
• 1× hard carrying case
• 1× ball head for mounting
• 1× NP-F550 battery
• 1× quick-release lens hood
• 1× screen protector
• 1× HDMI cable
• 1× Mini HDMI cable
• 1× USB-C cable
• 1× user manual and warranty card

• Display size: 6″ IPS, touchscreen
• Resolution: 1920 × 1080 (Full HD)
• Aspect ratio: 16:9
• Brightness: 2000 nits
• Contrast ratio: 1000:1
• Refresh rate: 60 Hz
• Viewing angle: 160°
• Color gamut: 100% ±3% sRGB/Rec.709
• Input: HDMI, 3G-SDI
• Output: HDMI, 3G-SDI
• Supported signal: up to 4K at 30 Hz
• LUT import and updates: USB
• Audio output: 3.5mm headphone jack
• Power: DC 12–18 V / 2 A, USB-C ≥9 V / 3 A, NP-F battery
• Dimensions: 155.4 × 98.4 × 30 mm
• Weight: approximately 350 g
• Manufacturer model: DC-X3
