x Brandon Li All-in-One Mobile Video Kit Full Quick Release Co-design Edition 4596 SmallRig
Kód: A4596XPodrobný popis
SmallRig x Brandon Li All-in-One Mobile Video Kit Full Quick Release Co-design Edition 4596 is the perfect one-stop solution for professional smartphone video shooting. The kit includes a universal mobile phone cage, a rotatable side handle with M.2 SSD enclosure and wireless remote controller, a 67mm universal filter adapter, a magnetic 67mm VND 2-32 (1-5 Stop), a 4-In-1 USB-C docking station, an Arca-Swiss quick release adapter, a power bank holder, and other accessories. The universal cage supports 67mm magnetic filters, providing anti-glare solutions for most mobile phones and reducing filter light leakage. The rotatable side handle with wireless control integrates multiple functions and features an enclosure for M.2 SSD to support direct external recording. The detachable wireless control enables remote shooting, focusing, and zooming in/out. Stepless rotation of the handle adapter allows instant switching between the side and top handle modes, while the quick release mechanism on both sides enables swift, tool-free assembly and adjustment.
1. Professional solution for mobile phone video shooting, featuring universal quick-release interfaces for efficient stability.
2. Utilizes a universal mobile video cage that supports 67mm magnetic filter attachments, offering customized anti-glare solutions for various phone models.

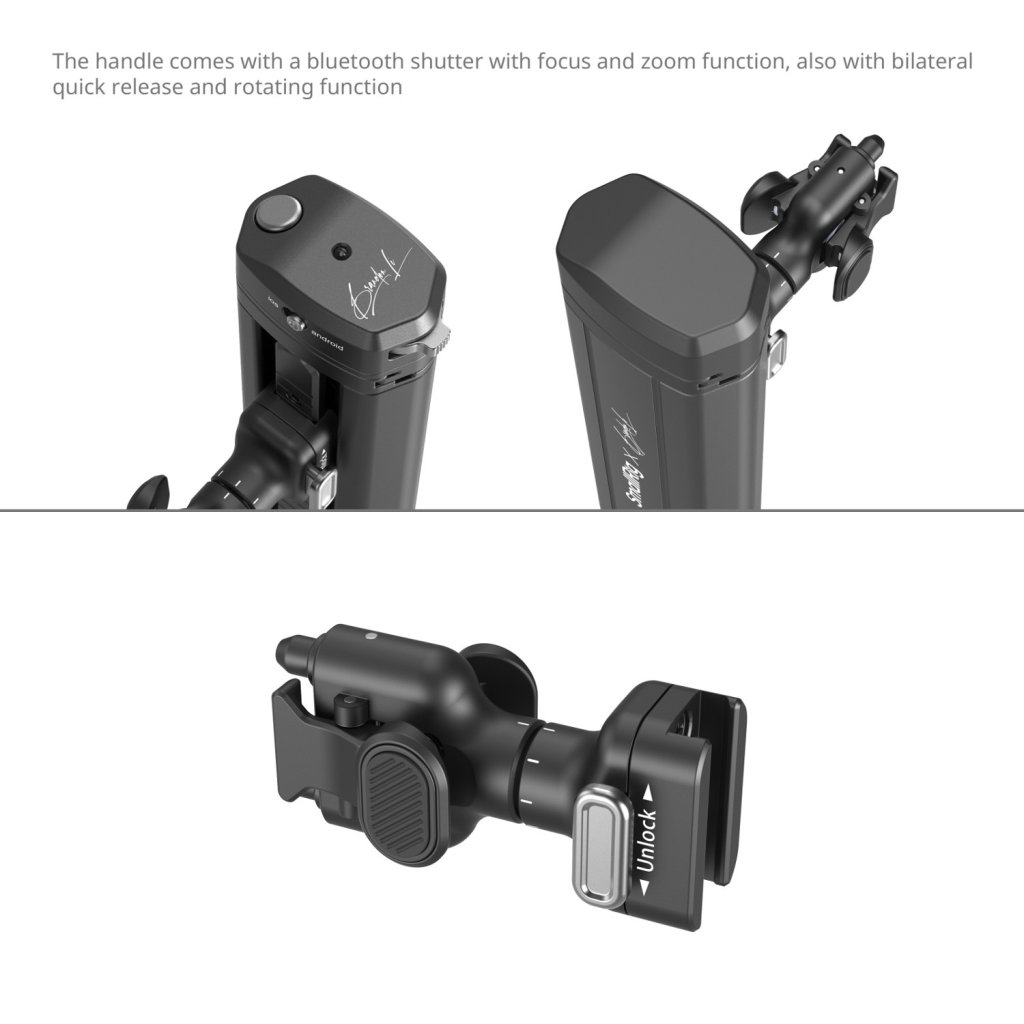

3. The side handle is equipped with a wireless remote control module for shutter release and recording, half-press the shutter for focus and zoom control.

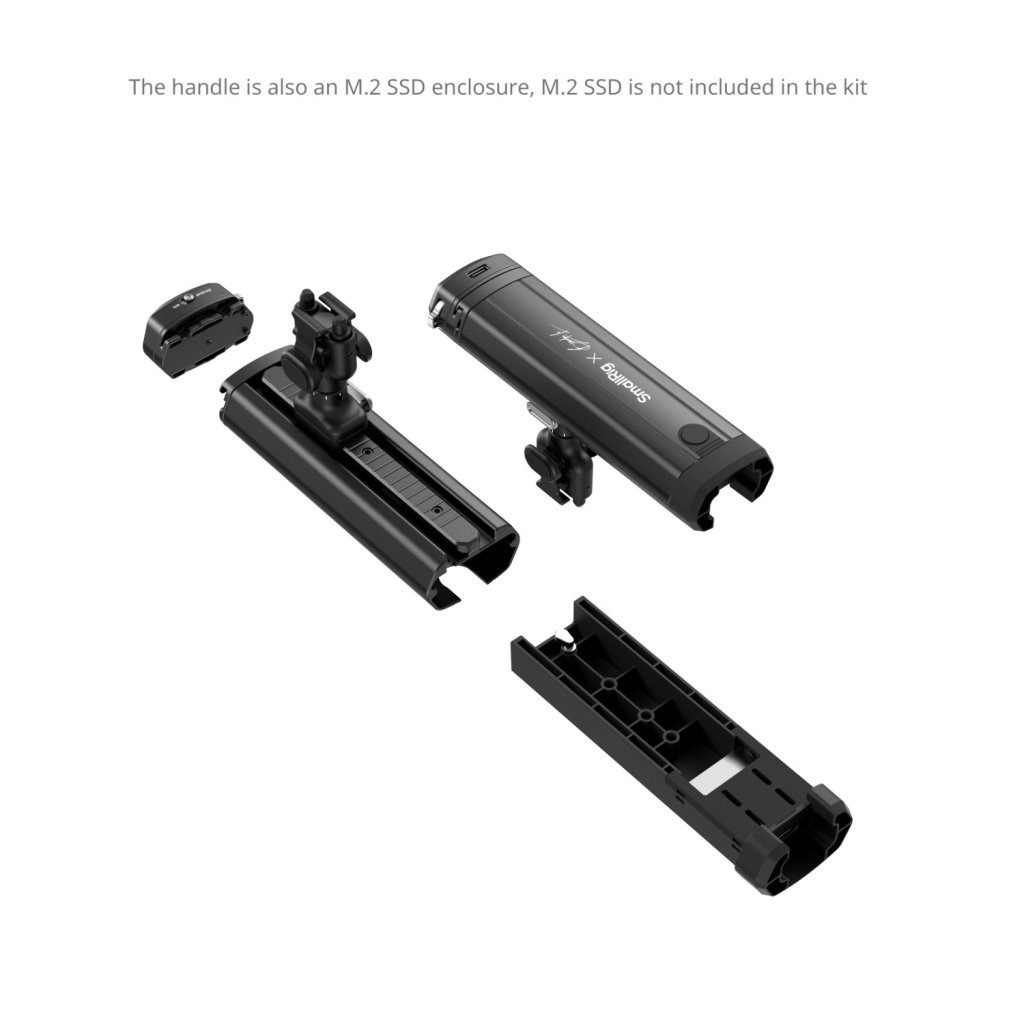

4. The side handle can accommodate an M.2 SSD for mobile 4K ProRes video recording.
5. The side handle features infinite rotation with locking at any angle and seamless switching between the side handle and top handle modes in a second.
6. Quick release mechanism on both sides of the side handle adapter enables swift, tool-free assembly and disassembly.
SmallRig x Brandon Li All-in-One Mobile Video Kit Full Quick Release Co-design Edition 4596 is the perfect one-stop solution for professional smartphone video shooting. The kit includes a universal mobile phone cage, a rotatable side handle with M.2 SSD enclosure and wireless remote controller, a 67mm universal filter adapter, a magnetic 67mm VND 2-32 (1-5 Stop), a 4-In-1 USB-C docking station, an Arca-Swiss quick release adapter, a power bank holder, and other accessories. The universal cage supports 67mm magnetic filters, providing anti-glare solutions for most mobile phones and reducing filter light leakage. The rotatable side handle with wireless control integrates multiple functions and features an enclosure for M.2 SSD to support direct external recording. The detachable wireless control enables remote shooting, focusing, and zooming in/out. Stepless rotation of the handle adapter allows instant switching between the side and top handle modes, while the quick release mechanism on both sides enables swift, tool-free assembly and adjustment. Also, the kit comes with an Arca-Swiss quick-release adapter, supporting quick attachment to the cage and professional tripods. The cage kit provides multiple standard 1/4"-20 threaded holes and cold shoe mounts, supporting the free combination of accessories, and providing more possibilities for shooting. The 4-in-1 USB-C docking station offers a high-power PD 100W charging port, a USB-C 3.1 port, and two USB-C 2.0 ports. When used for mobile videography, it enables simultaneous charging, ProRes video storing, and utilization of a USB-C microphone.
Compatible With
1. The cage is compatible with mobile phones ranging from 57mm (2.2in) to 85mm (3.3in) in width, allowing for use with phone cases.
2. When magnetically connecting a mobile phone, it is recommended to use it with a mobile phone case featuring MagSafe to enhance the magnetic attraction.
3. It is not recommended to use magnetic attraction in intense sports scenarios.
4. The power bank holder is compatible with power banks ranging from 53mm (2.1in) to 81mm (3.2in) in width.

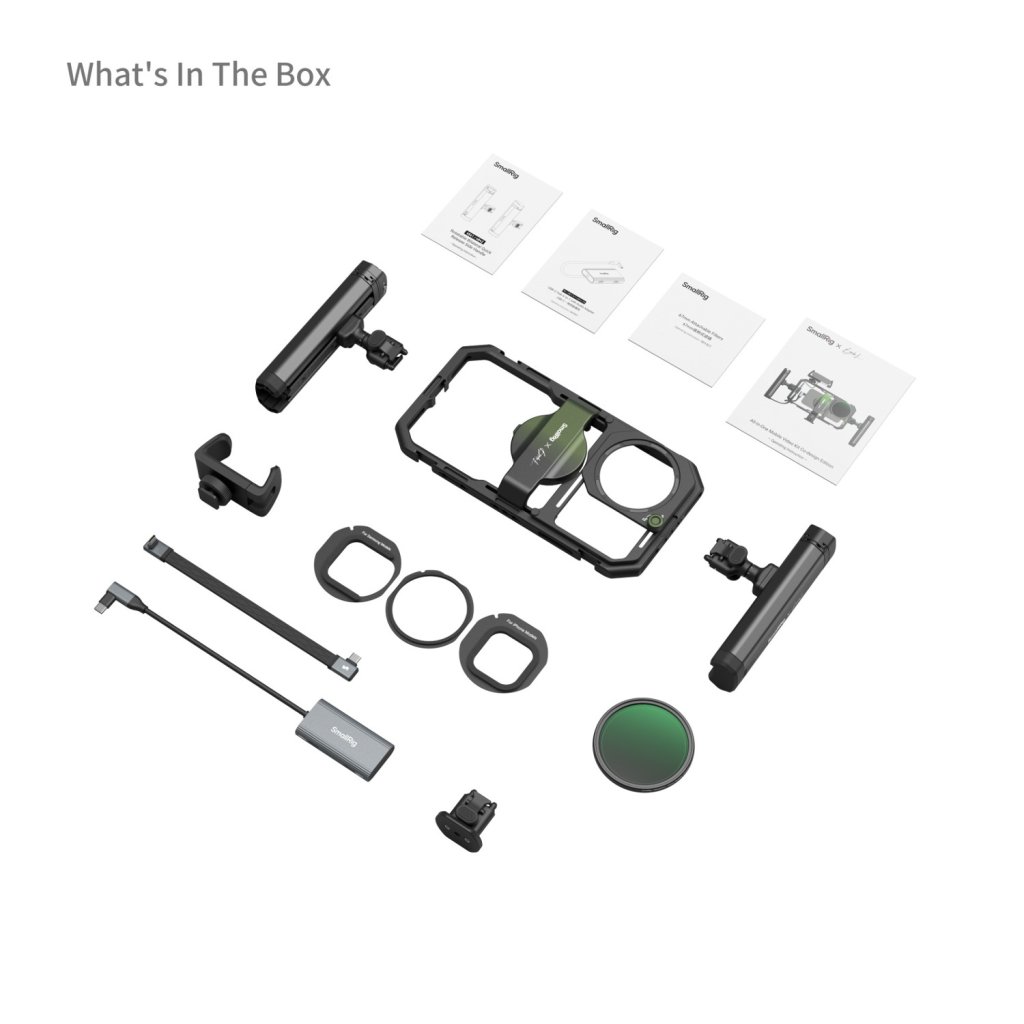

Universal Phone Cage x 1
67mm Magnetic Filter Adapter x 1
67mm VND 2-32 (1-5 Stop) x 1
Rotatable Bilateral Side Handle with M.2 SSD Enclosure and Wireless Control x 1
Rotatable Bilateral Side Handle x 1

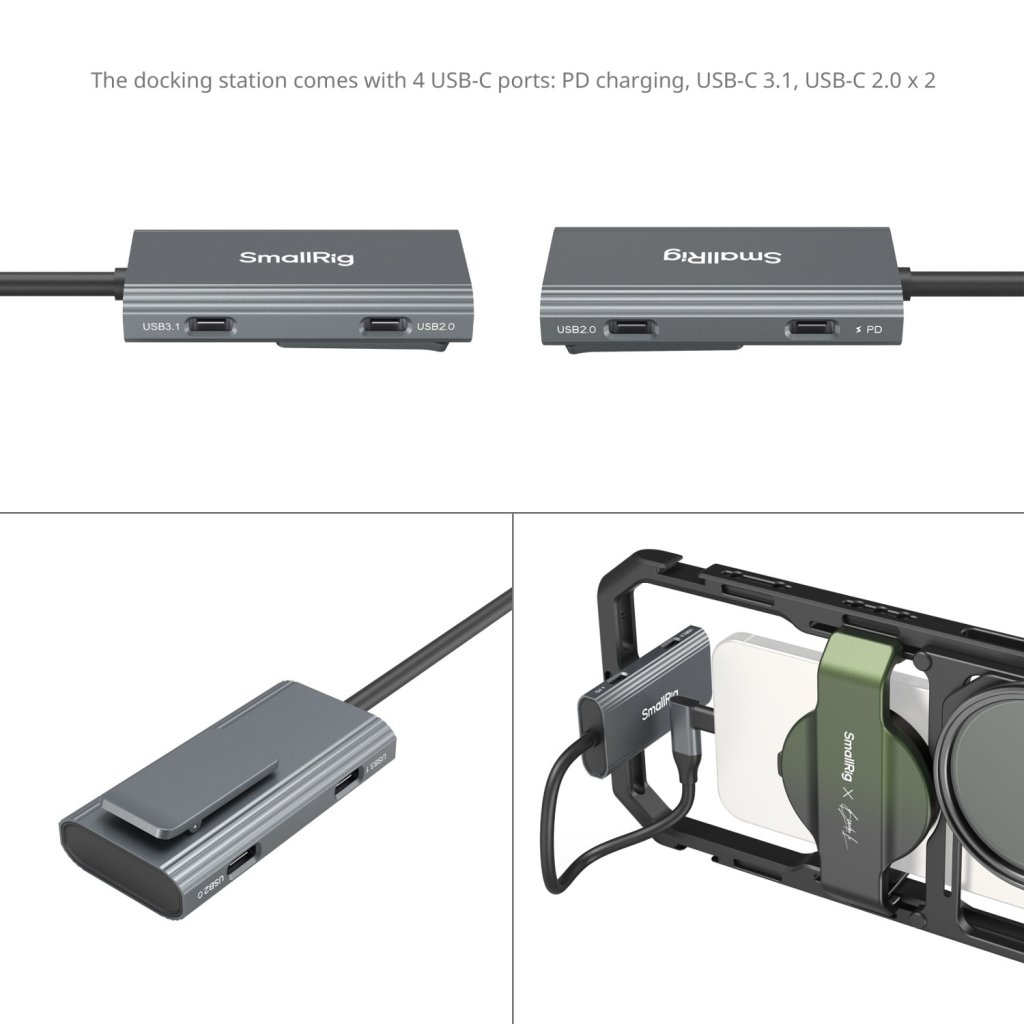

4-in-1 Dock Station (USB-C PD / USB-C 3.1 / USB-C 2.0) x 1

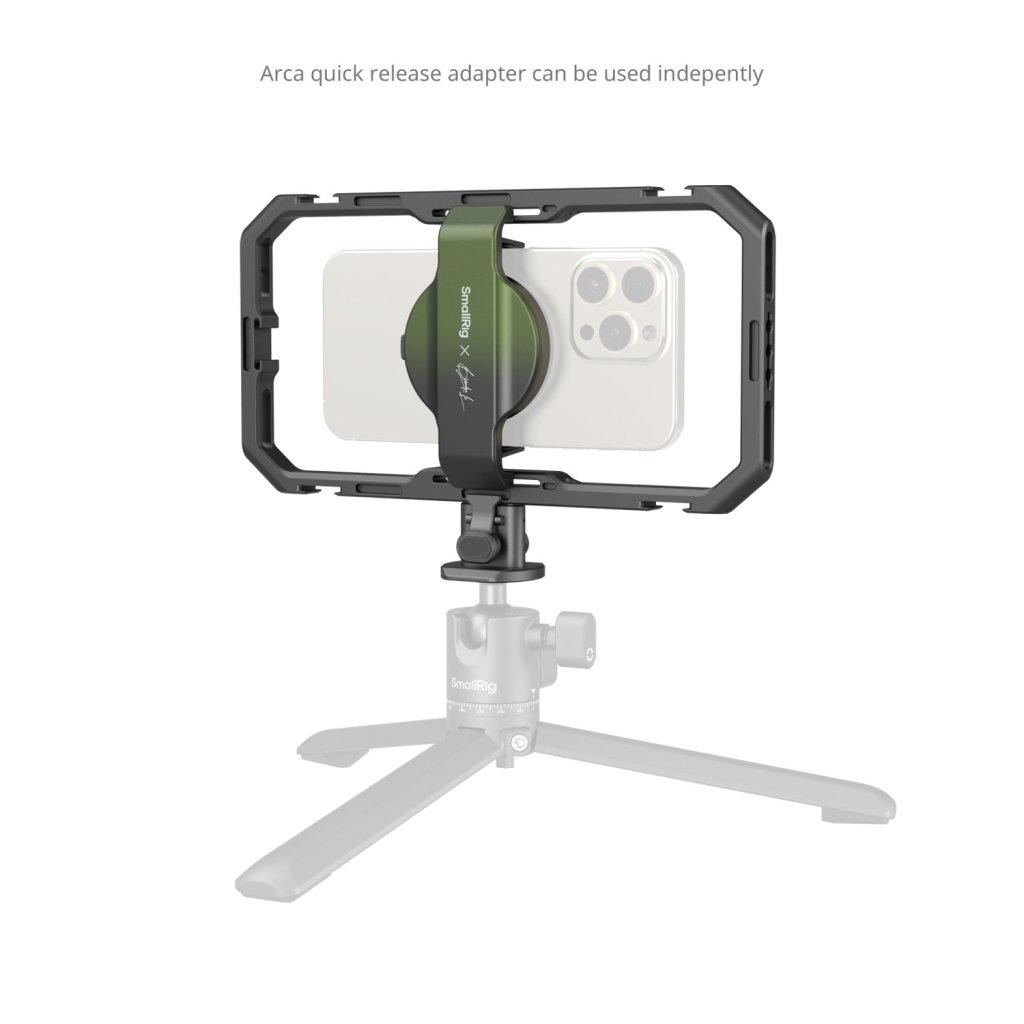

Arca-Swiss Quick Release Adapter x 1

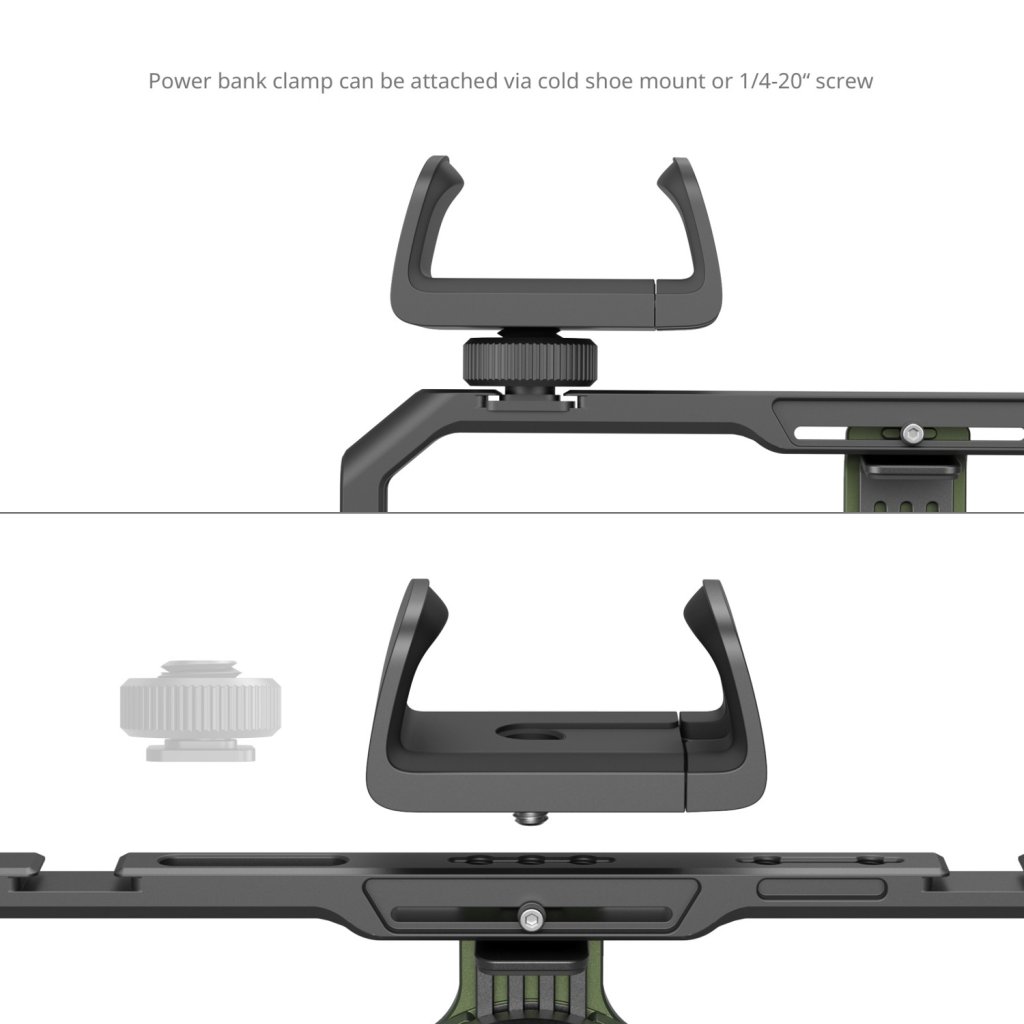

Power Bank Holder x 1
Multifunctional Data Cable x 1
Velcro Ties x 1
User Manual x 4
Photography Bag x 1
Product Dimensions: 236 x 122 x 31mm / 9.3 x 4.8 x 1.2 inch (Cage); 148 x 81 x 42mm / 5.8 x 3.2 x 1.7inch (Handle)
Package Dimensions: 295 x 130 x 225mm / 11.6 x 5.1 x 8.9 inch
Product Weight: 1156 ± 50g / 40.8 ± 1.8oz
Package Weight: 1571 ± 50g / 55.4 ± 1.8oz
Material(s): Aluminum Alloy, Plastic, Silicone, Magnet, Copper
Specifications of M.2 SSD Enclosure:
Operating Protocol: NVMe V1.3
Built-in Interface: M.2 M-Key
USB Protocol: USB 3.1-C
Standby Power Consumption: 0.38W
Compatible M.2 SSD: 2230, 2242, 2260, 2280
Transfer Rates: SuperSpeed (10Gbps) / Hi-Speed (5Gbps) / Full-Speed (480Mbps) / Low-Speed (12Mbps)
Indicator Light Status: Blue LED Light: Always on (power on / sleep / safe ejection); flashes (read/write data)
Specifications of Wireless Remote Controller:
Operating Power Consumption: ≤3mW
Standby Power Consumption: ≤0.04mW
Battery: 145mAh
Voltage: 3.7V
Current: 2mA
Operating Temperature: -30℃ to 60℃ / -22°F to 140°F
Wireless Control Distance: 10.0m / 32.8ft
Wireless Frequency: 2.4G Hz
Specifications of 4-in-1 Dock Station:
Standby Power Consumption: ≤0.2W
USB-C Ports: PD Charging / USB-C 3.1 / USB-C 2.0 x 2, Mobile Input
PD Charging: 20V, 5A
USB-C 3.1: 5V,3A;USB-C 3.1 10Gbps, ≥750MB/s;USB-C 3.0 5Gbps, ≥350MB/s
USB-C 2.0: 5V, 2A;480Mbps, ≥35MB/s
Operating Temperature: -20℃ to 50℃ / -4°F to 122°F
