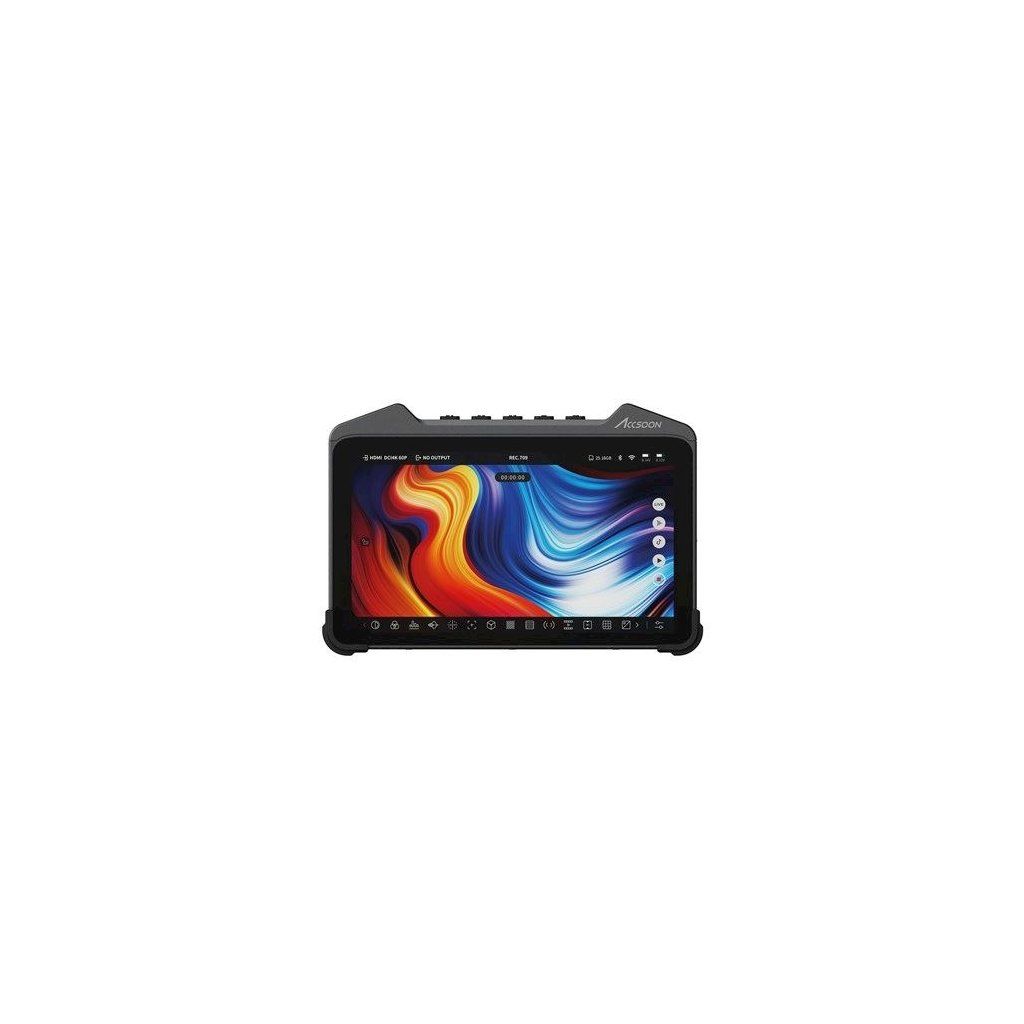

Accsoon CineView M7 is a 7-inch touchscreen monitor for camera rigs, combining color-accurate viewing, 4K signal processing and on-set exposure tools. HDMI 2.0 and 3G-SDI inputs and outputs let it serve as a viewing monitor and part of a production signal chain. It processes DCI 4K up to 60 fps and converts between HDMI and SDI as needed; SDI supports up to 1080p60. On set, the calibrated Full HD display offers 1000-nit brightness, with 1D/3D LUT, waveform, false color, focus peaking and other monitoring tools. The Android system extends workflows with Accsoon SEE apps, recording, streaming and control of compatible cameras. Power it from NP-F batteries, the DC input or USB-C PD.

Professional Camera Monitor

Confidence in every shot

A 7-inch touchscreen monitor with HDMI 2.0 and 3G-SDI, DCI 4K60 processing, and precise tools for exposure, color, and focus. It is designed for on-set monitoring, recording, and streaming.

7″ Full HD1000 nitsHDMI + 3G-SDIHDMI DCI 4K60NP-F / USB-C PD

Image monitoring with precise tools

A calibrated 7-inch Full HD display with 1,000 nits of brightness and a 1,000:1 contrast ratio keeps the image readable even in challenging lighting conditions. Waveform, false color, focus peaking, zebra, and 1D/3D LUT support help you assess exposure, color, and sharpness right on set.

4K Input, HDMI and SDI Conversion

HDMI 2.0 handles input and output up to DCI 4K60. 3G-SDI supports input and output up to 1080p60. The M7 can convert between HDMI and SDI, allowing you to connect sources and monitors with different interfaces within a single production workflow.

Setup Options for Different Shooting Scenarios

The monitor can be powered via the DC input, USB-C PD 3.0, or compatible NP-F550, NP-F750, and NP-F970 batteries. The Android system with access to apps expands functionality to include recording, playback, and live streaming; USB 3.0 and an SD card slot support mobile media workflows.

Technical Specifications

• Display: 7″ LCD, 1920 × 1080, 323 PPI, 16:9 aspect ratio
• Brightness and contrast: 1000 nits, 1000:1, 176° viewing angle
• Color: factory calibration, 1D LUT up to 4096 points, 3D LUT up to 127 points
• Inputs and outputs: HDMI 2.0 and 3G-SDI; HDMI DCI/UHD 4K up to 60p; SDI up to 1080p60
• Power: DC 6–16.8 V, USB-C PD 3.0, NP-F550/750/970 battery
• Audio: 3.5 mm microphone input and headphone output; power consumption 12–28 W
• Construction and Dimensions: aluminum alloy; 182.2 × 120.7 × 31.5 mm; 476 g

CineView M7 is a wired monitor without an integrated CineView wireless transmitter or receiver. Wi-Fi serves network functions and streaming. Available control depends on the camera and firmware. IP control supports Sony FX6 and, with current firmware, Canon EOS C50, C70, C80 and C400; C70 requires an external network adapter. Batteries, power supplies, signal cables and the cage with sunhood are sold separately.

• Accsoon CineView M7 × 1
• User manual × 1

• Display: 7″ LCD, 1920 × 1080, 323 PPI, 16:9
• Brightness / contrast: 1000 nit / 1000:1
• Viewing angle: 176° / 176°
• Backlight: LED, edge-lit
• Calibration: factory calibrated, user-adjustable
• LUT: 1D Cube ≤4096; 3D Cube ≤127
• HDMI input / output: HDMI 2.0, DCI 4K (4096 × 2160) / UHD (3840 × 2160) ≤60p; 1080p ≤60p; 1080i / 720p
• SDI input / output: 3G-SDI, 1080p ≤60p / 1080i; BNC
• CineView wireless video: no integrated TX/RX
• DC input: 6–16,8 V, ≥3 A, 5,5 × 2,1 mm, centre positive
• USB-C power input: PD 3.0: 9 / 12 / 15 V, 3 A
• USB-C power output: 5 V / 2 A maximum
• Batteries: 2 × NP-F550 / NP-F750 / NP-F970
• Battery exchange: hot swap with DC power connected
• Power consumption: 12–28 W
• Microphone input: 3,5 mm TRS; 16 bit / 48 kHz
• Headphone output: 3,5 mm CTIA / Bluetooth headphones
• Storage: SD / USB 3.0
• Operating system: Android
• Housing: aluminium alloy
• Cooling: active + passive
• Mounting: 2 × 1/4″-20
• Operating temperature: −10 to +40 °C
• Dimensions: 182,2 × 120,7 × 31,5 mm
• Weight: 476 g
